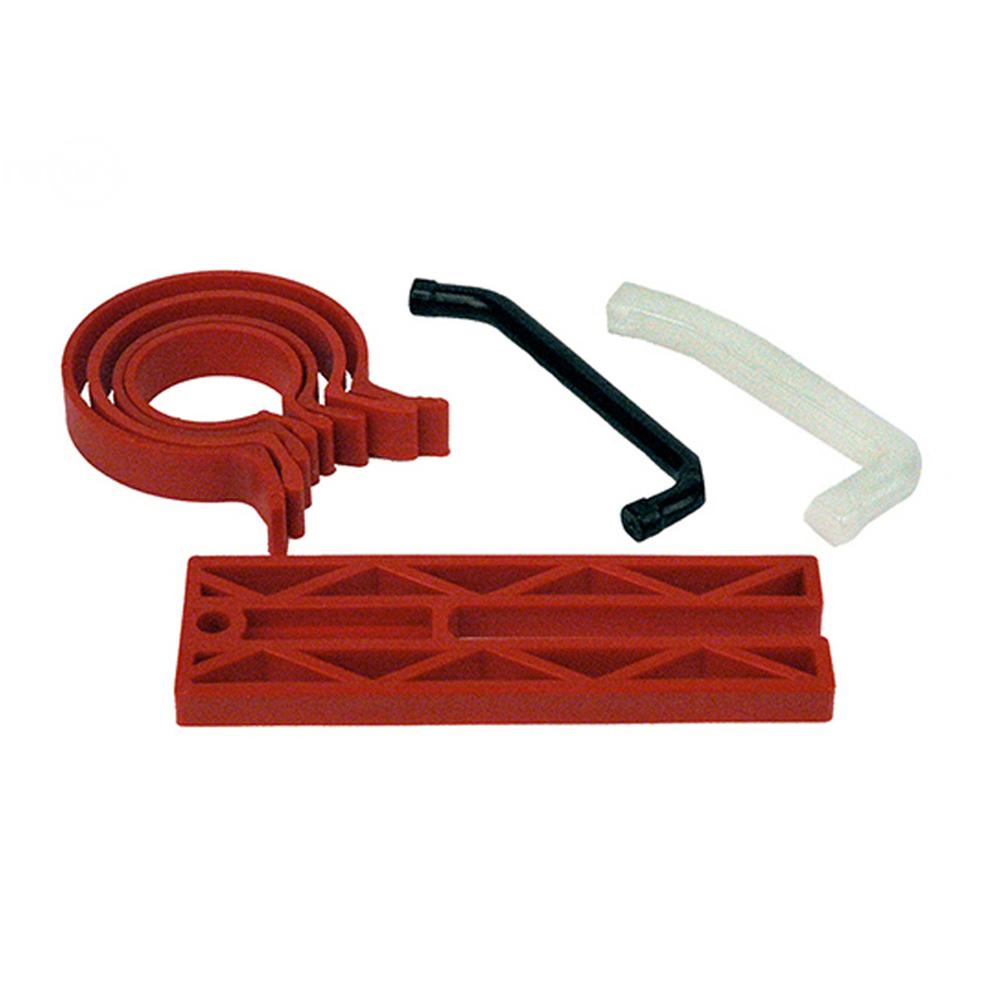

502507001 Cylinder Ring Compressor Tool Kit 34-60MM Fits Husqvarna Fits Homelite
502507001 Cylinder Ring Compressor Tool Kit 34-60MM Fits Husqvarna Fits Homelite
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
New Aftermarket Replacement Cylinder Piston Ring Compressor Tool Kit
Designed For: Small Engines; Saws, Blowers, Edgers, Trimmers, Tillers and More!
Fits Husqvarna, Fits Stihl, Fits Echo, Fits Jonsered, Fits Craftsman, Fits Homelite
Tech Info:
Includes Piston Support Block and Piston Stops
4 Sizes of Clamps - Repairs Piston Ring Diameters 34mm thru 60mm
Instructions:
Place gasket on cylinder base, then slide the flat plate with the slot in it, from front straddling the rod
Then install your piston bearing pin and clips and rings
Select the correct red band to compress the rings leaving the top 1/8" of the piston exposed.
It is suggested to lube the cylinder with a small amount of premix oil, then slide the cylinder over the piston and install screws.
Replaces Part Numbers:
Fits Rotary 14626
Fits Husqvarna 502 50 70-01, 502507001
Please Consult Your Service Manual and Verify Your Original Part Number(s) Before Ordering.
Models This Part Fits:
Top-End Engine RebuildsAdditional Information:
Piston Ring Assembly Tool Kit. Useful for assembling pistons and cylinders. 4 Sizes of clamps. Give yourself a third hand with this kit. This kit will compress piston rings ranging from 30mm to 60mm in diameter. Includes a piston support block and piston stop. Place gasket on cylinder base, then slide the flat plate with the slot in it, from front straddling the rod. Then install your piston bearing pin and clips and rings. Select the correct red band to compress the rings leaving the top 1/8" of the piston exposed. We suggest you lube the cylinder with a small amount of premix oil, then slide the cylinder over the piston and install screws. Piston Ring Assembly ToolReference Numbers:
502 50 70-01Makes This Part Fits:
Shop Husqvarna Wholesale PartsProduct Category:
Lawn & Garden Replacement PartsProduct Group:
Product Sub Group:
