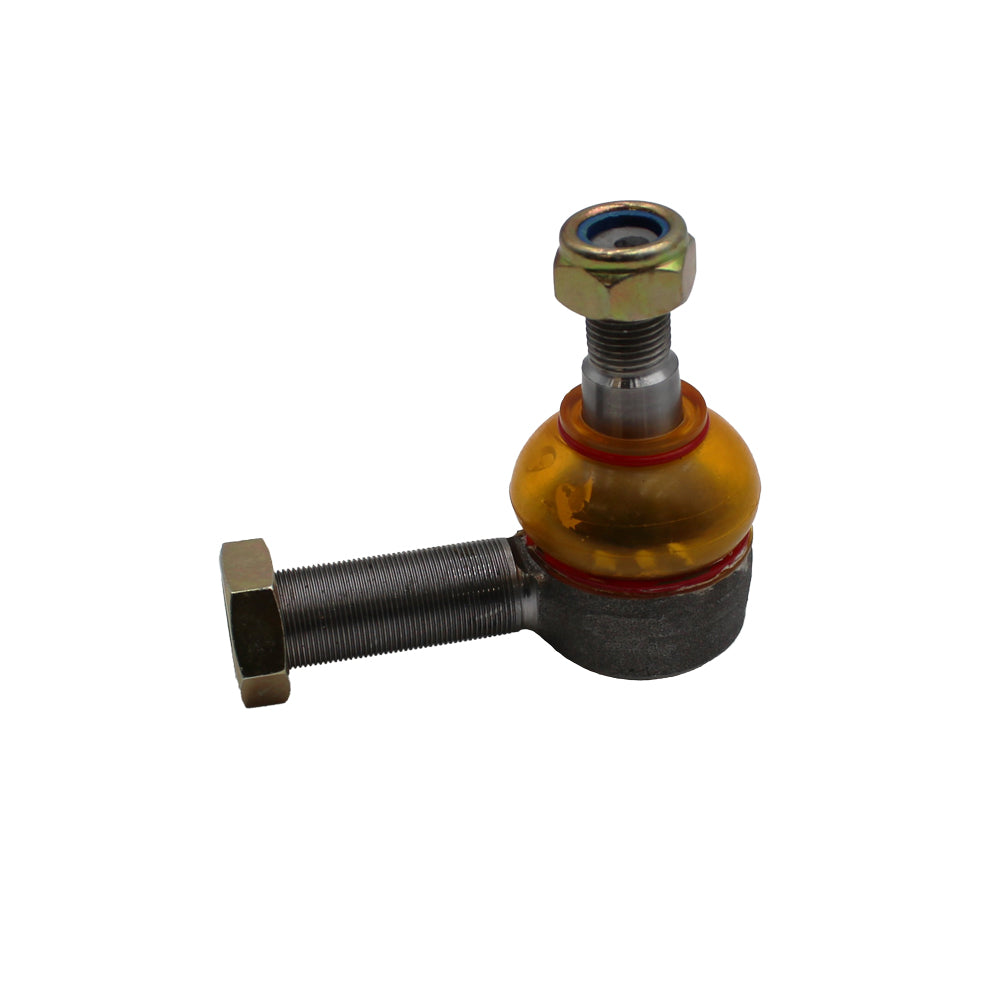

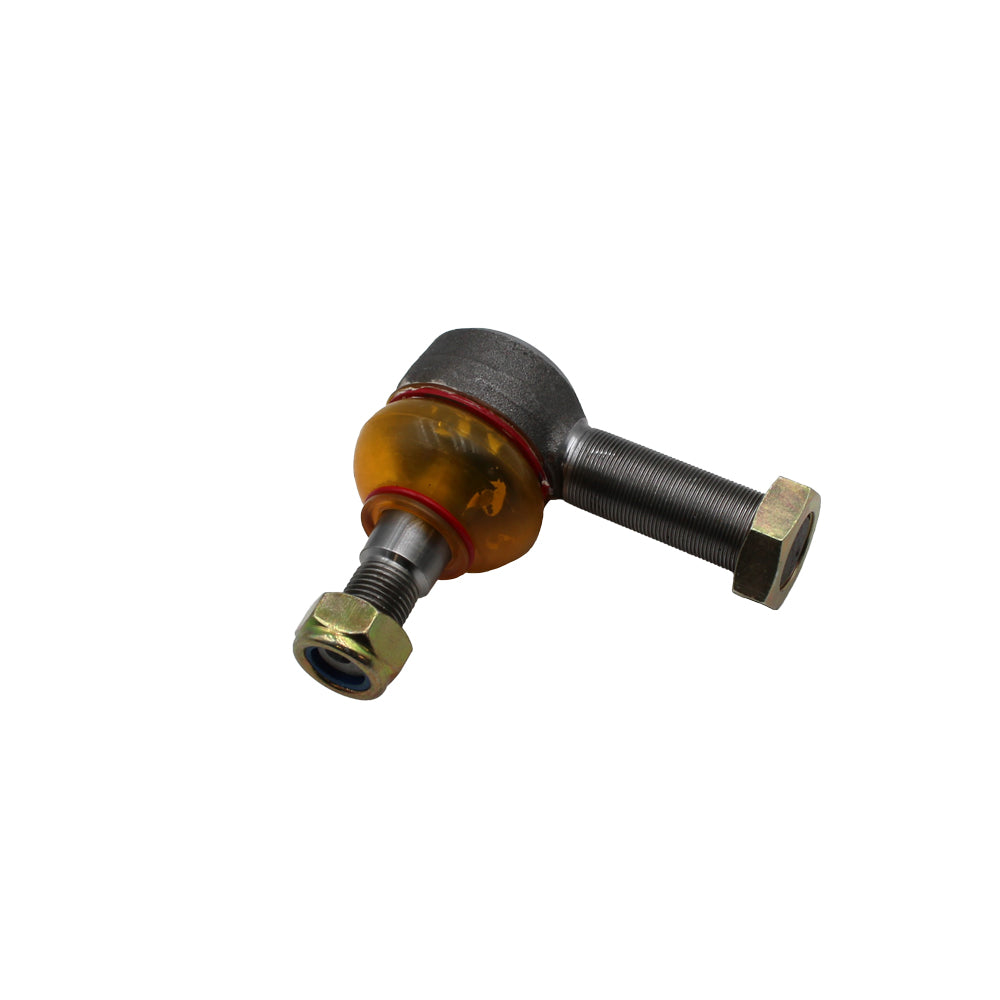

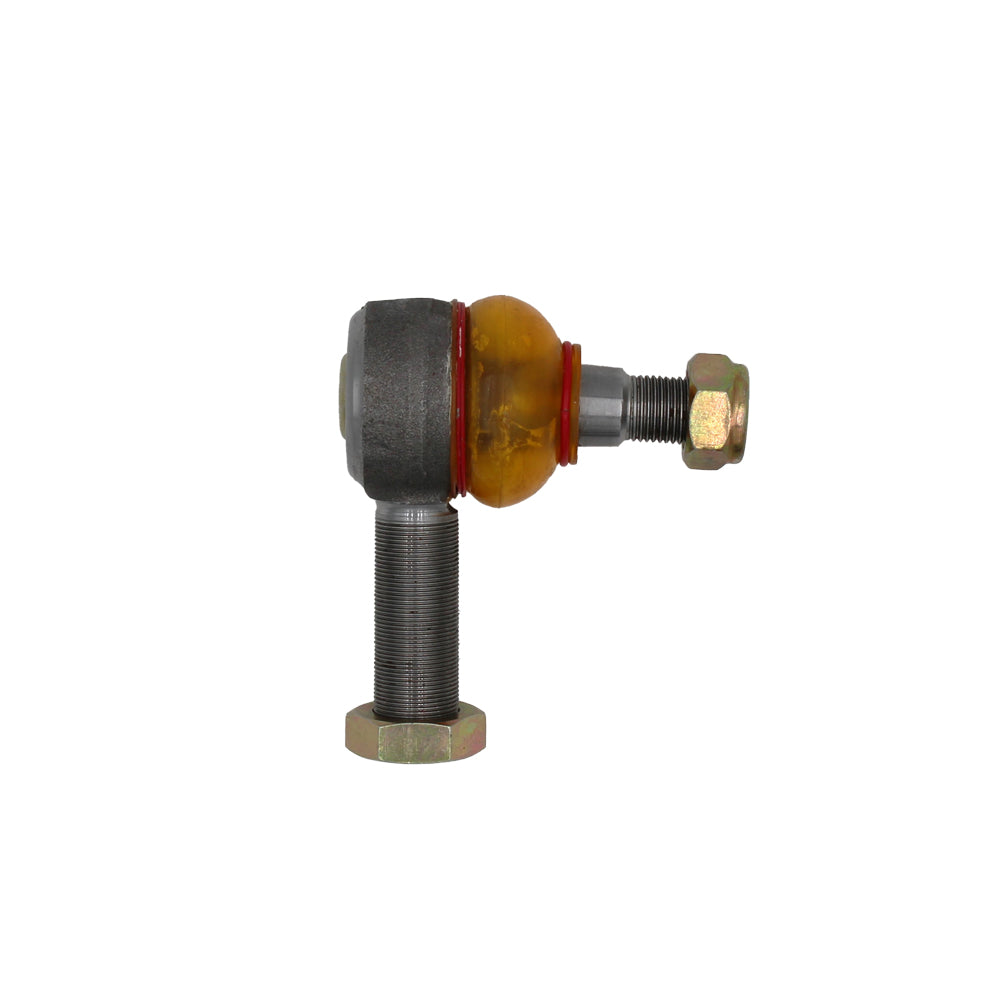

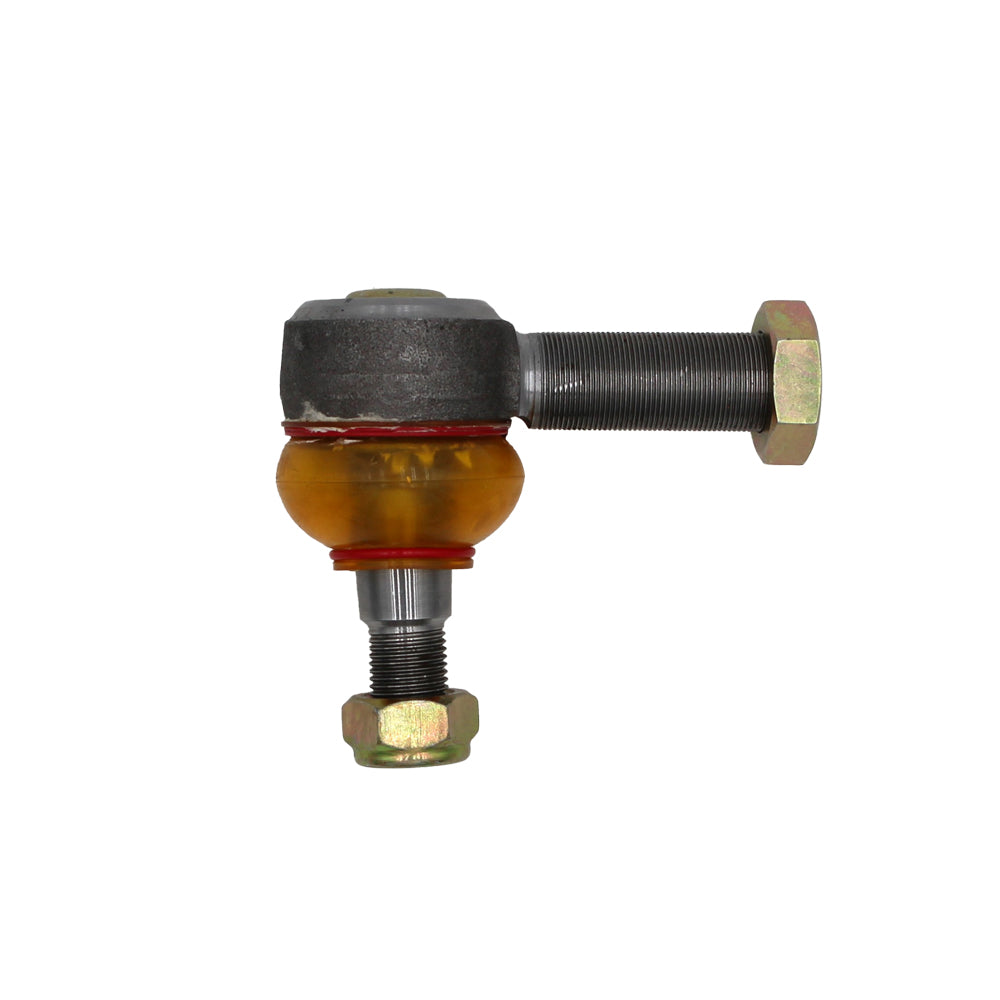

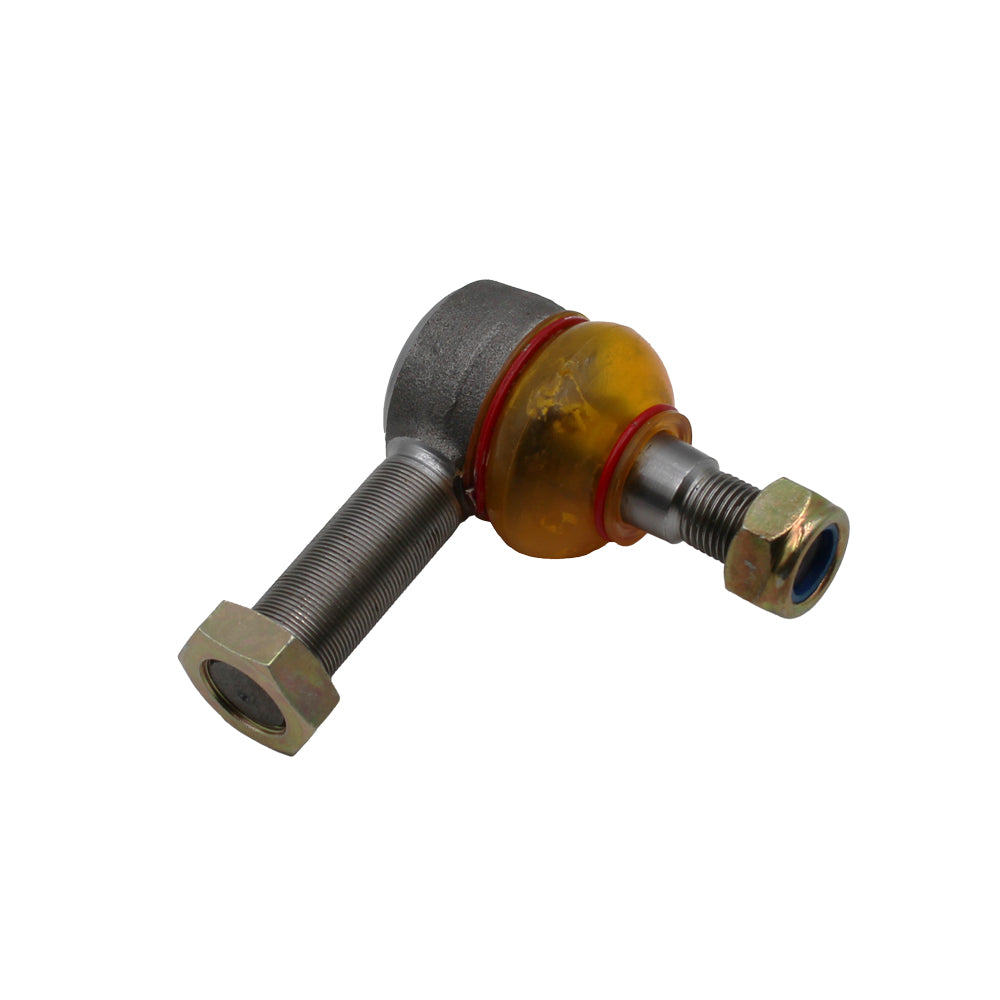

5109553-AIC Tie Rod

Name: 5109553-AIC Tie Rod
Brand: AIC Replacement Parts
SKU: 5109553
Price: 14.65 USD
Availability: InStock

TO VIEW PRICE

LOGIN or REGISTER

Product variants

Aftermarket Replacement Tie Rod

Makes:
-Fits Fiat
-Fits Ford
-Fits New Holland
-Fits Universal

Models:
100-90DT, 1000 SUPER, 1000 Super, 110-90DT, 1300DT SUPER, 1300DT Super, 2WD, 310, 420DT, 446DT, 45-66DT, 450, 480, F100DT, F110DT, F115DT, MFWD, TD5010, TD5020, TD5030, TD5050, TD60D, TD70D, TD75, TD75D, TL100, TL70, TL80, TL80A, TL90, TL90A, TN55, TN55D

Reference Number(s): 1104-5206, 312900313, 312900313-A, 312901916, 312901916-A, 312906276, 312906276-A, 4955011, 4956562, 4982356, 5109553, 5109553-A, 5117220, 58170069, 995310, TX11830

Models This Part Fits:

JX65, JX80, 5610, TL100, TN70F, TS90, 4830, 1300DT SUPER, 2910, JX1075C, MFWD, 1265, 70, JX70U, 7740, 3930, TD75D, JX90, TS100, F110DT, 5640, 7610, 1355, 580, JX85, 4630, TD75, TN55, TD5020, TN70A, JX1085C (2WD), 5040, JX55, JX60, 3910, 7840, T4030, TN75FA, 446DT, 310, 2-50, 110-90DT, F115DT, TN65F, 75C, 1365, TL90, 780, TN90F, 5030, TD5050, TN60A, 1000 SUPER, JX1080U, 555 A/B, TN80F, 1370, 4610, TN70, TS110, TN70DA, 430, JX1100U, 8340, 680, 2-60, TN60DA, JX70, 5050, 650, TN75F, TN95FA, TS115, 2WD, JX90U, 420DT, TD5030, T4020, TL70, 100-90DT, 85C, TD5010, TD70D, 5045, JX75, JX95 (MFWD), 1255, JX1070C, TD60D, 90, 880, 1270, TN75DA, 65C, T4040, TN75, 6610, 80, 550, JX100U, 480, 60, TL80, 45-66DT, 980, 450, TN65, 4130, F100DT, 6640, JX1090U, JX80U, 95

Additional Information:

Inner Side Thread Diameter: A M20 x 1mm Length: 80mm Outer Side Thread Diameter: B M16 x 1.5mm Taper C 20.1 - 18.2mm Taper length: D 20mm Thread length: E 21mm Type Male Thread: Straight Tie Rod
