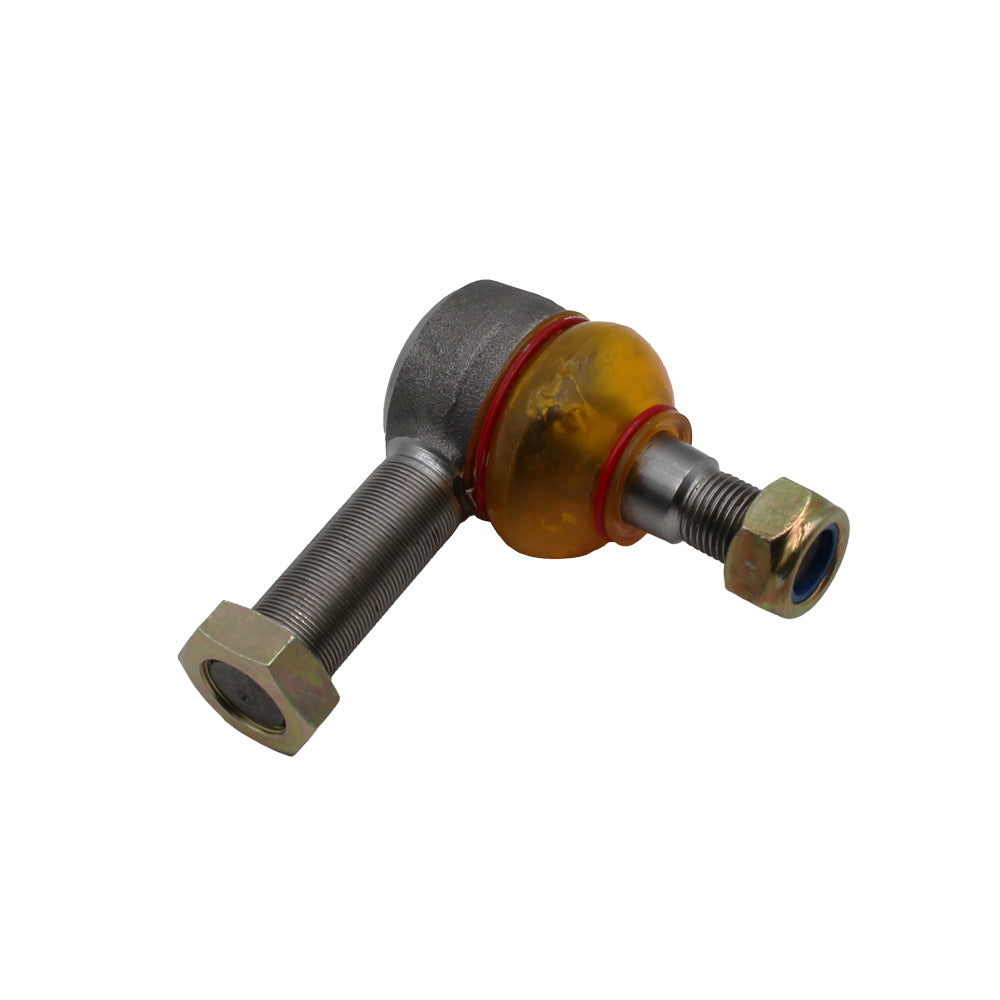

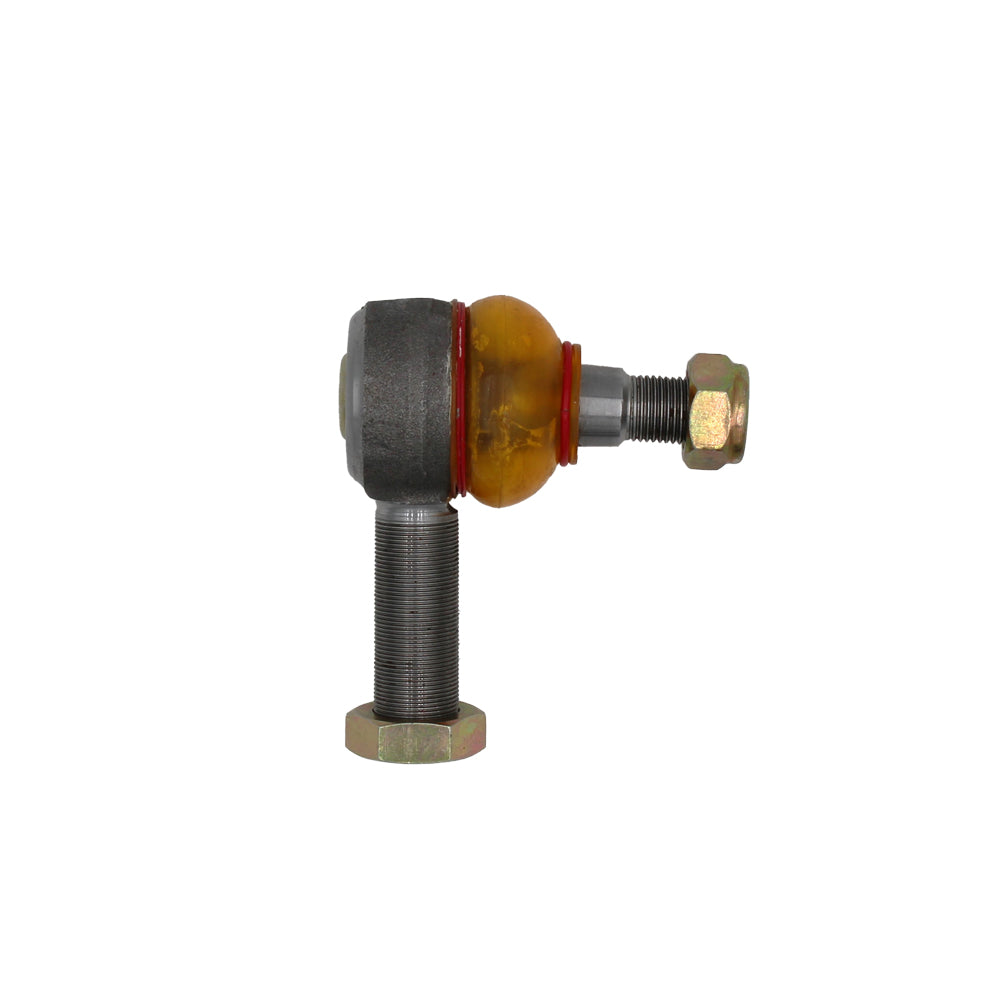

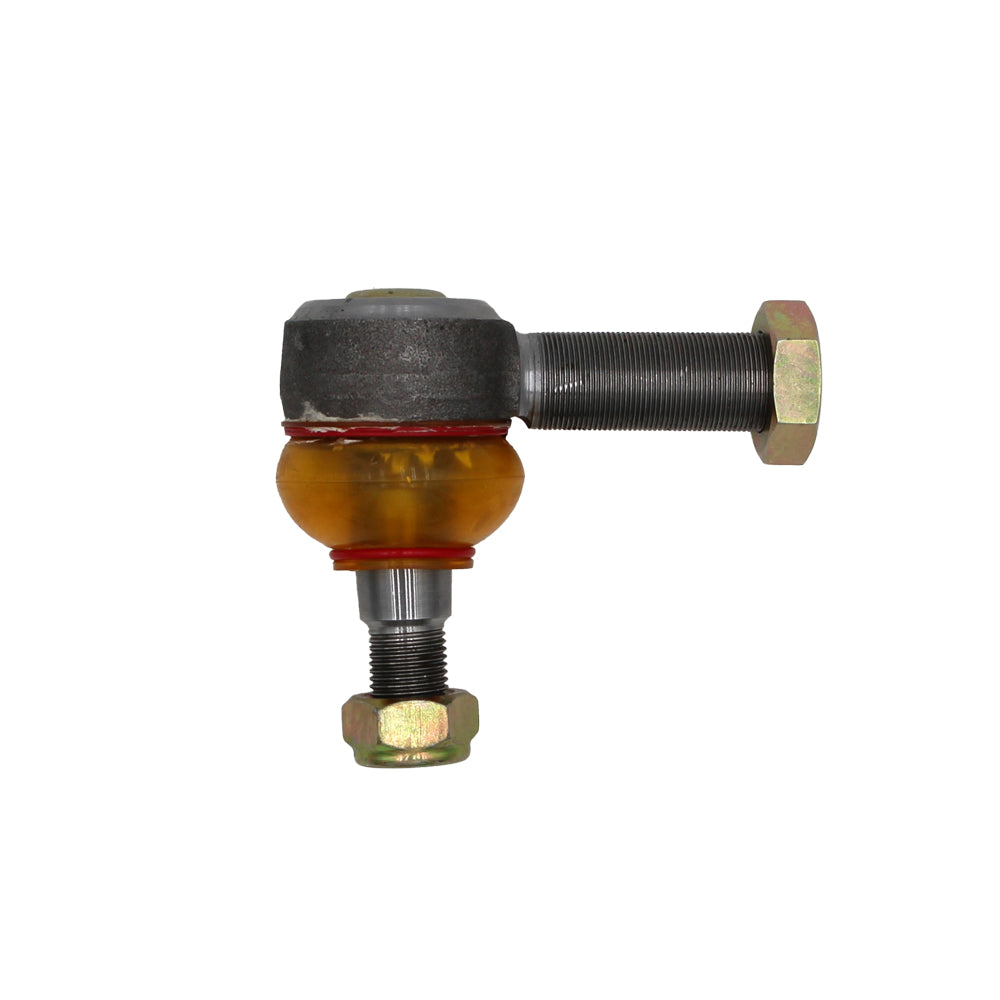

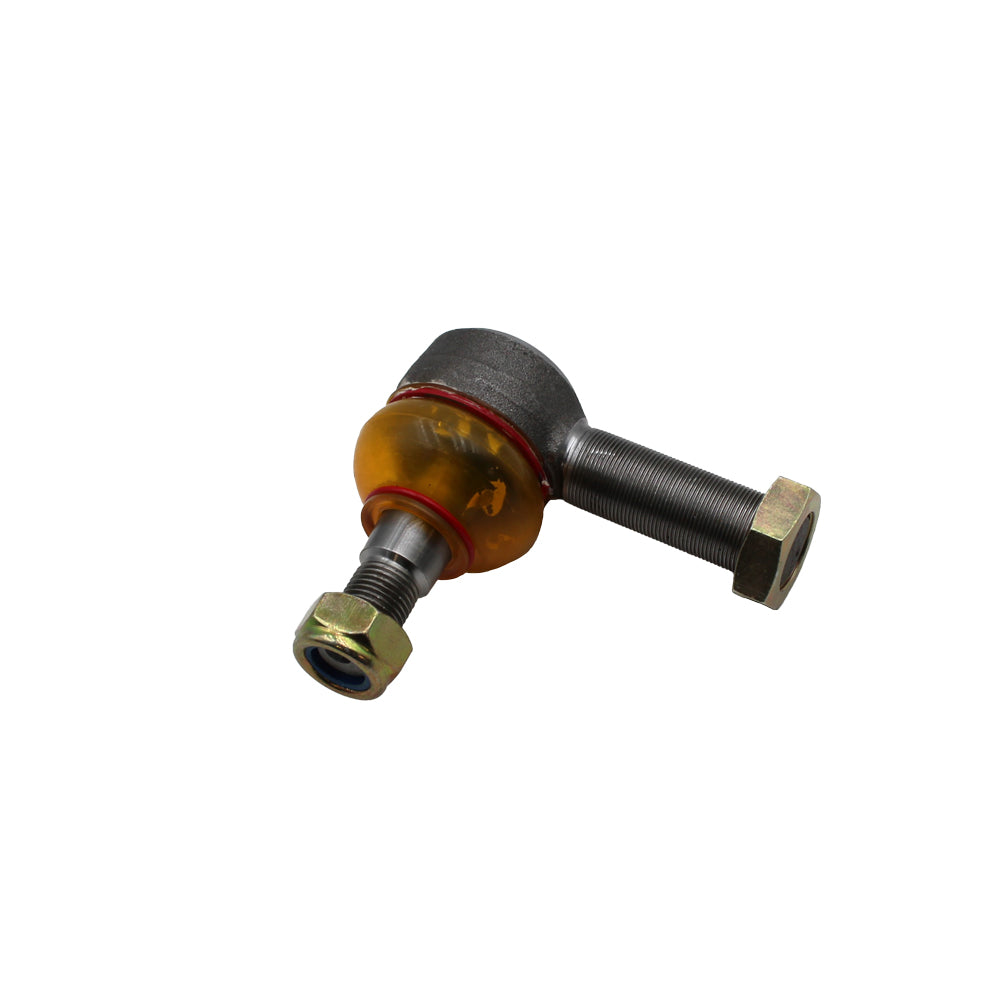

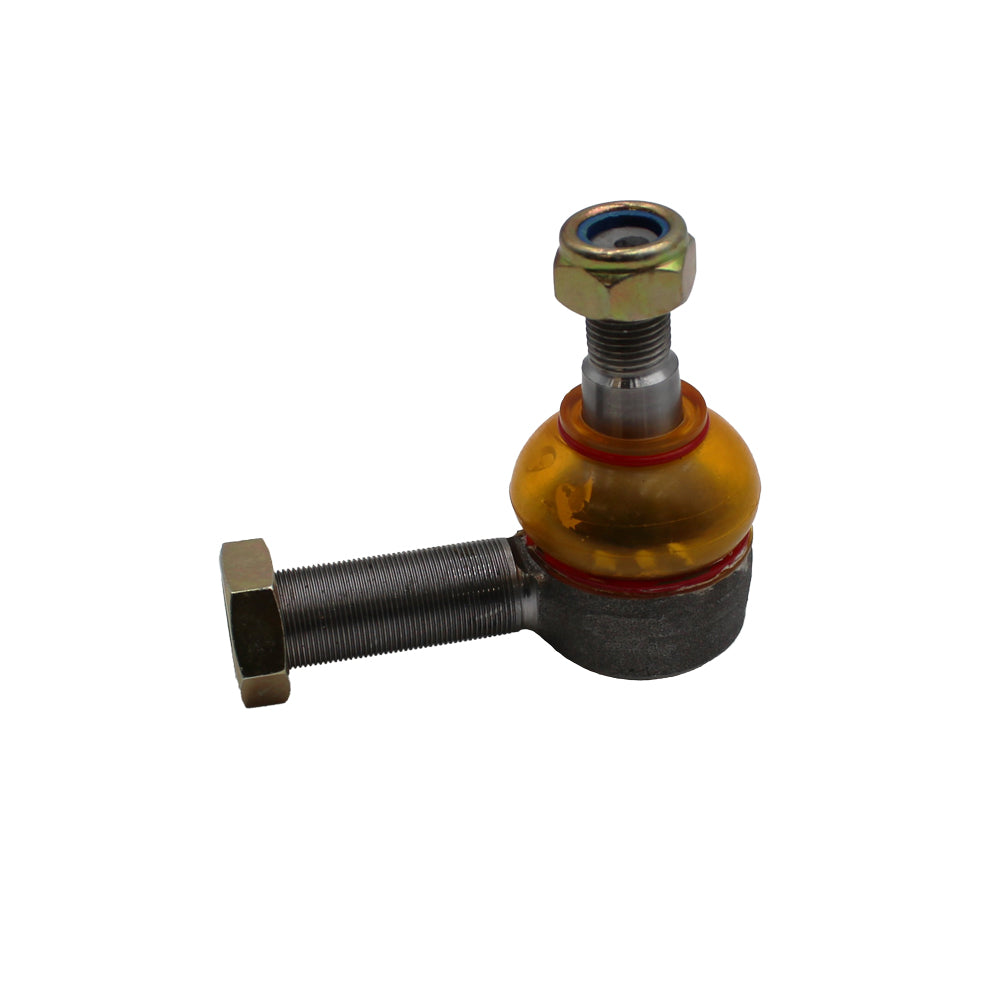

Tie Rod Fits Case/International Harvester Replaces agricultural
Tie Rod Fits Case/International Harvester Replaces agricultural
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER

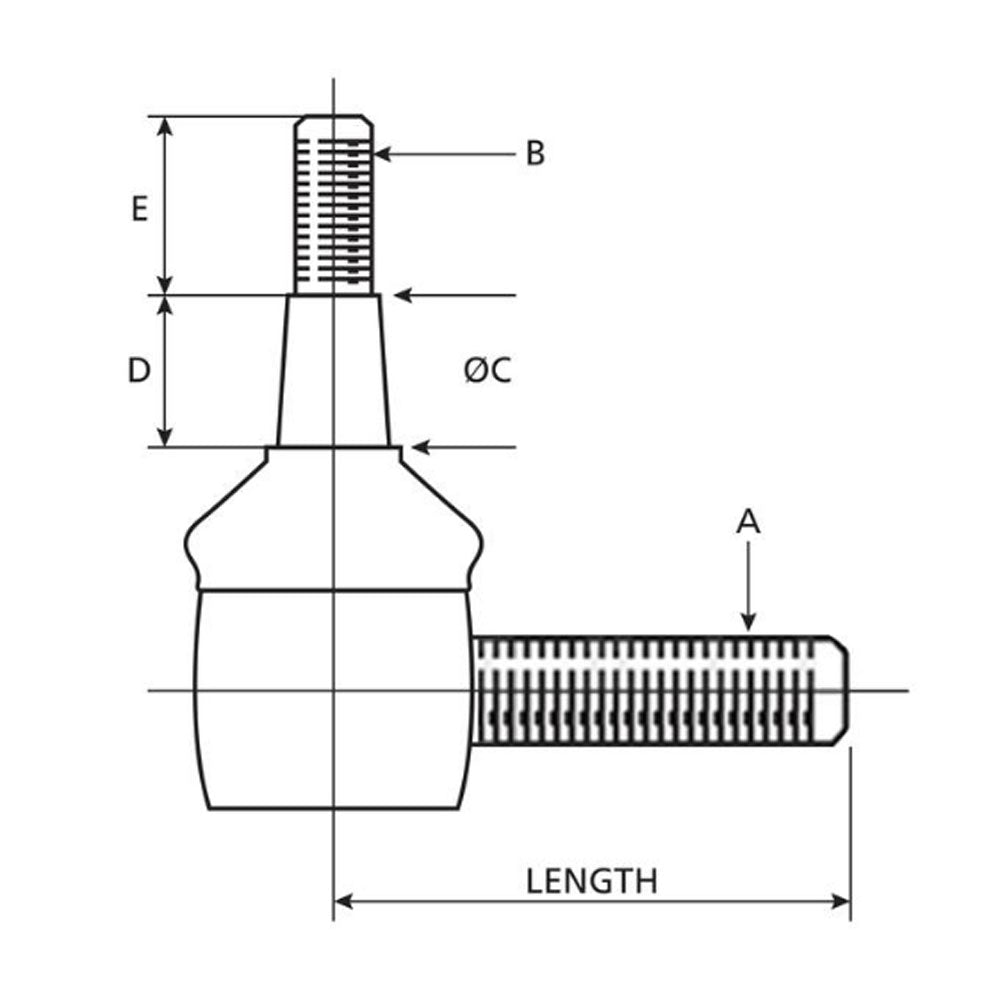

One New Aftermarket Tie RodTech Info:
-Inner Side Thread Diameter: A M20 x 1mm
-Length: 80mm
-Outer Side Thread Diameter: B M16 x 1.5mm
-Taper C 20.1 - 18.2mm
-Taper length: D 20mm
-Thread length: E 21mm
-Type Male Thread: StraightMade to Fit Case/International Harvester:
Tractor Models: 60, 70, 80, 90, 95, JX100U, JX1080U, JX1090U, JX1100U, JX55, JX60, JX65, JX70, JX70U, JX75, JX80, JX80U, JX85, JX90, JX90U, JX95 (MFWD), 65C, 75C, 85C, JX1070C, JX1075C, JX1085C (2WD)
Replaces Part Number(s): tractors, agricultural, tillage equipment, planting equipment
-Inner Side Thread Diameter: A M20 x 1mm
-Length: 80mm
-Outer Side Thread Diameter: B M16 x 1.5mm
-Taper C 20.1 - 18.2mm
-Taper length: D 20mm
-Thread length: E 21mm
-Type Male Thread: StraightMade to Fit Case/International Harvester:
Tractor Models: 60, 70, 80, 90, 95, JX100U, JX1080U, JX1090U, JX1100U, JX55, JX60, JX65, JX70, JX70U, JX75, JX80, JX80U, JX85, JX90, JX90U, JX95 (MFWD), 65C, 75C, 85C, JX1070C, JX1075C, JX1085C (2WD)
Replaces Part Number(s): tractors, agricultural, tillage equipment, planting equipment
Models This Part Fits:
90, 75C, 85C, JX1075C, JX100U, JX80, JX55, JX65, 95, JX70, 80, 70, JX1085C (2WD), 60, JX60, JX90, JX85, JX70U, 65C, JX95 (MFWD), JX1080U, JX1090U, JX75, JX80U, JX1070C, JX90U, JX1100UAdditional Information:
Inner Side Thread Diameter: A M20 x 1mm Length: 80mm Outer Side Thread Diameter: B M16 x 1.5mm Taper C 20.1 - 18.2mm Taper length: D 20mm Thread length: E 21mm Type Male Thread: Straight Tie RodReference Numbers:
tractors, agricultural, tillage equipment, planting equipmentMakes This Part Fits:
