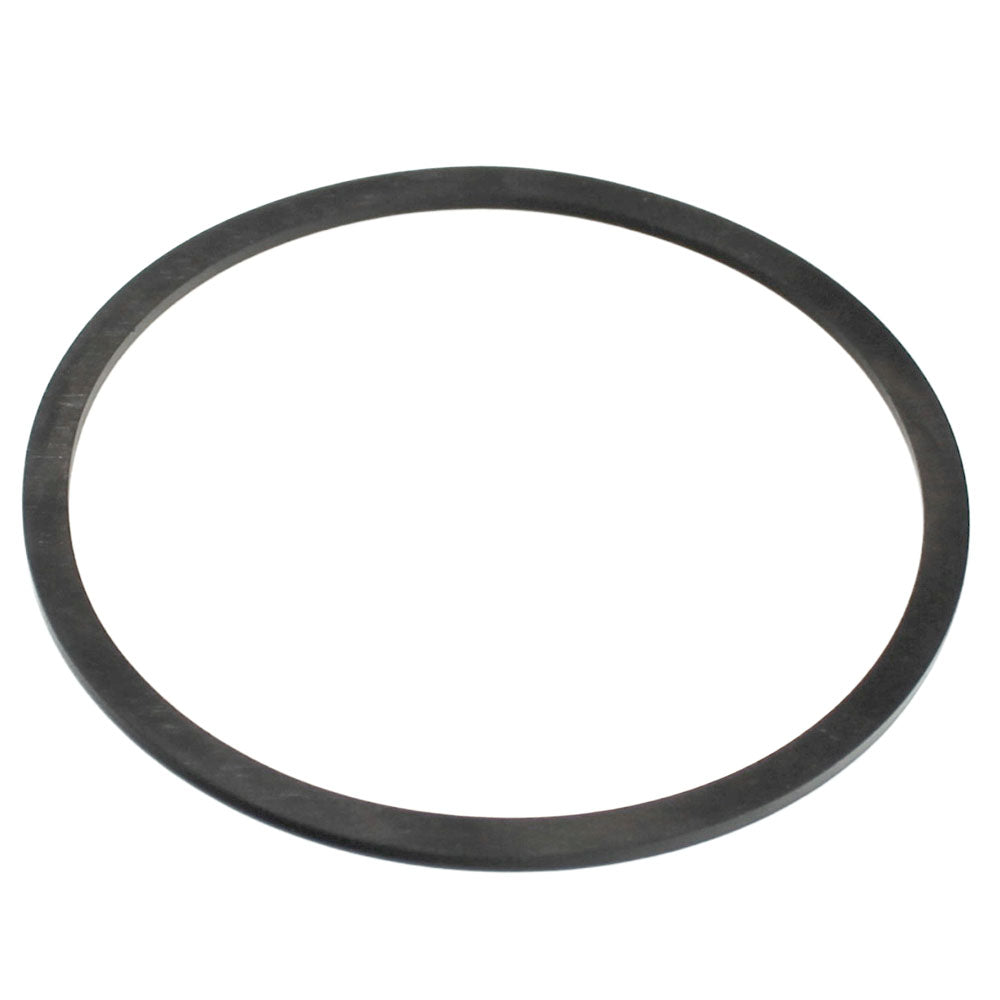

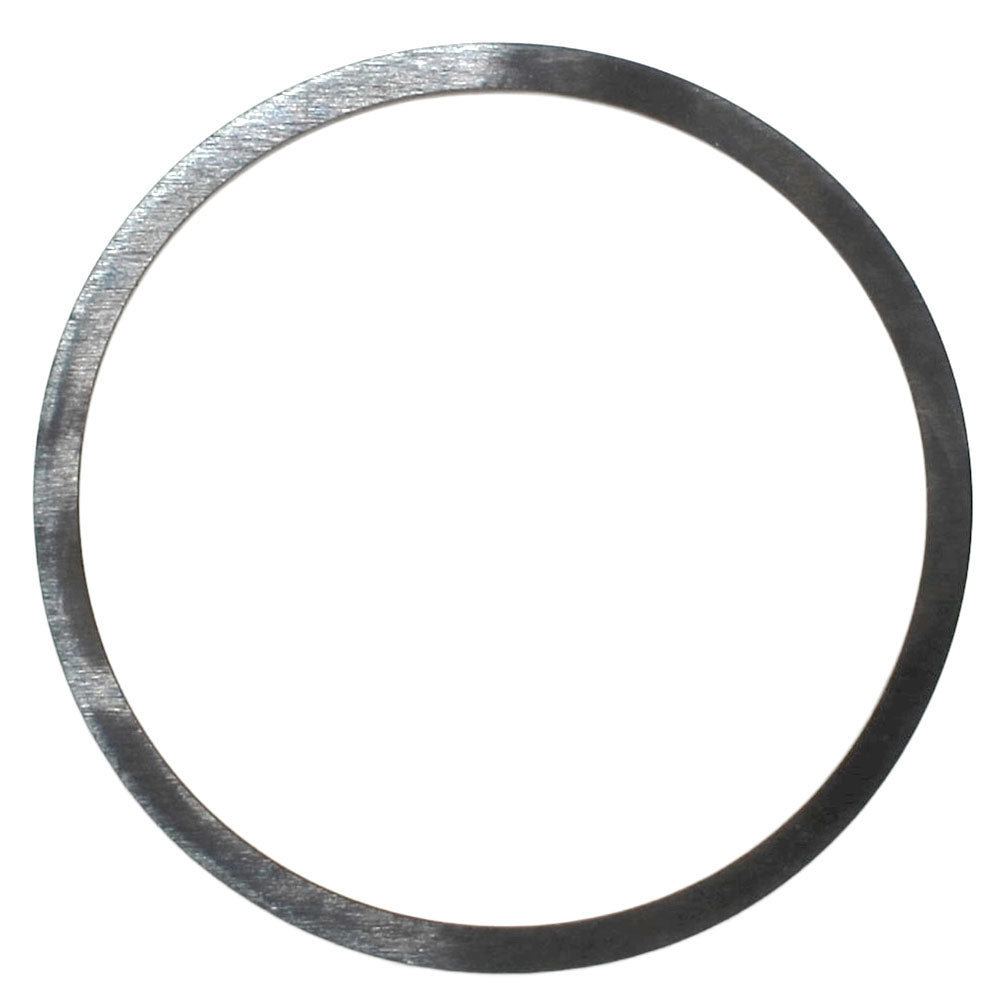

574-227 STANDARD BACK-UP RINGS
574-227 STANDARD BACK-UP RINGS
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
One New Aftermarket STANDARD BACK-UP RINGS
Tech Info:
-A Nom ID: 2-1/8
-SKU: 574-227
-Weight: 0.00183100 lbs
-A Nom ID: 2-1/8
-B Nom OD: 2-3/8
-C Nom Height: .05
-Thickness: .040
-Standard Pkg Qty: 10
-MATERIAL: 90A BUNA-N RUBBER
-TEMPERATURE RANGE: -40° TO +240°F
-PRESSURE RANGE: VARIES ACCORDING TO DIAMETRAL CLEARANCE
-PART NUMBER (Prefix) - (Dash No: .)
Tech Info:
-A Nom ID: 2-1/8
-SKU: 574-227
-Weight: 0.00183100 lbs
-A Nom ID: 2-1/8
-B Nom OD: 2-3/8
-C Nom Height: .05
-Thickness: .040
-Standard Pkg Qty: 10
-MATERIAL: 90A BUNA-N RUBBER
-TEMPERATURE RANGE: -40° TO +240°F
-PRESSURE RANGE: VARIES ACCORDING TO DIAMETRAL CLEARANCE
-PART NUMBER (Prefix) - (Dash No: .)
Models This Part Fits:
Additional Information:
Nom ID - 2 1/8" Nom OD - 2 3/8" Nom Height - 0.050" O Ring Dash Number - 227 Thickness - 0.040" Material - Buna-N Nom Cross Section - 1/8" Temperature Range - -40° TO +240°F Hardness - 90 Scale - A Profile - 574 Standard Back Up RingsReference Numbers:
Makes This Part Fits:
Product Category:
Agriculture Replacement PartsProduct Group:
Product Sub Group:
View full details
