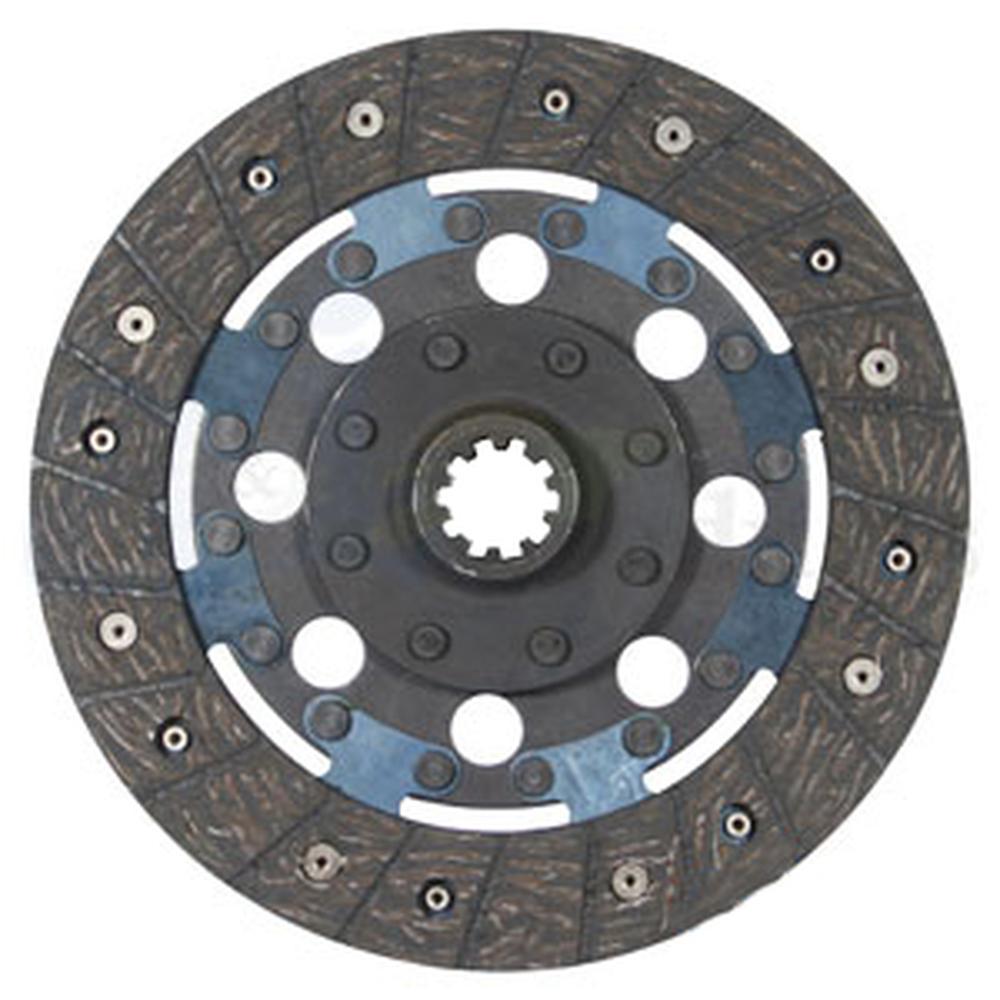

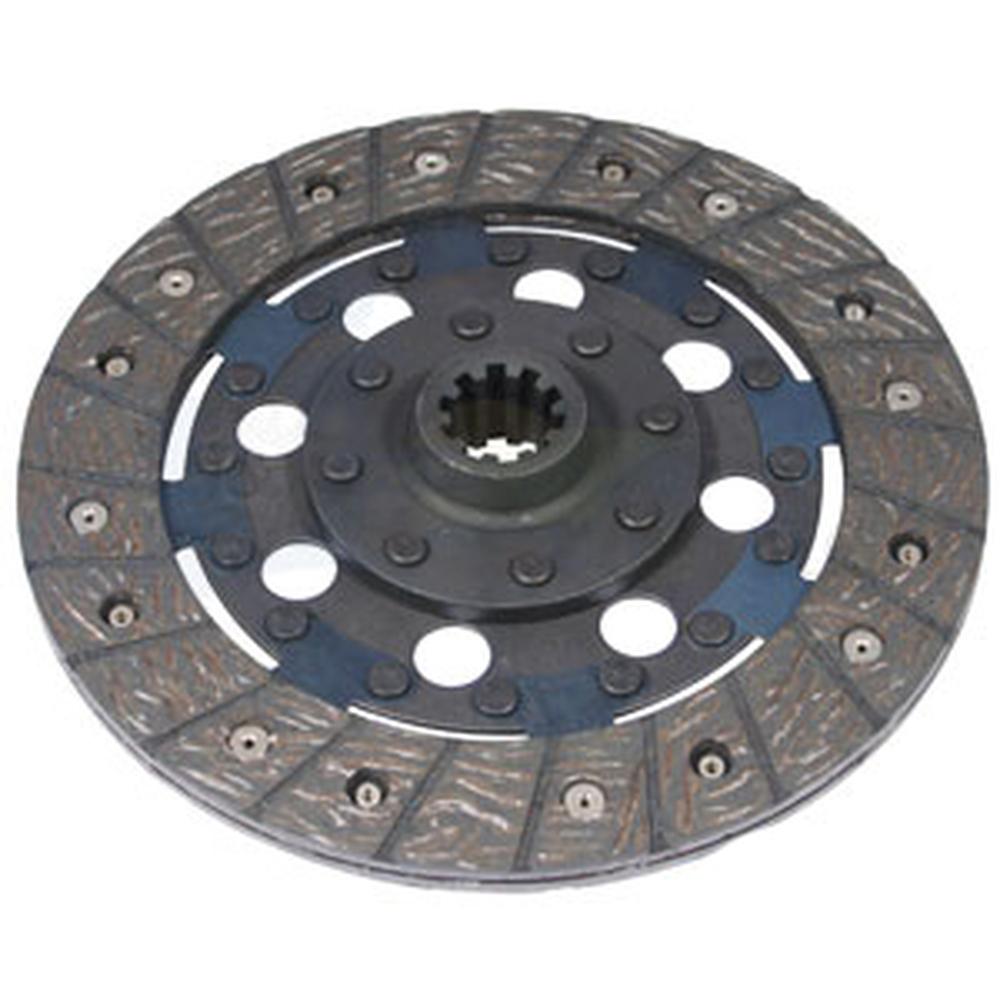

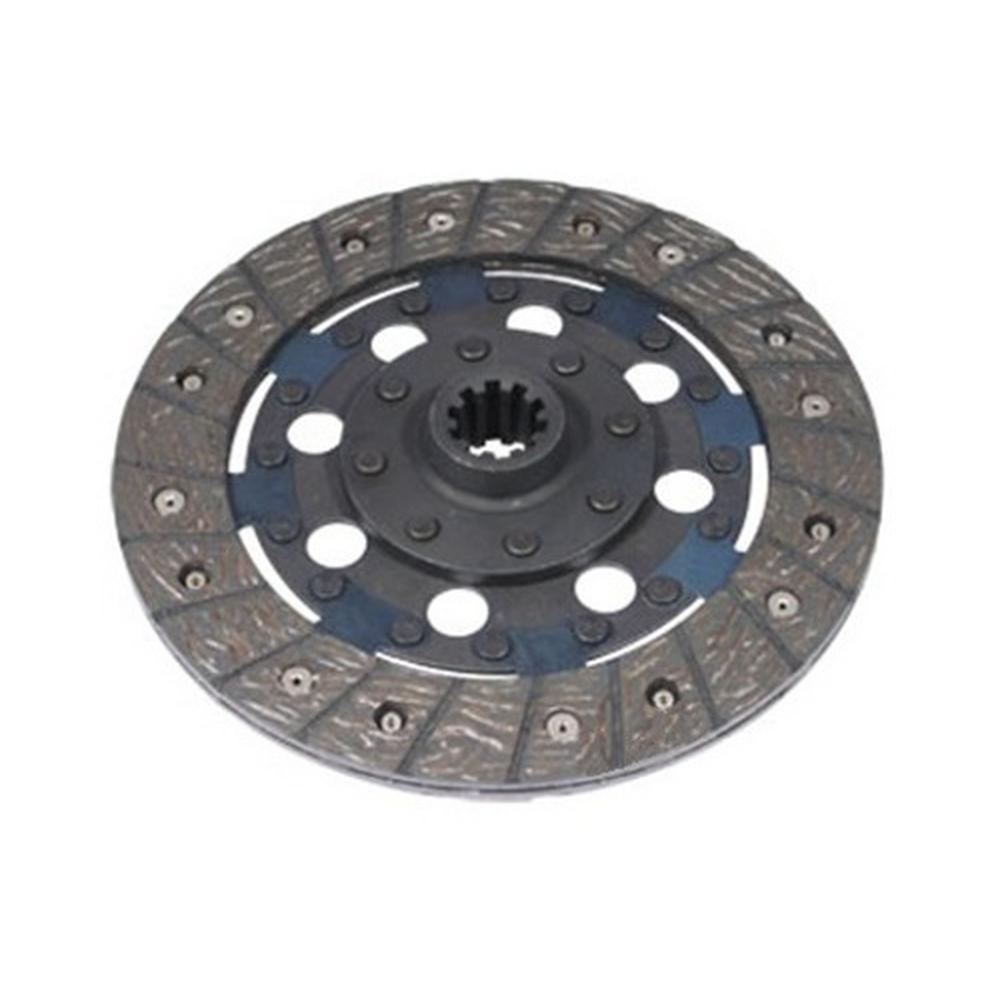

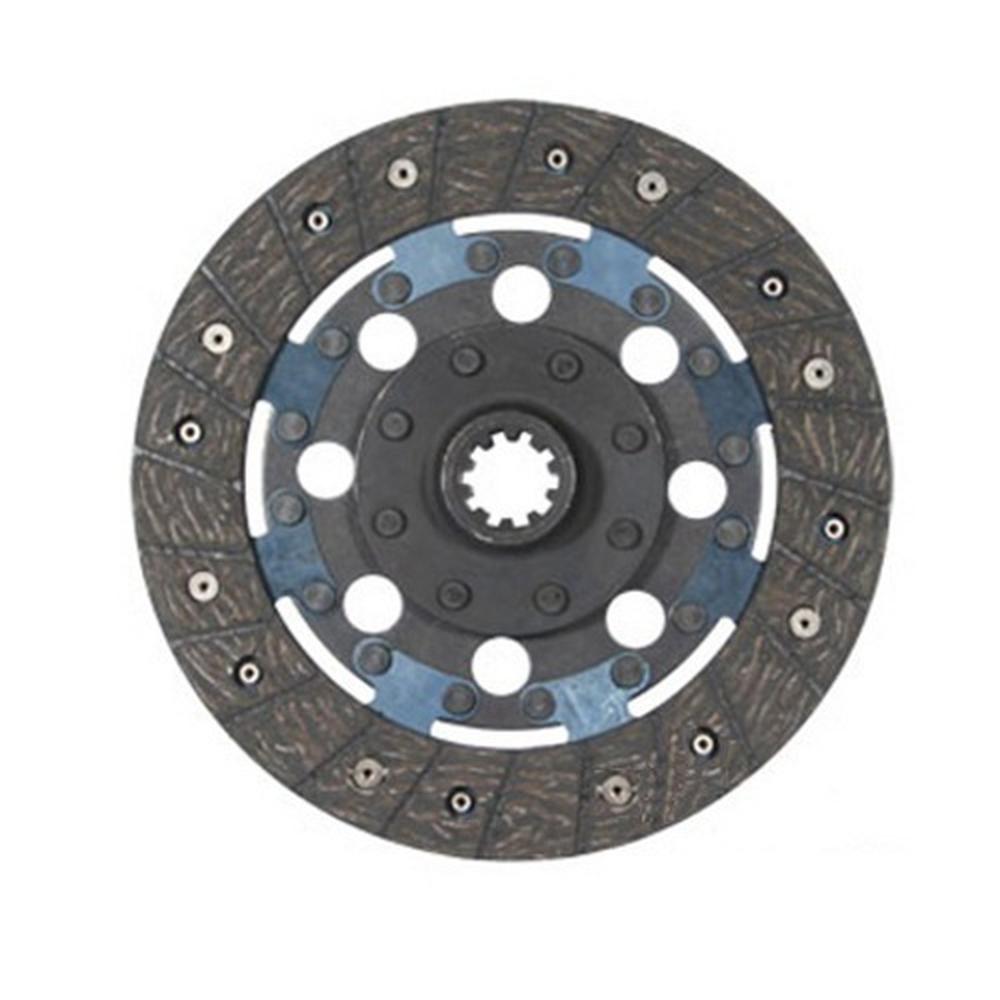

One New Aftermarket Replacement Transmission Clutch Disc Fits Kubota Compact Tractors

This aftermarket replacement transmission clutch disc fits a wide range of Fits Kubota compact tractors. It is a solid hub, fiber material disc used in the main clutch assembly between the engine and transmission. Replacing a worn or damaged clutch disc restores smooth, positive power transfer from the engine to the drivetrain. A clutch alignment tool is recommended during installation, which requires separating the engine from the transmission.

Specifications

• Outside Diameter: 7-7/8" (approx. 8")
• Inside Diameter: 1"
• Spline Count: 10
• Spline Diameter: 1.014"
• Hub Style: Solid Hub
• Material: Fiber

Compatible Models

Fits Kubota B-Series Compact Tractors: B20, B21, B1700D, B1700E, B1700HSD, B1700HSE, B2100D, B2100E, B2100HSD, B2100HSE, B2320, B2320DT, B2320DTN-1, B2320DTWO, B2320HSD, B2320HSDN, B2400, B2400D, B2400E, B2400HSD, B2400HSE, B2410, B2410HSD, B2410HSDB, B2410HSE, B2620, B2620HSD, B2710, B2710HSD, B2910, B2910HSD, B2920, B2920HSD, B3200, B3200HSD, B3200HSDWO, B3300SUHSD, B7500, B7500D, B7500DTN, B7500HSD, B7510, B7510D, B7510DN, B7510HSD, B7510HSDTR, B7610, B7610HSD, B7800, B7800HSD, B8200

Replaces Part Number(s):

6C040-13402, 6C040-13400, 6C04013402, 6C04013400

New aftermarket replacement part - not remanufactured, not used.
