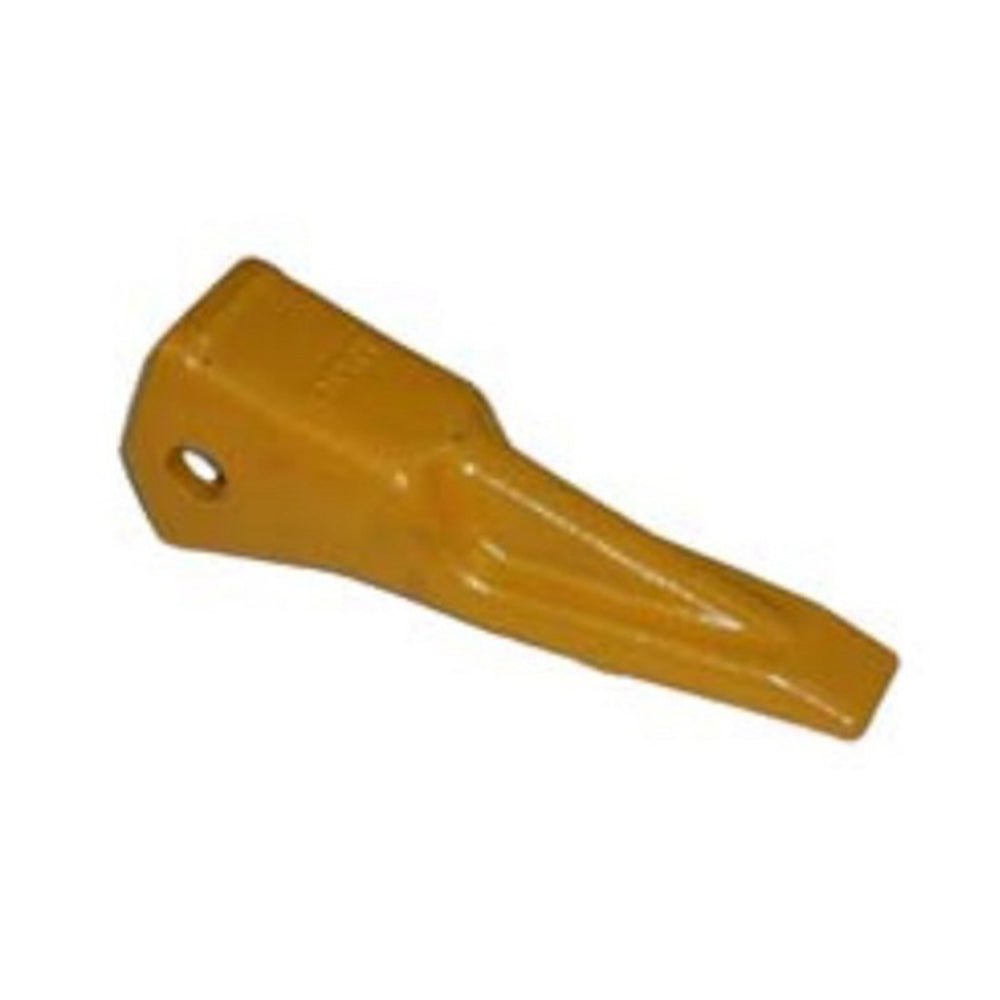

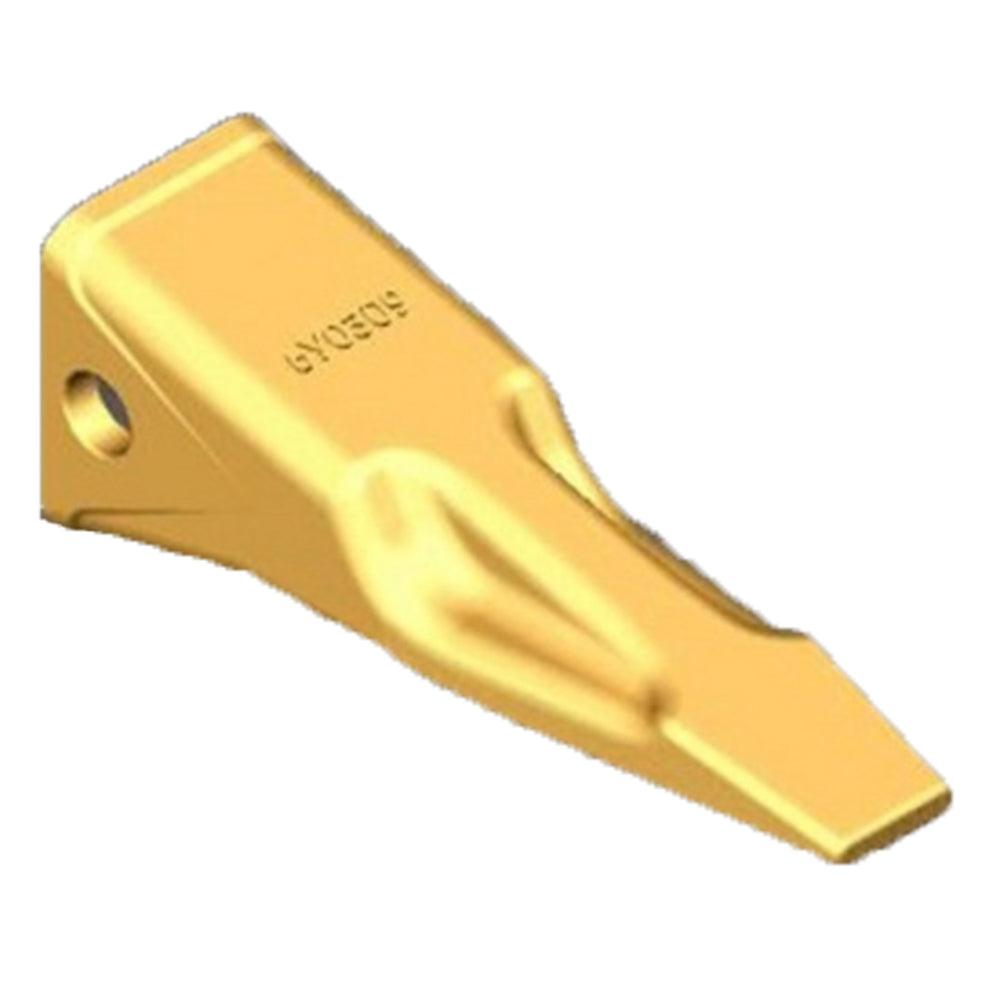

One New Aftermarket Replacement Ripper Tooth Tip for Caterpillar (Cat) Motor Graders, Crawler Loaders, and Dozers

This aftermarket replacement ripper tooth tip fits the Caterpillar R300 series ripper system and is used on motor graders, crawler loaders, and dozers. The ripper tip mounts axially and is designed for general ground-ripping applications, helping break through compacted or hard soil before follow-up grading or dozing passes.

Specifications

• Part Family: Caterpillar R300 Series
• Weight: approximately 5.6 kg (12.3 lbs)
• Shape: Intermediate Penetration
• Material: High-alloy steel

Compatible Models

Caterpillar Motor Graders: 12, 12G, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 120K, 120M, 120M 2, 130G, 140B, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 140M 2, 140M 3, 140M 3 AWD, 143H, 14G, 14H, 14H NA

Caterpillar Crawler Loaders: 941, 951, 955, 963, 977

Caterpillar Dozers: D4, D7

Replaces Part Number(s):

6Y0309, 6Y-0309, 1C6380, 1C-6380, 4T9107, 4T-9107, 7J7500, 7J-7500, 8J2210, 8J-2210, 9J8910, 9J-8910, 9J8911

New aftermarket replacement part - not remanufactured, not used.
