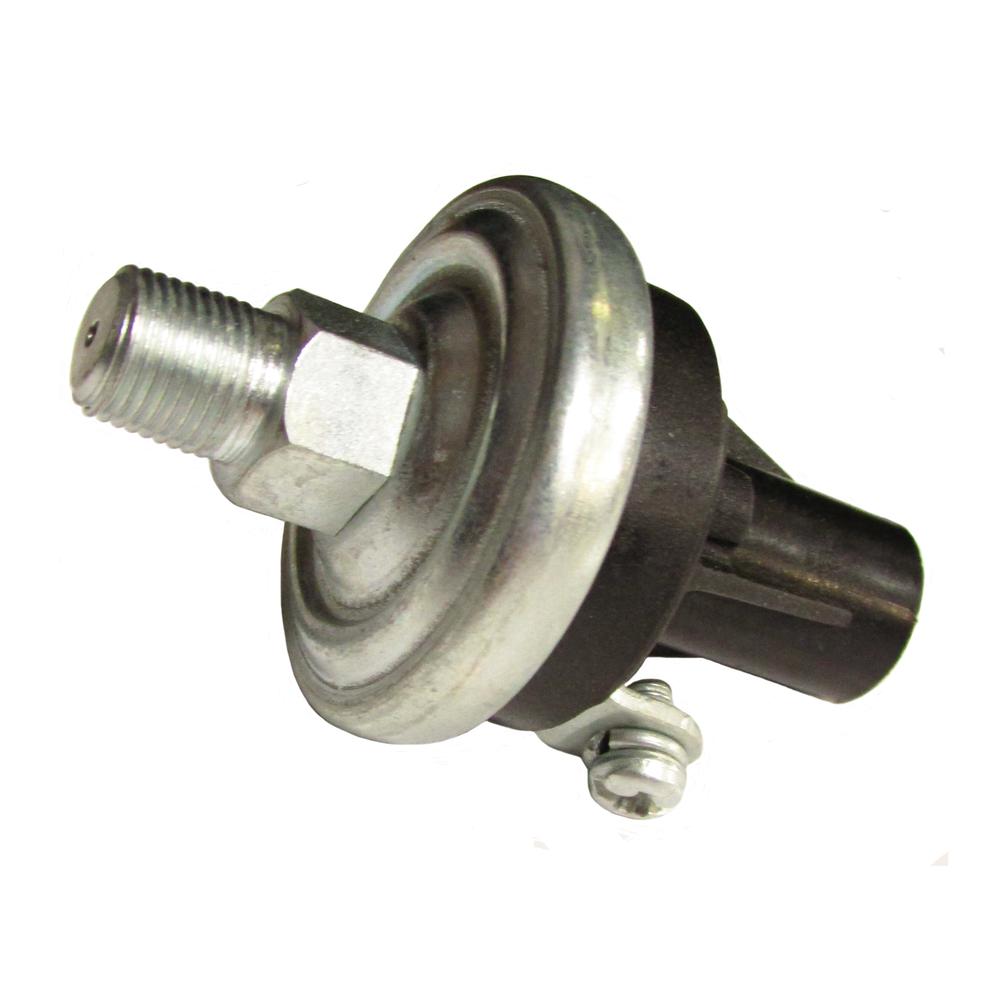

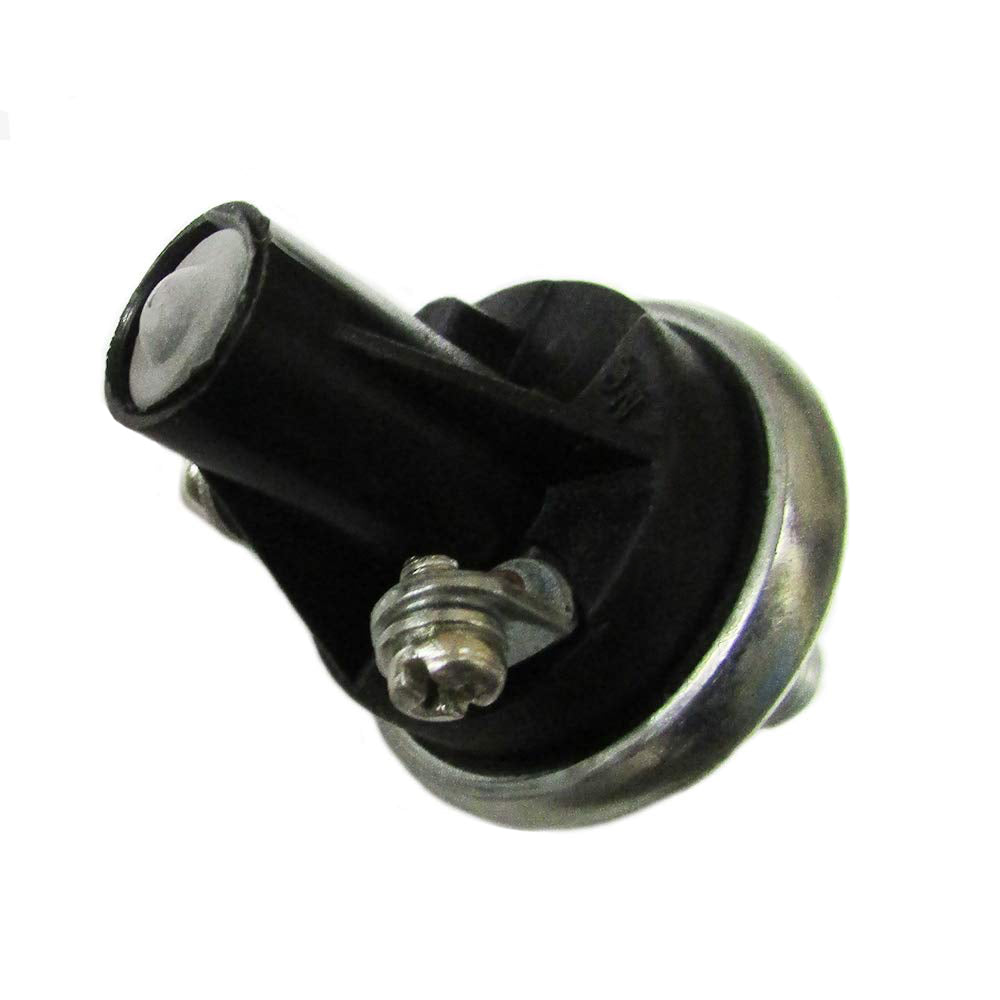

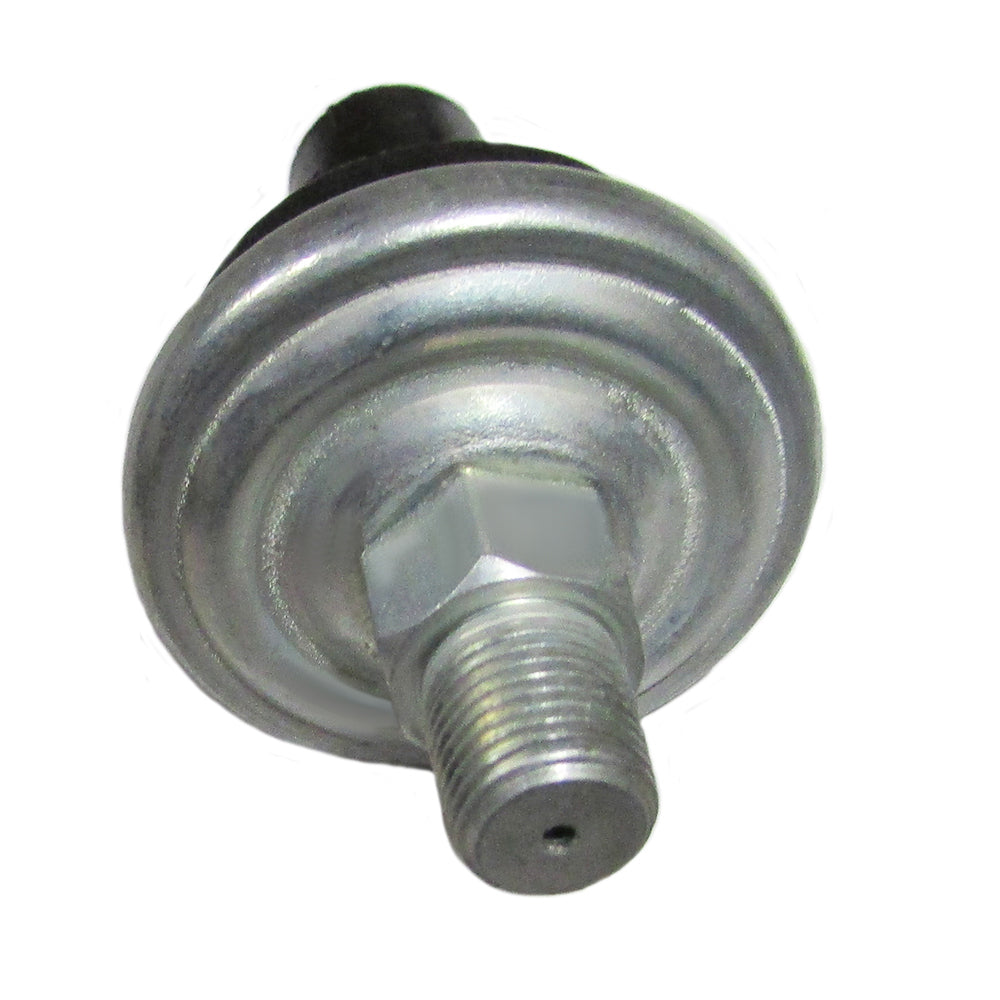

76575-4-AIC Adjustable Pressure Switch
76575-4-AIC Adjustable Pressure Switch
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
Aftermarket Replacement Adjustable Pressure Switch
Makes:
-Fits CAT
-Fits Caterpillar
-Fits Hobbs
-Fits Hobbs Honeywell Fits Caterpillar Fits CAT
-Fits Honeywell
-Fits Honeywell Hobbs
Models:
4D-4785, M4006-4
Reference Number(s): 4D-4785, 76575, 76575-4, 76575-4-A, 76575-A, 76577-4, 76577-4-A, M4006-4
Models This Part Fits:
4D-4785, M4006-4Additional Information:
Single Circuit With Two Insulated Terminals. This Is A 4 # N/O Pressure Switch Typically Used To Activate Hour Meters From The Engine Oil Pressure Contact Setting: 3.1 Psi To 7 Psi Factory Setting: 4 Psi Operating Pressure: 150 Psi Proof Pressure: 500 Psi Burst Pressure: 750 Psi Normally Open. Closes At 4 Psi. 1/8" Male Pipe Thread Connection Extended duty switch. Normally open. Single pole, single throw. #8-32 screw terminal. Plated steel base. Polyamide film diaphragm. Silver alloy, gold plated contacts. Glass reinforced polyester cover. 15 amps @6V DC resistive rating. 8 amps @ 12V DC resistive rating. 4 amps @ 24V DC resistive rating. 1 amps @ 120V AC inductive rating. 0.5 amps @ 240V AC inductive rating. 40°F to 250°F temperature. Adjustable Pressure SwitchReference Numbers:
4D-4785, 76575, 76575-4, 76575-4-A, 76575-A, 76577-4, 76577-4-A, M4006-4Makes This Part Fits:
Shop Caterpillar Wholesale PartsProduct Category:
Agriculture Replacement PartsProduct Group:
Electrical Replacement PartsProduct Sub Group:
Switches Replacement PartsView full details
