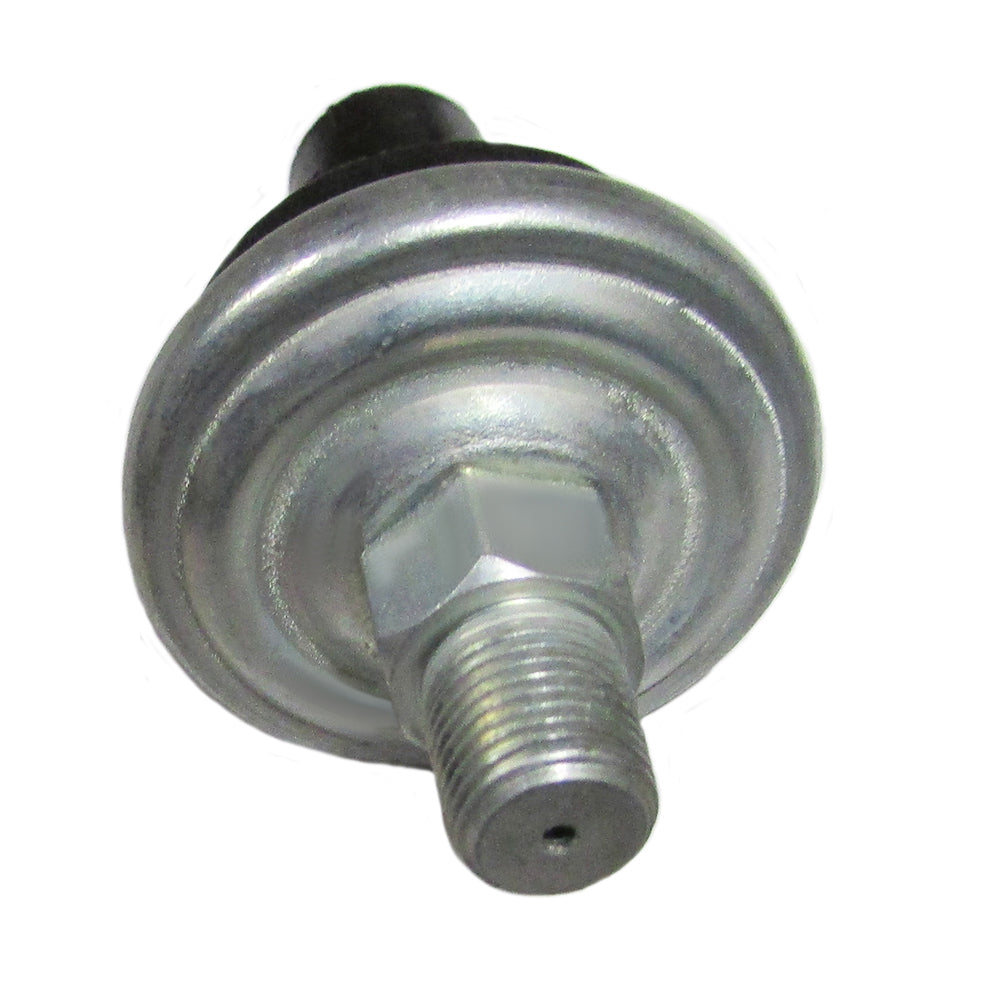

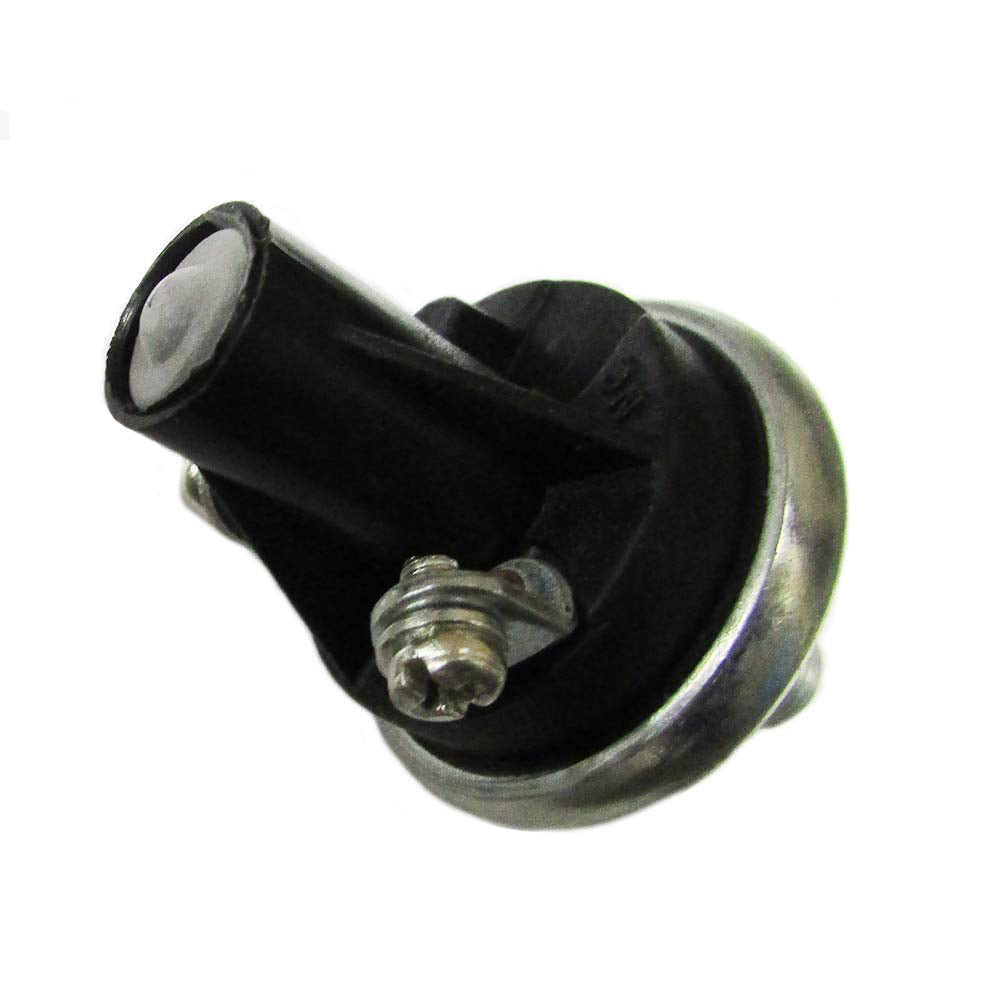

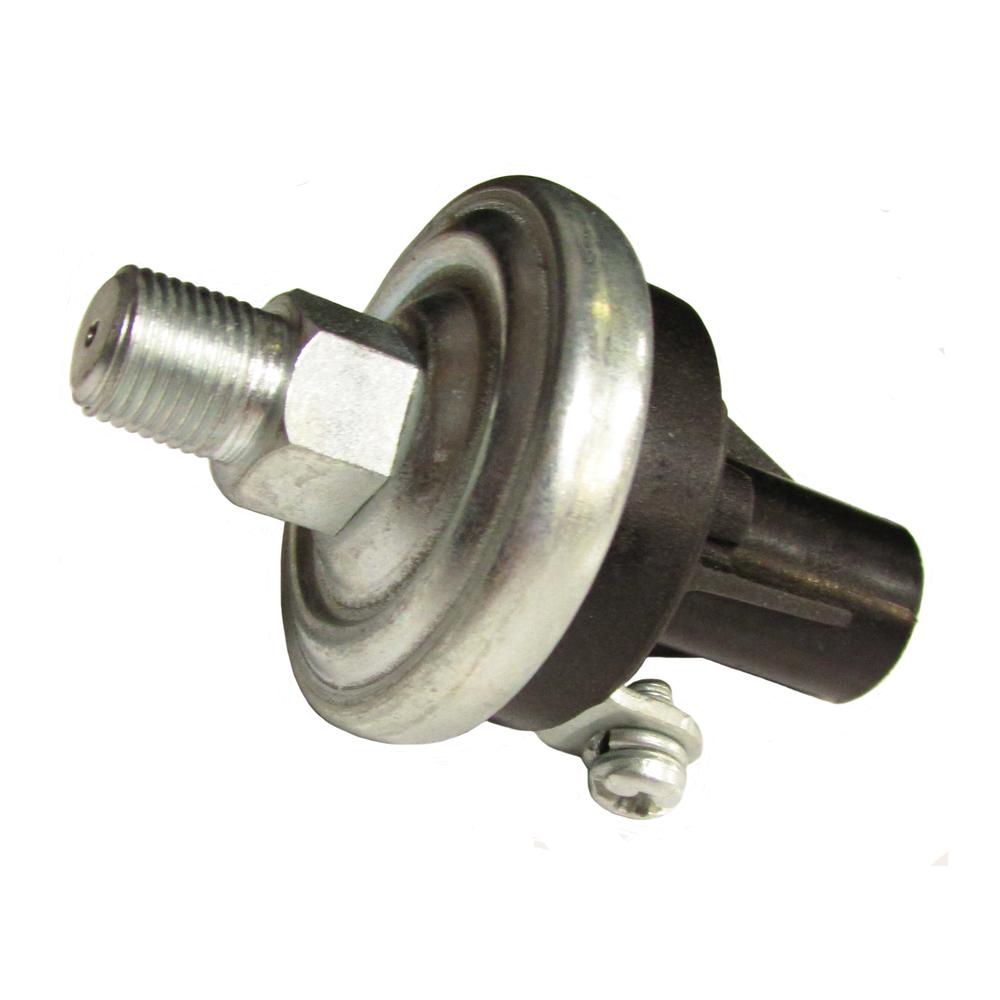

76575-4 One 1 Pressure Switch Adjustable For Honeywell Hobbs
76575-4 One 1 Pressure Switch Adjustable For Honeywell Hobbs
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
One (1) New Aftermarket Replacement Adjustable Pressure Switch Fits several Hobbs or Honeywell models.
Extended Duty Switch
Single Pole, Single Throw
Normally Open
Terminal: # 8-32 Screw
Base: Plated Steel
Diaphragm: Polymide Film
Termination: Screw
Contact(s): Silver Alloy, Gold Plated
Circuit: Single Circuit, Two Terminals
Connector(s): 1/8-27 NPT Male Thread
Cover Type: Glass Reinforced Polyester
Specifications:
Contact Setting: 3.1 PSI to 7 PSI
Factory Setting: 4 PSI
Operating Pressure: 150 PSI
Proof Pressure: 500 PSI
Burst Pressure: 750 PSI
Resistive Rating: 15 Amps @ 6V DC
Resistive Rating: 8 Amps @ 12V DC
Resistive Rating: 4 Amps @
Models This Part Fits:
Additional Information:
Single Circuit With Two Insulated Terminals. This Is A 4 # N/O Pressure Switch Typically Used To Activate Hour Meters From The Engine Oil Pressure Contact Setting: 3.1 Psi To 7 Psi Factory Setting: 4 Psi Operating Pressure: 150 Psi Proof Pressure: 500 Psi Burst Pressure: 750 Psi Normally Open. Closes At 4 Psi. 1/8" Male Pipe Thread Connection Extended duty switch. Normally open. Single pole, single throw. #8-32 screw terminal. Plated steel base. Polyamide film diaphragm. Silver alloy, gold plated contacts. Glass reinforced polyester cover. 15 amps @6V DC resistive rating. 8 amps @ 12V DC resistive rating. 4 amps @ 24V DC resistive rating. 1 amps @ 120V AC inductive rating. 0.5 amps @ 240V AC inductive rating. 40°F to 250°F temperature. Adjustable Pressure SwitchReference Numbers:
4D-4785, 4D4785, 76575-4Makes This Part Fits:
