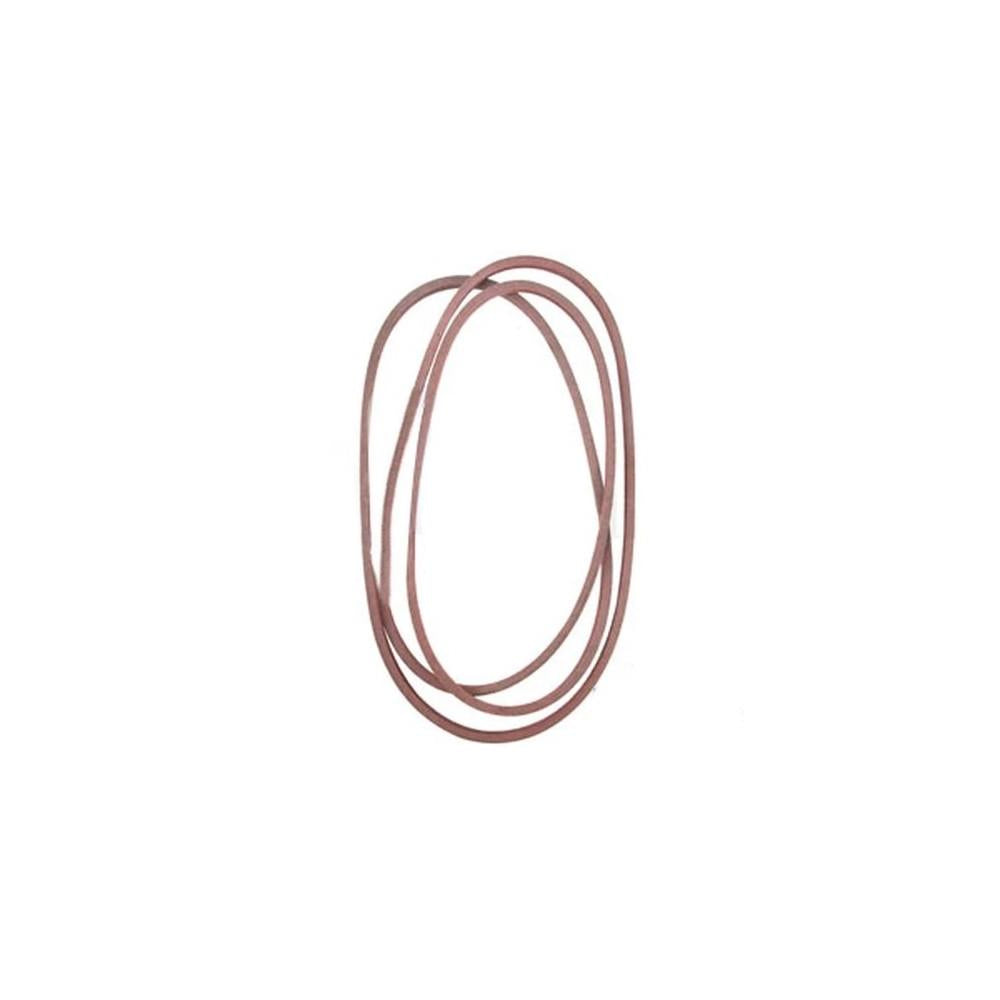

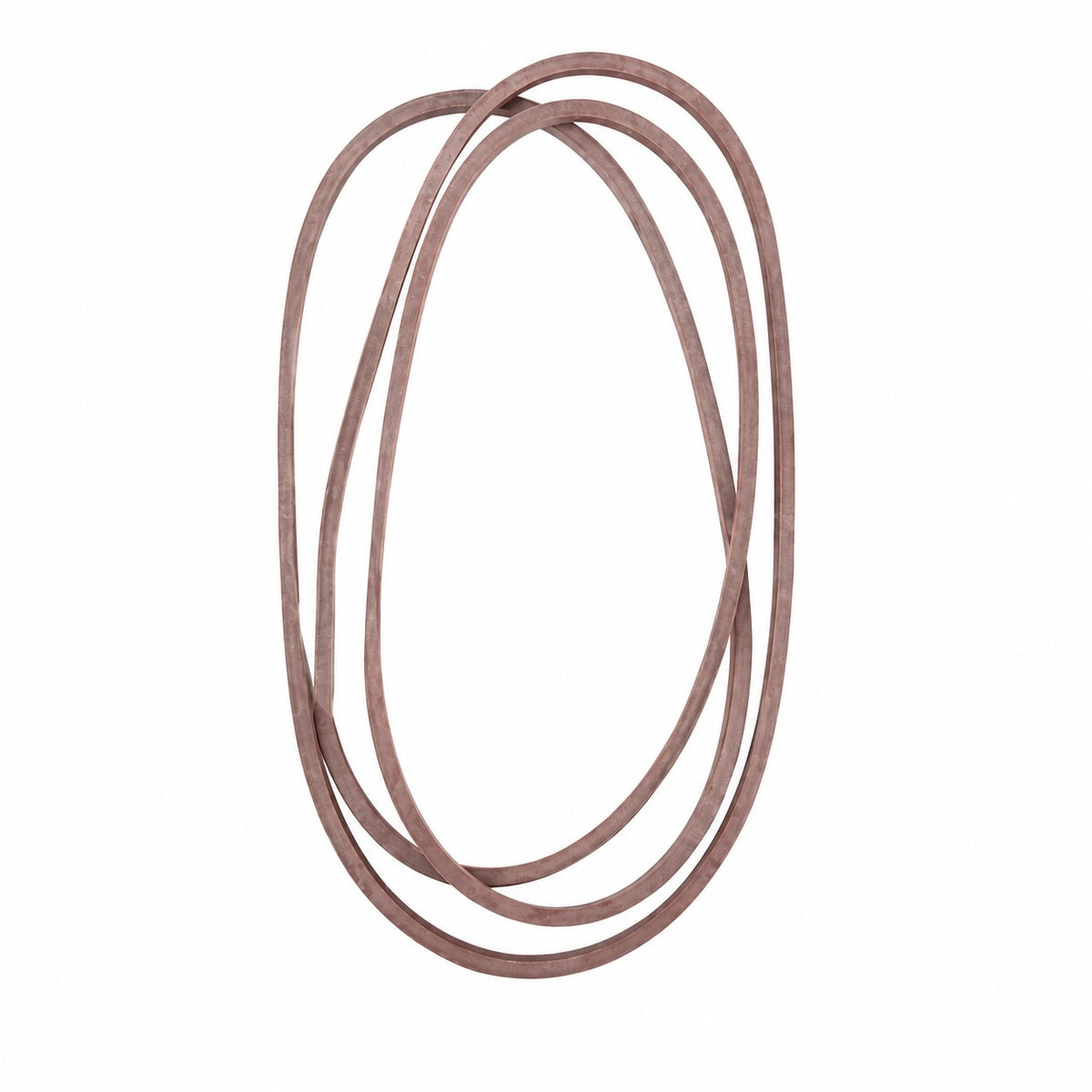

One New Aftermarket Replacement Mower Deck Belt for Hustler and Big Dog Zero-Turn Mowers

This wrapped Made With Aramid cord V-belt drives the mower deck on Hustler (Excel Industries) zero-turn mowers equipped with 66" XR7 side-discharge decks, as well as early X-ONE models with 72" decks. It is the primary deck drive belt connecting the engine to the blade spindle pulleys. Note: Due to design changes within these model series, deck belt part numbers can vary by serial number -- always verify your OEM part number against your mower before ordering.

Specifications

• Width: 5/8"
• Length: 185"
• Thickness: .430"
• Construction: Wrapped Made With Aramid Cord (Made With Kevlar)
• Belt Section: B/5L Classic FHP
• Application: Mower Deck Drive Belt (66" and 72" decks)

Compatible Models

Hustler Z Series (66" Deck): HUSTLER Z, 927432 Z, 927432EX Z, 927756 XR7 Z, 927756A/B Z, 927772 XR7 Z, 927772A/B Z, 927772EX Z, 927798 XR7 Z, 927798A/B Z, 927806 XR7 Z, 927806A/B Z, 927814 XR7 Z, 927814A/B Z, 927848A/B SUPER Z, 927855A/B SUPER Z, 927871A/B SUPER Z, 927889A/B SUPER Z, 927897A/B SUPER Z, 927913A/B SUPER Z, 927921A/B SUPER Z, 927939A/B SUPER Z, 927947A/B SUPER Z, 927970A/B SUPER Z, 927988A/B SUPER Z, 927723 XR7 Z, 927723EX Z, 927731 XR7 Z, 927749 XR7 Z, 928853 Z, 928853A/B Z, 928861 Z, 928861A/B Z, 928861EX Z, 929364A/B Z

Hustler Super Z Series (66" Deck): SUPER Z, 927913A/B SUPER Z, 928010A/B SUPER Z, 928028A/B SUPER Z, 928036A/B SUPER Z, 928044A/B SUPER Z, 928044HTA SUPER Z, 928044HTB SUPER Z, 928051A/B SUPER Z, 928069A/B SUPER Z, 928879A/B SUPER Z, 928887A/B SUPER Z, 928887HTA SUPER Z, 928887HTB SUPER Z, 928895A/B SUPER Z, 928911A/B SUPER Z, 928929 SUPER Z, 928937 SUPER Z

Hustler Z4 Series (66" Deck): HUSTLER Z4, 928432 Z4, 928432 Z

Hustler XR7 Z Series: 927723 XR7 Z, 927731 XR7 Z, 927749 XR7 Z, 927756 XR7 Z, 927772 XR7 Z, 927798 XR7 Z, 927806 XR7 Z, 927814 XR7 Z

Hustler X-ONE Series (72" Deck -- early models): 936237 X-ONE, 936237EX X-ONE, 936245US X-ONE, 936252 X-ONE, 936260 X-ONE, 936278 X-ONE, 936286 X-ONE, 936286EX X-ONE, 936294US X-ONE, 936302 X-ONE, 936310 X-ONE, 936328 X-ONE, 936328EX X-ONE, 936336 X-ONE, 936401EX X-ONE, 936419EX X-ONE

Big Dog: DIABLO, DIABLO MP

Replaces Part Number(s):

797936, B1797936, 12323, 265712, 7-078263, CC12323, 230-5712

New aftermarket replacement part - not remanufactured, not used.
