81802798 LH Spindle Kit Fits Ford New Holland 230A 2310 234 2610 2810 2910 3230

81802798 LH Spindle Kit Fits Ford New Holland 230A 2310 234 2610 2810 2910 3230



AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER


Aftermarket LH Spindle Kit

Tech Info:

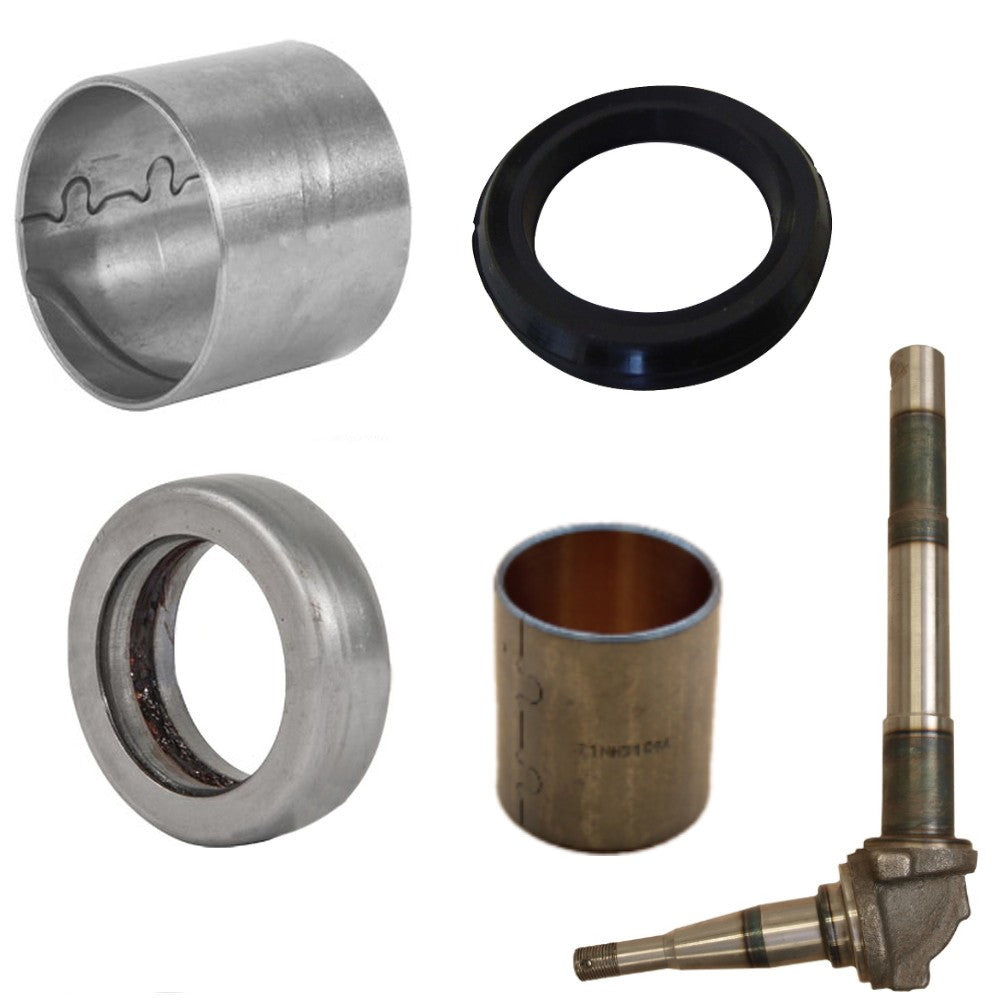

 -Kit Contains:
 -
 -(1) Spindle Bushing:
 -Front Spindle Bushing
 -Material: Steel
 -Inner Diameter: 37.50 mm
 -Outer Diameter: 40.70 mm
 -Height: 38.00 mm
 -Replaces Part Numbers:
 -81802798, C5NN3110B
 -
 -(1) Thrust Bearing:
 -Front Spindle Thrust Bearing
 -Inner Diameter: 37.65 mm
 -Outer Diameter: 55.90 mm
 -Thickness: 15.80 mm
 -Replaces Part Numbers:
 -81802806, 81802871, 957E3123, C0NN3123A, C5NN3A299A
 -
 -(1) Spindle Seal:
 -Spindle Dust Seal
 -Inner Diameter: 31.13 mm
 -Outer Diameter: 44.15 mm
 -Width: 5.75 mm
 -Replaces Part Numbers:
 -8N3528, 9N3528, 81802812, C5NN3125A
 -
 -(1) Front Spindle Bushing:
 -Inner Diameter: 31.8 mm
 -Outer Diameter: 35 mm
 -Height: 37.9 mm
 -Replaces Part Numbers:
 -2N2109, 2N3109, 81717387, 81802940, 81941357, 83928346, 957E3109B, C5NN3446A, HC2N3109
 -
 -(1) Left Hand Spindle:
 -Length: 11.6"
 -Fitting: Keyway
 -Replaces Part Numbers:
 -83928074, E0NN3106AA

Fits Ford New Holland:
 Tractor Models: 230A, 2310, 234, 2810, 2910, 334, 335, 3610NO, 3610V, 3910N, 3910V, 3910H, 3910R, 4110NO, 4110N, 4110O, 4610NO, 530A
 Model Breaks: 230A (3-Cylinder, 1/81-4/83), 2310 (3-Cylinder, 3/82-12/83, Single Keyway), 234 (3-Cylinder, 1/75-4/83), 2810 (3-Cylinder, 1/83-2/90), 2910 (3-Cylinder, 1/83-2/90, Single Keyway), 334 (3-Cylinder, 1/81-4/83), 335 (3-Cylinder, 1/83-2/84), 3610NO (3-Cylinder, 8/81-4/83), 3610V (3-Cylinder, 1/81-4/83), 3910H (3-Cylinder, 1/83-2/90), 3910N (3-Cylinder, 1/83-2/90), 3910R (3-Cylinder, 1/81-12/84), 3910V (3-Cylinder, 12/83-2/90), 4110N (3-Cylinder, 12/81-2/90), 4110NO (3-Cylinder, 1/81-2/90), 4110O (3-Cylinder, 1/81-2/90), 4610NO (3-Cylinder, 1/81-2/90)
 Replaces Part Number(s): 81802798, C5NN3110B, 81802806, 81802871, 957E3123, C0NN3123A, C5NN3A299A, 8N3528, 9N3528, 81802812, C5NN3125A, 2N2109, 2N3109, 81717387, 81802940, 81941357, 83928346, 957E3109B, C5NN3446A, HC2N3109, 83928074, E0NN3106AA

Models This Part Fits:

4610NO, 4110N, 3610V, 335, 530A, 2810, 4110NO, 2310, 334, 3610NO, 234, 3910N, 3910H, 2910, 3910V, 3910R, 230A, 4110O

Additional Information:

Kit Contains: (1) Spindle Bushing: Front Spindle Bushing Material: Steel Inner Diameter: 37.50 mm Outer Diameter: 40.70 mm Height: 38.00 mm Replaces Part Numbers: 81802798, C5NN3110B (1) Thrust Bearing: Front Spindle Thrust Bearing Inner Diameter: 37.65 mm Outer Diameter: 55.90 mm Thickness: 15.80 mm Replaces Part Numbers: 81802806, 81802871, 957E3123, C0NN3123A, C5NN3A299A (1) Spindle Seal: Spindle Dust Seal Inner Diameter: 31.13 mm Outer Diameter: 44.15 mm Width: 5.75 mm Replaces Part Numbers: 8N3528, 9N3528, 81802812, C5NN3125A (1) Front Spindle Bushing: Inner Diameter: 31.8 mm Outer Diameter: 35 mm Height: 37.9 mm Replaces Part Numbers: 2N2109, 2N3109, 81717387, 81802940, 81941357, 83928346, 957E3109B, C5NN3446A, HC2N3109 (1) Left Hand Spindle: Length: 11.6" Fitting: Keyway Replaces Part Numbers: 83928074, E0NN3106AA

Reference Numbers:

81802798, C5NN3110B, 81802806, 81802871, 957E3123, C0NN3123A, C5NN3A299A, 8N3528, 9N3528, 81802812, C5NN3125A, 2N2109, 2N3109, 81717387, 81802940, 81941357, 83928346, 957E3109B, C5NN3446A, HC2N3109, 83928074, E0NN3106AA
