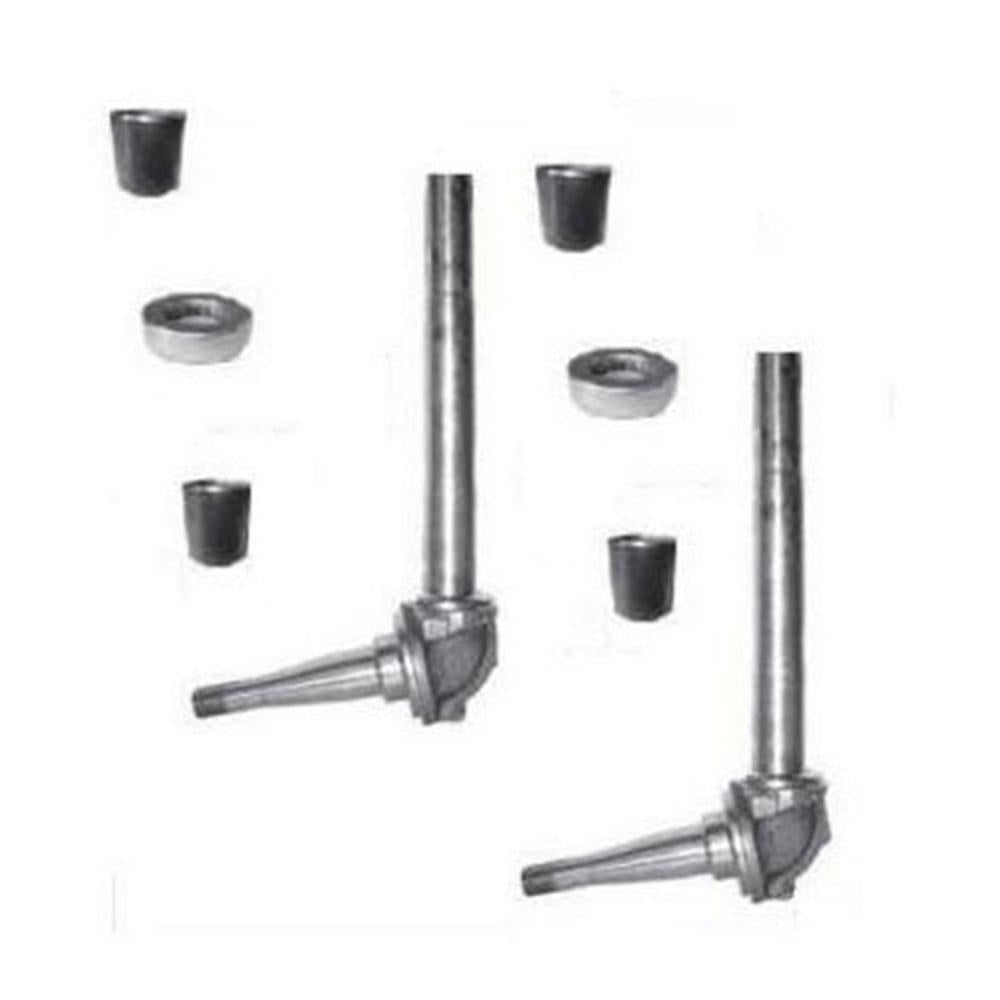

82850819 Steering Spindle Kit Fits Ford/New Holland
82850819 Steering Spindle Kit Fits Ford/New Holland
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
Aftermarket Steering Spindle KitTech Info:
-(1) Right Hand Spindle
-Tech Info:
-Right side as sitting in the tractor seat
-10.750" machined upright shaft
-1.250" shaft outside diameter
-1.187" inner bearing diameter
-0.750" outer bearing diameter
-Machined for 1/4" x 7/8" key
-Replaces Part Numbers: F3NN3105AA, 8N3105
-
-(1) Left Hand Spindle
-Tech Info:
-Keyed
-Side
-Axle Length 5 1/4"
-Diameter 1 1/4"
-ID 1 3/16"
-OD 3/4"
-Shaft Length 10 11/16"
-Type Left Hand
-Replaces Part Numbers: F3NN3106AA
-
-(4) Front Spindle Bushing
-Tech Info:
-4 used per tractor,
-1.255" inside diameter,
-1.378" outside diameter,
-1.498" long,
-Must be honed or reamed to size when installed
-Replaces Part Numbers: 2N2109, 2N3109, 81717387, 81802940
-
-(2) Thrust Bearing
-Tech Info:
-Bearing Type Spindle Bearing
-Grease Greaseable
-ID 1.350"
-ID Type Round
-OD 2.200"
-Sourced Import
-Width Overall 0.620"
-Replaces Part Number: 957E3123AFits Ford/New Holland:
Models: 8N, NAA
Replaces Part Number(s): F3NN3105AA, 8N3105, 82850819, 8N3105B
Models: 2600, 2310, 4600, 4000, 700, 3600, 4600SU, 2910, 601, 701, 2N, NAA, 2610, 901, 8N, 3910, 3610, 2810, 4000SU, 2000, 900, 801, 800, 600, 9N, 4610
Replaces Part Number(s): 957E3123A
-(1) Right Hand Spindle
-Tech Info:
-Right side as sitting in the tractor seat
-10.750" machined upright shaft
-1.250" shaft outside diameter
-1.187" inner bearing diameter
-0.750" outer bearing diameter
-Machined for 1/4" x 7/8" key
-Replaces Part Numbers: F3NN3105AA, 8N3105
-
-(1) Left Hand Spindle
-Tech Info:
-Keyed
-Side
-Axle Length 5 1/4"
-Diameter 1 1/4"
-ID 1 3/16"
-OD 3/4"
-Shaft Length 10 11/16"
-Type Left Hand
-Replaces Part Numbers: F3NN3106AA
-
-(4) Front Spindle Bushing
-Tech Info:
-4 used per tractor,
-1.255" inside diameter,
-1.378" outside diameter,
-1.498" long,
-Must be honed or reamed to size when installed
-Replaces Part Numbers: 2N2109, 2N3109, 81717387, 81802940
-
-(2) Thrust Bearing
-Tech Info:
-Bearing Type Spindle Bearing
-Grease Greaseable
-ID 1.350"
-ID Type Round
-OD 2.200"
-Sourced Import
-Width Overall 0.620"
-Replaces Part Number: 957E3123AFits Ford/New Holland:
Models: 8N, NAA
Replaces Part Number(s): F3NN3105AA, 8N3105, 82850819, 8N3105B
Models: 2600, 2310, 4600, 4000, 700, 3600, 4600SU, 2910, 601, 701, 2N, NAA, 2610, 901, 8N, 3910, 3610, 2810, 4000SU, 2000, 900, 801, 800, 600, 9N, 4610
Replaces Part Number(s): 957E3123A
Models This Part Fits:
4600SU, 2910, 4610, 2810, 600, 2610, 2310, 4600, 601, 2N, 901, 3610, 800, 701, 9N, 8N, 900, 3910, 4000, 700, 2600, 3600, 4000SU, NAA, 2000, 801Additional Information:
(1) Right Hand Spindle: Right side as sitting in the tractor seat 10.750" machined upright shaft 1.250" shaft outside diameter 1.187" inner bearing diameter 0.750" outer bearing diameter Machined for 1/4" x 7/8" key Replaces Part Numbers: F3NN3105AA, 8N3105 (1) Left Hand Spindle: Keyed Side Axle Length 5 1/4" Diameter 1 1/4" ID 1 3/16" OD 3/4" Shaft Length 10 11/16" Type Left Hand Replaces Part Numbers: F3NN3106AA (4) Front Spindle Bushing: 4 used per tractor, 1.255" inside diameter, 1.378" outside diameter, 1.498" long, Must be honed or reamed to size when installed Replaces Part Numbers: 2N2109, 2N3109, 81717387, 81802940 (2) Thrust Bearing: Bearing Type Spindle Bearing Grease Greaseable ID 1.350" ID Type Round OD 2.200" Sourced Import Width Overall 0.620" Replaces Part Number: 957E3123AReference Numbers:
957E3123A, 8N3105B, F3NN3105AA, 8N3105, 83980355, 8N3106, 8N3106B, F3NN3106AA, 2N3109, 81802940, 957E3109B, C5NN3446A, C0NN3123B, 81859284, 83910196, 957E3123AMakes This Part Fits:
