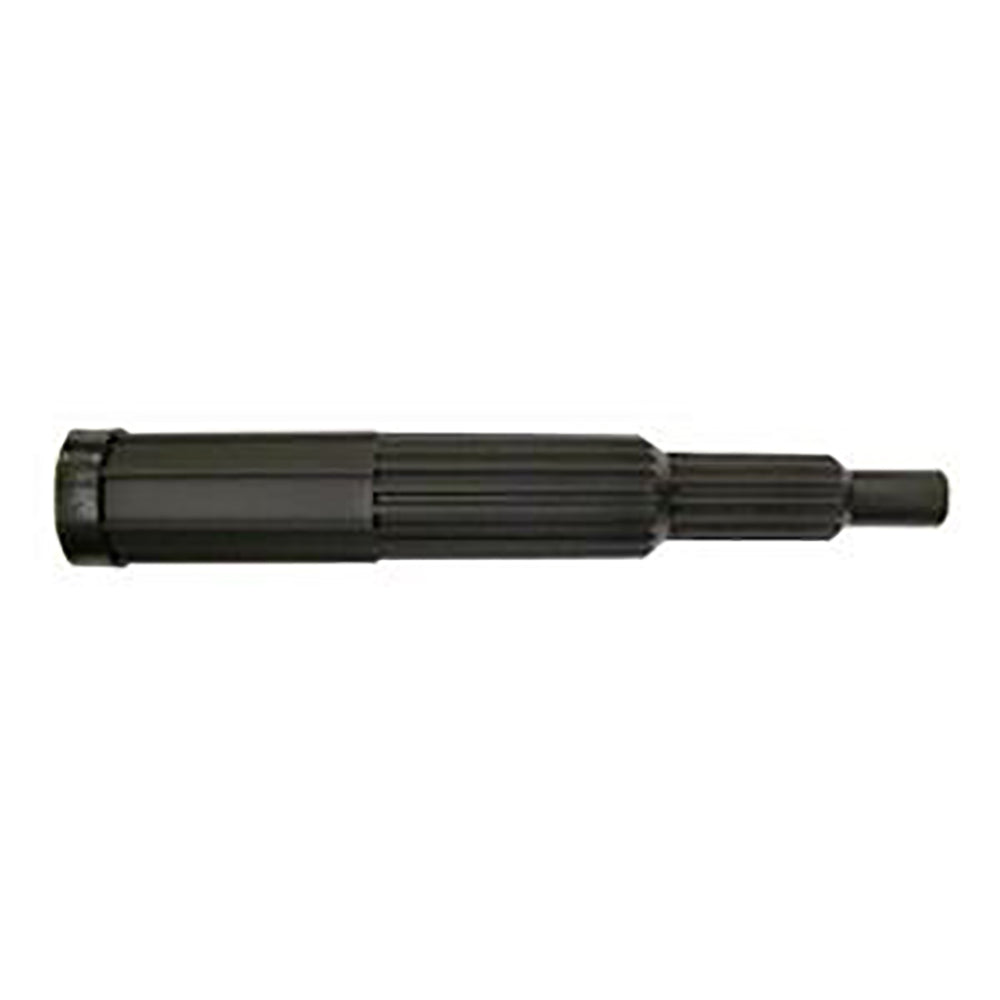

8301449 Clutch Alignment Tool Fits John Deere 1050 1070 4005 5200 5210 5220 5300
8301449 Clutch Alignment Tool Fits John Deere 1050 1070 4005 5200 5210 5220 5300
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
One New Aftermarket Clutch Alignment Tool
Tech Info:
Pilot Diameter: .655"
1st Spline = 15/16" (13 Spline)
2nd Spline = 1-3/8" (19 Spline)
Fits John Deere Models:
1050, 1070, 4005, 5200, 5210, 5220, 5300, 5310, 5310N (Prior to S/N 337354), 5320, 5320N, 5400, 5400N, 5403, 5410, 5415 (S/N <-002287 w/ Collarshift or Synchshuttle Transmission), 5415 (S/N 002288-> w/ Collarshift or Synchshuttle Transmission), 5420N, 5425, 5425N, 5500, 5500N, 5510, 5510N, 5520, 5520N, 5525, 5600, 5603, 5605, 5615, 5625, 5700, 5705, 5715, 5725, 5725N, 850 (S/N 16001 & Up), 870, 900HC, 950 (S/N 20001 & Up), 970, 990
Replaces Part Number:
8301449
Tech Info:
Pilot Diameter: .655"
1st Spline = 15/16" (13 Spline)
2nd Spline = 1-3/8" (19 Spline)
Fits John Deere Models:
1050, 1070, 4005, 5200, 5210, 5220, 5300, 5310, 5310N (Prior to S/N 337354), 5320, 5320N, 5400, 5400N, 5403, 5410, 5415 (S/N <-002287 w/ Collarshift or Synchshuttle Transmission), 5415 (S/N 002288-> w/ Collarshift or Synchshuttle Transmission), 5420N, 5425, 5425N, 5500, 5500N, 5510, 5510N, 5520, 5520N, 5525, 5600, 5603, 5605, 5615, 5625, 5700, 5705, 5715, 5725, 5725N, 850 (S/N 16001 & Up), 870, 900HC, 950 (S/N 20001 & Up), 970, 990
Replaces Part Number:
8301449
Models This Part Fits:
5220, 1070, 850, 870, 5075, 5425N, 5310, 5725N, 5303, 5315, 5203, 4005, 5500N, 5525, 5520N, 5615, 950, 5045, 5515, 5603, 5065, 5715HC, 5055, 5200, 5403, 5415H, 900HC, 5605, 5520, 5103, 5510, 5320, 5400, 5700, 5210, 5400N, 5300, 5705, 970, 1050, 5600, 5515HC, 5420, 5725, 5310N, 5625, 5415, 990, 5500, 5320N, 5420N, MT750, 5425, 5415N, 5715, 5215, 5510N, 5410Additional Information:
Large Spline: 1-3/8" - 19 Small Spline: 1" - 13 Pilot Diameter: 0.669" Clutch Alignment ToolReference Numbers:
83AT021Makes This Part Fits:
Shop John Deere Wholesale PartsShop Mitsubishi Wholesale Parts
Product Category:
Agriculture Replacement PartsProduct Group:
Product Sub Group:
