168253A Clutch Kit Fits White 1550 1555 1600 1650 1655 66 660 77 770 88 880
168253A Clutch Kit Fits White 1550 1555 1600 1650 1655 66 660 77 770 88 880
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER

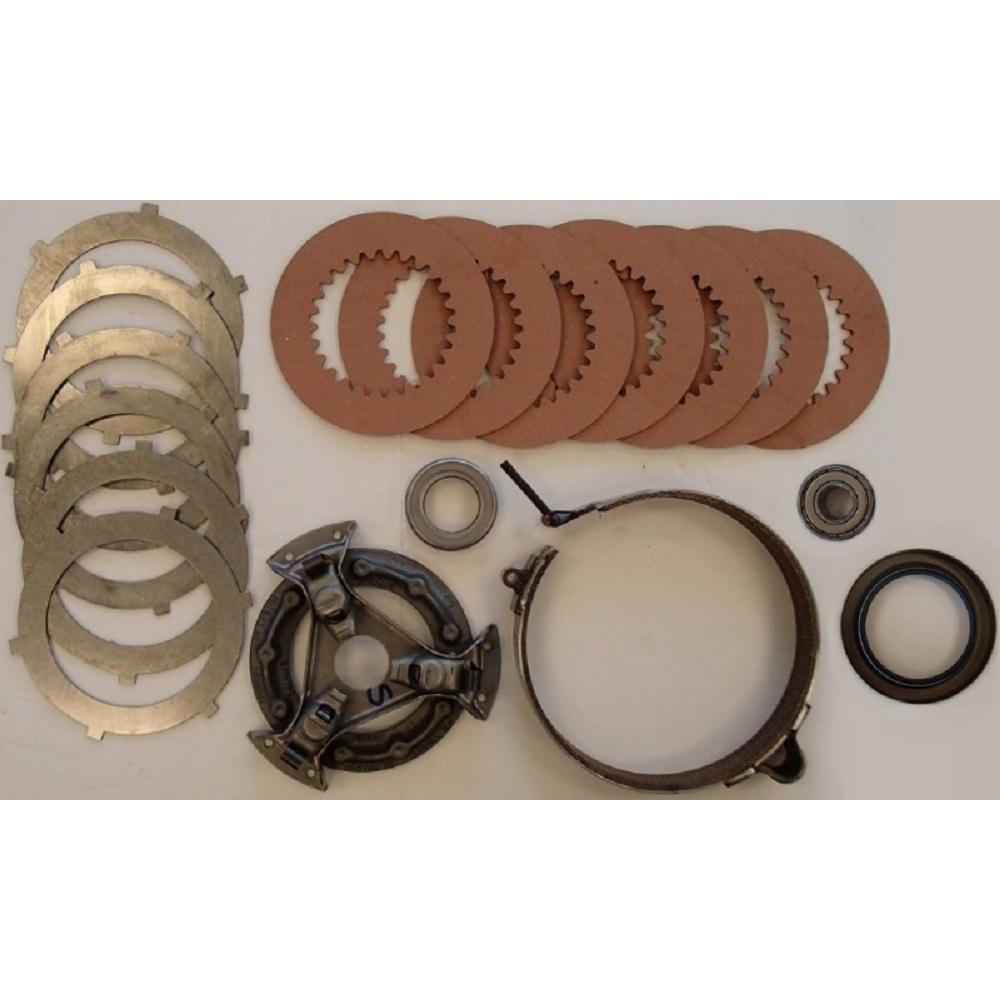

Aftermarket Clutch KitTech Info:

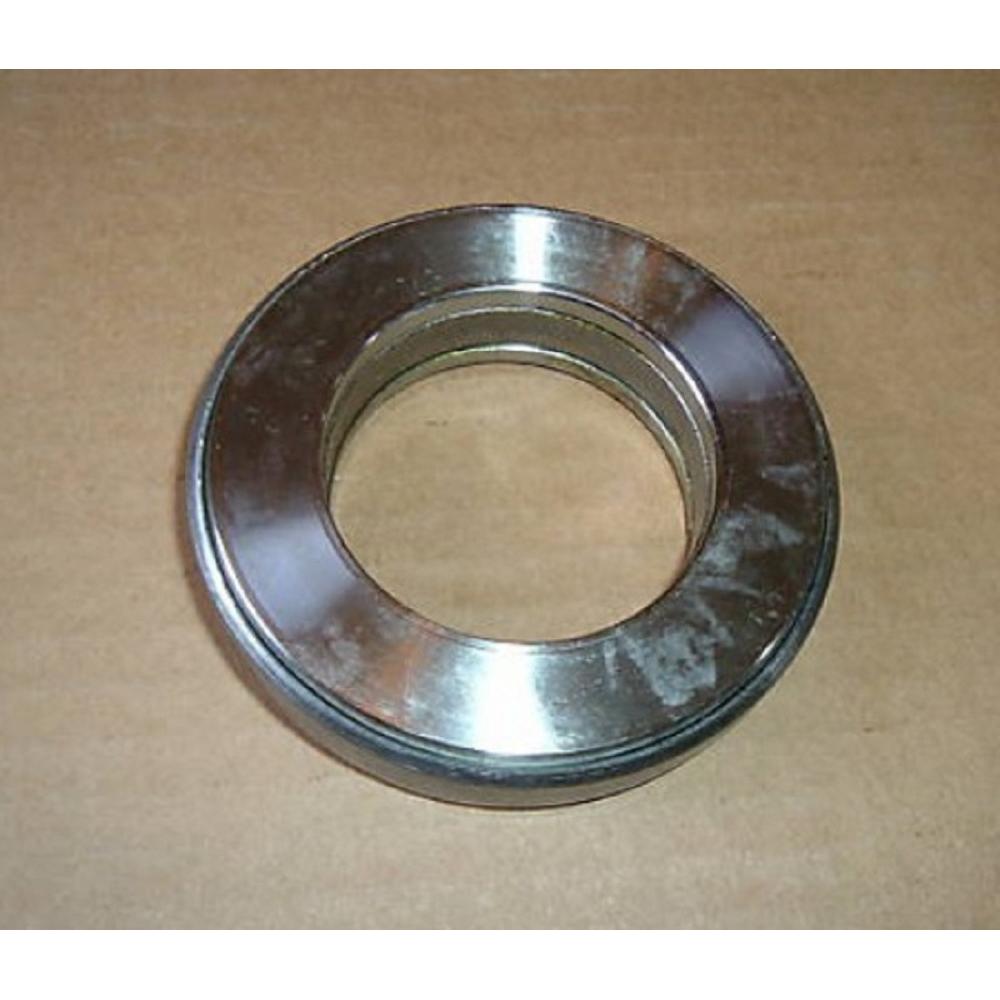

-(1) Release Bearing
-Bearing Type Sealed Roller
-Grease Non-greaseable
-ID 2.060"
-ID Type Round
-OD 3.560"
-Width Overall 0.795"
-Replaces: AM3983T
-

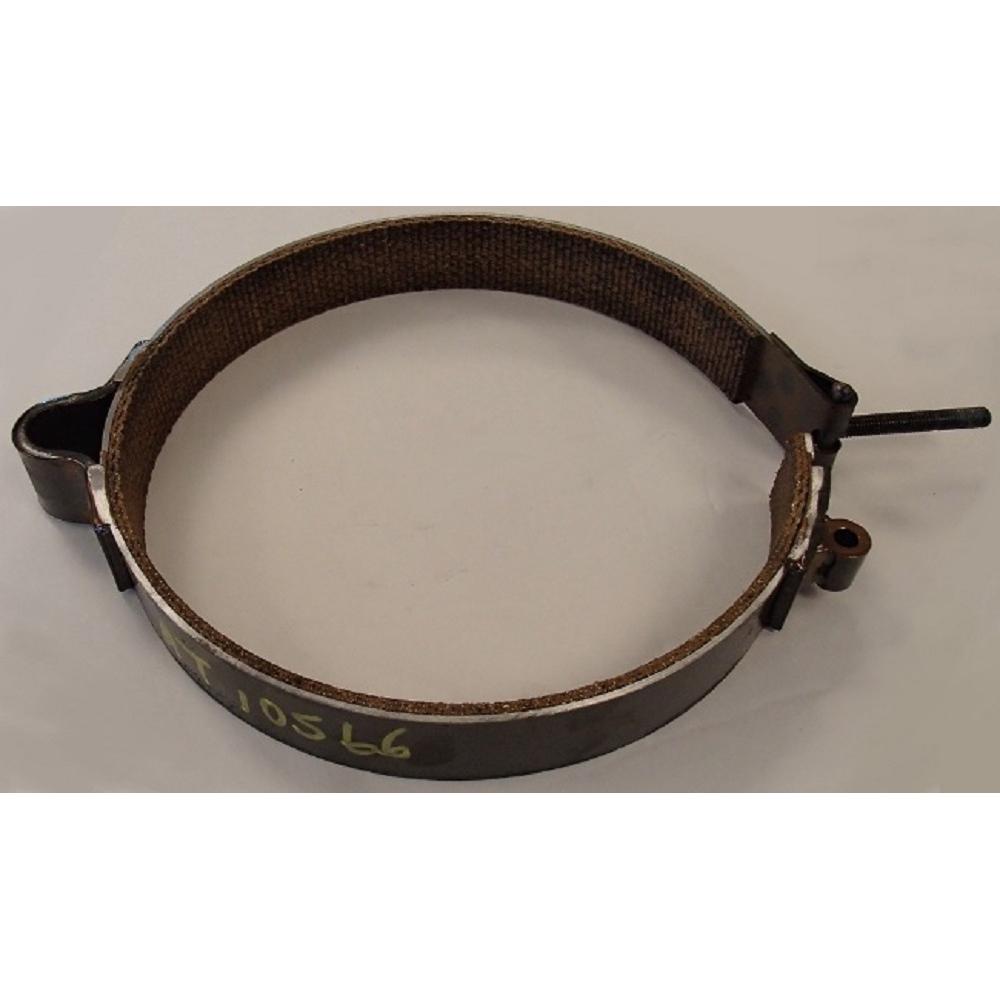

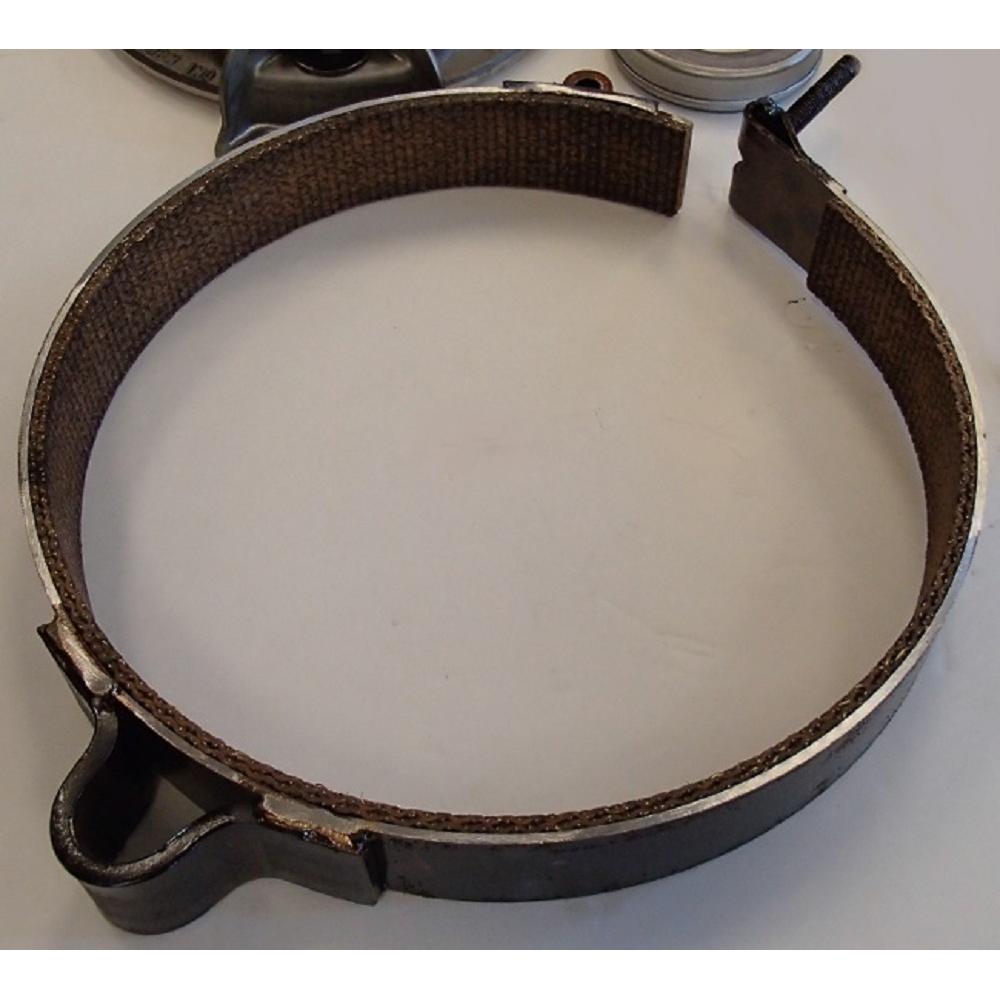

-(1) Brake Band Assembly
-Replaces Part Number(s): AT10566, AT129803, M695T
-

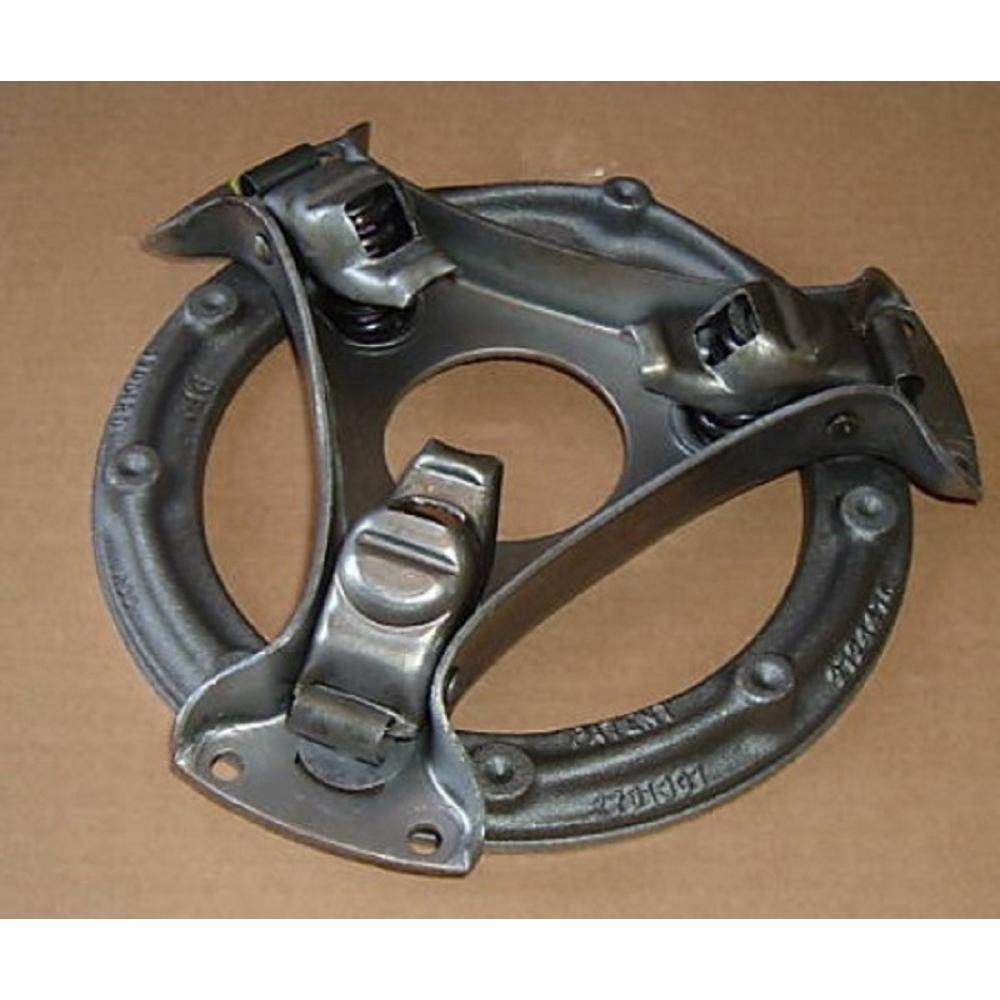

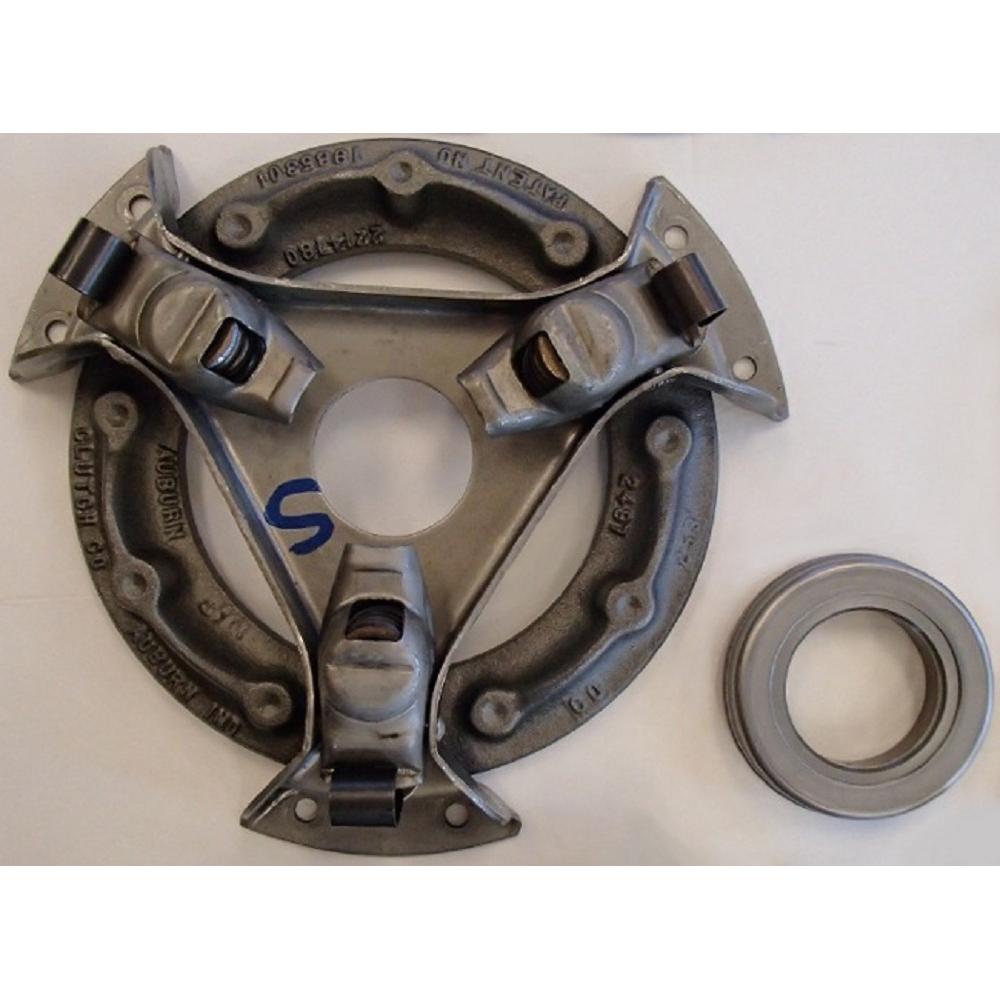

-(1) 8.5" Pressure Plate Assembly
-3 Lever
-Replaces Part Number(s): AM1930T, AM987T, AP23494, AT11486, AT11853, AT16121
-

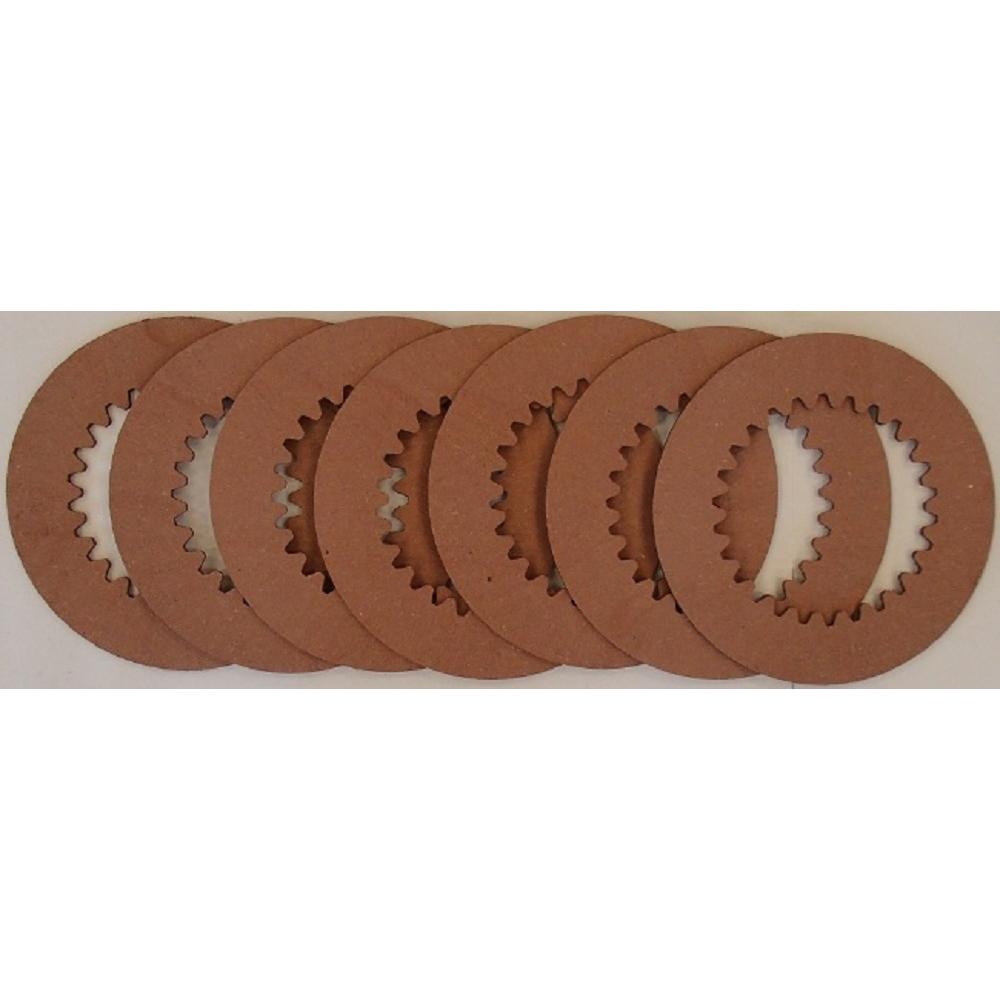

-(7) Fiber Steering Clutch Discs
-8.554" OD
-5.620" Major ID
-26 Splines
-Replaces Part Number(s): M3293T, AT314772, M3293
-

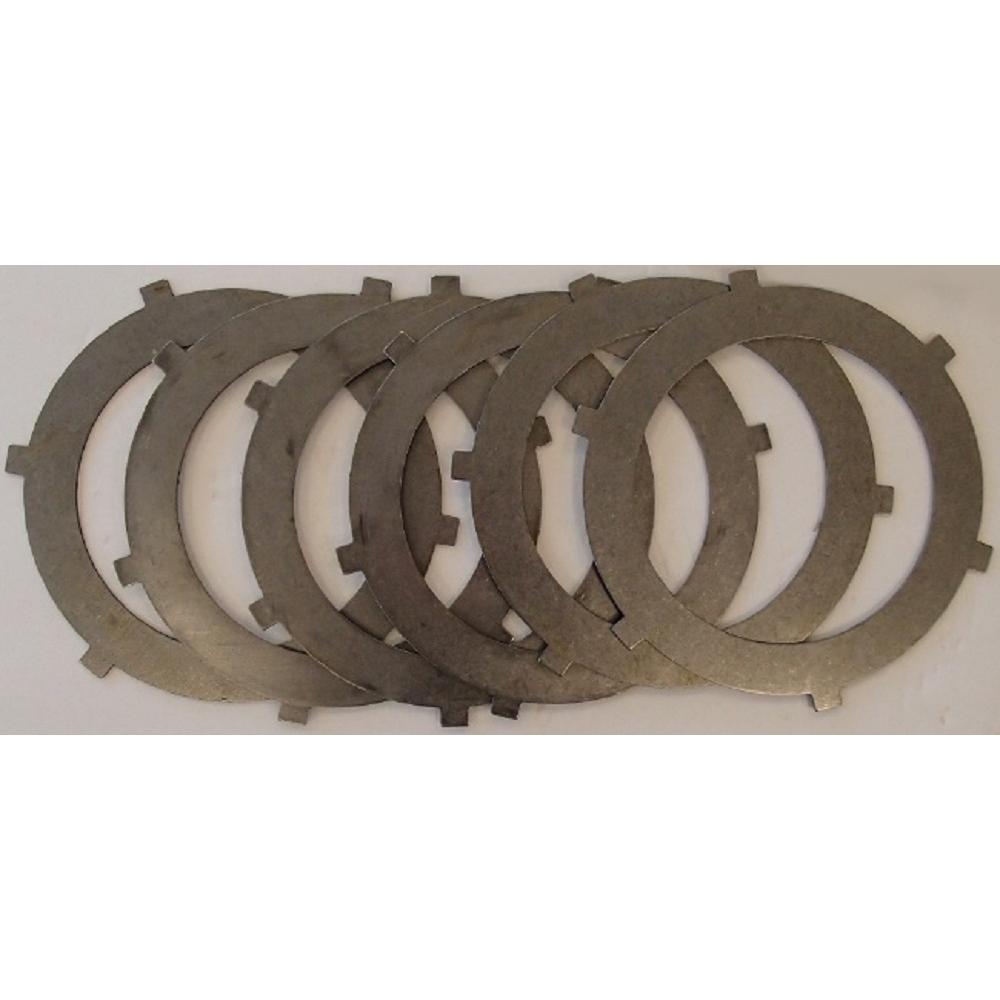

-(6) Steel Discs
-8.493" O.D.
-6.380" I.D.
-6 External Ears
-Replaces Part Number(s): M872T
-

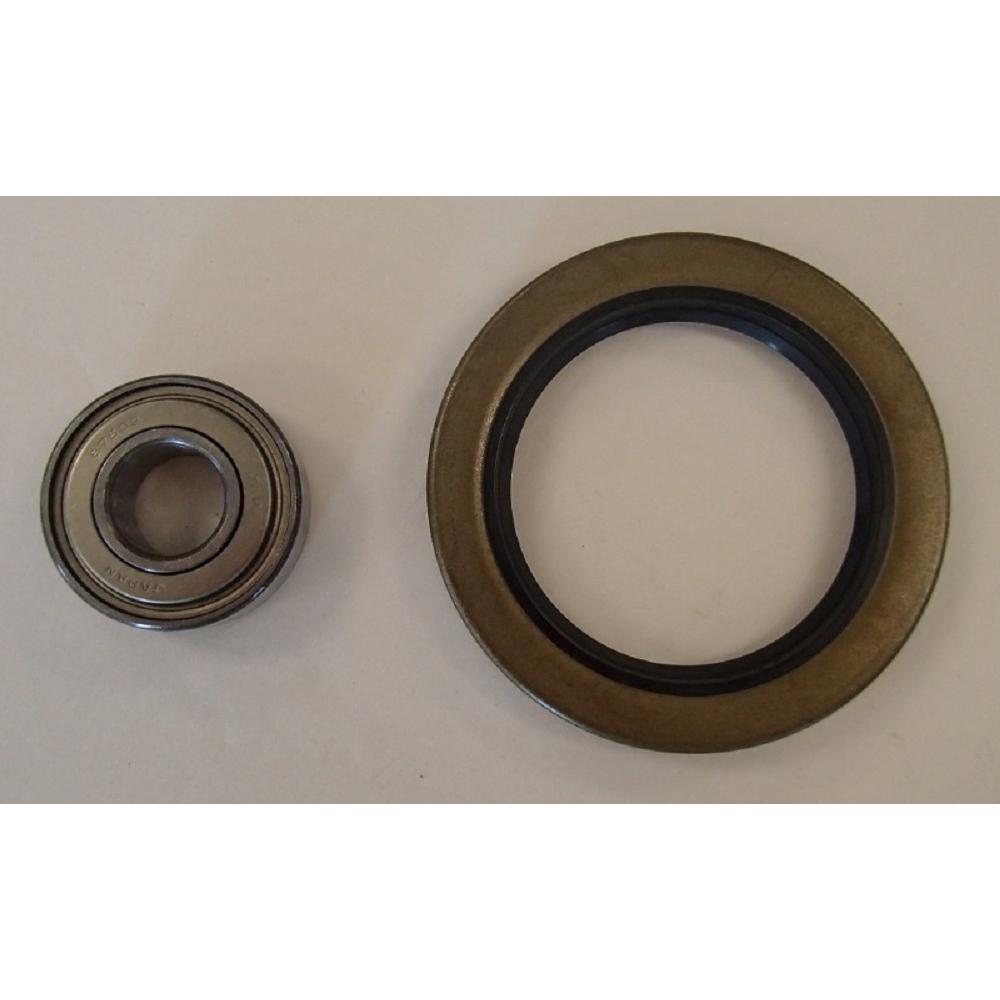

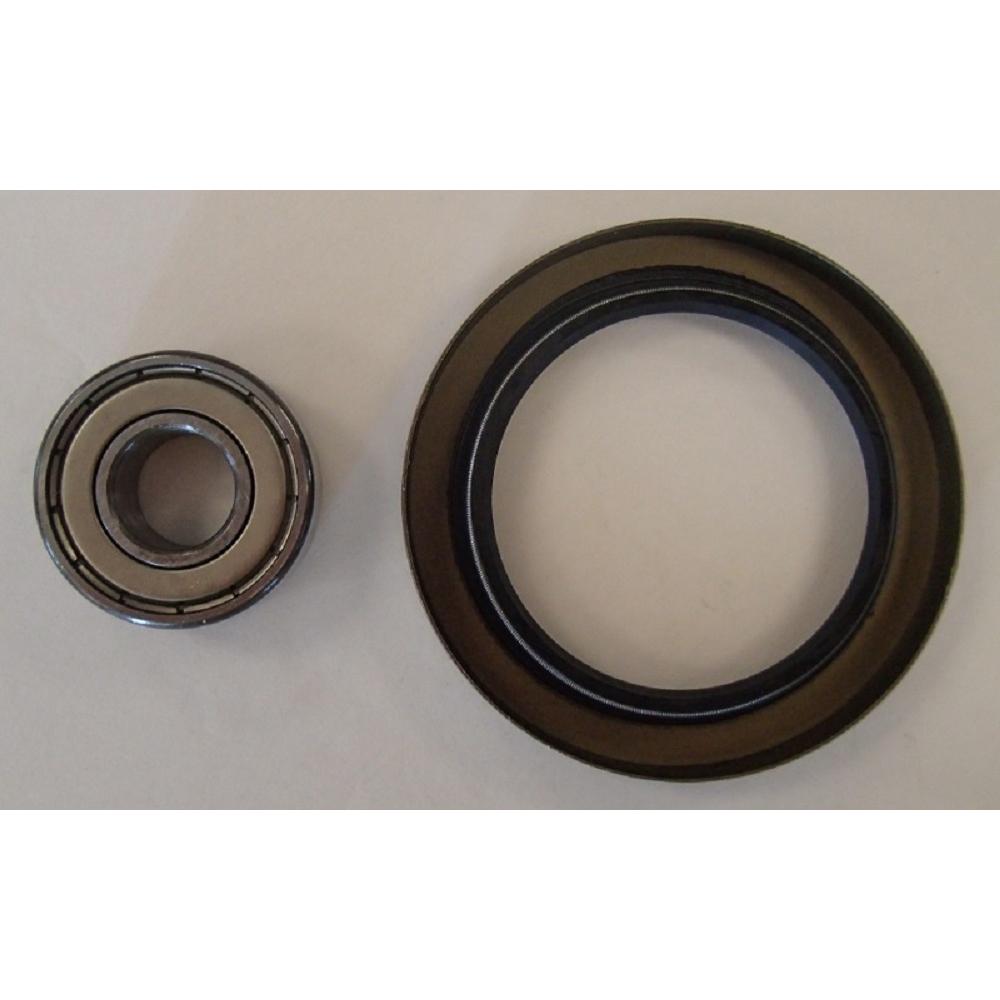

-(1) Rear Axle Inner Seal
-2.000” ID
-2.876” OD
-.468” wide
-Replaces: AM1717T
-
-(1) Pilot Bearing
-15 X 35 X 12.192 WI X 11 WOFits White:
Tractor Models: 66, 77, Super 77, 88, Super 88, 660, 770, 880, Super 66, 1550, 1555, 1600, 1650, 1655
Replaces Part Number(s): 168253A, 1DS5022, DS5022, 30-3056295
-(1) Release Bearing
-Bearing Type Sealed Roller
-Grease Non-greaseable
-ID 2.060"
-ID Type Round
-OD 3.560"
-Width Overall 0.795"
-Replaces: AM3983T
-
-(1) Brake Band Assembly
-Replaces Part Number(s): AT10566, AT129803, M695T
-
-(1) 8.5" Pressure Plate Assembly
-3 Lever
-Replaces Part Number(s): AM1930T, AM987T, AP23494, AT11486, AT11853, AT16121
-
-(7) Fiber Steering Clutch Discs
-8.554" OD
-5.620" Major ID
-26 Splines
-Replaces Part Number(s): M3293T, AT314772, M3293
-
-(6) Steel Discs
-8.493" O.D.
-6.380" I.D.
-6 External Ears
-Replaces Part Number(s): M872T
-
-(1) Rear Axle Inner Seal
-2.000” ID
-2.876” OD
-.468” wide
-Replaces: AM1717T
-
-(1) Pilot Bearing
-15 X 35 X 12.192 WI X 11 WOFits White:
Tractor Models: 66, 77, Super 77, 88, Super 88, 660, 770, 880, Super 66, 1550, 1555, 1600, 1650, 1655
Replaces Part Number(s): 168253A, 1DS5022, DS5022, 30-3056295
Models This Part Fits:
660, 880, Super 77, 1600, 1650, 77, 1555, 88, Super 88, Super 66, 66, 770, 1550, 1655Additional Information:
(1) Release Bearing Bearing Type Sealed Roller Grease Non-greaseable Inner Diameter: 2.060" Type: Round Outer Diameter: 3.560" Width Overall 0.795" Replaces: AM3983T (1) Brake Band Assembly Replaces Part Number(s): AT10566, AT129803, M695T (1) 8.5" Pressure Plate Assembly 3 Lever Replaces Part Number(s): AM1930T, AM987T, AP23494, AT11486, AT11853, AT16121 (7) Fiber Steering Clutch Discs 8.554" Outer Diameter 5.620" Major Inner Diameter 26 Splines Replaces Part Number(s): M3293T, AT314772, M3293 (6) Steel Discs 8.493" Outer Diameter 6.380" Inner Diameter 6 External Ears Replaces Part Number(s): M872T (1) Rear Axle Inner Seal 2.000” Inner Diameter 2.876” Outer Diameter .468” wide Replaces: AM1717T (1) Pilot Bearing 15 X 35 X 12.192 WI X 11 WOReference Numbers:
168253A, 1DS5022, DS5022, 30-3056295Makes This Part Fits:
Shop White Wholesale PartsProduct Category:
Agriculture Replacement PartsProduct Group:
