One New Aftermarket Replacement Clutch Pilot Bearing for John Deere Tractors

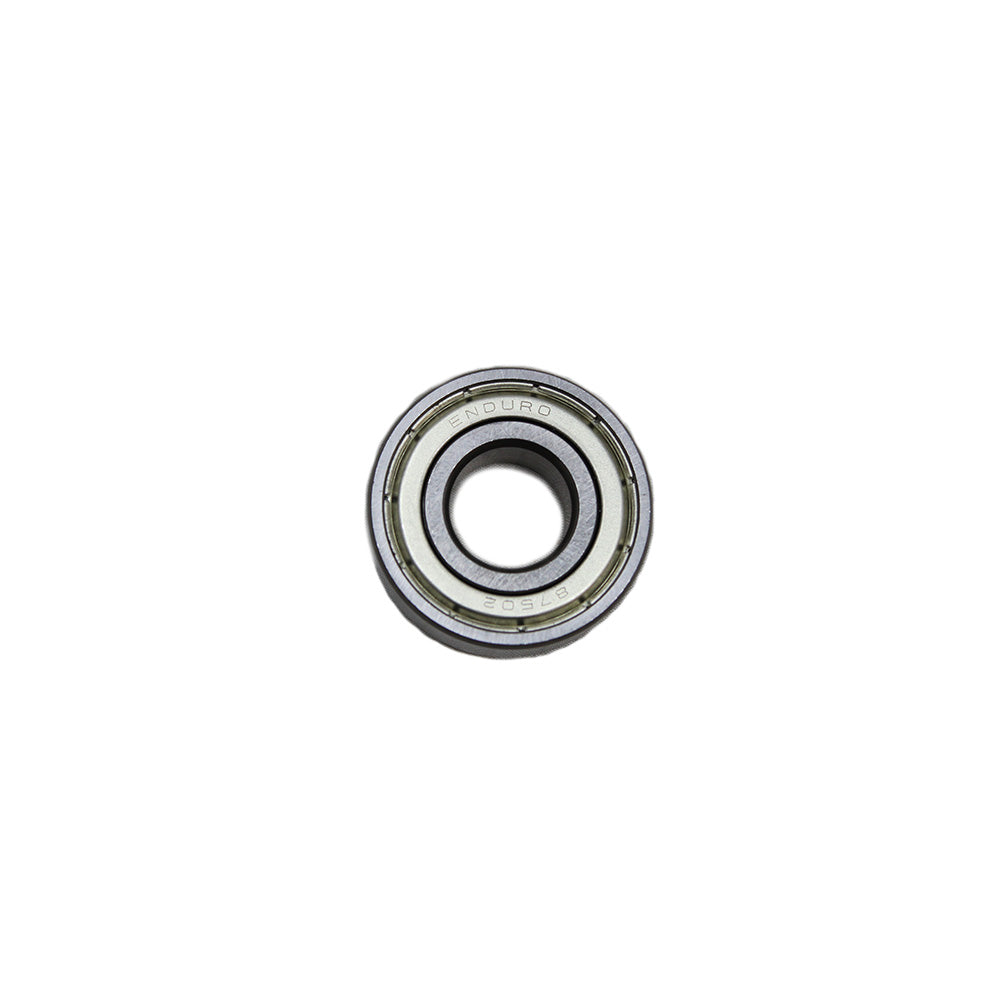

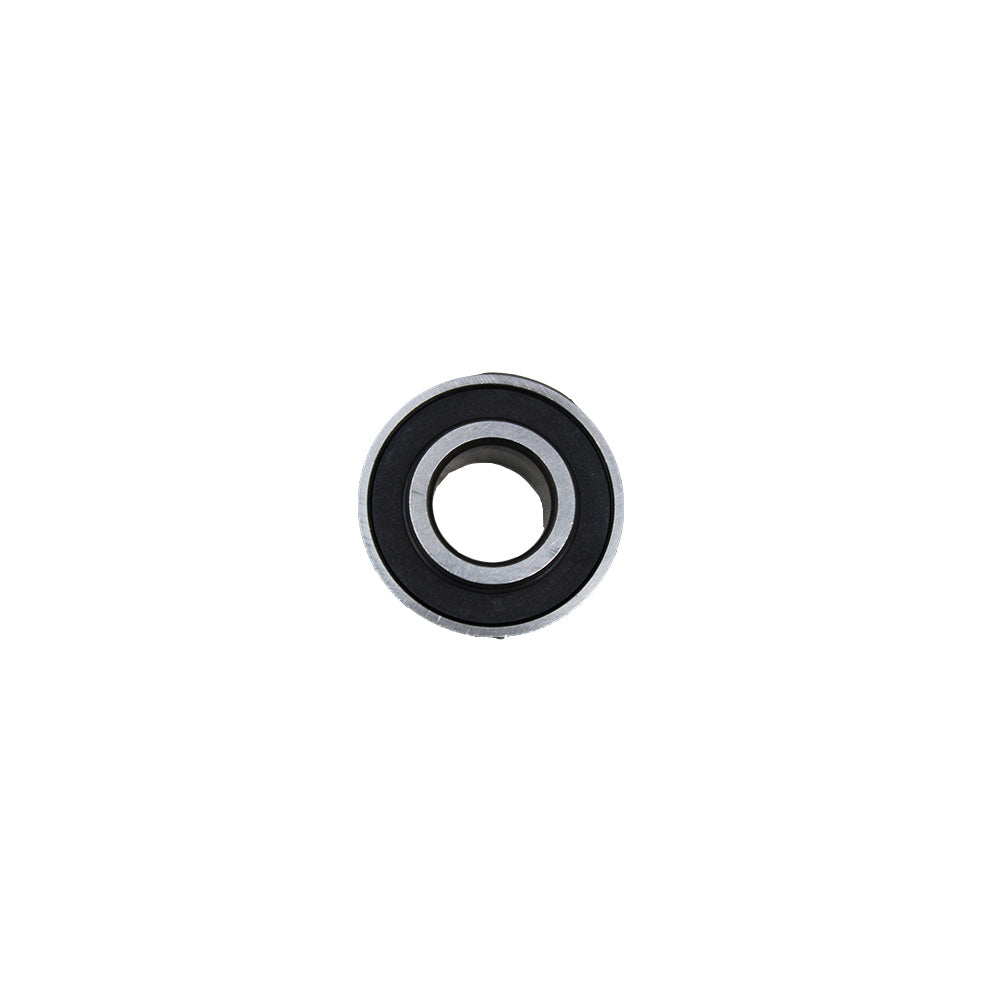

This 87502 felt seal single-row ball bearing serves as the clutch pilot bearing in John Deere (JD) tractors, centering the transmission input shaft in the crankshaft during clutch engagement. It features an extended inner ring, one felt seal, and one metal shield, and comes pre-lubricated with grease ready for installation. The bearing is also used in planter closing wheel applications on compatible John Deere equipment.

Specifications

• Inside Diameter (Bore): 15mm (0.591")
• Outside Diameter: 35mm (1.378")
• Inner Ring Width: 12.7mm (0.5")
• Outer Ring Width: 11mm (0.433")
• One Felt Seal, One Metal Shield
• Extended Inner Ring
• Pre-lubricated with grease

Compatible Models

John Deere Tractors: 2030, 2355, 2440, 2510, 2520, 2630, 2640, 3010, 3020, 4000, 4010, 4020, 4040, 4230, 4240, 4320, 4430 (Serial No. 022373 & After), 4440, 4520, 4620, 4630, 4640, 4840, 5200, 5210, 5300, 5400, 5410, 5425, 5500, 5520, 7020

Replaces Part Number(s):

JD9449, AA61722, 6203-2RS-I

New aftermarket replacement part - not remanufactured, not used.
