8H433 4H4078 8H9167 Seat Cushion Set Fits Caterpillar Fits CAT D5 D6C D7 D8 D9
8H433 4H4078 8H9167 Seat Cushion Set Fits Caterpillar Fits CAT D5 D6C D7 D8 D9
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER

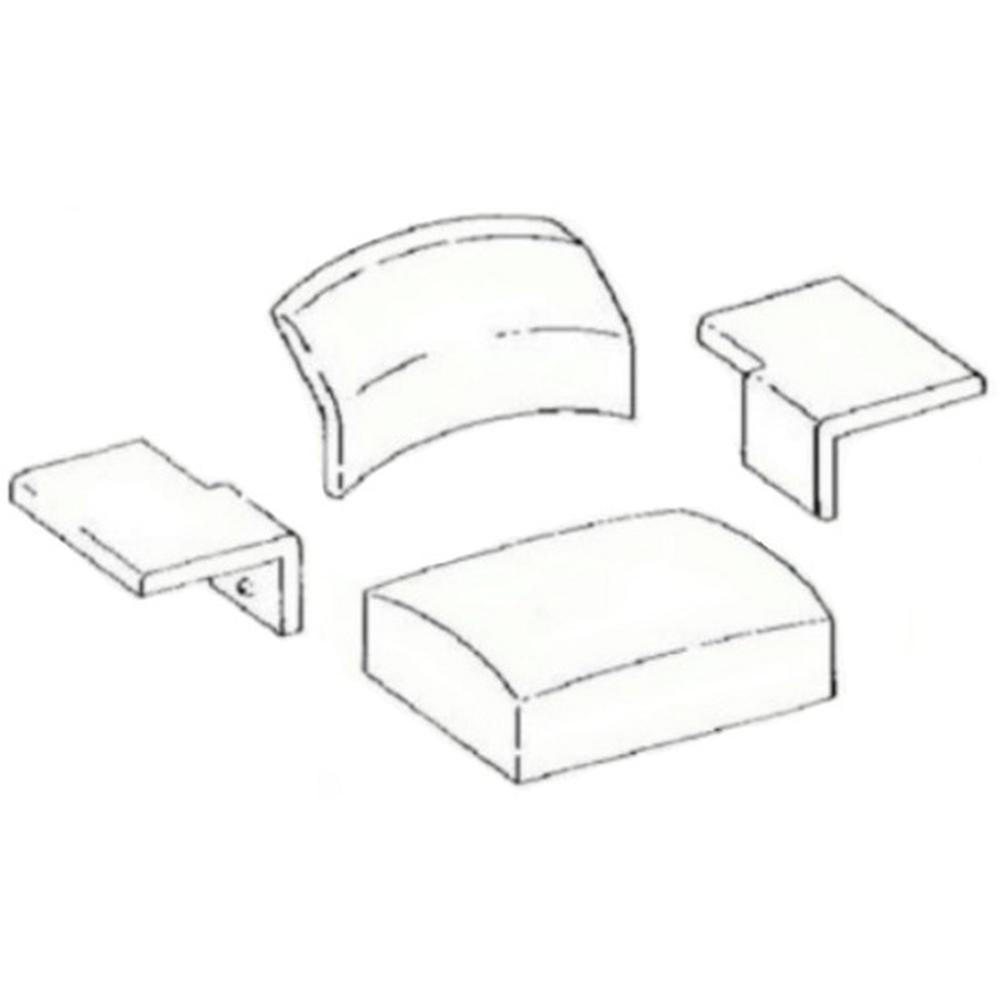

One New Aftermarket Replacement D6 4-Piece Seat Cushion Set (which includes Back Cushion, Bottom Cushion, & Arm Rests)
Fits Caterpillar models:
Serial Numbers (D5, 82H, 84H, 94J, 96J, 6R), (D6C, 10K, 74A, 76A, 911), (D7, 47A), (D8, 35A, 36A, 46A to 10724), (D9, 34A, 49A, 50A)
Dimensions & Notes:
(1) Seat Bottom: 8H433 22" x 17" x 5" to 4"
(1) Seat Back: 4H4078 or 1S7171 or 9C3361 22" x 14.50" x 5", 10.5" or 6" mounting top to bottom / 10" bolt spacing
(2) Arm Rests: 8H9167 or 9C3754 14" x 5" x 2", 14" x 2.25" x 2

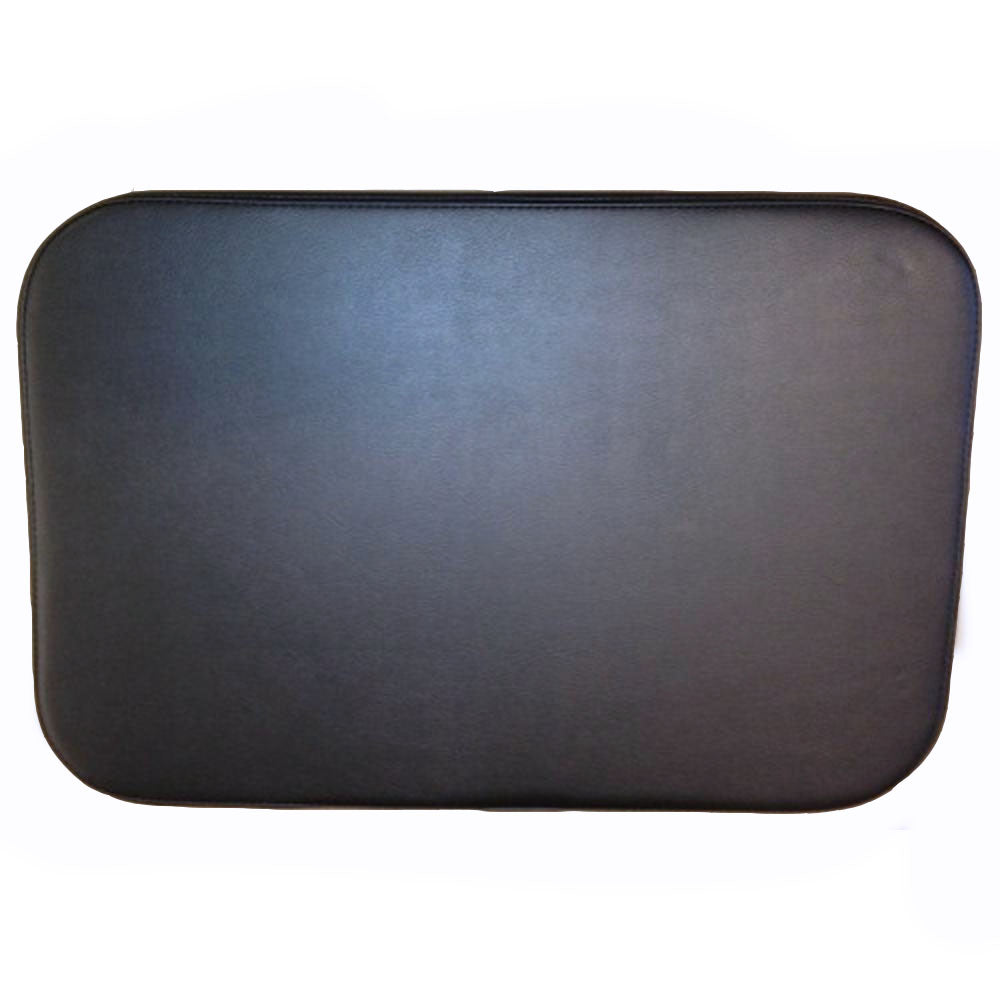

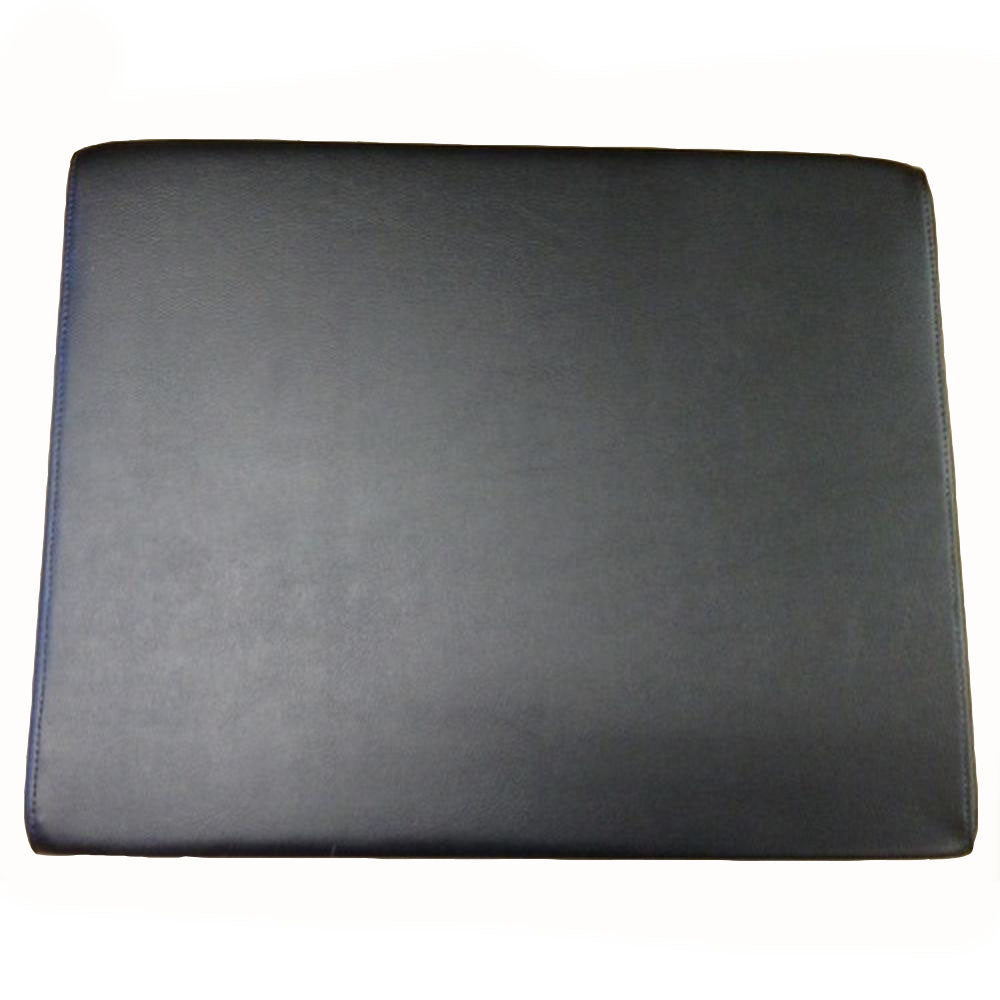

ACTUAL PHOTOS OF CUSHIONS. ***PLEASE NOTE THAT BOTH ARM RESTS ARE INCLUDED, BUT NOT PICTURED.
Kit Components Also Available Separately - Please See Our Other Listings!
Models This Part Fits:
10K, 74A, 76A, 82H, 84H, 94J, 96J, D6CAdditional Information:
Set Includes: (1) Seat Cushion 22" x 17 3/4" x 5" to 4" Replaces Part Numbers: 3B2596, 4K5757, 8F9344 (1) Seat Back Cushion Overall Length: 22" Overall Height: 14.55" Thickness: 3.55" Replaces Part Numbers: 1S7171, 9C3361 (2) Arm Cushion Overall Length: 14.50" Bolt Pattern: 10" from center to center/front to back Replaces Part Numbers: 9C3754, 9C7354Reference Numbers:
3B2596, 4K5757, 8F9344, 1S7171, 9C3361, 9C3754, 9C7354Makes This Part Fits:
Shop Caterpillar Wholesale PartsProduct Category:
Construction Replacement PartsProduct Group:
Product Sub Group:
