938294R91 Oil Seal Fits IH H HV M MD 544 656 666 600 650 Super H Hydro 86 35451D

938294R91 Oil Seal Fits IH H HV M MD 544 656 666 600 650 Super H Hydro 86 35451D



AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER

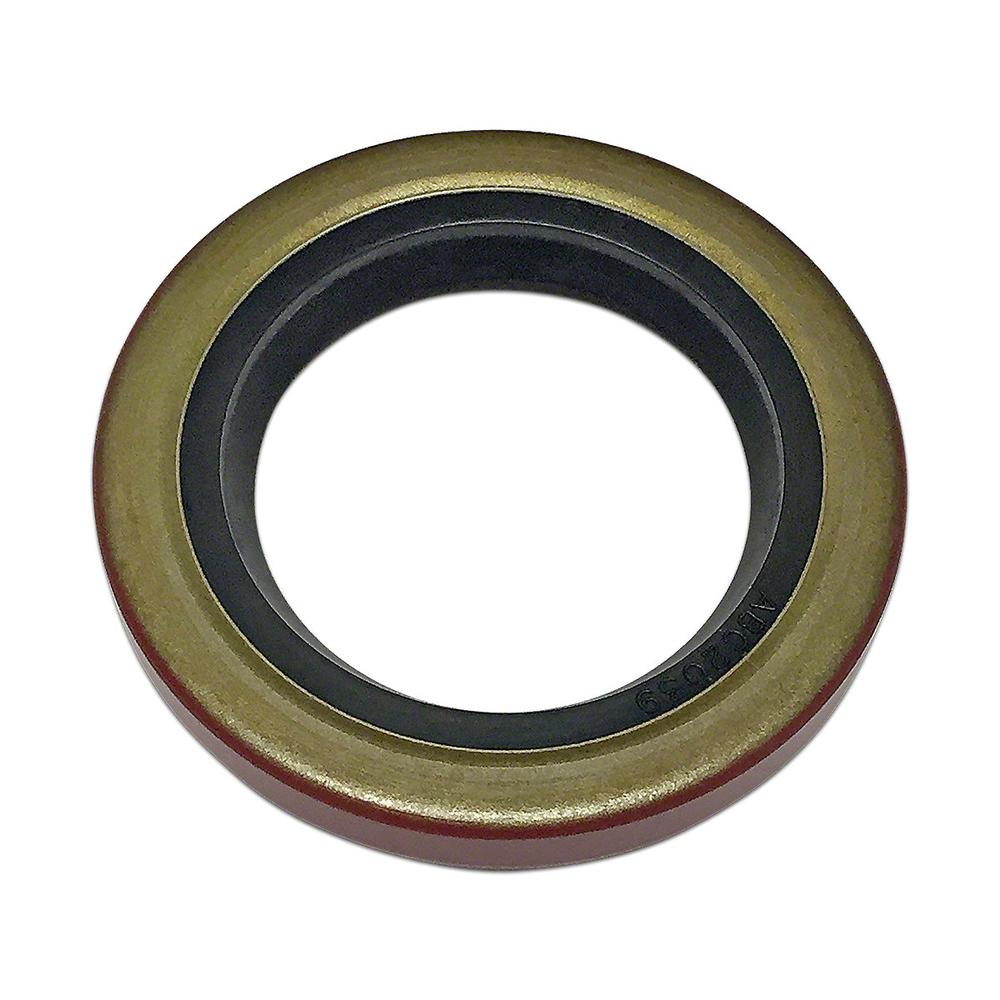

One New Aftermarket Replacement Oil Seal


Fits International Harvester Tractor Models:
H, HV, Super H, Super HV, I9, ID9, M, MD, Super M, Super MD, Super MDV, MDV, MV, Super MV, Super W9, W9, Super WD9, Super WDR9, WD9, WDR9, WR9, WR9S, Hydro 70, Hydro 86, 544, 600, 650, 656, 666

Tech Info:
Inner Diameter: 1.375"
Outer Diameter: 2.130"
Width: 0.437"

Fitment Notes:
H (Countershaft Driven Hydraulic Pump Seal),
HV (Countershaft Driven Hydraulic Pump Seal),
Super H (To SN: 19233, Countershaft Driven Hydraulic Pump Seal),
Super HV (To SN: 19233, Countershaft Driven Hydraulic Pump Seal),
I9 (Brake Pedal Shaft Seal, 2 Used Per Tractor),
ID9 (Brake Pedal Shaft Seal, 2 Used Per Tractor),
M (Countershaft Driven Hydraulic Pump Seal),
MD (Countershaft Driven Hydraulic Pump Seal),
Super M (Early, Countershaft Driven Hydraulic Pump Seal),
Super MD (Early, Countershaft Driven Hydraulic Pump Seal),
Super MDV (Early, Countershaft Driven Hydraulic Pump Seal),
MDV (Countershaft Driven Hydraulic Pump Seal),
MV (Countershaft Driven Hydraulic Pump Seal),
Super MV (Early, Countershaft Driven Hydraulic Pump Seal),
Super W9 (Brake Pedal Shaft Seal, 2 Used Per Tractor),
W9 (Brake Pedal Shaft Seal, 2 Used Per Tractor),
Super WD9 (Brake Pedal Shaft Seal, 2 Used Per Tractor),
Super WDR9 (Brake Pedal Shaft Seal, 2 Used Per Tractor),
WD9 (Brake Pedal Shaft Seal, 2 Used Per Tractor),
WDR9 (Brake Pedal Shaft Seal, 2 Used Per Tractor),
WR9 (Brake Pedal Shaft Seal, 2 Used Per Tractor),
WR9S (Brake Pedal Shaft Seal, 2 Used Per Tractor),
Hydro 70 (Hydro Charge Pump Seal),
Hydro 86 (Hydro Charge Pump Seal),
544 (Hydro Charge Pump Seal),
600 (Brake Pedal Shaft Seal, 2 Used Per Tractor),
650 (Brake Pedal Shaft Seal, 2 Used Per Tractor),
656 (Hydro Charge Pump Seal),
666 (Hydro Charge Pump Seal)

Replaces Part Numbers:
35451D, 357970R91, 357976R91, 380184R91, 43509D, 43509DA, 527829R91, 60454D, 659124R91, 70241D, 938294R91, 938294R92, M86688

Models This Part Fits:

2040, 2130, 175, 180, 920, 615, 430, 2850, Super H, C, 1635, 1600, 330, 600, 2440, 2-78, I400, MT, 1520, Hydro 86, WR9, Hydro 70, 5440, 420, 4400, 1830, HV, 7000, 3150, 303, 820, 1750, 1030, MI, 4420, 7580, CA, IB, 2630, 2035, 932, D19, 4-78, 925, 1460, 1950, Super WD9, 1120, 1140, 7080, 190XTIII, H3, 2450, 315, 940, WR9S, 2240, 650, 40, 2250, W9, 1530, D17, 2030, 440, 4W305, D15, G550, 544, 666, 9910, 190, M, 435, Wheel Hubs, WD9, 320, 8050, D12, 2656, 1052, ID9, MV, 1020, 1032, 2040S, I9, 935, H, 830 3 cylinder, 2020, I60, I40, 930, 1630, 820 3 cylinder, 3350, 942, 403, Super HV, Super WDR9, 715, 1480, MDV, 2140, 1133, 8030, 2640, 1640, 945, 170, 970, Super M, 2120, 1555, I4, 1641, 1042, 1130, 5420, 1144, 4W220, 1010, 503, 3050, WDR9, D14, MD, 1550, 1850, 1440, 830, Lift Shaft Housings, 1840, Braking Systems, B, Super W9, 2135, 656, 190XT, 7045, Power Take-Off Systems, 8070, 2650, 7060, Super MDV, 952, MC, 3140, Super MV, 200, D10, 2544, 8010, 7700, 3040, I600, Super MD, 185, 1470

Additional Information:

Bore: 2.125" Outside Diameter: 2.129" Shaft Size: 1.375" Type: CRWH1 Width: .437" Oil Seal

Reference Numbers:

T22069, AM253T, AP24021, AL56820, AH14076, AL2094T, N71730N, AN30648, AN32717, 43509DA, 35451D, 357970R91, 527829R91, M86688, 380184R91, 60454D, 938294R91, 938294R92, 357976R91, 70241D, 43509D, 659124R91, CR13649, 450135, 1K1590, K1590, 35451D, 357970R91, 357976R91, 380184R91, 43509D, 43509DA, 527829R91, 60454D, 659124R91, 70241D, 938294R91, 938294R92, M86688, 0511073, 224810, 230608, 241779, 340214, 511073, 70224810, 70230608, 70241779, AH14076, AL2094T, AL56820, AM253T, AN30648, AN32717, AP24021, N71730N, T22069, A36711, F36775, F7618, F9743, K15177, N7291, T26573, 257970R91, 567829R1, 567829R91, 659107R91, 35451D, 357970R91, 357976R91, 380184R91, 43509D, 43509DA, 527829R91, 60454D, 659124R91, 70241D, 938294R91, 938294R92, M86688, 70230608, 511073, 230608, 70224810, 340214, 241779, 70241779, 0511073, 224810

Makes This Part Fits:

Product Category:

Product Group:

Product Sub Group:

View full details
