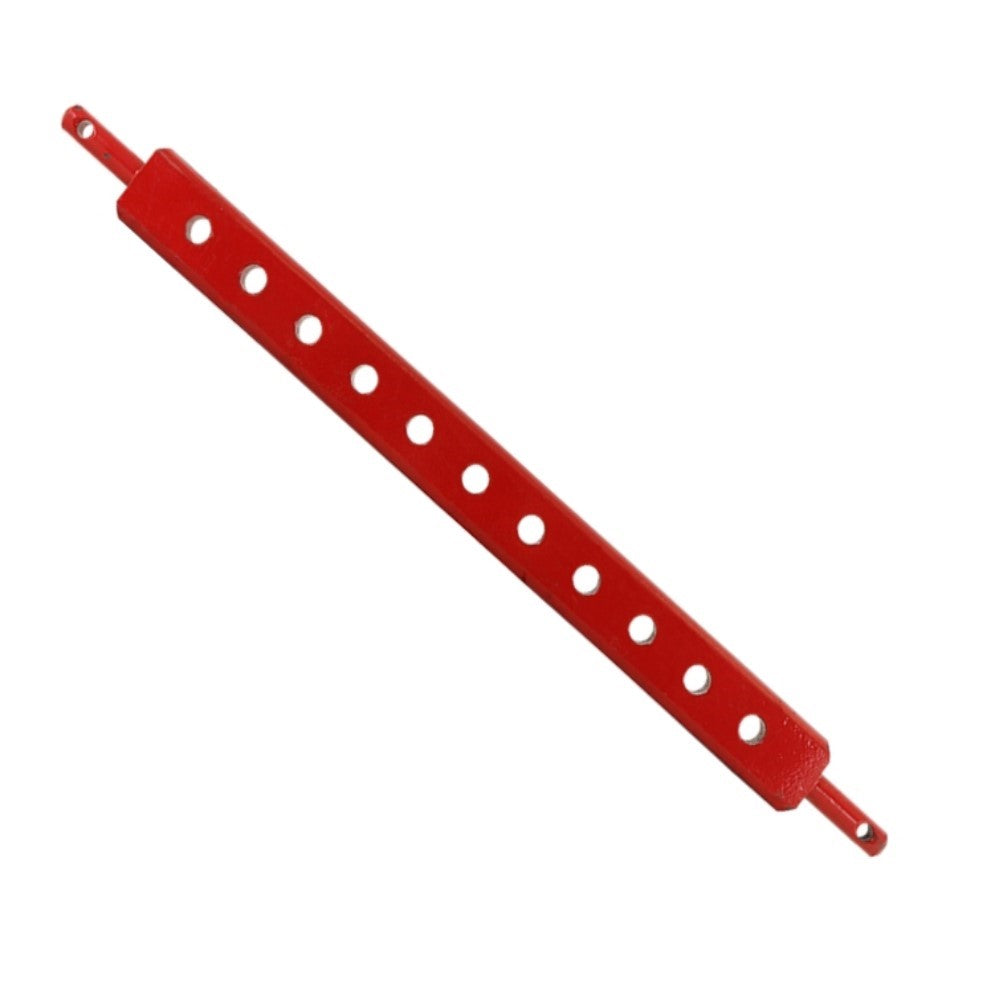

One New Aftermarket Replacement Cat I 3-Point Drawbar for Ford and Massey Ferguson Tractors

This red Cat I lift arm drawbar mounts to the 3-point hitch on Ford and Massey Ferguson tractors (without swing drawbars), connecting implements and trailers to the tractor's rear hitch. Heat-treated for added strength, it features 11 holes with 3/4" diameter and a 7/8" pin diameter, making it a versatile replacement for a wide range of compact and utility tractors.

Specifications

• Hitch Category: Cat I (Category 1)
• Color: Red
• Overall Length: 30-1/2"
• Usable Length: 26"
• Width: 2-1/2"
• Thickness: 1"
• Number of Holes: 11
• Hole Diameter: 3/4"
• Pin Diameter: 7/8"
• Product Type: Lift Arm Drawbar

Compatible Models

Ford / New Holland: 2N, 8N, 9N, NAA (Jubilee), 600, 700, 800, 900, 2000, 3000, 4000, 5000

Massey Ferguson: 35, 35 Govt., 35 Turf, 35 Utility, 50, 135, 135 UK, 265, 270, 275, 290, 362, TE20, TEA20, TED20, TEF20, TEH20, TO20, TO30, TO35

Note: For use on tractors without a swinging-type drawbar. Fits all tractors with 26" lift arm spacing and 7/8" ball sockets.

Replaces Part Number(s):

9N5182A, 180485M1, 180485M91, 677240, 251006

Aftermarket Interchange Numbers

DB78R, DB78B, DB78RSP, DB06, DB07, DB422, 49A30B, 49A30R, 180485M1HT, 251006F, HIF10-0014

New aftermarket replacement part - not remanufactured, not used.
