One New Aftermarket Replacement Spherical Ball Bearing Fits John Deere, Fits Case/International Harvester, Hesston, New Idea, and Riverside Tractor Agricultural Equipment

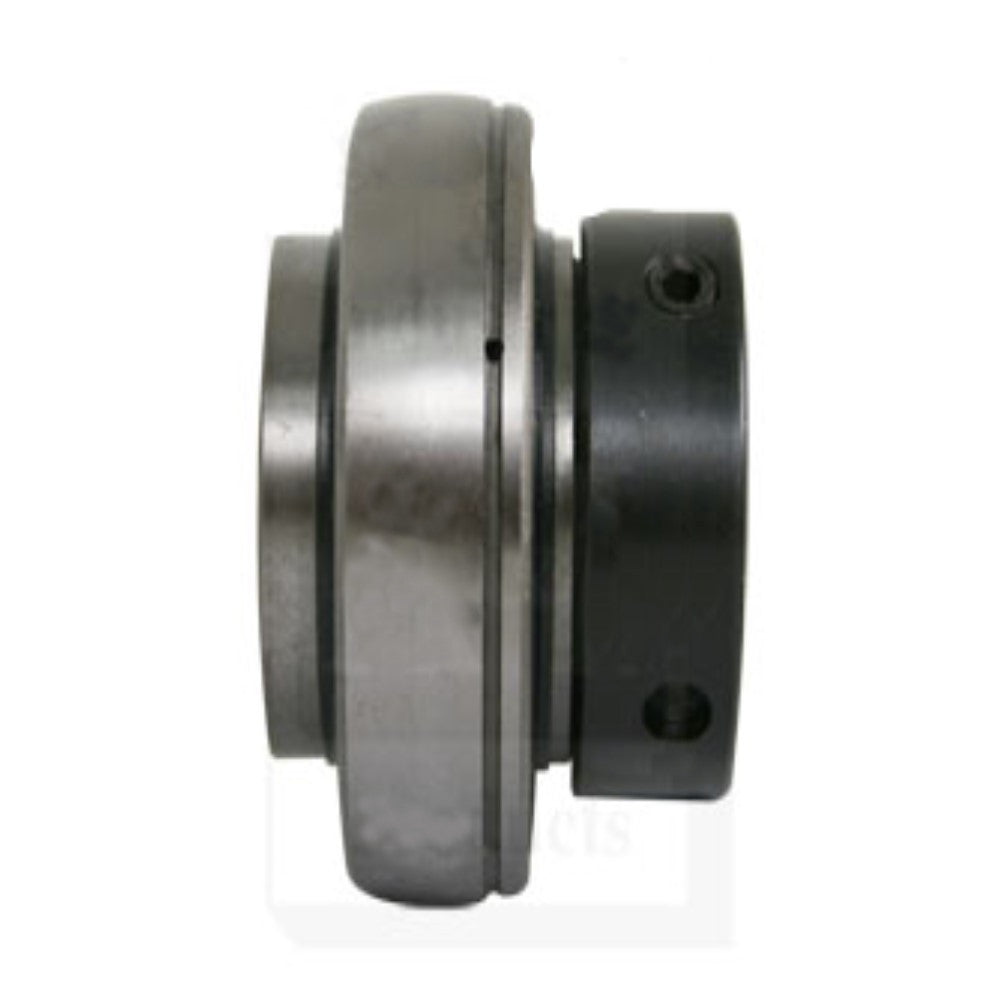

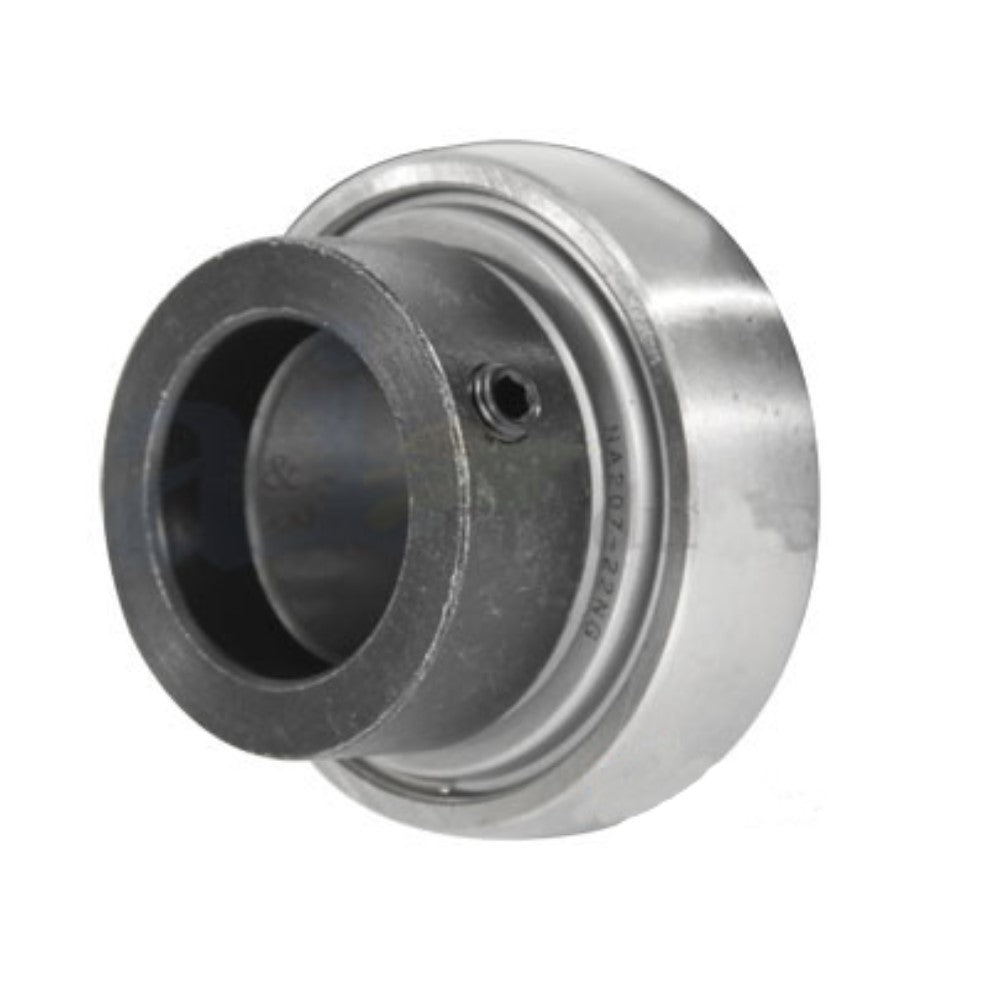

This greaseable, wide-inner-ring spherical ball bearing with eccentric locking collar is a direct aftermarket replacement for OEM part 012630. It is used across a broad range of Fits John Deere combines, Fits Case/International Harvester combines, Hesston swathers/windrowers, New Idea equipment, and Riverside Tractor models. The wide-series inner ring provides additional shaft support for performance in heavily loaded harvesting and hay equipment applications. Supplied with a mating eccentric locking collar (lock ring included).

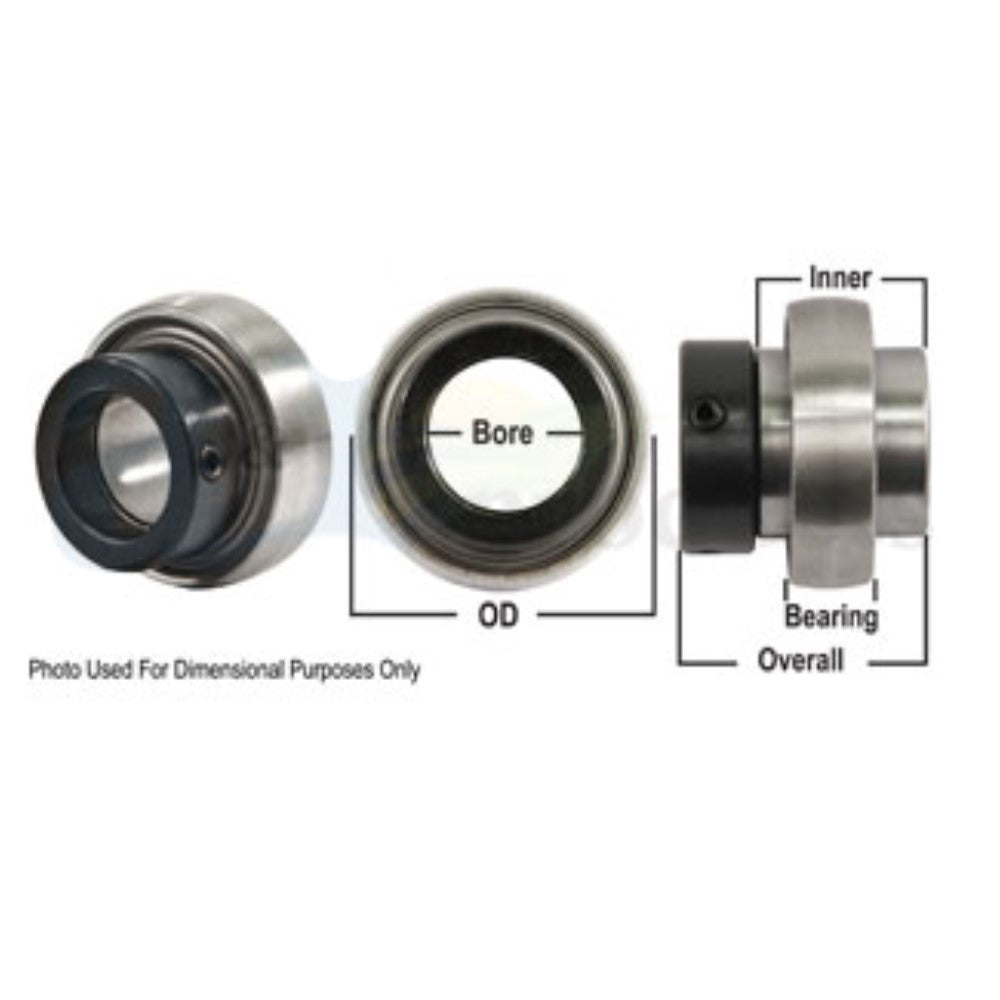

Specifications

• Bearing Type: Spherical Ball Bearing with Eccentric Locking Collar (Lock Ring Included)
• Greaseable: Yes (Relubable)
• Inner Diameter: 1.375" (1-3/8")
• Bore Type: Round
• Outer Diameter: 2.835" (72 mm)
• Overall Width: 2.020"
• Inner Ring Width: 1.484"
• Outer Ring Width: 0.748"
• Dynamic Load Rating: 5,800 lbf
• Static Load Rating: 3,450 lbf
• Max RPM: 2,250
• Closure: Double Sealed

Compatible Models

Fits John Deere Combines: 615, 715, 815, 915, 1420, 1440, 1460, 1480, 1482, 1660, 1666, 1680, 1682, 1688, 2144, 2166, 2188, 2344, 2366, 2377, 2388, 2577, 2588, 3300 (ASN 200000), 4400 (ASN 201251), 4420, 4650, 4655, 4755, 4790, 4900, 4910, 6600 (ASN 206200), 6620, 7700 (ASN 213300), 7720, 8820

Fits John Deere Balers and Other Equipment: 914

Fits Case/International Harvester Combines: 1470, 1666, 2388 (verify fitment via cross-reference numbers below)

Hesston: Swathers/Windrowers and Mower Conditioners (verify model via cross-reference numbers)

New Idea: Various harvesting and manure spreader models

Riverside Tractor: Various models

Replaces Part Number(s):

012630, 15271SW, HC207-22, JD9275, JD9319, 3242414, WPS106GRC, 050864, 50864, 711861, 712307, K4037, 611582R91, 611583R91, 80553C91, 517618R91, T18852, F86574

Aftermarket Interchange Numbers

1106KRRB-I, 1106KRRB-IMP, G1106KRRB, G1106KRRB-I, 148916, 163641, 1938CSA, 1939CSA, 851-NA20722, 851-NA20722-A, A-G1106KRRB-I, O4528B, EL207-106 (locking collar)

New aftermarket replacement part - not remanufactured, not used.
