A-042162-AI Bearing (LM501310)

A-042162-AI Bearing (LM501310)



AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER

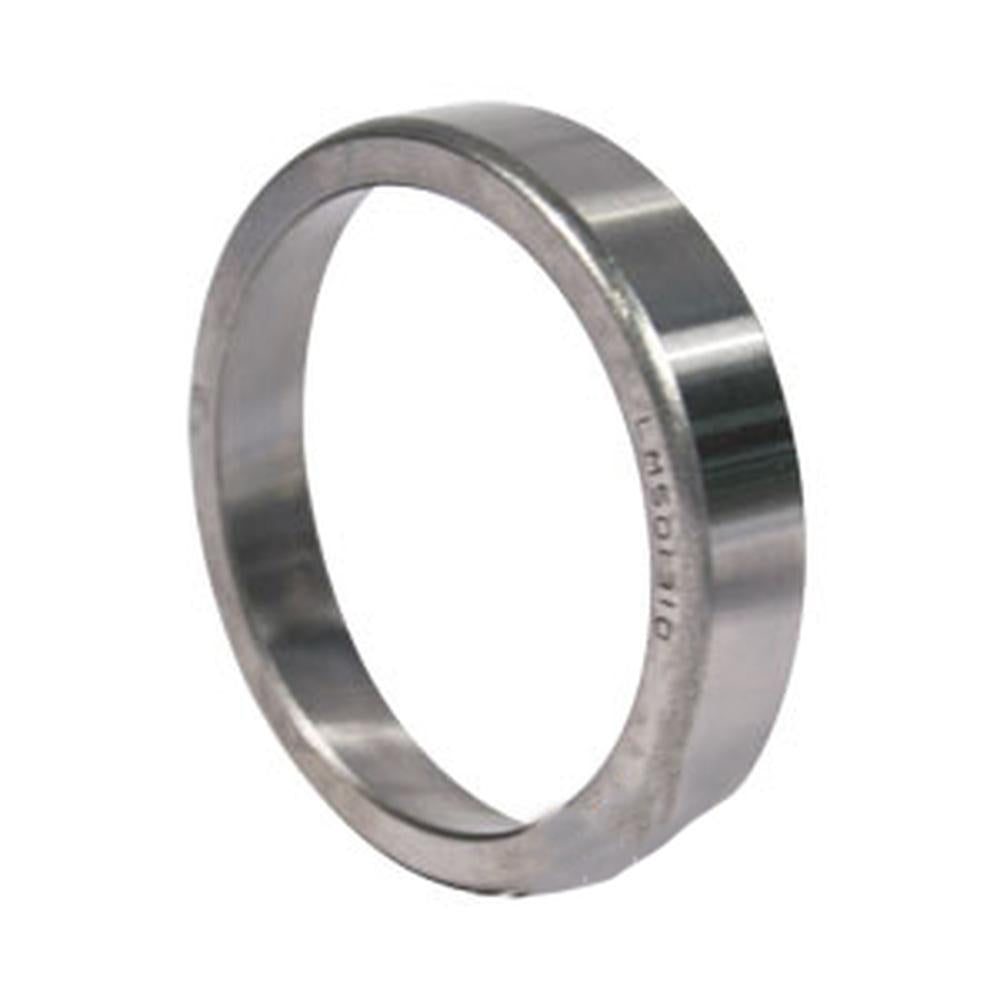

One New Aftermarket Replacement Tapered Roller Bearing Cup (LM501310) Fits Case/IH, Fits John Deere, Fits Ford/New Holland, Fits Massey Ferguson, and More

This aftermarket replacement LM501310 tapered roller bearing cup (outer ring) is a widely used inch-series bearing component designed to support both radial and axial loads across a broad range of agricultural equipment. The LM501310 is the cup (outer race) and pairs with the LM501349 cone (inner ring assembly). It is commonly found in wheel hubs, axles, spindles, and various drivetrain and steering assemblies on tractors, combines, cotton pickers, round balers, forage harvesters, mower conditioners, swathers, and rotary cutters.

Specifications

  • Type: Tapered Roller Bearing Cup (Single Cup, Non-Flanged)
  • Inner Diameter: 1.625 in (41.275 mm)
  • Outside Diameter: 2.891 in (73.431 mm)
  • Cup Width: 0.580 in (14.732 mm)
  • Corner Radius: 0.03 in
  • Material: Chrome Steel
  • Series: LM (Light Medium Duty)
  • Compatible Cone: LM501349 / LM501349A
  • ABMA Precision Rating: Class 2

Compatible Models

Fits Case / Fits Case IH: 303, 403, 410, 420, 468, 468S, 503, 510, 540, 550, 568, 603, 620, 660, 715, 815, 850, 855, 860, 865, 880, 914, 915, 1207, 1209, 1326, 1327, 1460, 1480, 1482, 1550, 1600, 1640, 1655, 1660, 1666, 1680, 1682, 1688, 1750, 1822, 1844, 1850, 2022, 2044, 2055, 2140, 2155, 2166, 2188, 2250, 2270, 2280, 2344, 2350, 2355, 2355N, 2366, 2377, 2388, 2440, 2510, 2520, 2540, 2550, 2555, 2577, 2588, 2622, 2640, 2750, 2755, 2855N, 3120, 3203, 3230, 3300, 3320, 3520, 3600, 3720, 3930, 3930N, 3930NO, 4050, 4100, 4120, 4130, 4130NO, 4200, 4210, 4250, 4255, 4300, 4310, 4320, 4400, 4410, 4420, 4450, 4455, 4500, 4510, 4520, 4600, 4610, 4610N, 4630, 4630N, 4630NO, 4630O, 4700, 4710, 4720, 5100, 5110, 5200, 5400, 5440, 5460, 5600, 5610, 5640, 5700, 5720, 5730, 5820, 5830, 5900, 6410, 6500, 6600, 6602, 6610, 6620, 6640, 6650, 6700, 6710, 6750, 6810, 6850, 6910, 6950, 7000, 7100, 7200, 7250, 7300, 7350, 7400, 7450, 7460, 7500, 7550, 7600, 7610, 7700, 7710, 7720, 7740, 7750, 7800, 7840, 7850, 7950, 8820, 9400, 9410, 9450, 9500, 9500SH, 9510, 9510SH, 9550, 9550SH, 9560, 9560SH, 9560STS, 9600, 9610, 9650, 9650CTS, 9650STS, 9660, 9660CTS, 9660STS, 9670STS, 9750STS, 9760STS, 9770STS, 9860STS, 9870STS, 9935, 9960, 9965, 9976, 9986, 9996, CTS, CTS II, CPX420, CPX610, CPX620, MODULE EXPRESS 625, 7722 HILLSIDE

Fits John Deere: 2040, 2140, 2155, 2250, 2270, 2280, 2355, 2440, 2510, 2520, 2550, 2555, 2640, 2750, 2755, 2855N, 3020, 3120, 3320, 3520, 3600, 3720, 3930, 4050, 4100, 4120, 4130, 4200, 4210, 4255, 4300, 4310, 4320, 4400, 4410, 4420, 4450, 4455, 4500, 4510, 4520, 4600, 4610, 4700, 4710, 4720, 5100, 5110, 5200, 5400, 5600, 5610, 5640, 5700, 5720, 5730, 5820, 5830, 5900, 6410, 6600, 6602, 6610, 6620, 6640, 6700, 6710, 6750, 6810, 6850, 6910, 6950, 7000, 7100, 7200, 7300, 7350, 7400, 7450, 7460, 7500, 7550, 7600, 7610, 7700, 7710, 7720, 7740, 7750, 7800, 7840, 7850, 7950, 8820, L65

Fits Ford/New Holland: 2355N, 2550, 2640, 2750, 2755, 2855N, 3120, 3230, 3430, 3600, 3930, 3930N, 3930NO, 4100, 4110, 4120, 4130, 4130NO, 4200, 4210, 4330, 4600, 4610, 4610N, 4630, 4630N, 4630NO, 4630O, 5100, 5110, 5200, 5600, 5610, 5640, 5700, 5900, 6410, 6600, 6610, 6640, 6700, 6710, 6750, 6810, 6850, 7000, 7100, 7200, 7400, 7500, 7600, 7610, 7700, 7710, 7720, 7740, 7750, 7800, 7840, 7850

Fits Massey Ferguson: 55-66, 55-93, 60-66, 60-76F, 60-90, 65-46, 65-56, 65-90, 65-93, 70-90, 80-66, 82, 84, 88, 92 SUPER, 300, 303, 550, 750, 760, 770, 850, 855, 1650, 2-44, SUPER 55

White / Oliver / Challenger: MX80C, MX90C

Fiat: 55-66, 60-66, 60-76F, 65-46, 65-56, 65-90, 65-93, 70-90, 80-66

Vermeer: 604J, 605J

Fits Woods: (Rotary Cutter applications)

Replaces Part Number(s):

663558R1, 74254699, 67371, 80067371, 80340635, 81803417, 81854761, 8187236383961665, 83928204, 83961665, WAA4220A, WAA4222A, 3142104R91, 663556R91, 665097R91, 671074R91, W102847A, 831729M1, 11115WD, JD8071, JD8237, 1715037

Aftermarket Interchange Numbers

SET35, SET45, A35, S35, LM501349/LM501310, 4T-LM501310, VKHB 2153, BR45

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

SUPER 55, 7750, 4455, 9870STS, 9560SH, 2188, 660B, 420, 2022, 4420, 1209, 550C, 403, 4320, 670, 1822, 4050, 82, MX80C, 9650, 5700, 2577, 4250, 4630, 300, 1640, 9750STS, 6600, 7200, 1327, 9400, 715, 7850, 7450, 4630O, MODULE EXPRESS 625, 4520, 4700, 6650, CTS, 4510, 3203, 9560STS, 65-46, 2140, 9860STS, 760, 4500, 410, 1480, 680B, 5830, 5400, 9996, 84, 1655, 2640, 92 SUPER, 5600, 9935, 540, 9960, 7455, 3300, 1460, 4630N, 1682, 7722 HILLSIDE, 1326, 4710, 1482, 2270, 5200, 468S, 770, 7700, 4310, 3230, 2366, 7550, MX90C, 1660, 4610, 80-66, 4120, 65-56, 6750, 1320, 9550SH, 3020, 5460, 4450, 7800, 2250, 9760STS, 2350, CPX620, 6850, 6710, 60-90, 4610N, 5610, 6622, 3720, 5000, 7300, 4400, 9660, 2040, 4210, 9500SH, 4100, CPX610, 1550, 9570STS, 850, 6410, 5440, 60-66, 4130, 2750, 3320, 9610, 510, 880, 2855N, 5100, 3930N, 77, 855, 6620, 9410, 2510, 5720, 3120, 2-44, 9510SH, 60-76F, 860, 6700, 550, 5110, 914, 4600, 604J, 1555, 865, 2355, 4130NO, 2044, 1750, 5820, 468, 9500, 9660STS, 7400, 5730, 1680, 7250, 2280, 4255, 4200, 7500, 9450, 7840, 4630NO, 9560, 70-90, 6950, 9986, 205, 750, 9550, 568, 2755, 7720, 2520, CTS II, 1666, 303, 6610, 2388, 7350, 7100, 9976, 2377, 8820, 1600, 9650CTS, 7000, 7710, 660, 4410, 3600, 5900, 6910, 9670STS, 9600, 2155, 5640, 7600, 9965, 7740, CPX420, 9660CTS, 1207, 6602, 1844, 88, 815, 2440, 2550, 1850, 2355N, 72, 605J, 7610, 2588, 3520, 9650STS, 620, 6810, 2055, 7460, L65, 9770STS, 55-66, 3930NO, 6640, 503, 65-90, 9510, 1688, 2166, 4720, 65-93, 915, 2344, 3930, 670B, 7950, 2555, 4300

Additional Information:

Outside Diameter 2.891" Radius .03" Width .580" Cup Bearing

Reference Numbers:

W102847A, 11115WD, 67371, 80067371, 80340635, 81803417, 81854761, 8187236383961665, 83928204, 83961665, WAA4220A, WAA4222A, 831729M1, 3142104R91, 663556R91, 663558R1, 665097R91, 671074R91, 1715037, 663558R1, 74254699, JD8071, JD8237
