A-10261-AI CUP

A-10261-AI CUP



AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER


One New Aftermarket Replacement Tapered Roller Bearing Cup Fits Case IH, Fits John Deere, Fits Massey Ferguson and More

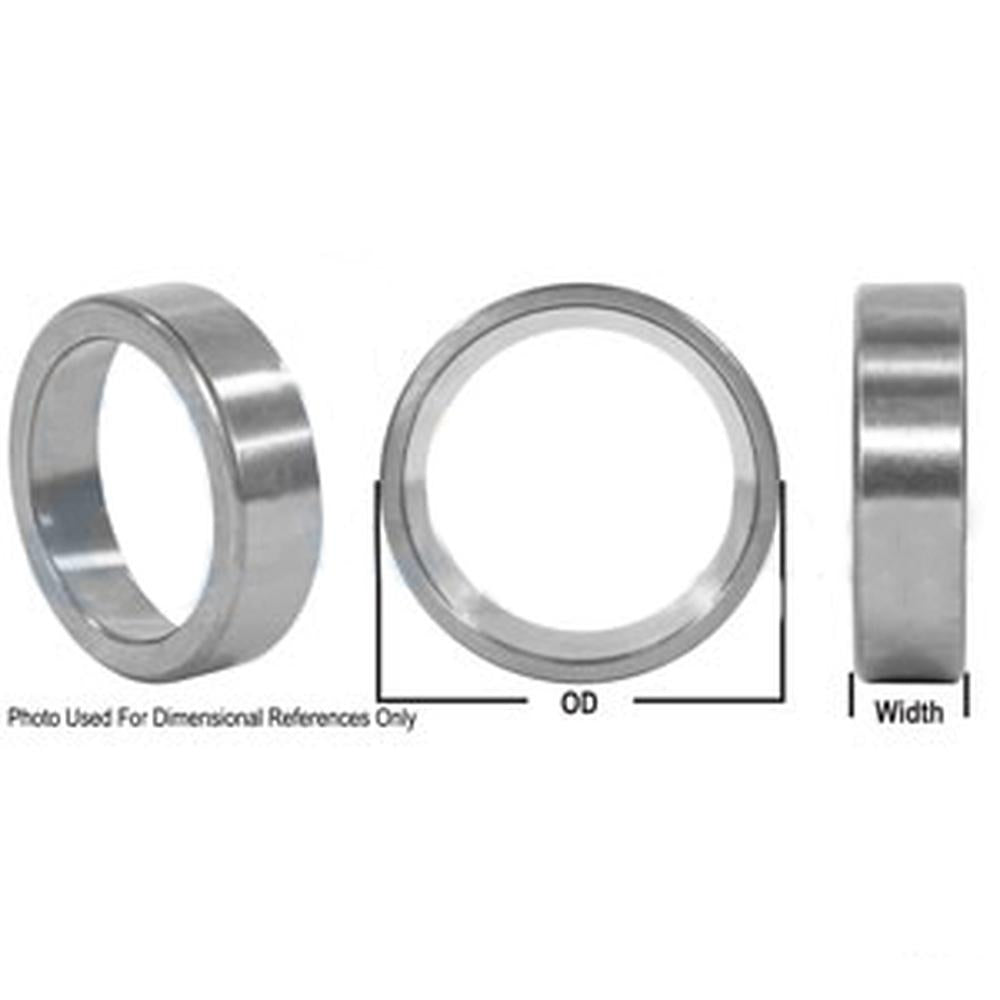

This tapered roller bearing cup (outer race) is a high-demand, multi-brand replacement used across a wide range of agricultural equipment including tractors, combines, balers, disc harrows, rotary cutters, and more. The cup seats in the housing bore and provides the precision raceway surface for the tapered rollers, working in tandem with a matching cone assembly to handle both radial and axial loads. Compatible cones include: 14116, 14117A, 14118, 14118AS, 14124, 14125A, 14130, 14131, 14137A, 14138A, and 14139.

Specifications

  • Type: Single Tapered Roller Bearing Cup (Outer Race)
  • Outside Diameter: 2.717 in.
  • Cup Width: 0.625 in.
  • Fillet Radius: 0.05 in.
  • Material: Fits Case Carburized Steel
  • Lubrication Hole: None
  • Finish: Uncoated

Compatible Models

Fits Case / Fits Case IH: 1400, 1640, 1644, 1660, 1666, 1680, 1688, 2166, 2188, 2344, 2366, 2377, 2388, 2577, 2588, 503, 503I, 504C, 504F, 504G, 504H, 504I, 504I SILAGE, 504L, 505I, 505L, 715, 815

Fits John Deere: 82, 84, 95, 303, 335, 403, 403F, 403G, 445, 602, 604J, 604K, 604L, 604XL, 605F, 605G, 605H, 605J, 605K, 605L, 605XL, 615, 670

Minneapolis-Moline: 5 STAR, JET STAR 3, JET STAR 4, G1000, M5, R-21, R-23

Multi-Brand / Universal Application: 554XL, 555XL, 4901-4938, 5400 REBEL, 5500 REBEL (verify fitment by cross-referencing part numbers below)

Replaces Part Number(s):

14276, 14276TIM, 10261, A29977, 710350, 70209890, 74253284, 80105, 9N744, 116210, W10A7575, 526WD, 7069WD, 520031, 1715019, 203021, 8J0422, X5623, 54628A, 016234X1, 113BH, JD7409, 70025, W33

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

1644, 1680, 605J, 2588, JET STAR 3, 1688, 504H, 2366, 504I, 504L, 4901-4938, 604J, 335, 2577, 504C, 82, Outer Ring Of A Tapered Roller Bearing, 503I, 602, 504F, G1000, 554XL, 2377, 5500 REBEL, 555XL, 604L, 403G, R-23, 505I, M5, 715, 670, 504I SILAGE, 605K, 504G, 95, R-21, 1400, 503, 505L, 2166, JET STAR 4, 445, 605L, 303, 1666, 815, 403, 604XL, 605F, 605H, 1640, 2344, 604K, 5400 REBEL, 403F, 1660, 605XL, 2188, 2388, 5 STAR, 605G, 615, 84

Additional Information:

Outside Diameter 2.717" Radius .05" Width .625" Cup Bearing

Reference Numbers:

14276, 113BH, 710350, 80105, 14276TIM, X5623, W10A7575, 9N744, 116210, JD7409, 520031, 1715019, 54628A, 016234X1, 10261, 526WD, 7069WD, A29977, 70209890, 74253284, 8J0422, 70025, W33, 203021
