A-11114WD-AI Bearing (LM501349)

A-11114WD-AI Bearing (LM501349)

AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER

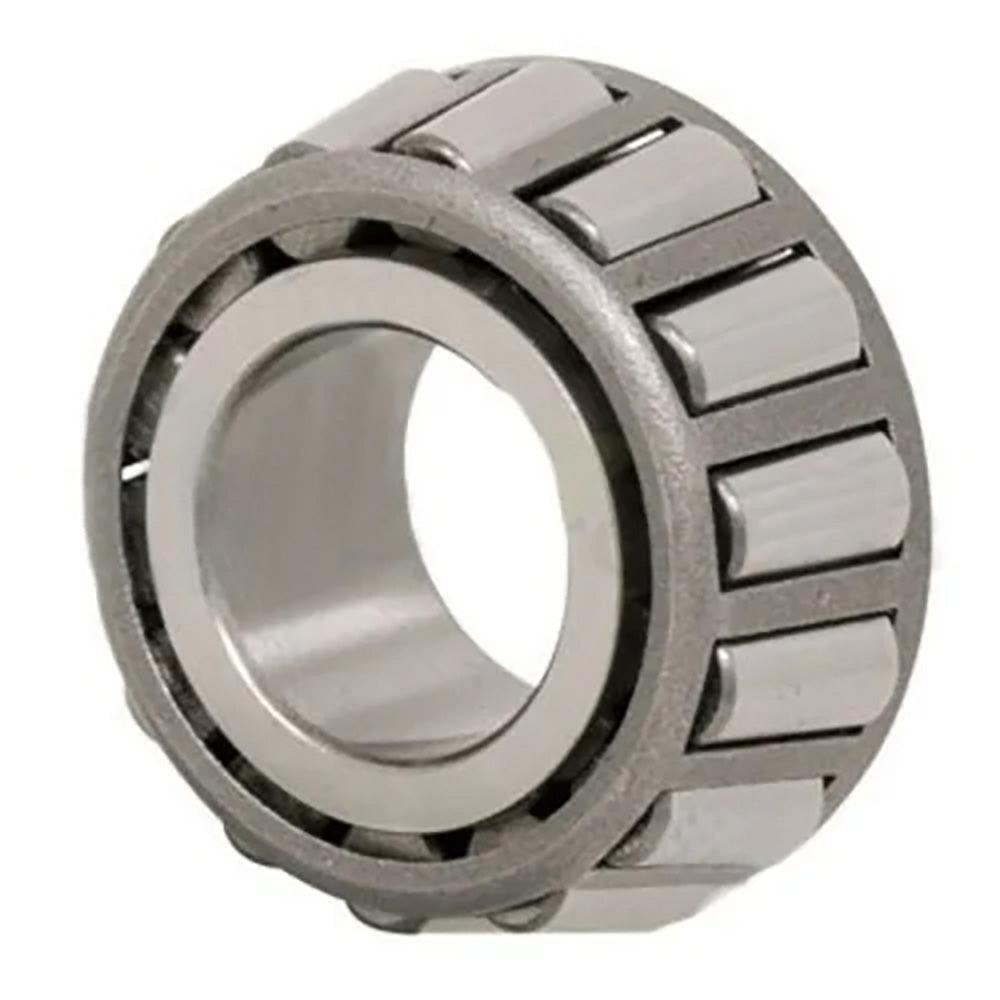

One New Aftermarket Replacement Tapered Roller Bearing Cone (LM501349) for Agricultural Equipment

This LM501349 tapered roller bearing cone is a precision-ground, single-row tapered roller bearing cone used in wheel hubs, axle components, and steering assemblies across a wide range of agricultural equipment. The cone (inner ring) is designed to pair with compatible bearing cups (LM501310, LM501311, or LM501314) and handles both radial and axial loads in demanding field conditions. Replaces OEM part numbers from Fits John Deere, Fits Case/International Harvester, Fits Massey Ferguson, Fits Ford/New Holland, GEHL, Vermeer, White Oliver, Challenger, and Fits Woods equipment.

Specifications

  • Type: Tapered Roller Bearing Cone (Inner Ring)
  • Bore (Inner Diameter): 1.625 in (41.275 mm)
  • Outer Diameter: 2.891 in (73.431 mm)
  • Cone Width: 0.780 in (19.812 mm)
  • Fillet Radius: 0.14 in (3.560 mm)
  • Material: 52100 Bearing Grade Chromium Steel
  • Compatible Cups: LM501310, LM501311, LM501314
  • Series: LM501300

Compatible Models

Fits John Deere: 7100, 7000

Fits Case / Fits Case IH: 1363, 1365, 1366, 1373, 1376, 1383, 1386, 1395, 1460, 1480, 1482, 1550, 1555, 1600, 1655, 1660, 1666, 1680, 1682, 1688, 2166, 2188, 2344, 2366, 2377, 2388, 2440, 2577, 2588, 2640, 2745, 2946, 2946A, 2956, 2956A, 8412, 8415, 8570, 8680, 8780, 8780XP, 9540, 9545, 9560, 9565, 9690, 9695, 9695, 9790, 9795, 9831, 9895

Fits Ford/New Holland: 2-44, 2-446, 2-4412, 2-4413, 2-4413L, 2-4414, 300, 3230, 3600, 3930, 3930N, 3930NO, 4100, 4130, 4130NO, 4600, 4610N, 4630, 4630N, 4630NO, 4630O, 5000, 5100, 5110, 5600, 5610, 5610S, 5640, 5700, 5900, 6215, 6410, 6600, 6610, 6610S, 6700, 6710, 6810, 7600, 7610, 7610S, 7700, 7710, 7710 5100, 7740, 7815, 7840, T7 SUPER

Fits Massey Ferguson: 410, 510, 540, 550, 550C, 660, 660B, 670, 670B, 680B, 750, 760, 770, 850, 855, 860, 865, 880, 1345, 1750, 1850, MX80C, MX90C

White Oliver / Oliver: 62, 72, 77, 78, 82, 84, 88, 92 SUPER, 205, SUPER 55

GEHL: 604J, 605J

Vermeer: 1745

Fits Woods / Challenger: Verify model fitment for specific equipment using part number cross-reference below.

Replaces Part Number(s):

LM501349, LM501349-I, 11114WD, 1716039, 831728M1, 74254700, 663557R1, W102846A, 102729A, 102846A, 042163, WAA4221A, 67370, JD8902

Aftermarket Interchange Numbers

SET45, SET69, 663557R91, 144079C91, 202521C91, 3221283R91, 598757R91, 665098R91, 671075R91, 102846A, 35A513, B7A4221A, WAA4221A

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

7815, 605J, 2-4414, 1480, 770, 9560, 92 SUPER, 9540, 300, 2577, 82, 2946, 750, 2956, 880, 4630NO, 2-446, 1682, 2377, 660, 9795, 9690, 8780XP, 8412, 5000, 9831, 5640, 6610S, 8570, 4630, 7700, MX90C, 2440, 88, 2956A, 78, 410, 2344, 77, 9545, 1363, 6600, 5110, 5700, 7610S, 1600, 5610S, 1345, 2-4413L, 1482, 2-4413, 6640, SUPER 55, 4630N, 9895, 6610, 1550, 3600, 3930N, T7 SUPER, 205, 865, 5900, 4100, 2640, 8415, 670B, 660B, 2166, 550C, 4630O, 1373, 1365, Axle Components, 1666, 850, 1745, 7600, 1660, 1655, 8780, 680B, 550, 7100, 7710, 7000, 2588, 7710 5100, 2-4412, 540, 1366, 72, 4600, 6215, 9565, 5600, MX80C, 860, 510, 5610, 1555, 9790, 1376, 4610N, 2388, 62, 855, Steering Assemblies, 6710, 84, 1680, 1688, 9695, 2745, 2366, 1355, 604J, 1460, 4130NO, 8680, 3930NO, 7840, 1383, 1750, 3930, 2-44, 670, 6700, 1395, 1850, 2946A, 4130, 7740, 6810, 3230, 6410, 7610, 760, 2188, 1386, Wheel Hubs

Additional Information:

Bore: 1.625" Radius: .14" Width: .780" Cone Bearing

Reference Numbers:

JD8902, WAA4221A, 67370, LM501349-I, W102846A, 102729A, 102846A, LM501349-I, 663557R1, 1716039, 042163, W102846A, 102729A, 102846A, 74254700, 11114WD, 831728M1
