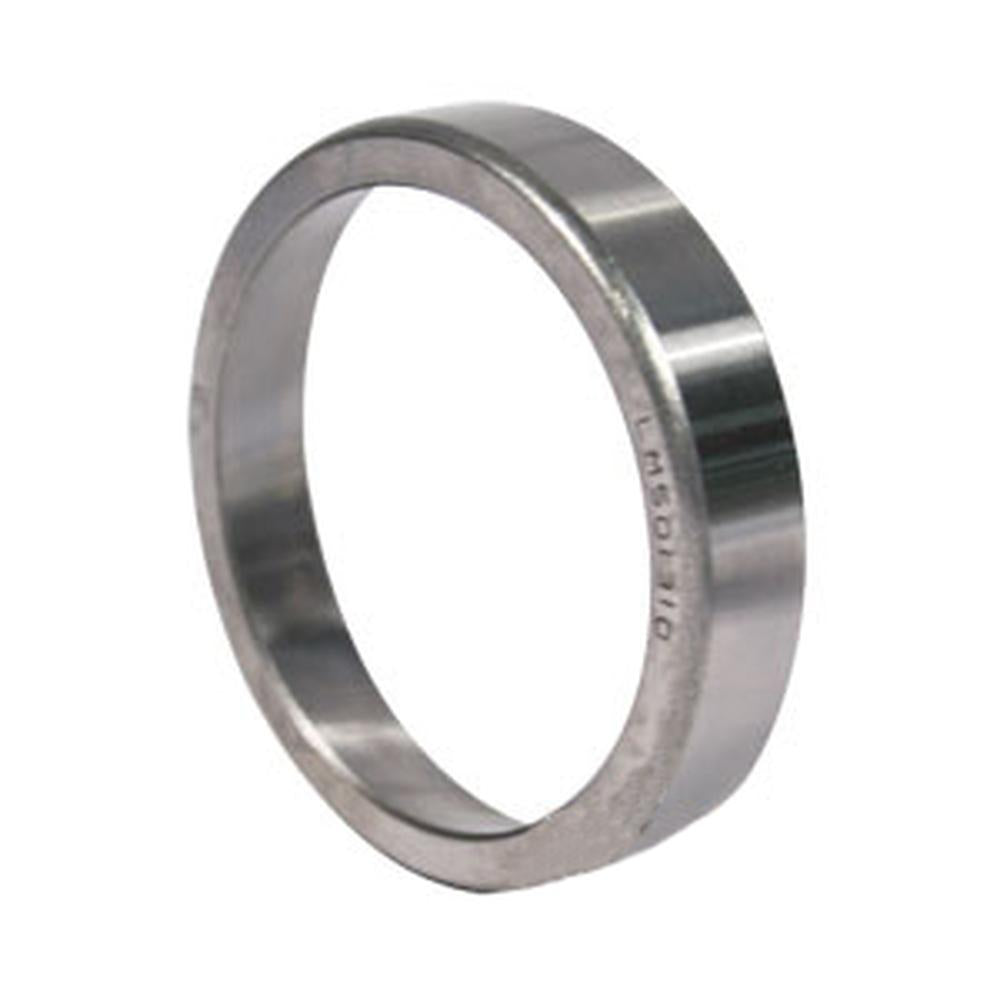

A-11115WD-AI Bearing (LM501310)

A-11115WD-AI Bearing (LM501310)



AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER


One New Aftermarket Replacement Tapered Roller Bearing Cup (LM501310) Fits Case/International Harvester, Fits John Deere, Fits Massey Ferguson, Fits Ford/New Holland, and More

This tapered roller bearing cup (outer ring/race) carries industry number LM501310 and pairs with cone LM501349 to form a complete SET45 tapered roller bearing assembly. The LM501310 cup is a single, non-flanged cup designed to handle both radial and axial loads in wheel hubs, axles, and drive train applications across a wide range of agricultural equipment including tractors, combines, cotton pickers, round balers, mower conditioners, forage harvesters, and rotary cutters.

Specifications

  • Type: Tapered Roller Bearing Cup (Outer Ring/Race)
  • Inside (Bore) Diameter: 1.625 in (41.275 mm)
  • Outside Diameter: 2.891 in (73.431 mm)
  • Cup Width: 0.580 in (14.732 mm)
  • Fillet Radius: 0.03 in
  • Flange Type: Non-Flanged
  • Compatible Cone: LM501349
  • Industry Set Number: SET45 / A35
  • ABEC/ABMA Precision Rating: Class 2

Compatible Models

Fits Case / Fits Case IH: 1207, 1209, 1320, 1326, 1327, 1460, 1480, 1482, 1550, 1600, 1640, 1655, 1660, 1666, 1680, 1682, 1688, 1750, 1822, 1844, 1850, 2022, 2044, 2140, 2155, 2166, 2188, 2250, 2270, 2280, 2344, 2350, 2355, 2355N, 2366, 2377, 2388, 2440, 2510, 2520, 2540, 2550, 2555, 2577, 2588, 2640, 2750, 2755, 2855N, 303, 300, 410, 403, 420, 468, 468S, 503, 510, 540, 550, 568, 604J, 605J, 6602, 660, 670, 680B, 715, 750, 760, 770, 815, 850, 855, 860, 865, 880, 914, 915, CPX420, CPX610, CPX620, CTS, CTS II, MODULE EXPRESS 625

Fits John Deere: 2040, 2280, 2350, 2440, 2510, 2520, 2550, 2555, 2640, 2750, 2755, 2855N, 3020, 3120, 3230, 3300, 3320, 3520, 3600, 3720, 4050, 4100, 4120, 4130, 4130NO, 4200, 4210, 4250, 4255, 4300, 4310, 4320, 4400, 4410, 4420, 4450, 4455, 4500, 4510, 4520, 4600, 4610, 4610N, 4630, 4630N, 4630NO, 4630O, 4700, 4710, 4720, 5000, 5100, 5110, 5200, 5400, 5440, 5460, 5600, 5610, 5640, 5700, 5720, 5730, 5820, 5830, 5900, 550, 550C, 6410, 6600, 6610, 6620, 6640, 6650, 6700, 6710, 6750, 6810, 6850, 6910, 6950, 7000, 7100, 7200, 7250, 7300, 7350, 7400, 7450, 7455, 7460, 7500, 7550, 7600, 7610, 7700, 7710, 7720, 7740, 7750, 7800, 7840, 7850, 7950, 8820, 9400, 9410, 9450, 9500, 9500SH, 9510, 9510SH, 9550, 9550SH, 9560, 9560SH, 9560STS, 9570STS, 9600, 9610, 9650, 9650CTS, 9650STS, 9660, 9660CTS, 9660STS, 9670STS, 9750STS, 9760STS, 9770STS, 9860STS, 9870STS, 9935, 9960, 9965, 9976, 9986, 9996, L65

Fits Massey Ferguson: 205, 300, 303, 410, 550, 660, 760, 850, 860, 865, 880

Fits Ford / Fits Ford-Fits New Holland: 2355N, 3930, 3930N, 3930NO, 4100, 4200, 4210, 4300, 4310, 4410, 4500, 4600, 4610, 4610N, 4630, 4700, 4710, 4720, 5000, 5100, 5110, 5200, 5400, 5600, 5610, 5640, 5700, 5720, 5730, 5820, 5830, 5900, 6410, 6600, 6610, 6640, 6650, 6700, 6710, 6750, 6810, 6850, 6910, 6950, 7000, 7100, 7200, 7400, 7500, 7600, 7610, 7700, 7710, 7740, 7800, 7840, 7850

White / Oliver: SUPER 55, 55-66, 65-46, 65-56, 65-90, 65-93, 60-66, 60-76F, 60-90, 70-90, 80-66, 2-44, 77, 82, 84, 88, 92 SUPER

Challenger: MX80C, MX90C

Fiat: 300, 420, 550, 620, 660, 670, 670B, 680B, 750, 850, 880

Vermeer: 1715037 (see Replaces section)

Fits Woods: (see models list)

Replaces Part Number(s):

11115WD, 663558R1, 663556R91, 665097R91, 671074R91, 3142104R91, 74254699, 67371, 80067371, 80340635, 81803417, 81854761, 83928204, 83961665, 8187236383961665, WAA4220A, WAA4222A, W102847A, 831729M1, JD8071, JD8237, 1715037

Aftermarket Interchange Numbers

LM501349/LM501310 (set), SET45, A35, S35, SET35, 4T-LM501310, BR45, VKHB 2153

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

SUPER 55, 7750, 4455, 9870STS, 9560SH, 2188, 660B, 420, 2022, 4420, 1209, 550C, 403, 4320, 670, 1822, 4050, 82, MX80C, 9650, 5700, 2577, 4250, 4630, 300, 1640, 9750STS, 6600, 7200, 1327, 9400, 715, 7850, 7450, 4630O, MODULE EXPRESS 625, 4520, 4700, 6650, CTS, 4510, 3203, 9560STS, 65-46, 2140, 9860STS, 760, 4500, 410, 1480, 680B, 5830, 5400, 9996, 84, 1655, 2640, 92 SUPER, 5600, 9935, 540, 9960, 7455, 3300, 1460, 4630N, 1682, 7722 HILLSIDE, 1326, 4710, 1482, 2270, 5200, 468S, 770, 7700, 4310, 3230, 2366, 7550, MX90C, 1660, 4610, 80-66, 4120, 65-56, 6750, 1320, 9550SH, 3020, 5460, 4450, 7800, 2250, 9760STS, 2350, CPX620, 6850, 6710, 60-90, 4610N, 5610, 6622, 3720, 5000, 7300, 4400, 9660, 2040, 4210, 9500SH, 4100, CPX610, 1550, 9570STS, 850, 6410, 5440, 60-66, 4130, 2750, 3320, 9610, 510, 880, 2855N, 5100, 3930N, 77, 855, 6620, 9410, 2510, 5720, 3120, 2-44, 9510SH, 60-76F, 860, 6700, 550, 5110, 914, 4600, 604J, 1555, 865, 2355, 4130NO, 2044, 1750, 5820, 468, 9500, 9660STS, 7400, 5730, 1680, 7250, 2280, 4255, 4200, 7500, 9450, 7840, 4630NO, 9560, 70-90, 6950, 9986, 205, 750, 9550, 568, 2755, 7720, 2520, CTS II, 1666, 303, 6610, 2388, 7350, 7100, 9976, 2377, 8820, 1600, 9650CTS, 7000, 7710, 660, 4410, 3600, 5900, 6910, 9670STS, 9600, 2155, 5640, 7600, 9965, 7740, CPX420, 9660CTS, 1207, 6602, 1844, 88, 815, 2440, 2550, 1850, 2355N, 72, 605J, 7610, 2588, 3520, 9650STS, 620, 6810, 2055, 7460, L65, 9770STS, 55-66, 3930NO, 6640, 503, 65-90, 9510, 1688, 2166, 4720, 65-93, 915, 2344, 3930, 670B, 7950, 2555, 4300

Additional Information:

Outside Diameter 2.891" Radius .03" Width .580" Cup Bearing

Reference Numbers:

W102847A, 11115WD, 67371, 80067371, 80340635, 81803417, 81854761, 8187236383961665, 83928204, 83961665, WAA4220A, WAA4222A, 831729M1, 3142104R91, 663556R91, 663558R1, 665097R91, 671074R91, 1715037, 663558R1, 74254699, JD8071, JD8237
