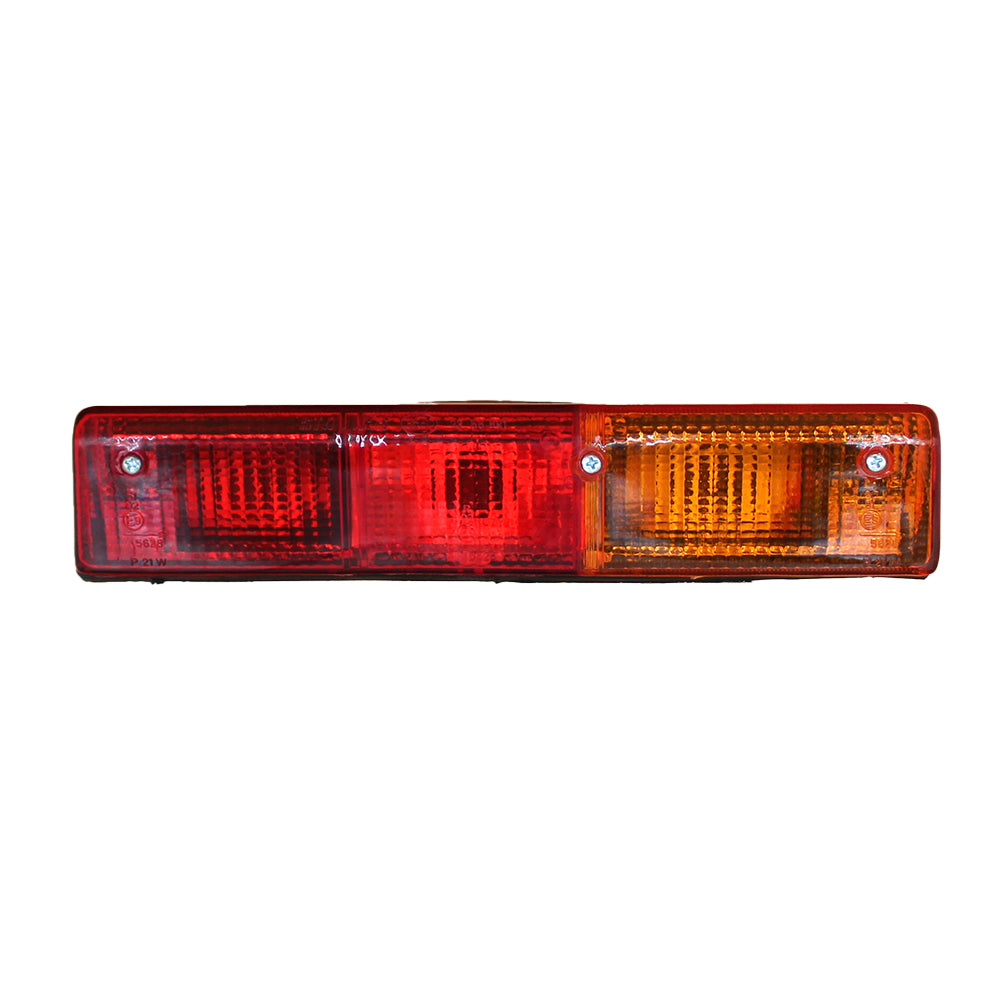

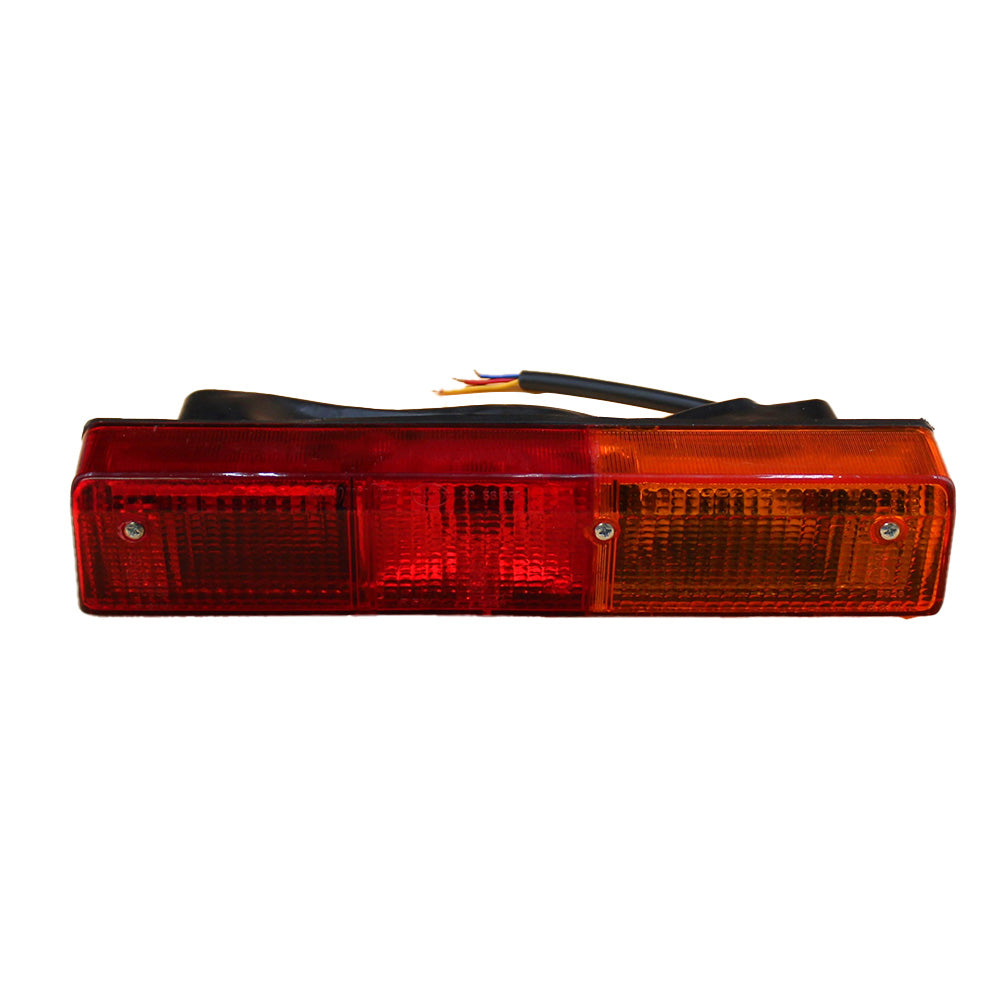

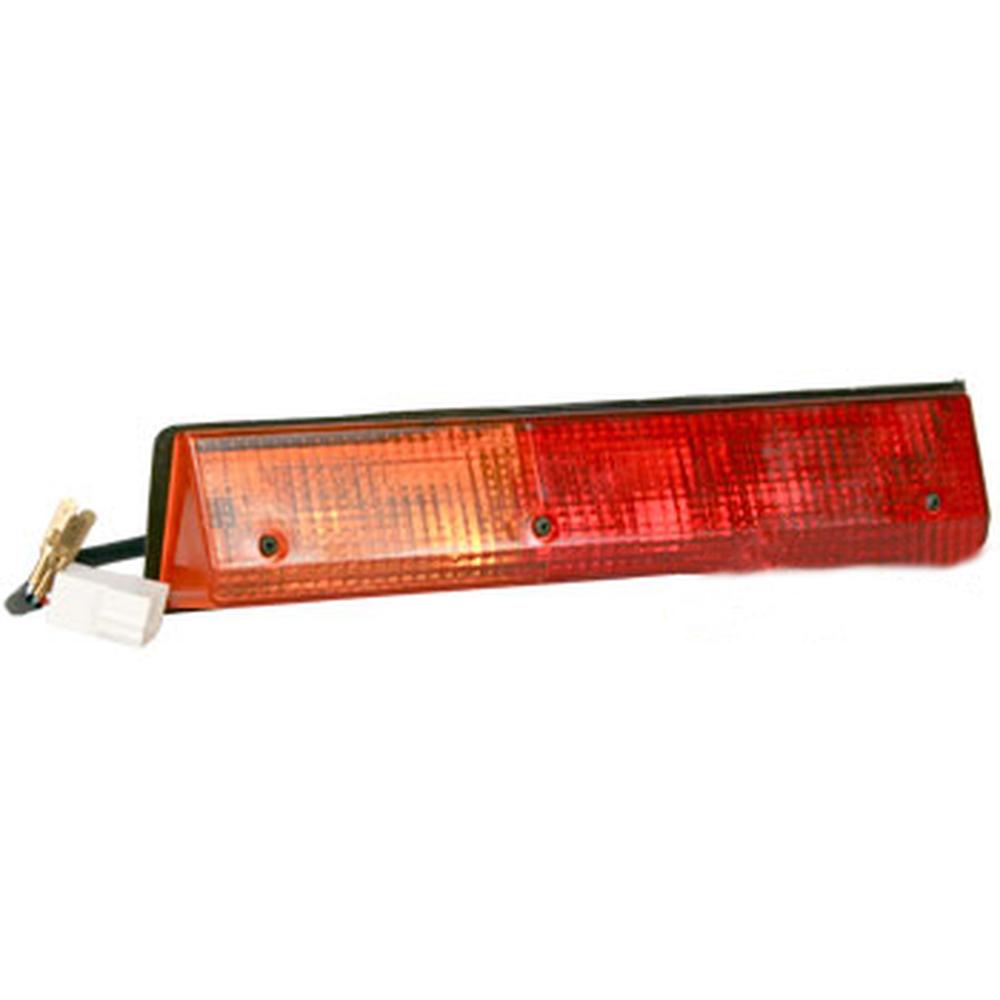

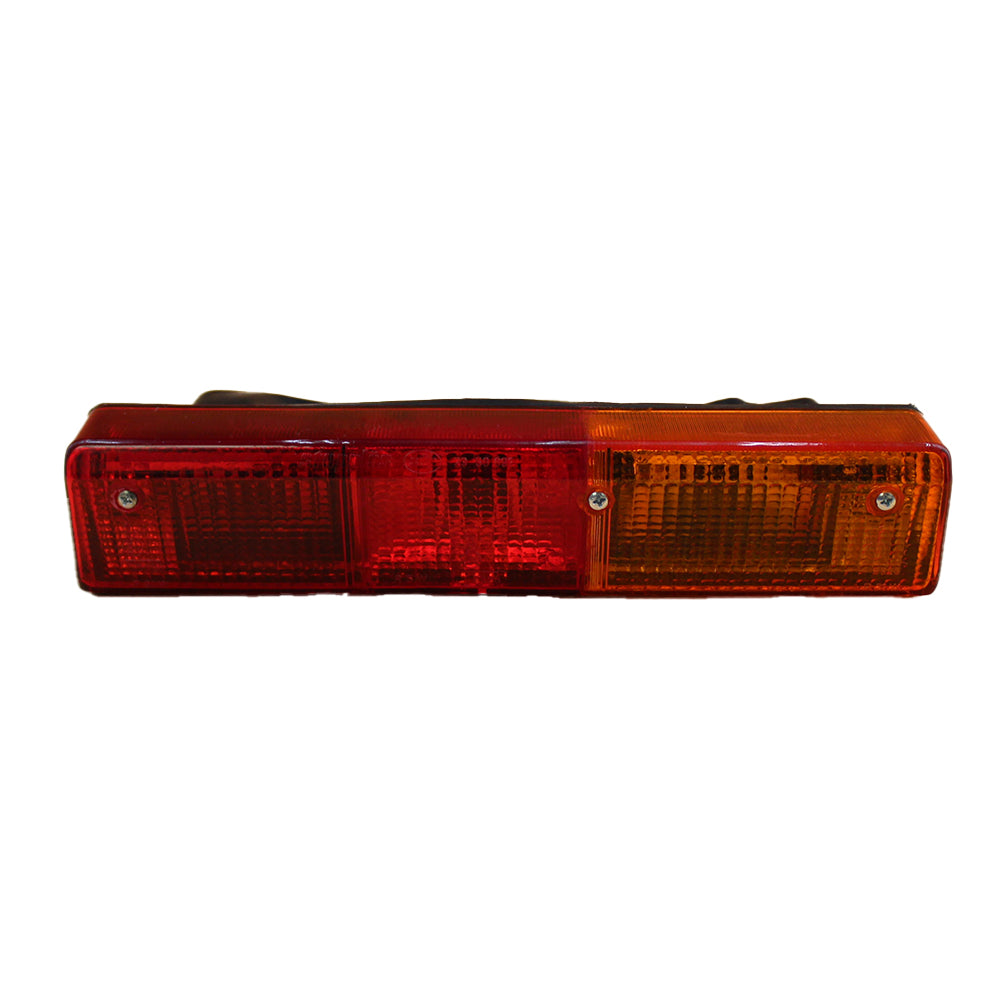

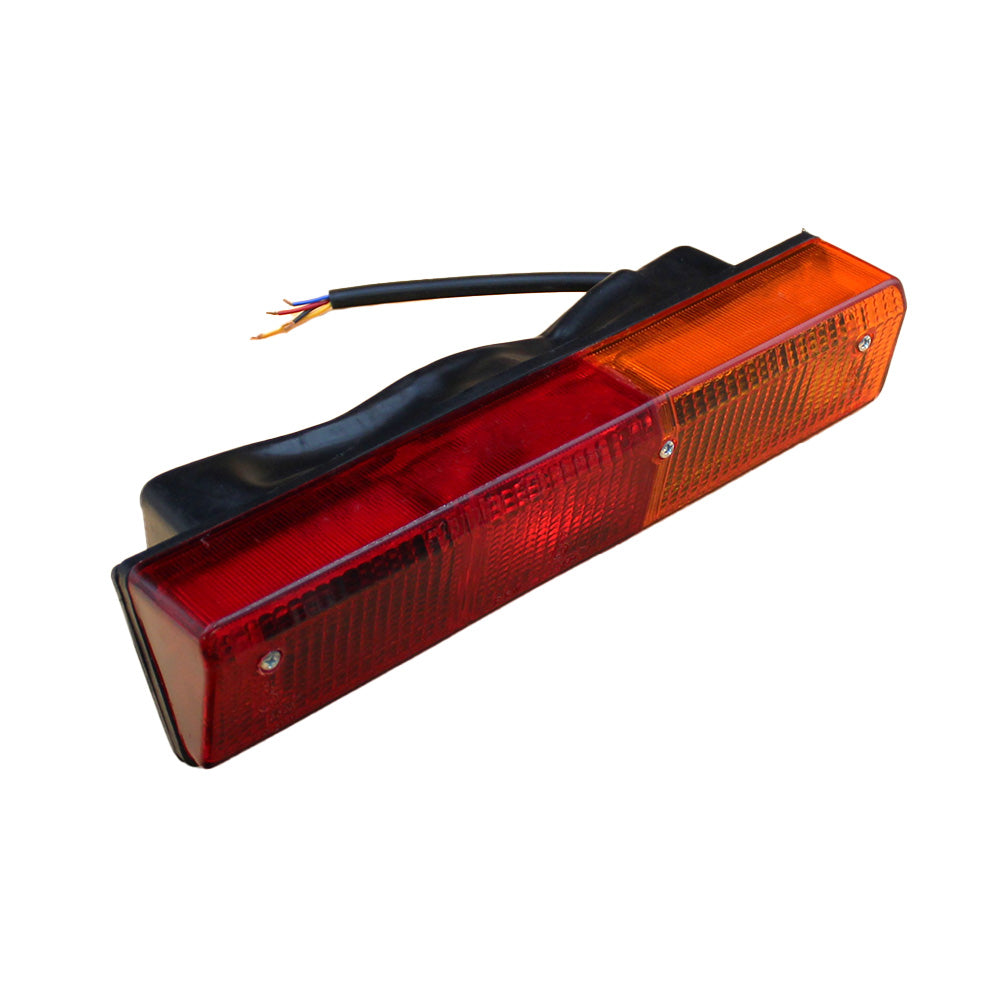

1425885M92 Lamp, Rear (RH), Amber Flasher/Red Side/Brake Light

1425885M92 Lamp, Rear (RH), Amber Flasher/Red Side/Brake Light

AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER


One New Aftermarket Replacement Rear Right-Hand Combination Lamp Fits Massey Ferguson and Fiat Tractors

This aftermarket replacement rear right-hand (RH) combination lamp fits a wide range of Fits Massey Ferguson and Fiat tractors. The lamp serves three functions simultaneously -- brake/tail light (red), side marker (red), and amber turn/flasher indicator -- making it a direct replacement for the complete rear lighting assembly. It connects via a DT connector and mounts with a fixing clamp. The polycarbonate lens and plastic housing are designed to withstand field conditions, and the 12V halogen light source is compatible with standard tractor electrical systems.

Specifications

  • Function: Brake / Tail / Indicator (3-function)
  • Lens Color: Red / Amber
  • Lens Material: Polycarbonate
  • Housing Material: Plastic
  • Light Source: Halogen, 12V
  • Connection Type: DT Connector
  • Mounting: Fixing Clamp
  • Overall Height: 2.44 in (62 mm)
  • Overall Length: 3.70 in (94 mm)
  • Overall Width: 11.61 in (295 mm)
  • Shape: Rectangular
  • Fitment: Right-Hand (RH)

Compatible Models

Fits Massey Ferguson: 254-4 (SN 22210642->), 274-4 (SN 221N00936->), 294-4 (SN 223000321->)

Fiat / Fits Massey Ferguson Series: 45-66, 45-66DT, 50-66, 50-66DT, 55-46, 55-46DT, 55-66, 55-66DT, 55-90, 55-90DT, 60-46, 60-46DT, 60-56, 60-56DT, 60-66, 60-66DT, 60-66LPDT, 60-90, 60-90DT, 60-93, 60-93DT, 60-94, 60-94DT, 65-46, 65-46DT, 65-56, 65-56DT, 65-66, 65-66DT, 65-90, 65-90DT, 65-93, 65-93DT, 65-94, 65-94DT, 70-56, 70-56DT, 70-66, 70-66DT, 70-90, 70-90DT, 72-86LPDT, 72-93, 72-93DT, 72-94, 72-94DT, 80-66, 80-66DT, 80-90, 80-90DT, 82-93, 82-93DT, 82-94, 82-94DT, 85-90, 85-90DT, 88-94, 88-94DT, 90-90, 90-90DT, 95-90, 95-90DT, 100-90, 100-90DT, 110-90, 110-90DT, 115-90, 115-90DT, 130-90, 130-90DT, 140-90, 140-90DT, 160-90, 160-90DT, 180-90, 180-90DT, 446, 446DT, 466, 466DT, 566, 566DT, 570, 570DT, 580, 580DT, 666, 666DT, 670, 670DT, 680, 680DT, 766, 766DT, 780, 780DT, 880, 880DT, 880-5, 880-5DT, 980, 980DT, 1180, 1180DT, 1280, 1280DT, 1380, 1380DT, 1580 TURBO, 1580DT TURBO, 1880, 1880DT

Replaces Part Number(s):

1425885M91, 1425885M92, VPM3621, 4997267

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

140-90, 880-5, 766DT, 110-90, 55-46DT, 65-93DT, 110-90DT, 100-90, 65-66DT, 55-66, 82-94DT, 880DT, 100-90DT, 1880DT, 880, 580DT, 45-66, 446, 254-4, 65-46DT, 180-90, 65-56, 666, 160-90, 115-90, 55-66DT, 1180, 60-66LPDT, 294-4, 50-66DT, 1580 TURBO, 466, 60-66, 82-93, 980, 65-46, 70-66DT, 82-93DT, 766, 60-94, 60-90, 1580DT TURBO, 65-94, 580, 274-4, 670DT, 1380DT, 88-94, 1280DT, 180-90DT, 60-56, 1880, 70-56DT, 70-66, 65-66, 1380, 65-56DT, 566, 60-93DT, 95-90, 780, 95-90DT, 50-66, 570, 72-86LPDT, 466DT, 72-93DT, 80-90, 780DT, 60-94DT, 160-90DT, 55-46, 65-90, 60-66DT, 80-90DT, 55-90DT, 570DT, 60-90DT, 65-93, 90-90, 80-66DT, 45-66DT, 60-46DT, 70-90, 140-90DT, 65-94DT, 80-66, 72-94DT, 680, 670, 55-90, 980DT, 85-90, 130-90, 82-94, 70-56, 65-90DT, 446DT, 72-94, 1280, 115-90DT, 880-5DT, 60-93, 1180DT, 566DT, 85-90DT, 60-46, 88-94DT, 680DT, 130-90DT, 666DT, 72-93, 60-56DT, 70-90DT, 90-90DT

Additional Information:

Connection Type DT Connector Fixing Clamp Function 3, Brake / Tail / Indicator Housing Material Various Plastic Compounds Lens Colour Red / Amber Lens Material Polycarbonate Light source Halogen Overall height 2.44” (62mm) Overall length 3.70” (94mm) Overall width 11.61” (295mm) RH or LH Fitment RH Volts 12V Shape Rectangular RH Rear Side Brake Light Lamp

Reference Numbers:

4997267, 1425885M91, 1425885M92, VPM3621
