One New Aftermarket Replacement Tapered Roller Bearing Cup (14276) for Agricultural Equipment

This tapered roller bearing cup (outer ring/race) is a direct replacement for OEM part number 14276, manufactured to Timken specifications. The cup is the outer, separable component of the tapered roller bearing assembly and is designed to be paired with the matching 14125A cone (inner ring assembly). Note: cone sold separately. This design supports heavy radial and axial loads, making it well suited for wheel hubs, axle assemblies, and driveline applications across a wide range of agricultural, construction, and specialty equipment.

Specifications

  • Type: Single Cup - Tapered Roller Bearing Outer Ring
  • Outside Diameter: 2.717 in.
  • Width: 0.625 in.
  • Fillet Radius: 0.05 in.
  • Material: Fits Case Carburized Steel
  • Lubrication Hole: None
  • Paired Cone: 14125A (1.250 in. bore)

Compatible Models

Fits Allis Chalmers: 5 Star, G1000

Fits Case / Fits Case IH (IH): 403, 403F, 403G, 445, 503, 503I, 504C, 504F, 504G, 504H, 504I, 504I Silage, 504L, 505I, 505L, 554XL, 555XL, 602, 604J, 604K, 604L, 604XL, 605F, 605G, 605H, 605J, 605K, 605L, 605XL, 715, 815, 1400, 1640, 1644, 1660, 1666, 1680, 1688, 2166, 2188, 2344, 2366, 2377, 2388, 2577, 2588, 5400 Rebel, 5500 Rebel, R-21, R-23

Fits Ford/New Holland (NH): Models as listed in series 670

Fits John Deere (Fits JD): Jet Star 3, Jet Star 4, M5

Minneapolis-Moline: 335, 670

Fits Massey Ferguson: 82, 84, 95

GEHL, BUSH HOG, Vermeer, Krause, Hesston, Fits Woods, Rhino, Amco, Kewanee, Riverside Tractor, Taylorway: Various models - confirm fitment with your serial number and dealer parts catalog

Also used on: bale wagons, disc harrows, round balers, combines, rotary cutters, rakes, excavators, and compact tractors. Serial number ranges: 4901-4938 (confirm model application before ordering).

Replaces Part Number(s):

14276TIM, 14276, 9N744, 116210, 1715019, 80105, W10A7575, A29977, 113BH, 8J0422, 70025, W33, 016234X1, 710350, X5623, 54628A, 203021, 520031, 526WD, 7069WD, 70209890, 74253284, 10261, JD7409

Aftermarket Interchange Numbers

BR14276, TIM14276, ETM14276, E-TM14276, TWD14276, BT14276, TRB14276, 8236-14276, 823614276, 144083C1, 184077C1, 204749C1, 54628H, 565212R1, 659839R1, 706821R1, 143241Z, 16234X, 195151M1

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

1644, 1680, 605J, 2588, JET STAR 3, 1688, 504H, 2366, 504I, 504L, 4901-4938, 604J, 335, 2577, 504C, 82, Outer Ring Of A Tapered Roller Bearing, 503I, 602, 504F, G1000, 554XL, 2377, 5500 REBEL, 555XL, 604L, 403G, R-23, 505I, M5, 715, 670, 504I SILAGE, 605K, 504G, 95, R-21, 1400, 503, 505L, 2166, JET STAR 4, 445, 605L, 303, 1666, 815, 403, 604XL, 605F, 605H, 1640, 2344, 604K, 5400 REBEL, 403F, 1660, 605XL, 2188, 2388, 5 STAR, 605G, 615, 84

Additional Information:

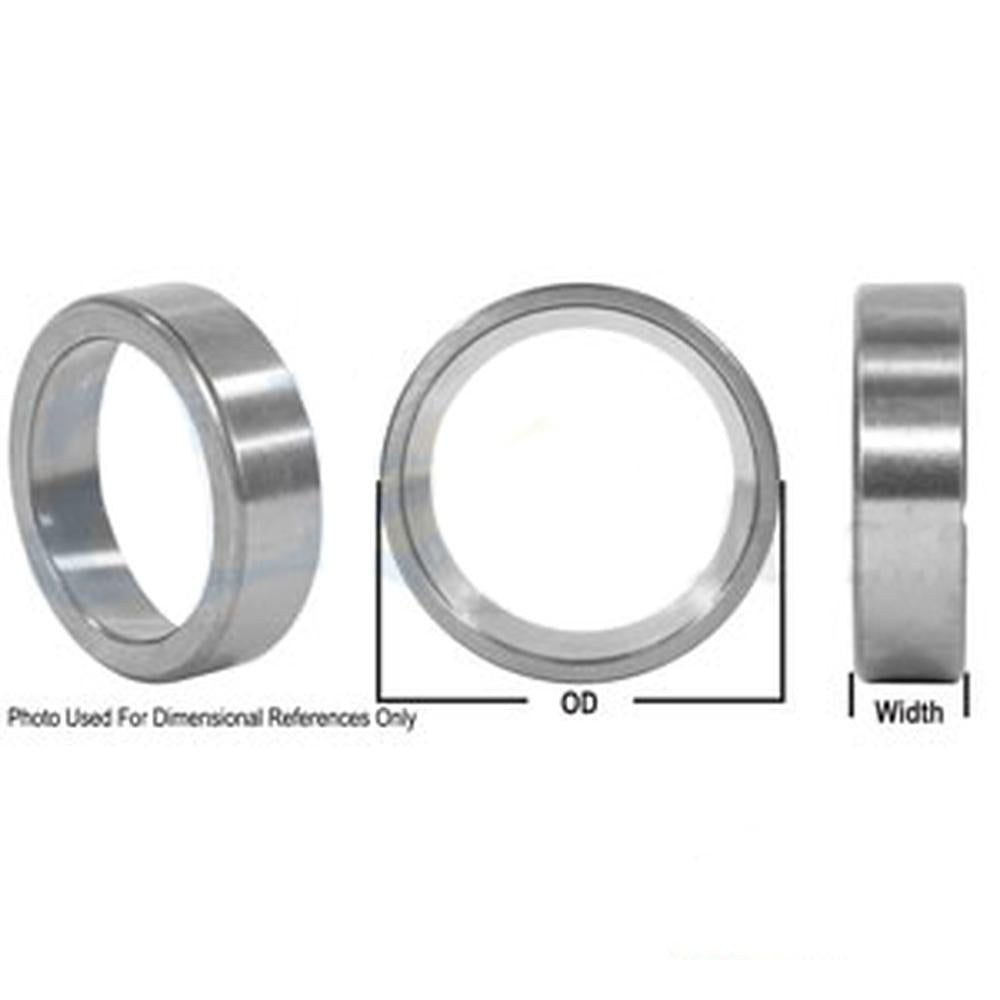

Outside Diameter 2.717" Radius .05" Width .625" Cup Bearing

Reference Numbers:

14276, 113BH, 710350, 80105, 14276TIM, X5623, W10A7575, 9N744, 116210, JD7409, 520031, 1715019, 54628A, 016234X1, 10261, 526WD, 7069WD, A29977, 70209890, 74253284, 8J0422, 70025, W33, 203021
