A-1687615M91-AI Rim, Power Adjust Wheel 12" X 28" 4 Rail

A-1687615M91-AI Rim, Power Adjust Wheel 12" X 28" 4 Rail



AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER

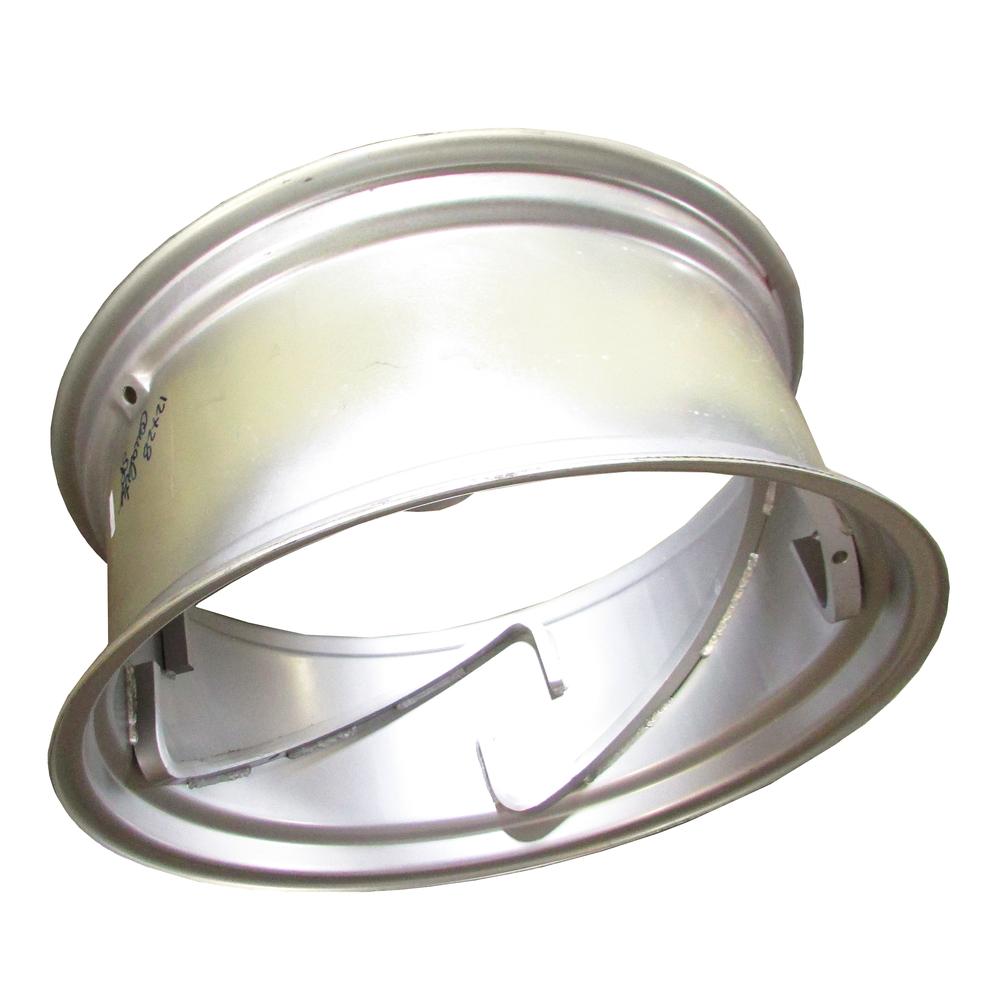

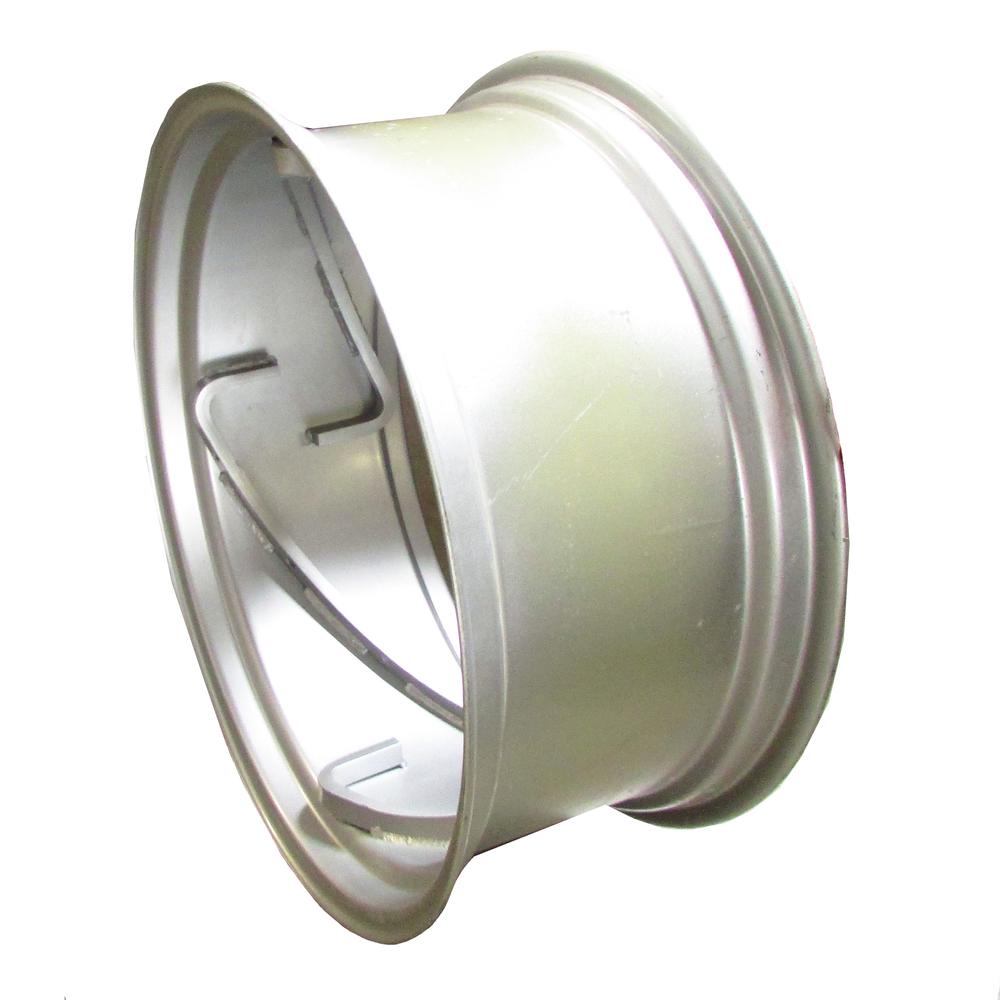

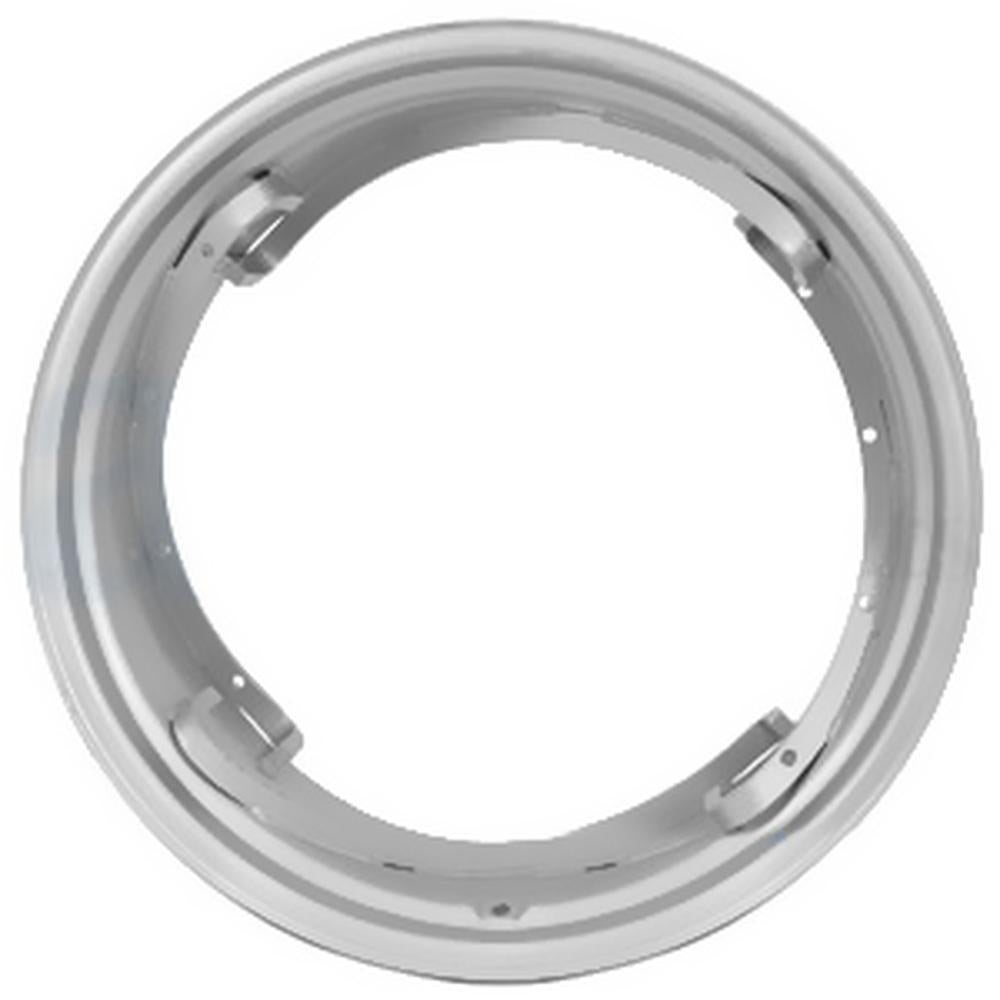

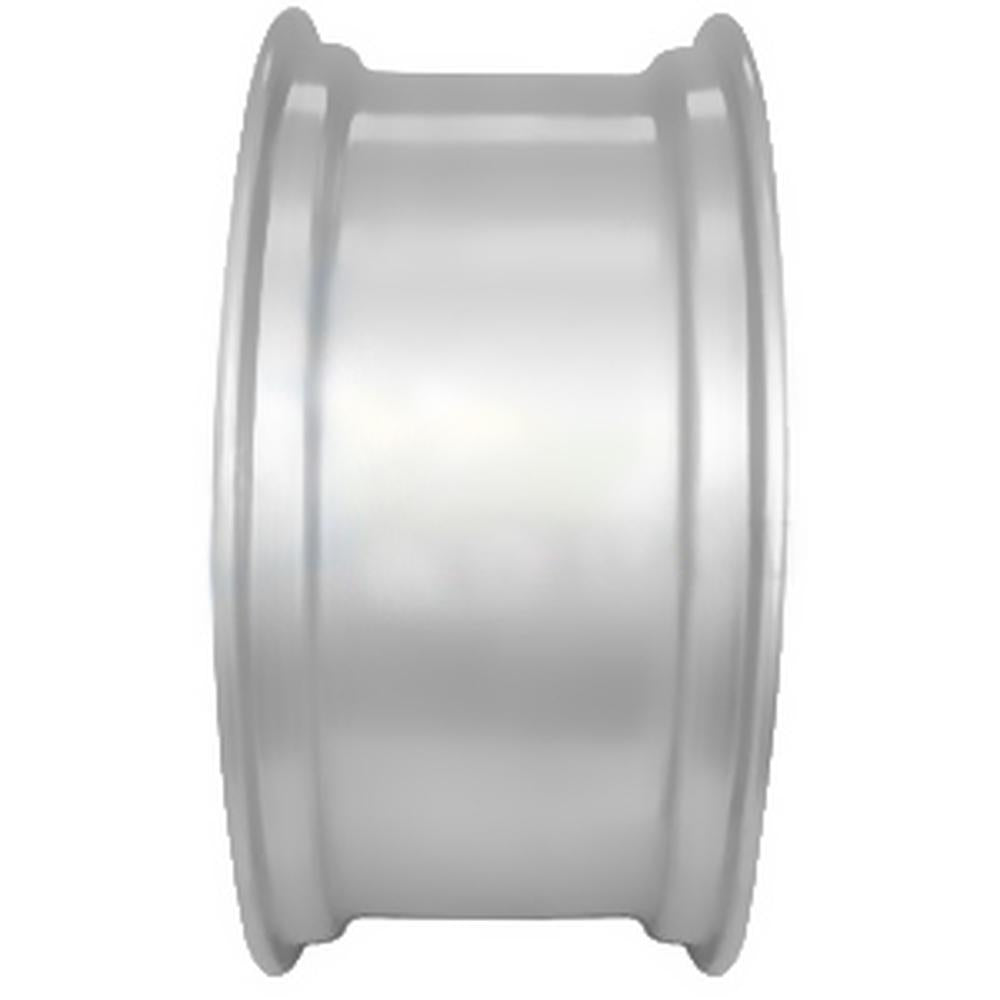

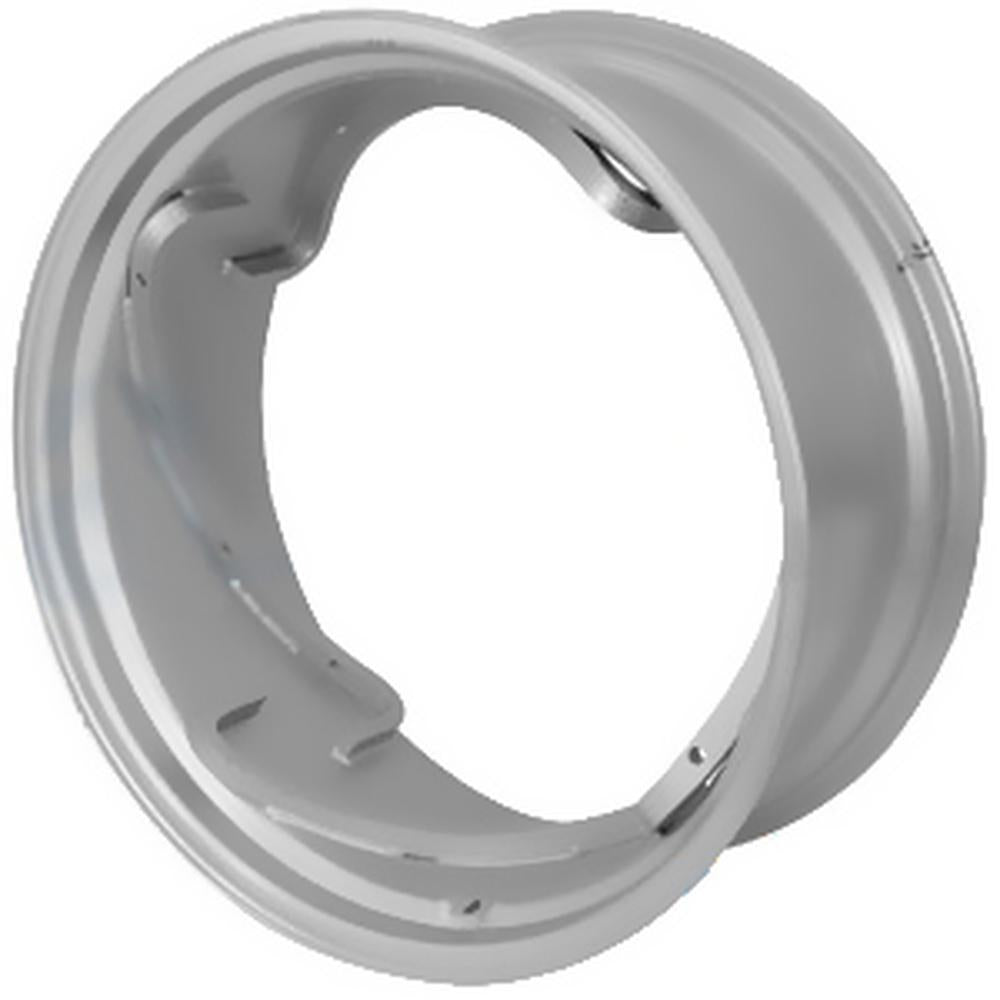

One New Aftermarket Rim, Power Adjust Wheel 12" X 28" 4 Rail


-For Double Ramp Clamp, Holes In Rail For Stop Body Screw Are Parallel To Axle, Not At Angle

Models This Part Fits:

4110NO, 2120, 1020, 1650, 301, 300, 424, 340, 2030, 235, 2150, 3150, 3500, 211B, 3550, 3910, 480, 884, 504, 65, 606, 2440, 3190, 400B, 684, 584, 1250, Jetstar 3 Super, 4000 3 cylinder, 3600V, 431, 541, 200B, 2300, 2600V, 570, 1600, 441, 434, 2610, 1250A, 2-50, 3610V, 3600, 2110, 435, 311, 430, 4000SU, 165, 4100, 531, 2020, 1530, 1365, 420, 411B, 2600N, 160, 784, 3300, 3120, 250, 3910V, 255, 1520, 410B, 1655, 404, 2100, 550, 3600R, 362, 2-60, 464, 135, 484, 200, 540, 210, 4110, WD45, 301B, 2040, 310B, 310, 2310, 1265, WD, 574, 4110O, 300B, 4600, 1010, 210B, 2810, 445, 2000, 3330, 350, 3000, 311B, 253, Super 55, 4600SU, Jet Star 3, 3055, 330, 360, 3610, 454, 211, 2600, 1370, 1255, 440, 1355, 230, 1270, 240, 150, 460, 1450, 175, 2-44, 2610V, JetStar 3, 444, 2010, 530, 3100, 2000 3 cylinder, 3310, 2240, 4000, 310 Crawler, 3600N, 470, Jet Star 3 Super, 2600R, 674, 3110, 3910H, 245, 3910R, 2910

Additional Information:

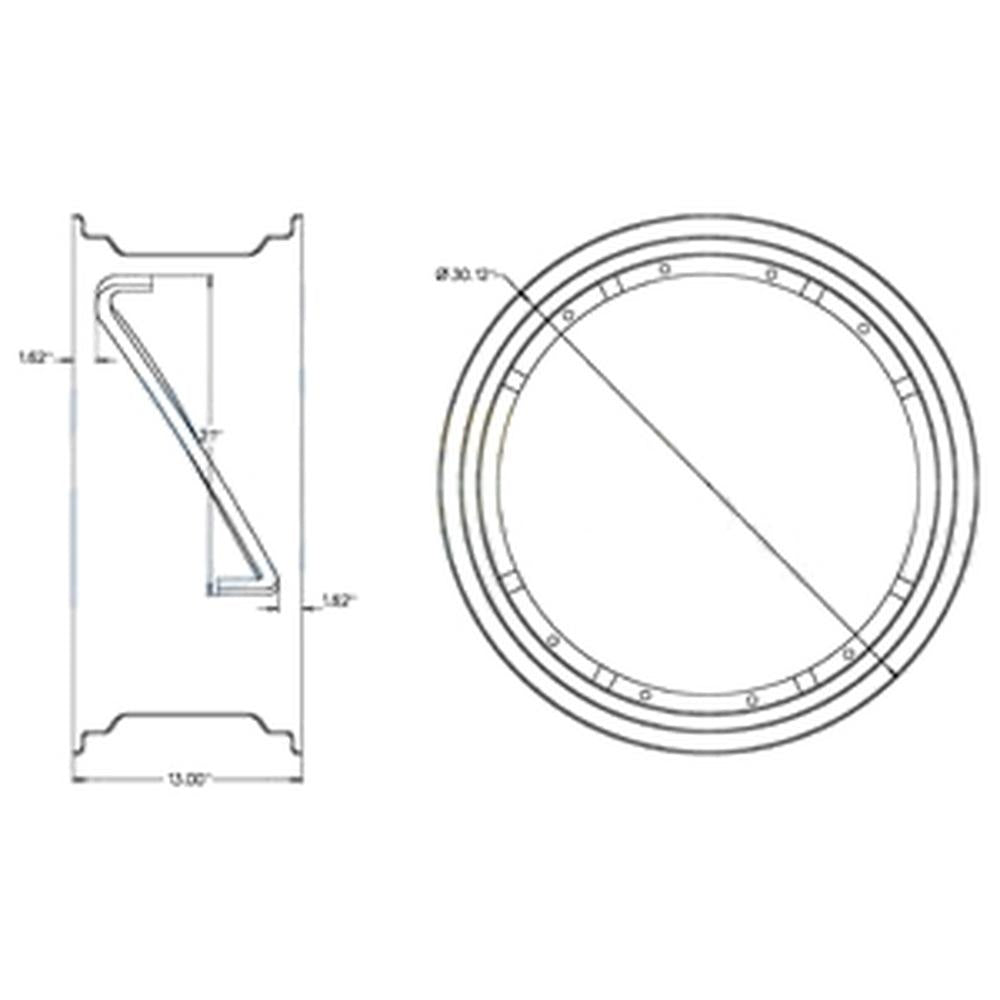

4 Rails 0.625" Rail Width 21" Long 1" Rail Height Holes for stop adjustment are drilled 90 degrees perpendicular to side of rim not 90 degrees to rail Stop holes are angled To determine the rim width you need, measure the rim on the inside (from bead to bead) NOT outside to outside Not designed for tubeless applications Note: Measure the old rim BEFORE ordering as other sizes could have been installed on your tractor at one time Rear Rim 12" x 28"

Reference Numbers:

C5NN1050J, AM3202T, AL60764, AL60764, AM3202T, 100047AS, 156072A, 226270, 70226270, 1687615M91, 156072A, 100047AS, 10P787, 365324R92
