A-180349M1-AI LH Spindle
A-180349M1-AI LH Spindle
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER

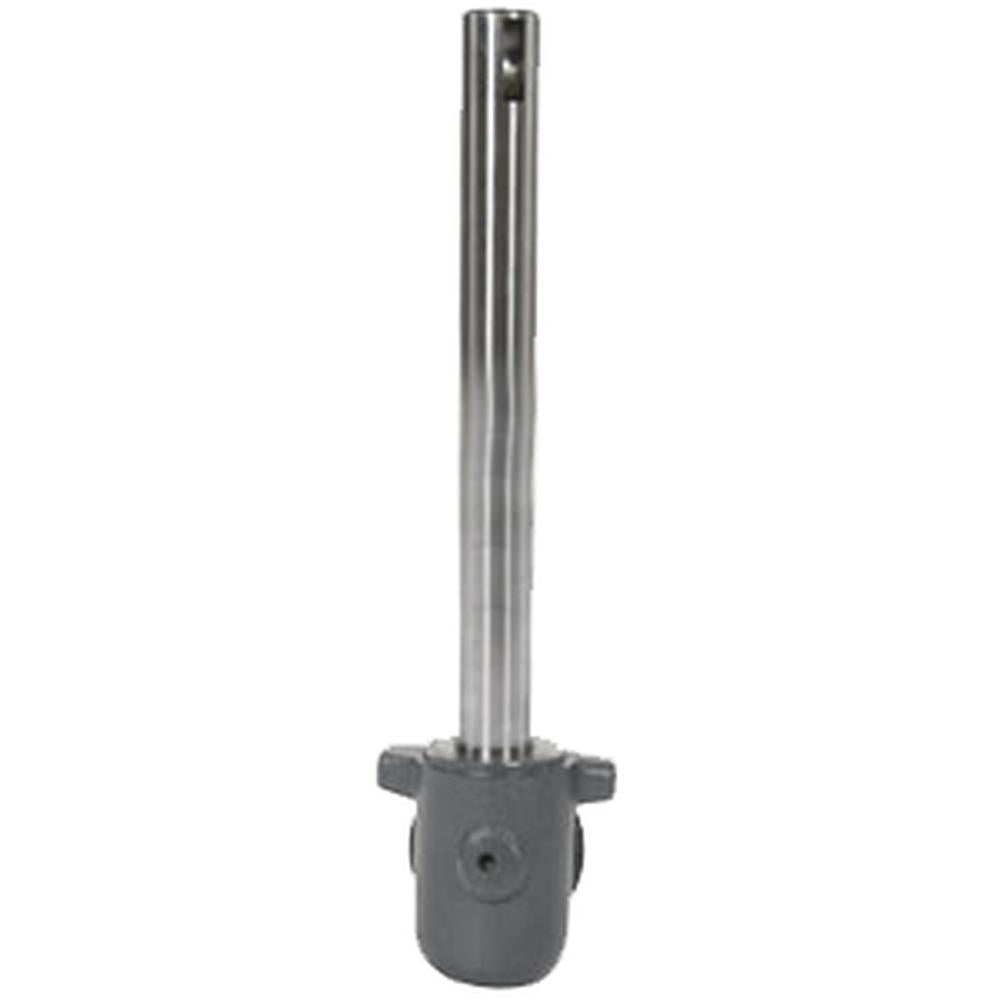

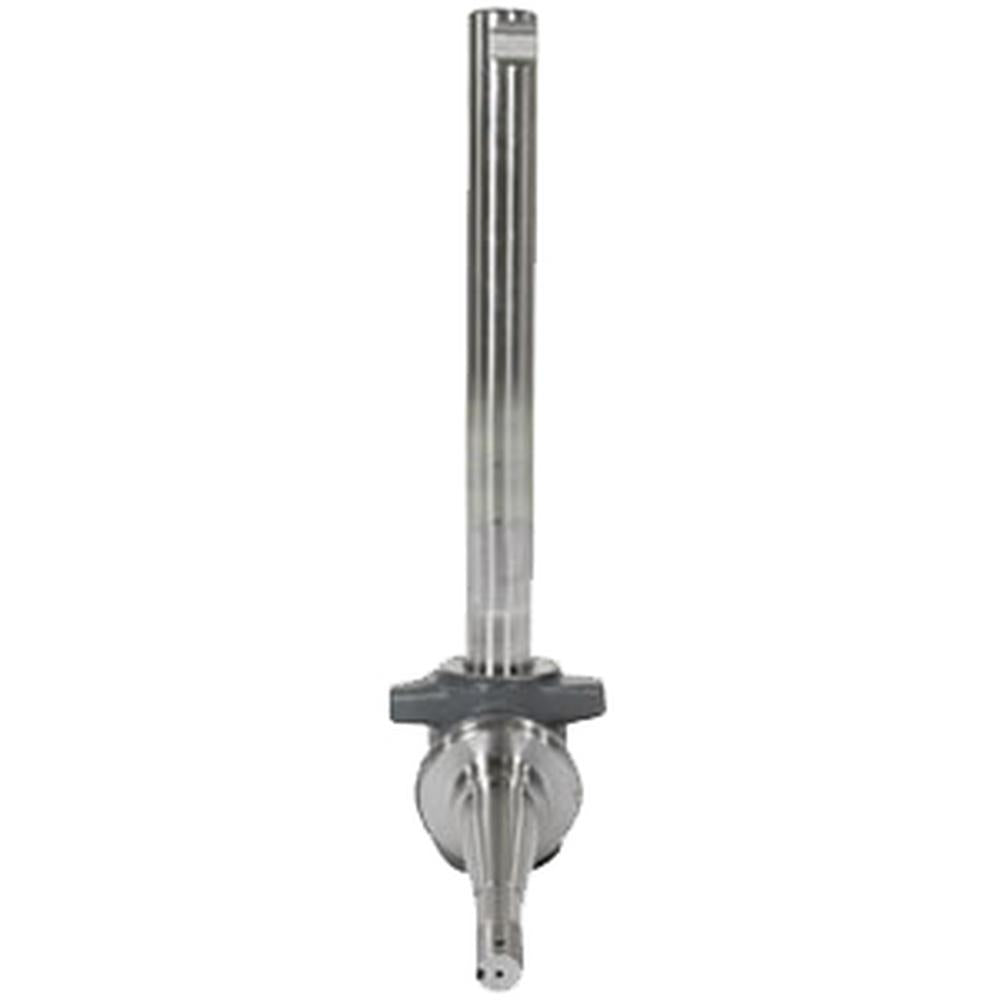

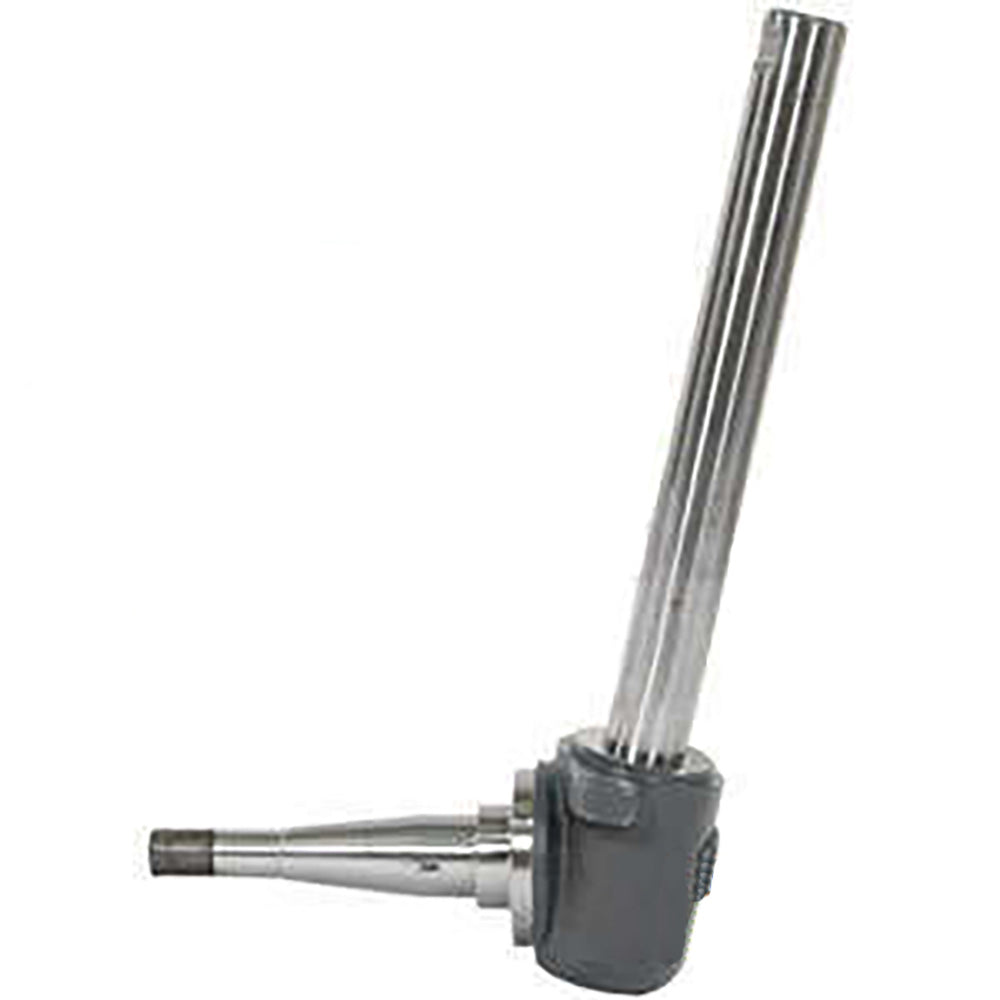

One New Aftermarket Replacement Left Hand (LH) Spindle Fits Massey Ferguson Tractors
This left-hand front axle spindle (also referred to as a stub axle) is a direct replacement for the original equipment part on Fits Massey Ferguson TE20-series and MF 35-series tractors. It mounts in the front axle assembly and supports the front wheel hub and bearing assembly on the left side.
Specifications
- Side: Left Hand (LH)
- Shaft Length (Dim A): 11.00"
- Shaft Diameter - Large (Dim B): 1.250"
- Shaft Diameter - Large Race (Dim C): 1.250"
- Shaft Diameter - Small Race (Dim D): 0.750"
- Thread: 3/4" UNF
- Keyway Position: 11:30
- Clamp Notch Position: 5:30
Compatible Models
Fits Massey Ferguson / Fits Ferguson: TE20, TEA20, TED20, TEF20, TO20, TO30, TO35, FE35, 35, 35X
Replaces Part Number(s):
180349M92, 180349M1, 897415M91
Aftermarket Interchange Numbers
180349V92, 897411M91, 897415M91HD, VPJ1004, S.15984
New aftermarket replacement part - not remanufactured, not used.
Models This Part Fits:
TEA20, 35XAdditional Information:
Keyway Positioned at 11:30, Clamp Notch Positioned at 5:30 Dim A (1) 11.00" Dim B (2) 1.250" Dim C (3) 1.250" Dim D (4) .750" Keyway Positioned at 11:30 Left Hand SpindleReference Numbers:
180349M92, 897415M91Makes This Part Fits:
Shop Massey Ferguson Wholesale PartsProduct Category:
Agriculture Replacement PartsProduct Group:
Product Sub Group:
View full details
