One New Aftermarket Replacement Disc Bearing (Hipper/Disc Bedder) Fits John Deere, Fits Case IH, Fits International Harvester, Bush Hog, and More

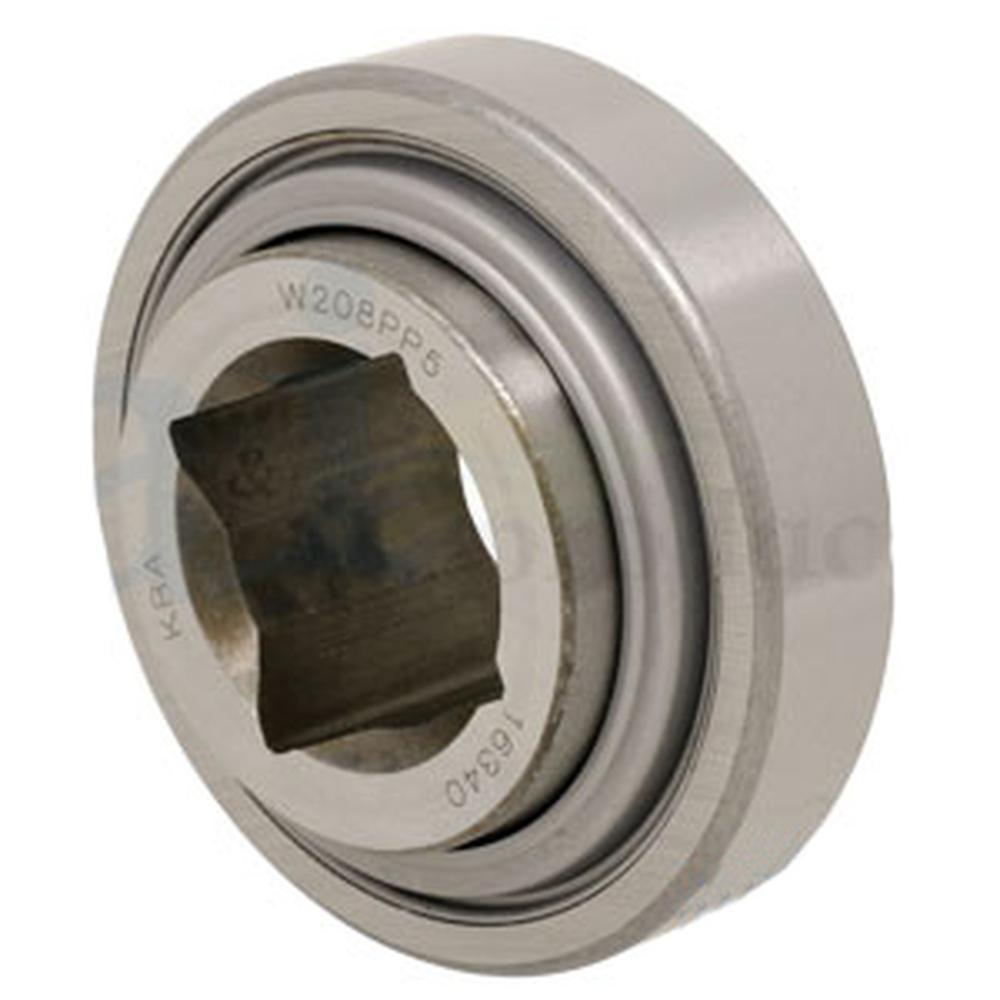

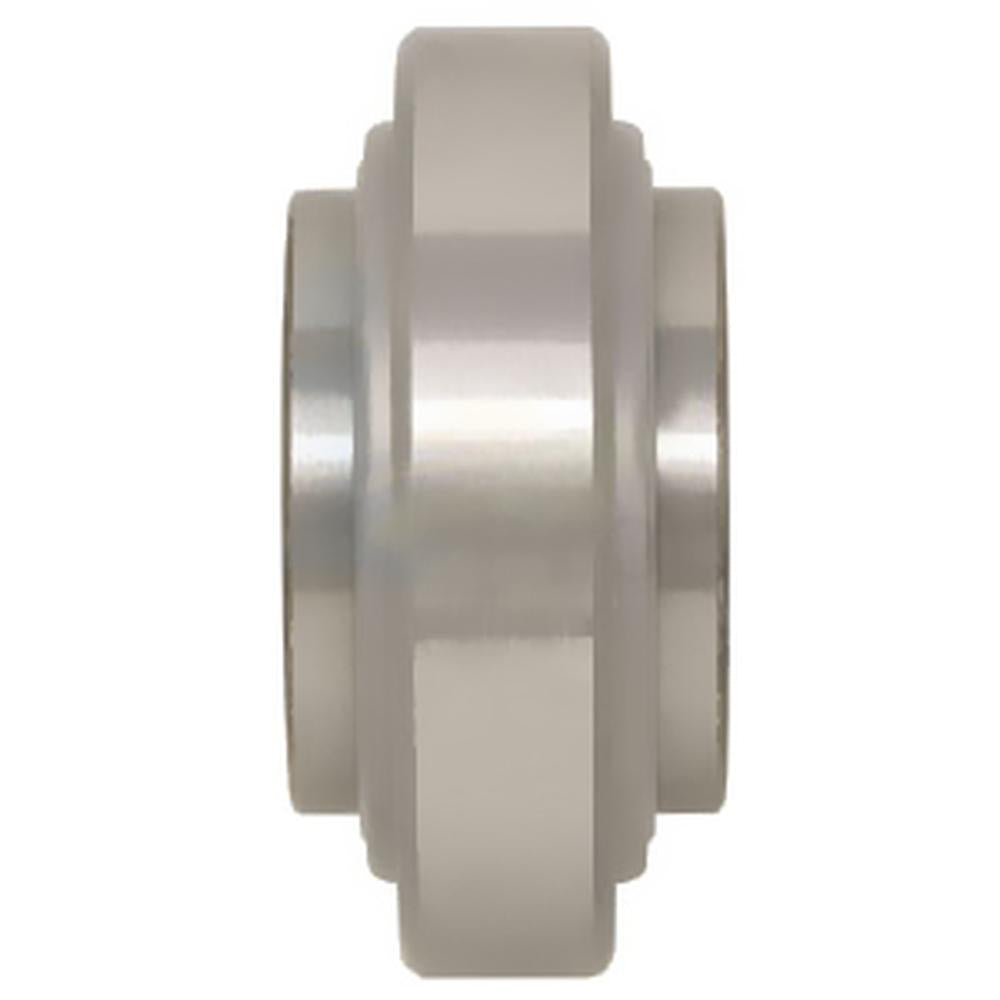

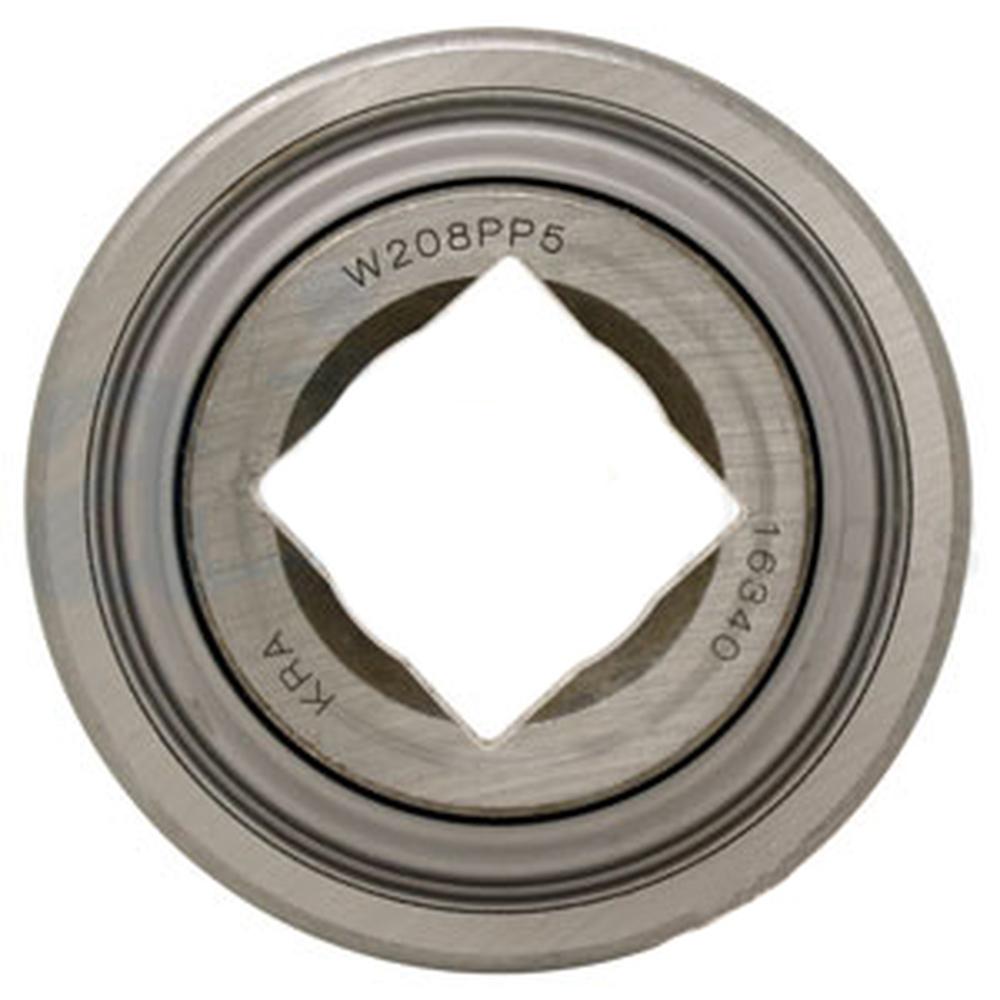

This pre-lubricated sealed square bore disc bearing is designed for disc bedder and hipper applications across a wide range of agricultural tillage equipment. With a 1-1/8" square bore and triple-lip sealed design, it mounts directly on the square axle of disc harrows, hippos, and disc bedders to keep gang assemblies spinning freely under heavy field loads.

Specifications

• Bore: 1.125" (1-1/8") Square
• Outside Diameter: 3.1496" (approx. 80mm)
• Inner Ring Width: 1.438"
• Outer Ring Width: 0.709"
• Lube Type: Pre-lubricated / Sealed
• Bore Type: Square

Compatible Equipment

Fits John Deere (Fits JD) Disc Harrows and Hippos

Fits Case IH (IH): Disc Harrow and Hipper models

Bush Hog: Disc Harrow / Hipper models

Burch: Hipper models

Fits Massey Ferguson / AGCO: Disc Harrow models

Fits New Holland: Disc Harrow models

Rhino: Disc Harrow models

Lilliston: Disc Harrow models

Riverside Tractor: Disc Harrow models

Also fits W&A, Forrest City, and Kewanee disc bedder and hipper applications using the W208PP5 / DC208TT5 bearing standard.

Replaces Part Number(s):

J9554A, J9554AIMP, 9554A, 9554AIMP, 70500, 70500IMP, DC208TT5, 843638M1, W208PP5, 2251, 2251IMP, 06A51001, 06A51001IMP, T12903, T16289, 7950006, 963889R1, 963889R1IMP, AK3997B, JD9350, JD9350IMP, 232471, 1611176BH, 1611176BHIMP

Aftermarket Interchange Numbers

Also known as: W208PP5 (Fafnir/Torrington), DC208TT5 (BCA/Federal Mogul), 5AS08-1-1/8 (NTN), 18SB5-2E08E3 (Link-Belt), AS4508BH (NDH). Import grade (IMP suffix) equivalent of the domestic W208PP5 / JD9350 bearing.

New aftermarket replacement part - not remanufactured, not used.
