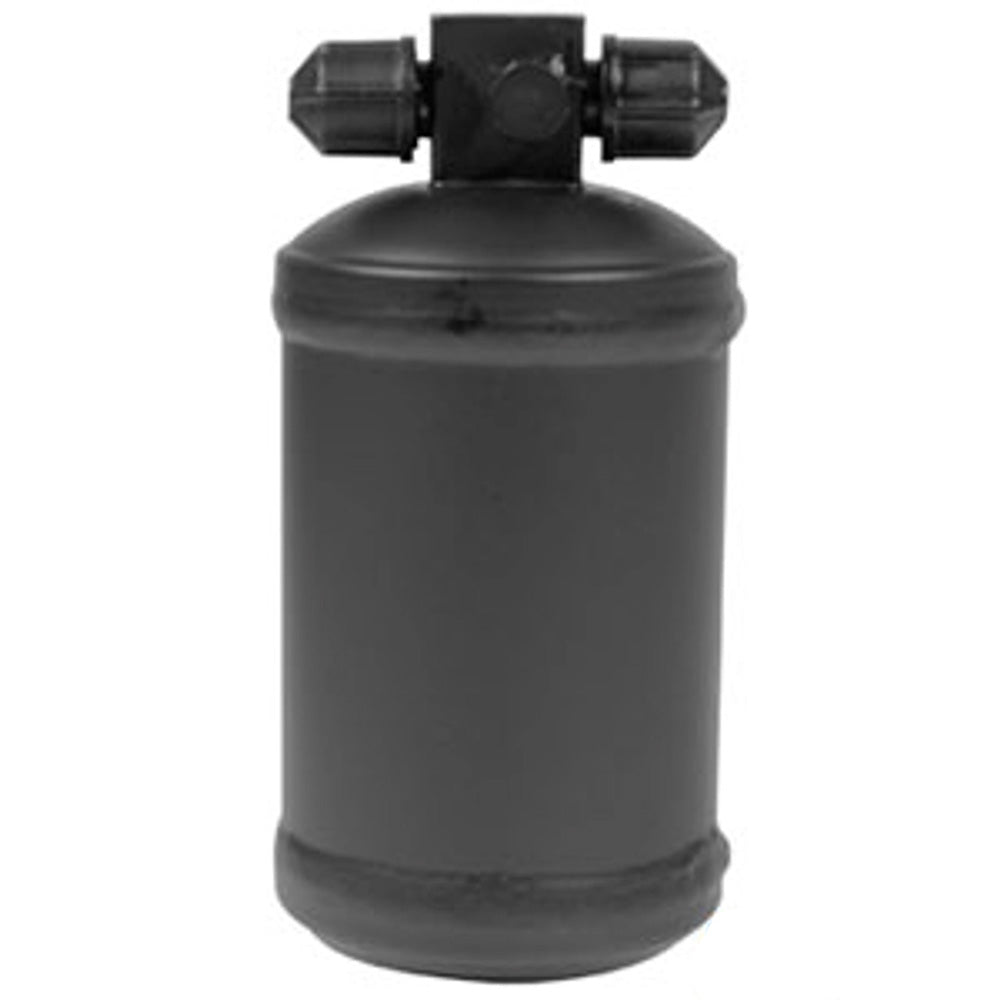

A-250929M91-AI Receiver Drier

A-250929M91-AI Receiver Drier

AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER


One New Aftermarket Replacement A/C Receiver Drier Fits Massey Ferguson Tractors and Combines

This aftermarket replacement A/C receiver drier fits a wide range of Fits Massey Ferguson (MF) tractors and combines, as well as select Fits Case/IH, Fits Ford-Fits New Holland, and Fits John Deere equipment. The receiver drier is located on the high-pressure side of the air conditioning loop, between the condenser and the expansion valve. It stores liquid refrigerant, removes moisture via an internal desiccant, and filters debris from the refrigerant circuit to protect the compressor and other A/C components. Replace the receiver drier any time the A/C system is opened for service or the compressor is replaced.

Specifications

  • Dimensions: 3 in. diameter x 6.25 in. tall (approx.)

Compatible Models

Fits Massey Ferguson (MF) Tractors: 1080, 1085, 1100, 1105, 1130, 1135, 4800, and additional MF tractor models

Fits Massey Ferguson (MF) Combines: 410, 510, 750, 760

Fits Case / Fits Case IH: 560, 580 Series

Fits Ford/New Holland: TW10, TW20, TW30, 530A, 550, 555, 655A, 8000, 8200, 8400, 8530, 8600, 8700, 9000, 9200, 9600, 9700, 9710

Fits John Deere (Fits JD): 4000, 4020, 4320, 4520, 4620, 5020, 6030, 7020, 7520

Replaces Part Number(s):

250929M91, A-250929M91, 1034581M91, 772075M91, AR45867, 926384C1, 916384C1, 926384-C1, 916384-C1, 300319C91, 1901003, 402494, 1999001, 1999030, 526087, 540105, 540221, 127757, 130217, 208302, 208371, 34313, 70256818, 70272317, 74R2406, 803-300, 825-4700, 8254700, 936136, C6TZ-19959A, D6NN-19959A, E-804121, JA1155, 15-125, 06-12006, 07-0400A, 07-5014, 088011-00, 088011-01, 1-1816, 1-1826, 1-3352, 1-3402, 1-3441, 1-3449, 1-3451, 303127680, 30-3127680, 37-13472-AM, 37-13579, 37-13579-AM, ABPN83319180, ABP N83 319180, ARD-1026, PTAC7124, PTAC7235, RD-5-4954-0, TEM93

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

7420, 4620, 910, 1114, 8530, 1068, 6420S, 1069, 1805, 7220, 8600, 4900, 8400, 200, 750, 4-180, 1085, 654, 6820, G, 1800, 670, 675, 9700, 4520, TR70, E, GH, 7520, 995, 9600, 900, 5020, 1130, 285, 555, 400, 8200, TW30, 9200, 7650, 1080, 905, 6320, 8700, 9710, 6220, 4800, 320, E3, F, 4-115, 4320, 1100, 6520, 1505, 1400, 700, 1135, 699, 985, 1075, 1500, 114, 410, 6420, 907, 4880, 6120, 975, 2-180, 4840, 909, 7600, 510, 903, 1112, 1155, 698, 4-150, 8000, 1895, 1105, 6920S, 7320, 530A, 4000, K, TW10, 220, 67, 760, 655A, 6620, 6030, 7020, 2-105, 2-155, 4-210, 1890, 4-175, 2-150, 6920, 2-135, 550, 2-115, 1150, 4020, 210, 9000, TW20, 655, 912, 690

Additional Information:

Drier Type: 3" Series Drier Diameter: 75mm Length: 160mm Inlet Size: 3/8" Inlet Type: MF Outlet Size: 3/8" Outlet Type: MF Sight Glass: Top HPRV: Fuse Plug Receiver Drier

Reference Numbers:

D3NN19825A, 130217, C6TZ19959A, 30-3127680, 30-3224724, 30-3324724, 303324724, 303224724, 303127680, 841551, 71160968, 130217, 250929M1, 804-260, 250929M91, 772075M91, 250929M1, 1034581M91, 6200, 6400, AR45867, 130217, 804-260, 250929M1, 804-260, 1034581M91, 71160968
