One New Aftermarket Replacement Fuel Lift Pump Repair Kit Fits Massey Ferguson, David Brown, Fits Case/International Harvester, Landini, White Oliver, and Perkins Engines

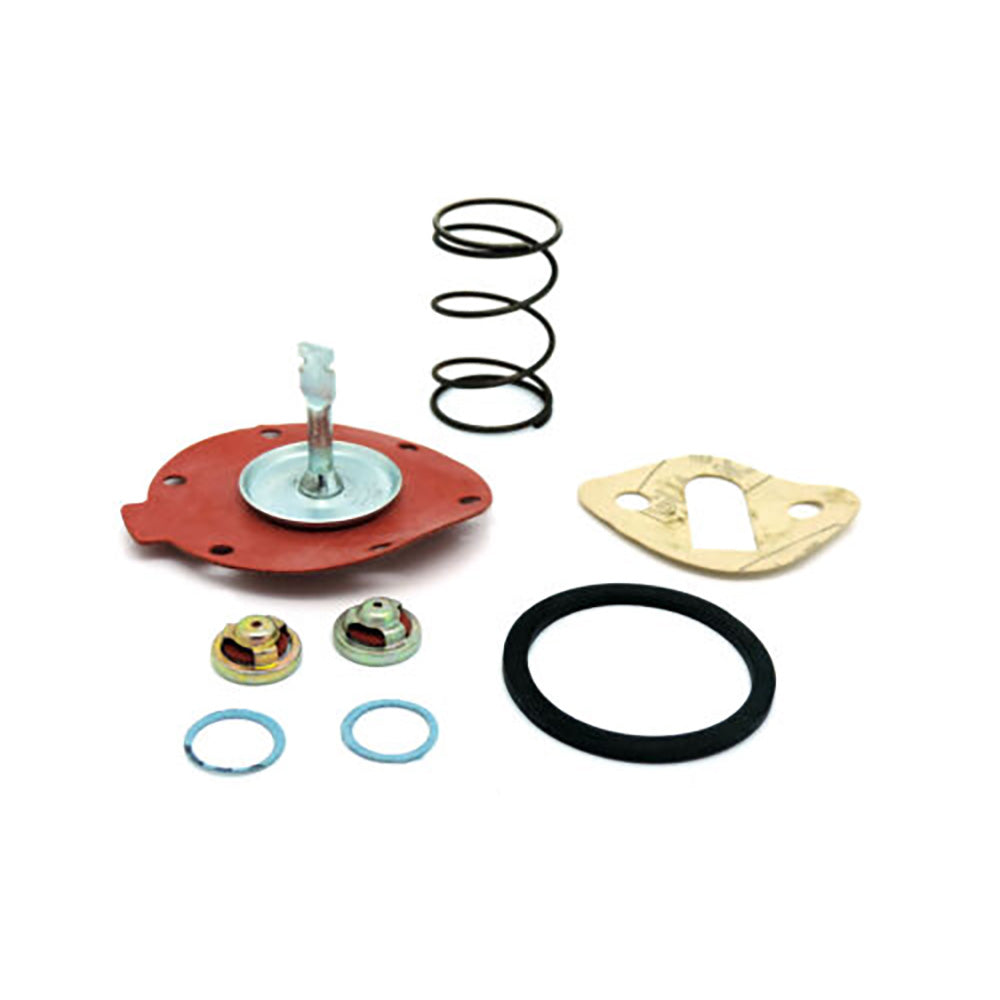

This aftermarket fuel lift pump repair kit services Perkins A6.354-series engines (Sparex pumps S.40560, S.40561, and S.40564) as fitted to a wide range of Fits Massey Ferguson (MF) tractors, combines, and industrials, David Brown tractors, Fits Case/IH tractors, Landini tractors, White Oliver tractors, and Perkins engines. The kit includes a diaphragm with T-slot arm end, check valves, and sediment bowl gasket to restore fuel lift pump operation.

Specifications

• Diaphragm arm end: T-slot type
• Diaphragm outer diameter: 3.25 in. (82.6 mm)
• Bolt center distance: 2.86 in. (72.64 mm)
• Check valve diameter: 0.75 in. (19.05 mm)
• Sediment bowl gasket inner diameter: 1.91 in. (48.51 mm)
• Sediment bowl gasket outer diameter: 2.29 in. (58.17 mm)
• Sediment bowl gasket thickness: 0.10 in. (2.54 mm)
• Services pumps: S.40560, S.40561, and S.40564

Perkins Engine Build List Restrictions

Note: Compatible with Perkins TC build list excluding TC20146, 21326, and 21773. Compatible with Perkins TJ build list excluding 22414, 22482, and 22491. Also fits TK, TR, and TT engines with 2-bolt fixing.

Compatible Models

Fits Case/International Harvester: 580; 94 Series: 1194, 1294, 1394, 1494, 1594, 1694

David Brown: 90 Series: 1190, 1290, 1390, 1490, 1690, 1690 TURBO; 94 Series: 1194, 1294, 1394, 1494, 1594, 1694; 700 Series: 770, 780; 800 Series: 880, 885; 900 Series: 990, 995, 996; 1200 Series: 1200, 1210, 1212; 1400 Series: 1410, 1412

Landini: 8500, LARGE 10000

Fits Massey Ferguson (MF) Tractors: 50, 65, 158, 165, 260, 298, 400, 410, 415, 507, 595, 698, 765, 880, 885, 990, 995, 996; 1000 Series: 1004, 1014, 1100, 1104, 1114; Compact: 1200

Fits Massey Ferguson Combines: 510, 515, 520, 525, 560, 620, 625

Fits Massey Ferguson Industrials: 158, 500

White Oliver: 1850, 2-85, 2-105

Perkins Engines: A6.354 (TC), A6.354.1 (TG), A6.354.2 (TJ), AT6.354 (TE)

Replaces Part Number(s):

4222110M91, 4222110V91, 1882944M92, 1882949M9, 26410045, 126410045, K262265, 31-2751697, ULPR0004

Aftermarket Interchange Numbers

Sparex S.40568; also cross-references BBU3454, 8G2039, 8G2040, 8G8844

New aftermarket replacement part - not remanufactured, not used.
