One New Aftermarket Replacement Fuel Lift Pump Repair Kit Fits Massey Ferguson, David Brown, Fits Case/International Harvester, Landini, Perkins, and White Oliver Equipment

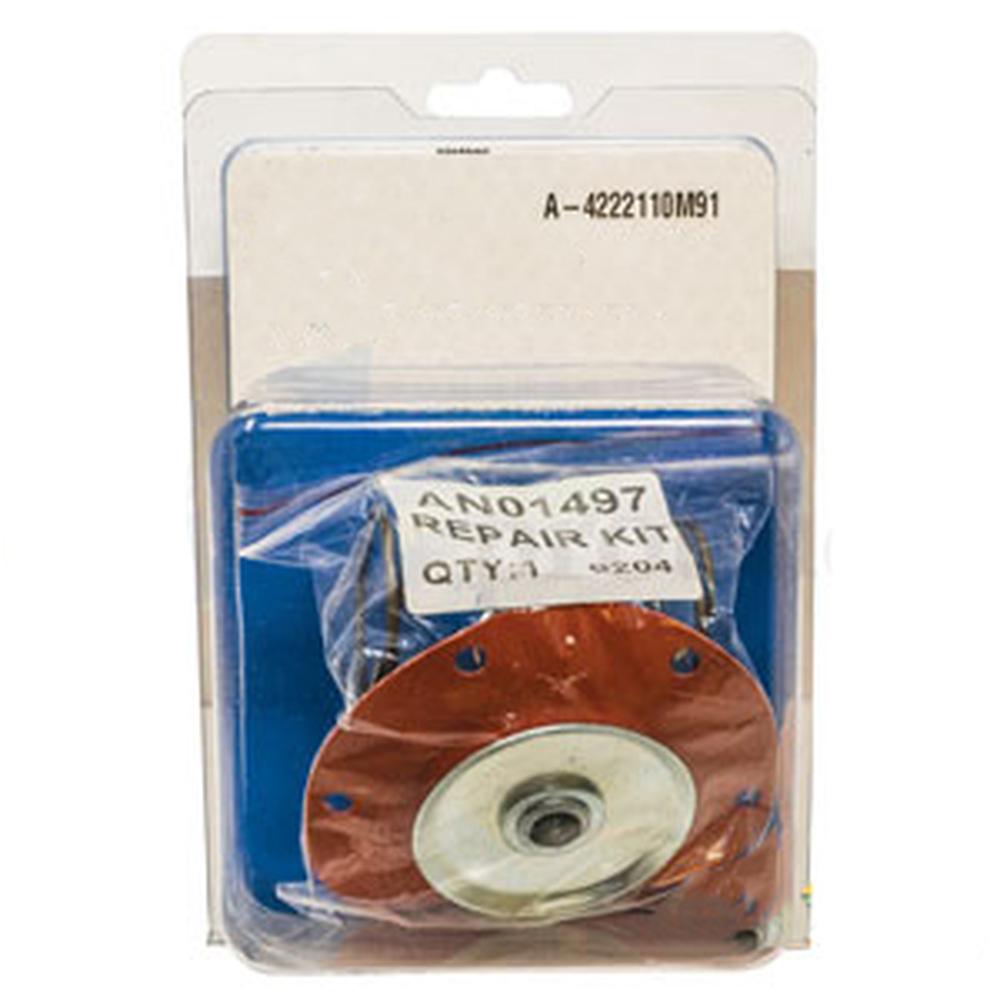

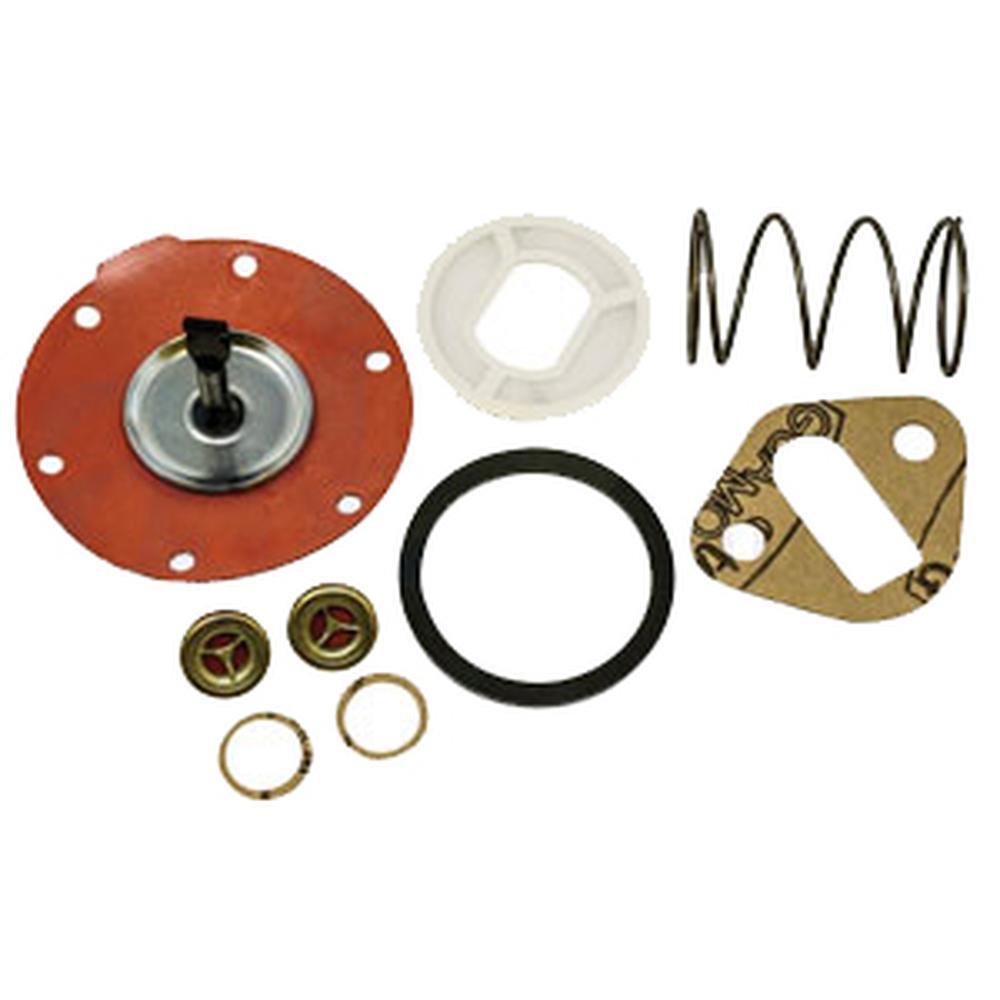

This aftermarket replacement fuel lift pump repair kit services the mechanical fuel lift pump on Perkins A6.354-series engines used across Fits Massey Ferguson (MF) tractors, combines, and industrials, as well as David Brown, Fits Case/IH, Landini, and White Oliver equipment. The kit includes a diaphragm, check valves, springs, gaskets, and sediment bowl O-ring to restore proper fuel delivery to the injection system. Designed to service S.40560, S.40561, and S.40564 pumps. The diaphragm arm uses a T-slot end design.

Specifications

• Diaphragm flange outer diameter: 3.25 in. (82.6 mm)
• Diaphragm bolt center: 2.86 in. (72.64 mm)
• Check valve diameter: 0.75 in. (19.05 mm)
• Sediment bowl gasket inner diameter: 1.91 in. (48.51 mm)
• Sediment bowl gasket outer diameter: 2.29 in. (58.17 mm)
• Sediment bowl gasket thickness: 0.10 in. (2.54 mm)
• Services pumps: S.40560, S.40561, and S.40564
• Diaphragm arm: T-slot end

Compatible Models

Fits Massey Ferguson Tractors: 50, 65, 158, 165, 260, 298, 400, 410, 415, 595, 698, 765, 1004, 1014, 1100, 1104, 1114, 1200

Fits Massey Ferguson Combines: 510, 515, 520, 525, 560, 580, 592, 620, 625

Fits Massey Ferguson Industrials: 158, 500

David Brown: 770, 780, 880, 885, 990, 995, 996, 1190, 1194, 1200, 1210, 1212, 1290, 1294, 1390, 1394, 1410, 1412, 1490, 1494, 1594, 1690, 1690 TURBO, 1694

Fits Case/International Harvester: 580, 1194, 1294, 1394, 1494, 1594, 1694

Landini: 8500, LARGE 10000

White Oliver: 1850, 2-85, 2-105

Perkins Engines: A6.354 (TC), A6.354.1 (TG), A6.354.2 (TJ), AT6.354 (TE) - Note: TC series excludes engine serial numbers TC20146, 21326, 21773; TJ series excludes serial numbers 22414, 22482, 22491; compatible with TK, TR, TT engines with 2-bolt fixing

Replaces Part Number(s):

4222110M91, 4222110V91, 1882944M92, 1882949M9, 26410045, 126410045, K262265, ULPR0004, 31-2751697

Aftermarket Interchange Numbers

A-26410063-AI, 5175/14, BBU3454, 8G2039, 8G2040, 8G8844, 17400501, S.40568

New aftermarket replacement part - not remanufactured, not used.
