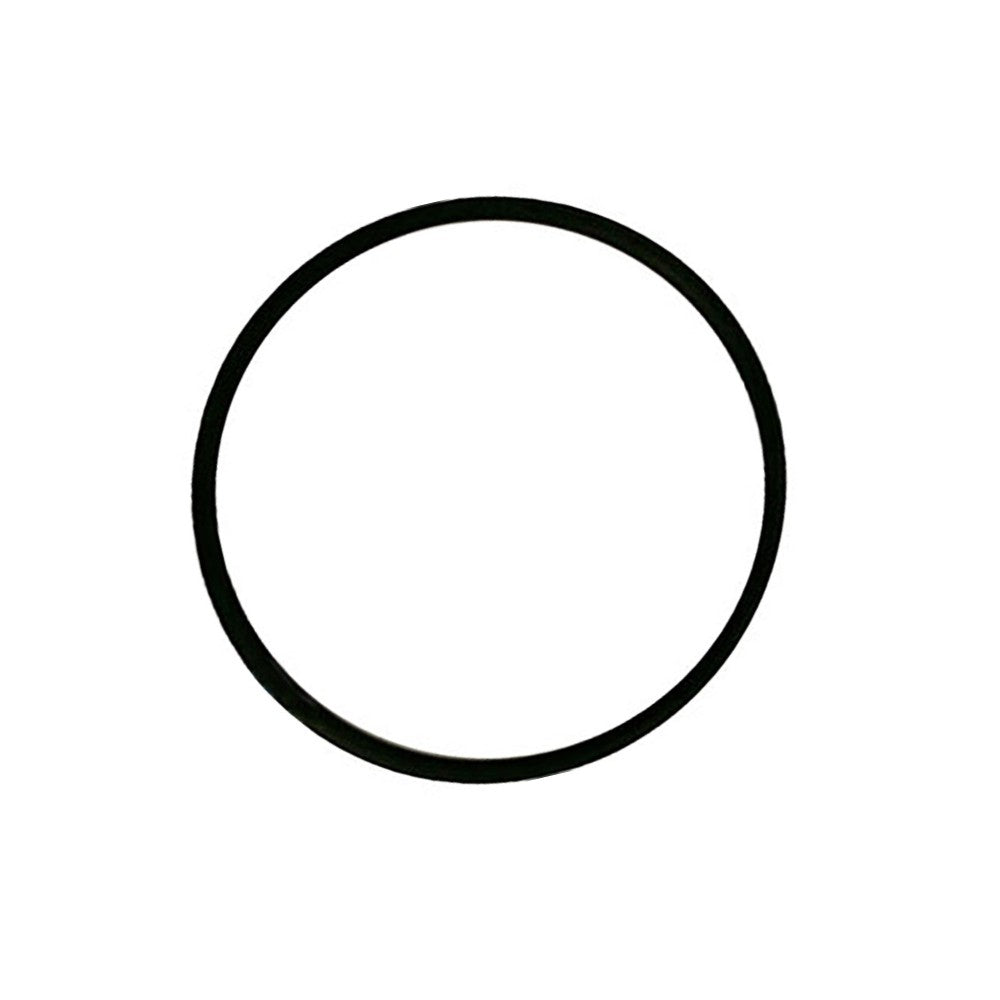

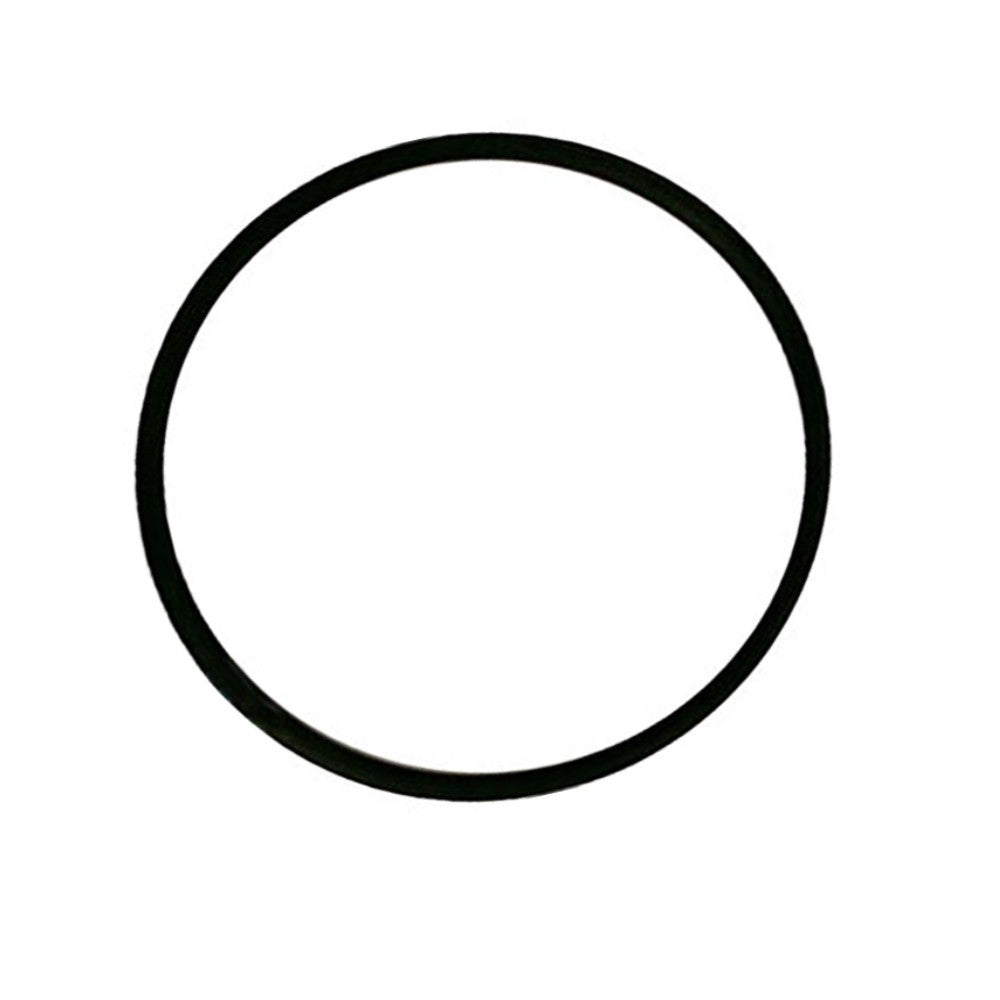

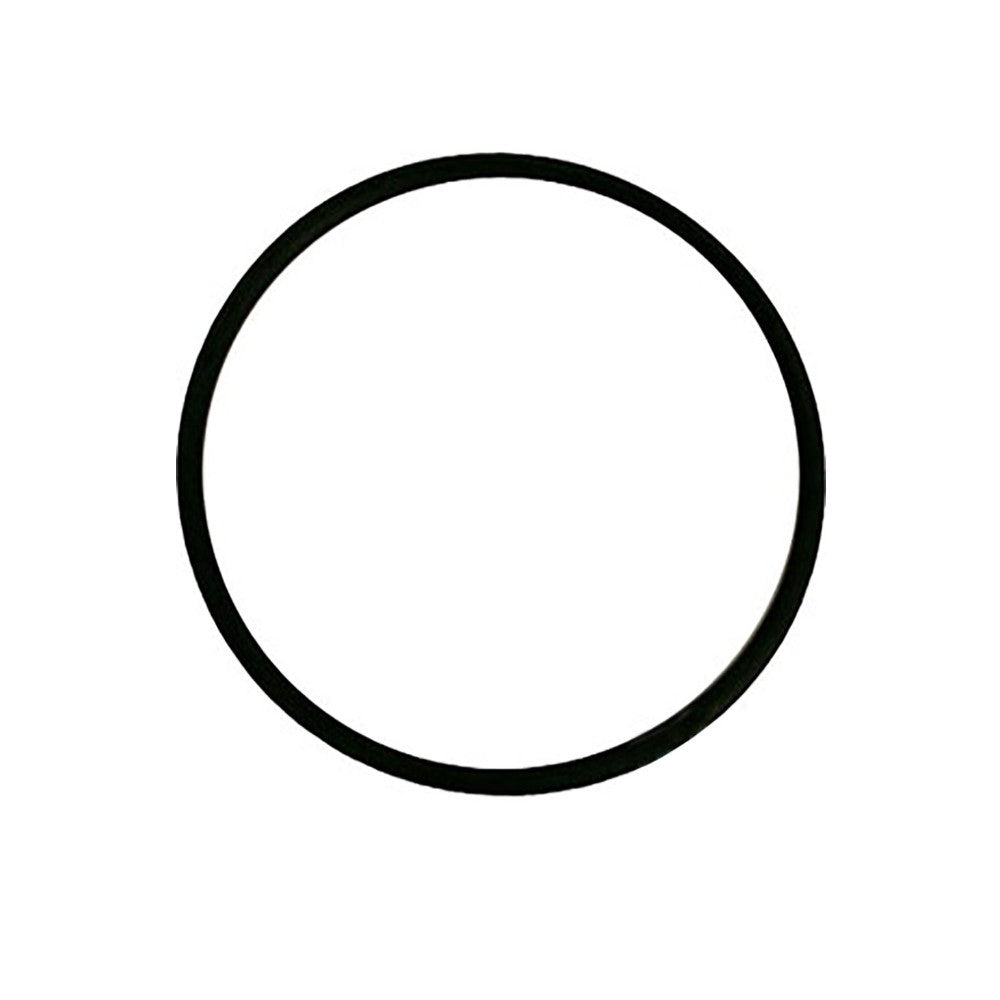

One New Aftermarket Replacement Cylinder Liner Seal for Leyland, Nuffield, Ford and JCB Tractors

This engine cylinder liner seal seats at the base of the wet cylinder liner to prevent coolant and combustion gases from bypassing the liner into the crankcase. It is designed for later BMC 3-cylinder and 4-cylinder engines used across Nuffield, Leyland, and Ford/New Holland tractor lines. One seal is required per liner. Always verify liner part number and dimensions before ordering.

Specifications

• Diameter: 4.21 in. (107 mm)

Engine Fitment Notes

Fits BMC engines with the following liners: 37D1837, 37D1838, 37D2943, and 86K1190. Specific engine applications include:

• BMC 2.6T / 2.6TA 3-Cylinder Engine (with 37D1838 Liner)
• BMC 2.8T / 2.8TD 3-Cylinder Engine (Engine SN E3055 and above, with 37D1837 Liner)
• BMC 2.8TD 3-Cylinder Engine (with 86K1190 Liner)
• BMC 3.4T / 3.4TA / 3.4TD 4-Cylinder Engine (with 37D1838 or 37D2943 Liner)
• BMC 3.8T / 3.8TA / 3.8TD 4-Cylinder Engine (Engine SN E49185 and above, with 37D1837 Liner)
• BMC 3.8TD 4-Cylinder Engine (Engine SN E21241 and above, with 86K1190 Liner)

Compatible Models

Nuffield: Universal Three (3DL), Universal Four (4DM) (non-standard fitment), 460, 3/42, 3/45, 10/42, 10/60

Leyland: 2, 2B, 3C, 3D, 344 (up to Tractor SN 168255), 384 (SN 40899 and above), 4/60, 4/65 (Engine SN E49185 and above), 4C, 4DM

Ford / New Holland: Major, Power Major (Fordson double-seal liner applications)

JCB: Verify application with BMC engine-equipped models.

Replaces Part Number(s):

37D1857, E1ADKN6061A, 81710307, 98800159, AMK102, VPB7206

New aftermarket replacement part - not remanufactured, not used.
