A-42109-AI Bearing (25520)

A-42109-AI Bearing (25520)

AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER

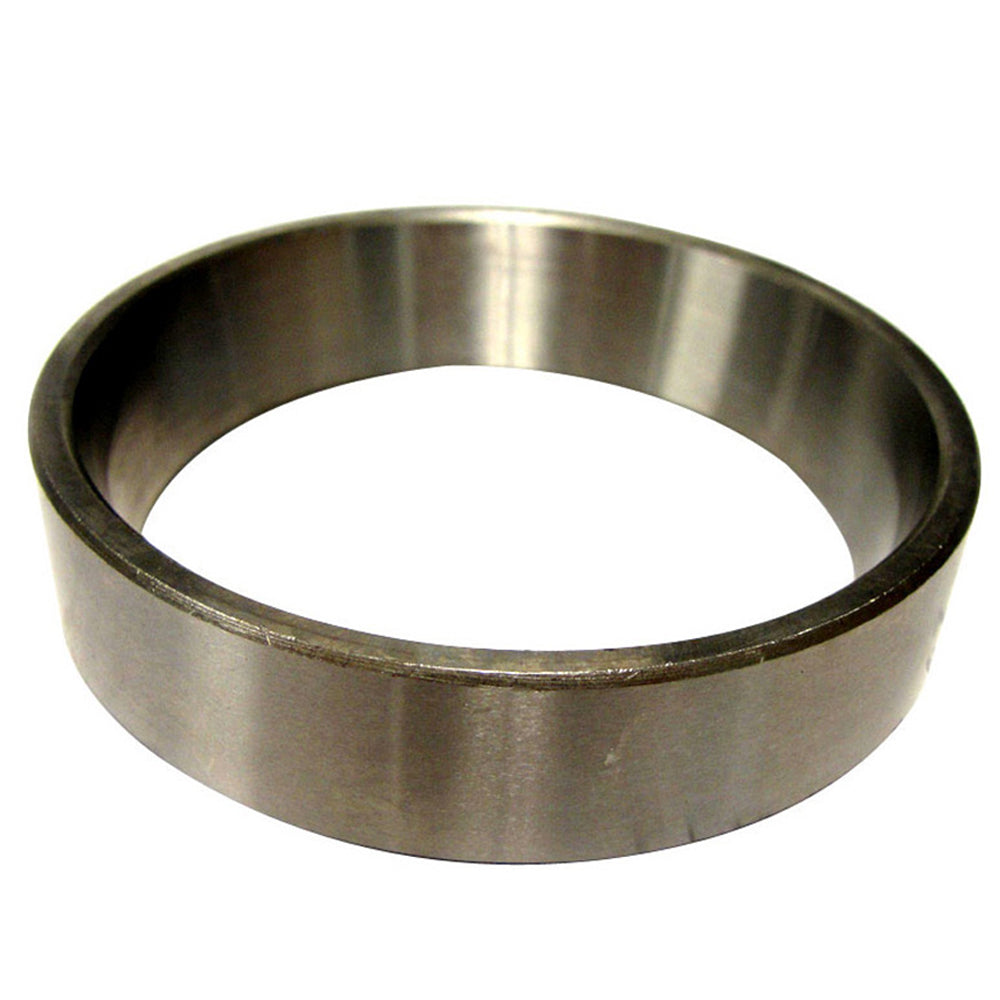

One New Aftermarket Replacement Tapered Roller Bearing Cup (25520)

This tapered roller bearing cup (industry standard number 25520) is a precision-machined outer ring designed to support combined radial and axial loads in agricultural and industrial equipment. The cup pairs with a 25580 or 25590 cone to form a complete tapered roller bearing assembly used in axle hubs, drive shafts, gearboxes, and wheel bearing applications on tractors and harvesting equipment.

Specifications

  • Type: Tapered Roller Bearing Cup (outer ring / race)
  • Outside Diameter (OD): 3.265 in.
  • Cup Width: 0.750 in.
  • Use with cone: 25580 (1.750 in. ID) or 25590 (1.796 in. ID)

Compatible Applications

The 25520 bearing cup is a widely used industry-standard bearing component found in agricultural tractors, balers, combines, forage harvesters, lawn and garden equipment, boat trailers, and general industrial machinery requiring tapered roller bearing support.

Replaces Part Number(s):

A-42109-AI, 25520, 17201X, 70210009, W983148, JD7418, 643124M91, 050260M1, 13958

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

1800, Steering Knuckles, 1480, 1644, 1680, 2588, 8120, 1688, 1482, 2366, 6088, 2555, 900 SERIES, 600 SERIES, 1440, 2577, CPX420, 1460, 2155, 620, 1620, 960, 1682, 7120, 2377, Axle Assemblies, 2022, 7010, 2144, 1470, MODULE EXPRESS 625, 2044, 2055, CPX620, 1844, 8010, Front Wheel Hubs, 95, 1400, 503, 2166, 9120, 915, 700 SERIES, 420, Final Drives, 1666, 303, 815, 403, 5088, 1822, 782, 1640, 2344, 1660, 1420, 315, 2188, 2388, CPX610, 800 SERIES, 7088, AFX8010, 615

Additional Information:

Outside Diameter: 3.265" Radius: .03" Width: .750" Tapered Cup

Reference Numbers:

055276, A29062, VT2100, 130503H, ST987, 432BH, 10468, 25520, NCB44136A, 13958, 42109, 70210009, 711200, 712182, WBB5018B, JD7418, PT206, 70030, 25520TIM, 6S2825, 822013C, 990085, 017201X
