A-489397R1-AI MOWER BELT Made With Aramid

A-489397R1-AI MOWER BELT Made With Aramid

AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER


One New Aftermarket Replacement Heavy Duty V-Belt Fits Cub Cadet, Fits John Deere, Simplicity, Murray, Ariens and More

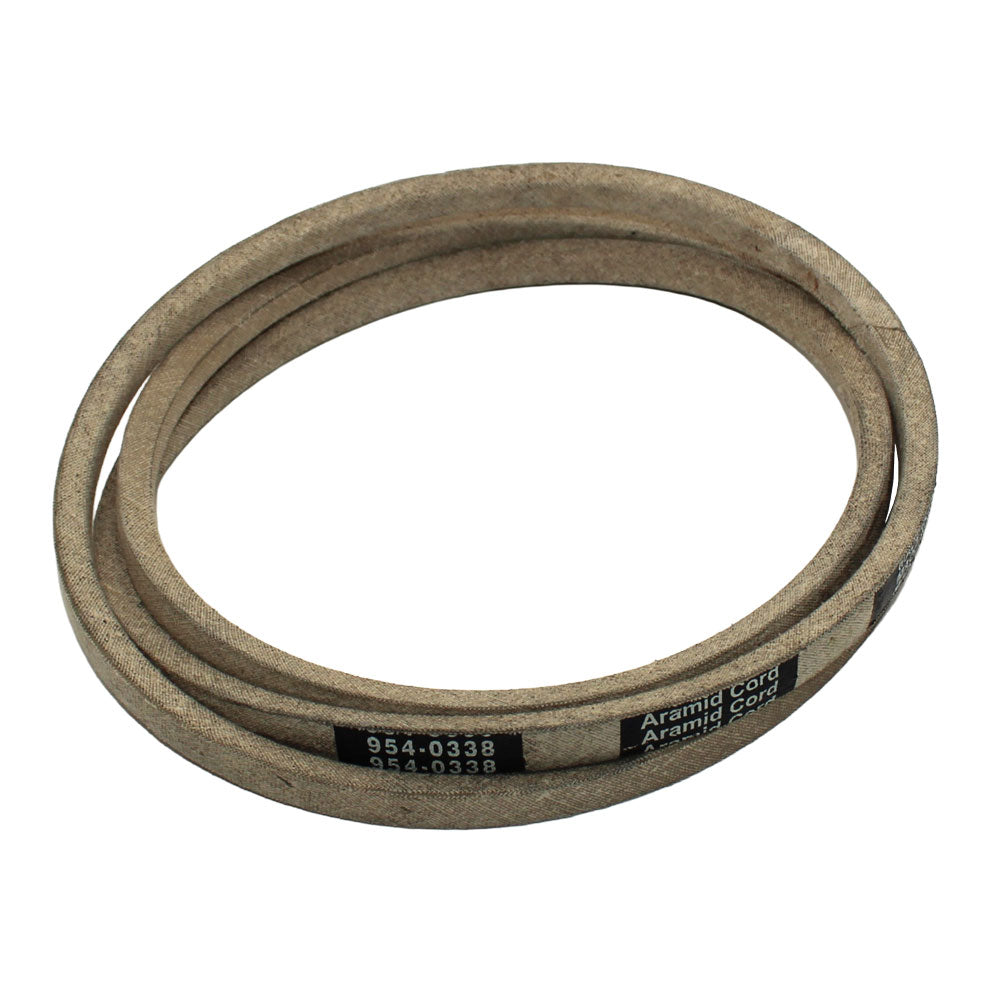

This aftermarket replacement wrapped Made With Aramid cord V-belt is a heavy-duty drive belt used on the mower decks of a wide range of riding mowers, lawn tractors, and zero-turn mowers from multiple manufacturers. The Made With Aramid (Made With Kevlar-type) cord construction provides high tensile strength, resistance to repeated reverse flexing, and excellent resistance to heat, oil, and shock loads -- delivering extra durability over standard rubber belts. Fits International Harvester (IH) / Fits Cub Cadet OEM part numbers 489397R1 and 477599R1.

Specifications

  • Type: Wrapped Made With Aramid Cord V-Belt
  • Top Width: 1/2"
  • Outside Length: 77"
  • Depth: 5/16"
  • Profile: A / 4L Classical

Compatible Models

Fits John Deere: 112, 112H, 120, 130, 140

Fits Cub Cadet / IH / Fits Case IH: 120, 130, 140, 600 Series, Charger SR1025, Charger SR1030

Murray: 1-30334, 1-43660, 2-31501, 3-31704, 4-30704, 5-31704, 6-31704, 81-30334, 81-30336, 81-30337, 81-30338

Simplicity / Fits Allis Chalmers: 1692006 Landlord, 1692007 Landlord, 1692036, 1692037, 1692042, 1692043, 1692044, 1692045, 1692112, 1692114, 1692259 Regent, 1692260 Regent, 1692263, 1692264, 1692283 Broadmoor, 1692402 Regent, 1692403 Regent, 1692411, 1692412, 1692440, 1692441, 1692442, 1692445, 1692446, 1692447, 1692448, 1692494, 1692495, 1692500, 1692580 2718H, 1692631 Landlord, 1692632 1716H, 1692633 1716H, 1692701 Landlord, 1692702 Landlord, 1690207, 1690402, 1690475, 990614

Ariens / Gravely: 829001

Fits Toro / Wheel Horse: 416-8, 416-A, 418-A

MTD: 13AD698, 13AF698G131, 13AN698G, 13AN698H, 13AP698G731, 13AA692G190 LT-135, 13A2693G190 LT-165

Country Clipper: ZU2014K 80455

Replaces Part Number(s):

477599R1, 477599R2, 477599-R2, 471599R2, 489397R1, 9540338, 9540388, 954-0338, 954-04244A, 954-3025, 9543025, 95404244A, 754-0338, 754-04244A, 754-3025, 754-338, 754338, 7540388, 75404244A, 942-04062, 94204062, C23949, 170164, 2170164, 2170164SM, 519958M1, 1745702, A75K, 4L770K, 37X20, 37X34, M40757, M40757M, 1726701, 10242, 109427, 9411, 072078, 07207800, 72078, 7207800, 1-2525, 12525, 62322, 7012525, 7062322, D3871, D3971, 349079, 40757, 500489, 28-6134

Aftermarket Interchange Numbers

A75K, 4L770K (standard A-section / 4L classical belt designation); also cross-references Gates, Dayco, and other belt brands via the part numbers listed above.

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

1692402 Regent, 130, 140, 1-30334, 1692447, 1692446, 1692007 Landlord, 600 Series, 1692283 Broadmoor, Tractors, Clutching Systems, Snow Blowers, 1692702 Landlord, Charger SR1030, 7, 13A2693G190 LT-165, 1690402, 1692500, 120, 13AN698G, 1692631 Landlord, 1692411, 1692580 2718H, 1692442, 1692440, 8, 1692264, Riding Mowers, 112H, 990614, 1692263, 1692632 1716H, 1692495, Automotive Engine, 1692445, 1692260 Regent, 829001, 1692006 Landlord, 1692412, 418-A, 1692114, 1692701 Landlord, 13AD698, 13AP698G731, 13AF698G131, 81-30336, Commercial Lawn Mowers, Lawn Tractors, 3-31704, Transmission, 1692633 1716H, 81-30334, 6-31704, 1690475, 1692044, ZU2014K 80455, 1692045, 13AA692G190 LT-135, 1692036, 1692448, Charger SR1025, Lawn Mowers, 1692441, 13AN698H, 1692042, 1-43660, 1692494, 1692112, 1692403 Regent, 416-8, 1690207, 1692259 Regent, 112, 5-31704, 81-30337, 81-30338, 2-31501, 4-30704, 1692043, 1692037

Additional Information:

Width: 1/2" Length: 77" Wrapped Aramid Cord Heavy Duty V-Belt

Reference Numbers:

28-6134, A75K, 4L770K, 170164, 519958M1, A75K, 4L770K, 37X20, 37X34, 349079, 40757, 500489, A75K, 4L770K, 170164, 2170164, 2170164SM, A75K, 4L770K, A75K, 4L770K, D3871, D3971, 1745702, A75K, 4L770K, M40757, M40757M, A75K, 4L770K, 10242, 109427, 9411, 170164, 519958M1, 10242, 170164, 477599R1, 477599R2, 489397R1, 9540338, C23949, 1726701, 9540338, 471599R2, 477599-R2, 754-0338, 754-04244A, 754-3025, 754-338, 754338, 7540388, 75404244A, 942-04062, 94204062, 954-0338, 954-04244A, 954-3025, 9540388, 95404244A, 9543025, A75K, 4L770K, 072078, 07207800, 72078, 7207800, 1-2525, 12525, 62322, 7012525, 7062322
