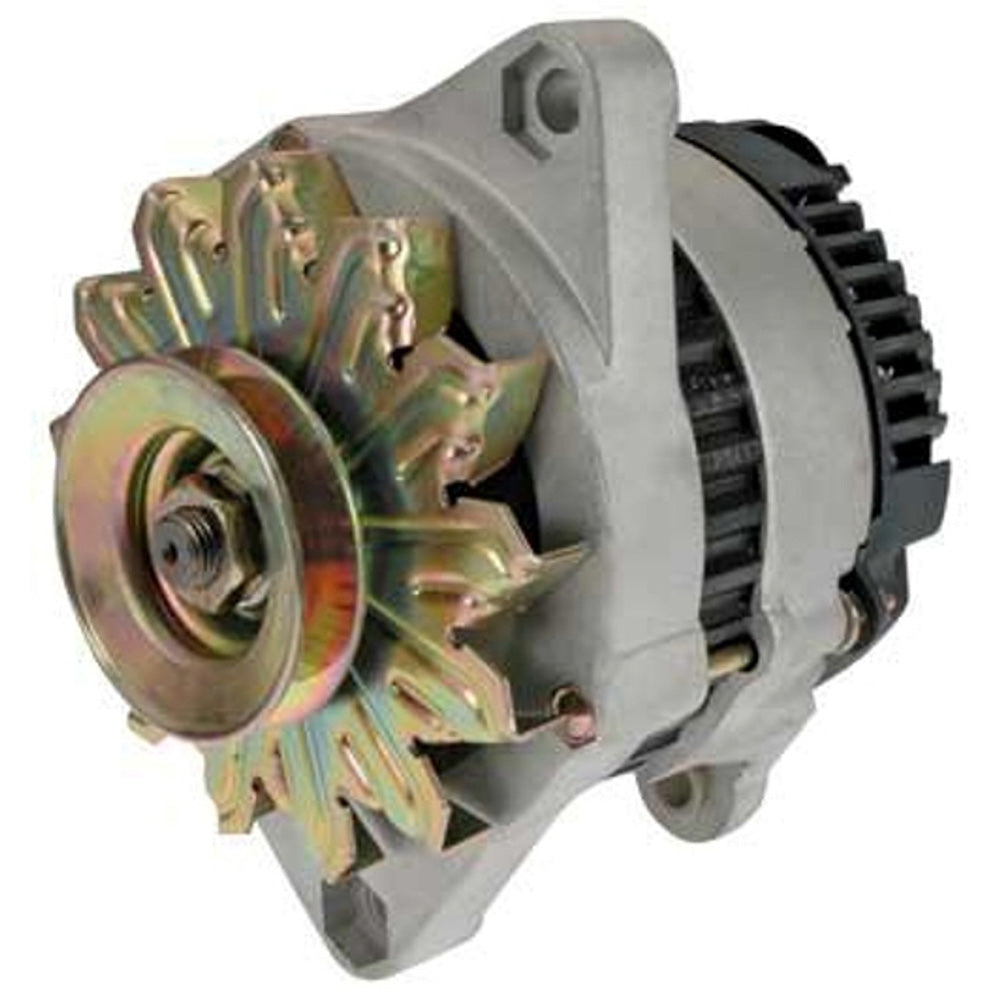

One New Aftermarket Replacement 33 Amp Alternator for Fiat, Fits Ford/New Holland, and Fits Allis Chalmers Tractors

This aftermarket replacement alternator (Iskra/Marelli style) fits a wide range of Fiat, Fits Ford/New Holland, and Fits Allis Chalmers (AC) agricultural tractors. It replaces the Fits Bosch-style and Marelli-style OEM units originally fitted to these machines and provides reliable charging system output for diesel-powered tractors in this series.

Specifications

• Voltage: 12V
• Amperage: 33 Amps
• Regulator: Internal
• Fan Type: External
• Rotation: Clockwise
• Pulley: 90 mm, Single Groove
• Pulley Shaft Type: Hex
• Shaft Length: 25.3 mm
• Mounting: Two-hole, 12.2 mm mounting hole diameter
• Connection Type: Ring Terminal, Hex Nut
• Height: 182 mm
• Length: 162 mm

Compatible Models

Fiat Tractors: 45-66, 55-66, 60-66, 65-66, 65-90, 70-66, 70-90, 80-66, 80-90, 85-90, 466, 540, 550, 566, 580, 640, 666, 680, 766, 780, L60, L65, L75, L85, L95, 4330, 4330 Vineyard, 4430, 4430 Orchard, 4835, 5045, 5050, 6635

Fits Ford/New Holland Tractors: 3830, 4030, 4230, 4330, 4330V, 4430, 4835, 5635, 6635, 7635

Fits Allis Chalmers Tractors: 5050

Replaces Part Number(s):

4242730, 4720502, 4762563, 4766127, 4772683, 4787598, 4799364, 4808498, 4808500, 4808504, 4998353, 5101645, 8029593, 9972269, 72091669, 72091686

Aftermarket Interchange Numbers

Fits Bosch: 0-120-339-515, 0-120-339-516, 0-120-339-523, 0-120-339-527, 0-120-339-528; Iskra/Marelli style unit also known as interchange 12029, IA 0037, IA 0336, IA 0405, IA 9430

New aftermarket replacement part - not remanufactured, not used.
