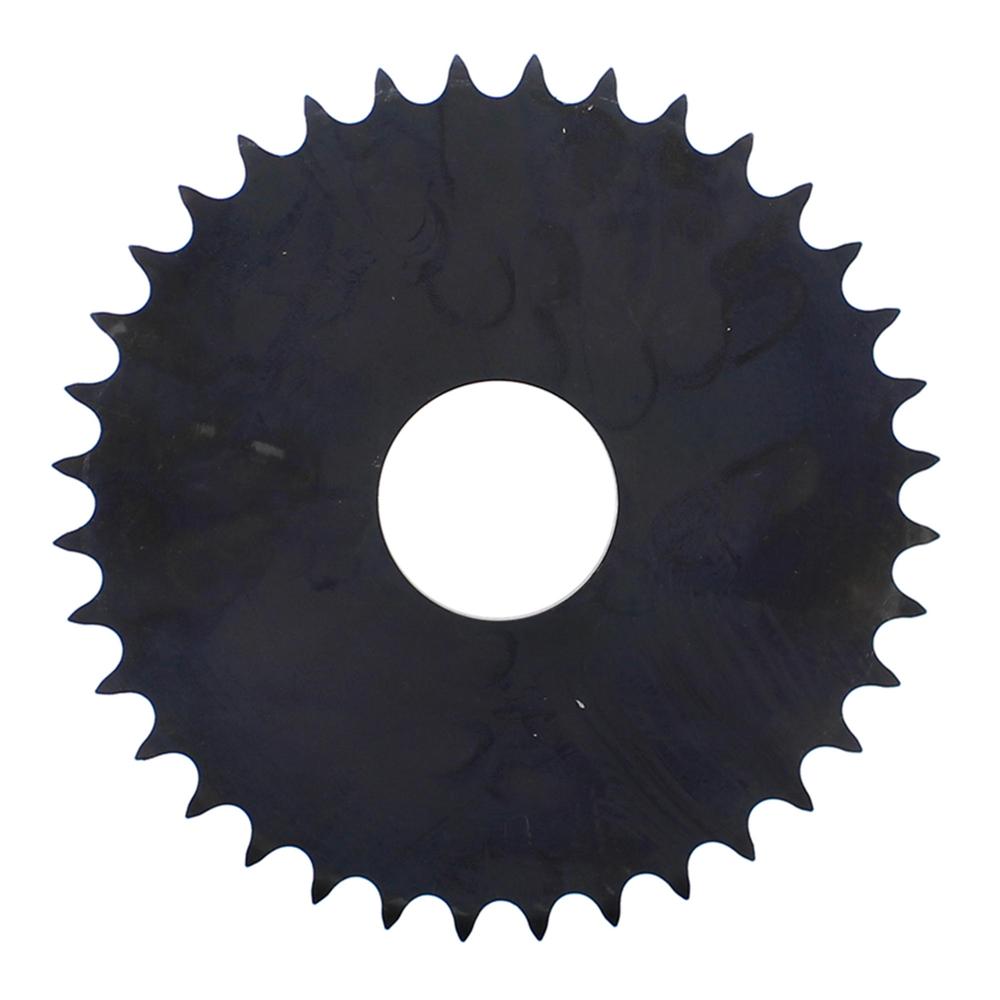

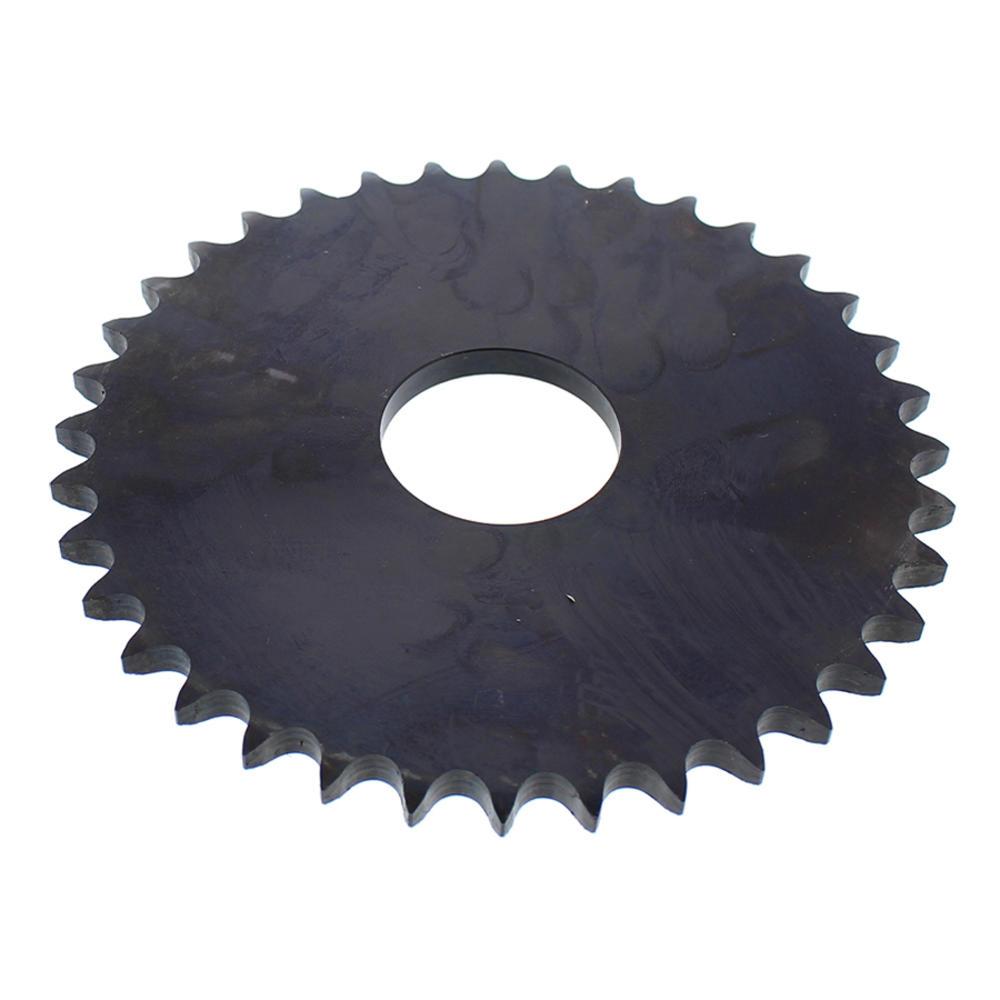

One New Aftermarket Replacement Weld-On Roller Chain Sprocket - #50 Chain, 36 Tooth, X-Series Hub

This 36-tooth weld-on sprocket is designed for use with ANSI #50 roller chain (5/8" pitch) in agricultural, conveying, and field drive applications. It is a flat plate steel sprocket built to ANSI standards that welds onto an X-Series weld-on hub, which is sold separately. The sprocket is made from carbon steel with heat-treated teeth for durability.

Specifications

• Chain Size: #50 ANSI Roller Chain (5/8" Pitch)
• Teeth: 36
• Outside Diameter: 7.519"
• Inside Diameter (Bore): 2"
• Hub Required: X-Series Weld-On Hub (sold separately)
• Material: Carbon steel with heat-treated teeth

Compatible Applications

This sprocket is a universal weld-on component used across a wide range of agricultural equipment, conveyor systems, and power transmission drives wherever #50 roller chain and X-Series weld-on hubs are specified.

Replaces Part Number(s):

WSS105036, 00105036, 20005036, 971-20005036, 97120005036, 673-S80503600, A50X36

Aftermarket Interchange Numbers

3016-0207-ATL

New aftermarket replacement part - not remanufactured, not used.
