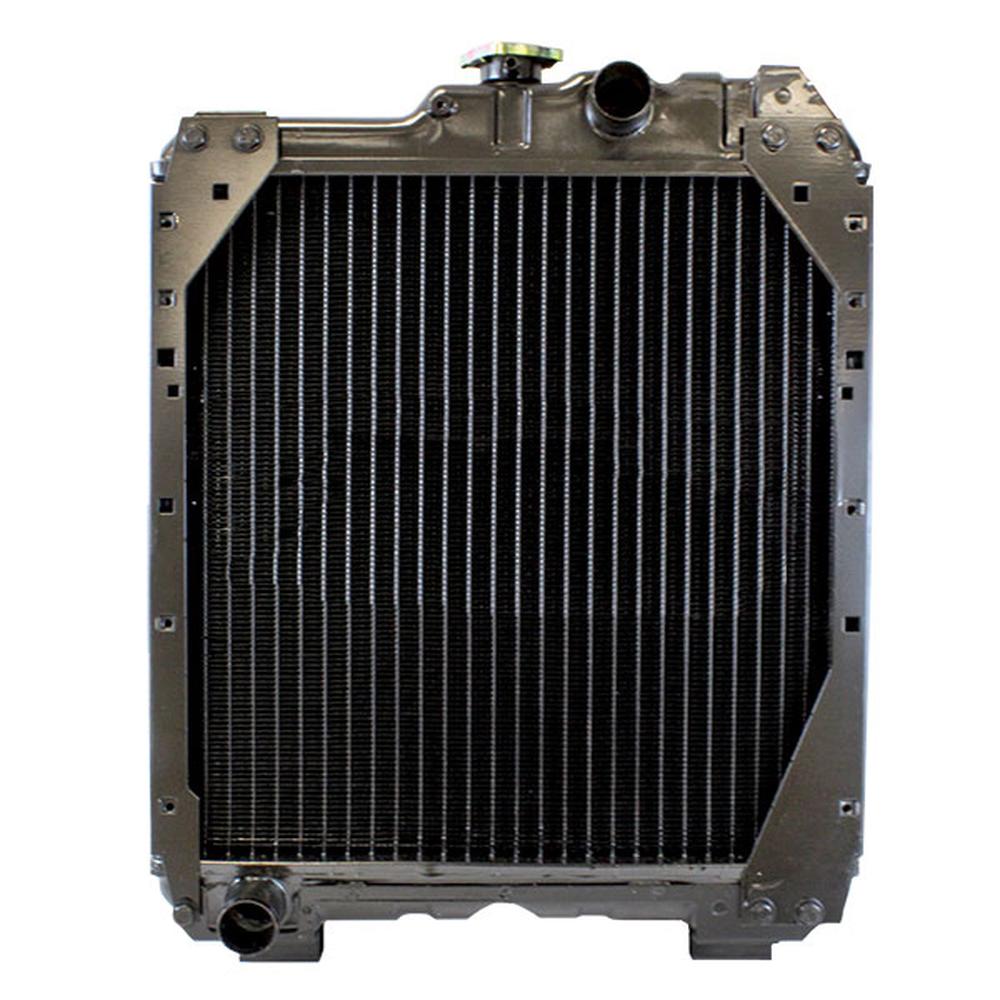

One New Aftermarket Replacement Radiator Fits Ford/New Holland and Fits Case IH Tractors

This radiator is a direct-fit aftermarket replacement for the engine cooling system on Fits Ford/New Holland TN-series and Fits Case IH JX-series tractors. The 4-row core provides efficient heat dissipation to maintain proper operating temperature under demanding field conditions. Note: Radiator cap is not included with this part.

Specifications

• Overall Height: 23-1/2"
• Overall Width: 18-1/2"
• Overall Thickness: 4-1/8"
• Core Height: 18"
• Core Width: 14-1/2"
• Core Thickness: 2"
• Rows: 4
• Fins per Inch: 8
• Top Hose Connection OD: 1-1/2"
• Lower Hose Connection OD: 1-1/2"
• Fill Neck Height: 7/8"
• Mounting Width (Center to Center): 15"
• Radiator Cap: Not Included

Compatible Models

Fits Ford/New Holland TN-Series: TN60DA, TN60SA, TN60VA, TN65V, TN70D, TN70DA, TN70S, TN70SA, TN70VA, TN75D, TN75DA, TN75F, TN75S, TN75SA, TN75V, TN75V Special, TN75VA, TN80F, TN85FA, TN90, TN90F, TN95F, TN95FA, TN95VA

Fits Case IH JX-Series: JX75, JX85, JX95, JX1060C, JX1070C, JX1070N, JX1075C, JX1075N, JX1095N

Replaces Part Number(s):

5172925, 5172926, S5172926

New aftermarket replacement part - not remanufactured, not used.
