One New Aftermarket Replacement Fuel Lift Pump Repair Kit Fits Massey Ferguson, Fits Case/International Harvester, David Brown, Landini, White/Oliver, and Perkins Engines

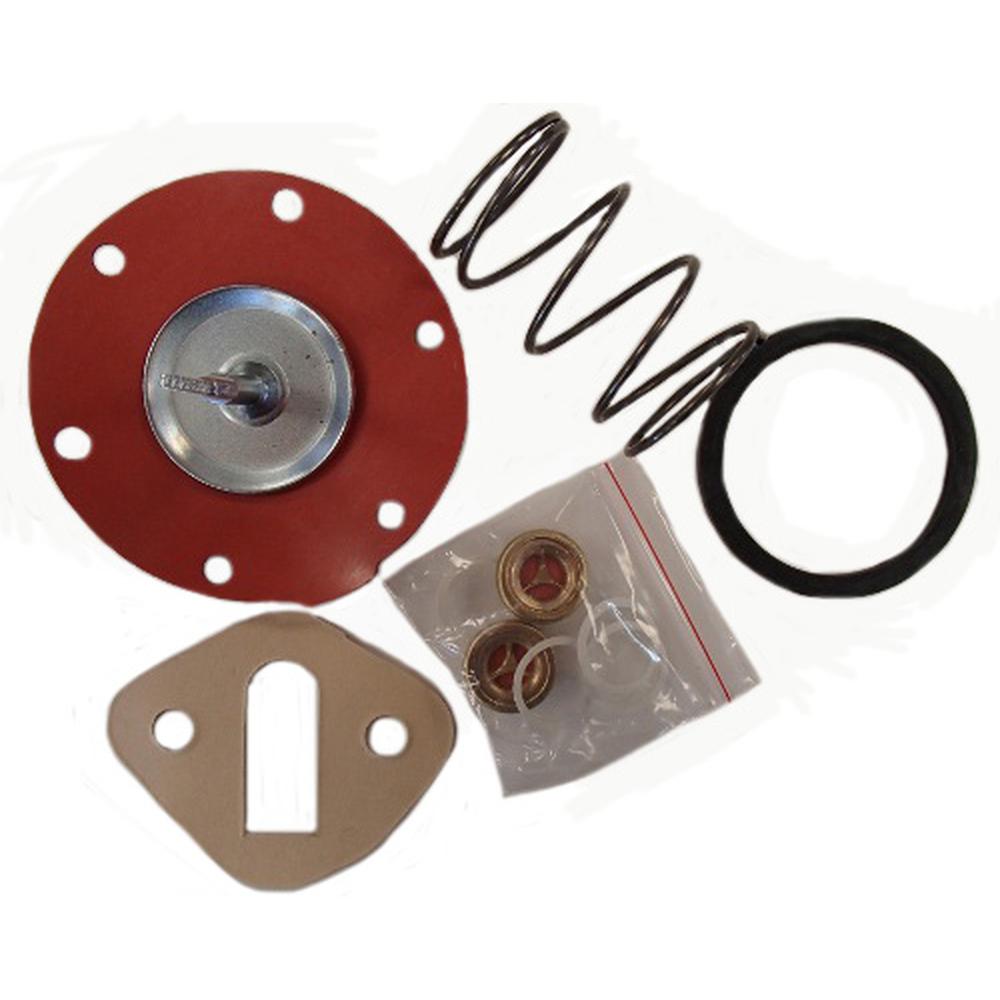

This aftermarket fuel lift pump repair kit services Perkins-engined agricultural tractors, combines, and industrial equipment across multiple brands. The kit includes diaphragm, gaskets, and check valve components needed to rebuild the mechanical fuel lift pump. It is designed to service S.40560, S.40561, and S.40564 pumps, which feature a T-slot diaphragm arm and 2-bolt fixing. Fits Massey Ferguson (MF), Fits Case IH, Fits International Harvester (IH), David Brown, Landini, White, Oliver, and Perkins engine applications.

Specifications

• Services Sparex pumps: S.40560, S.40561, and S.40564
• Pump type: Mechanical fuel lift pump (2-bolt fixing)
• Diaphragm arm: T-slot style
• Diaphragm outer diameter: 3.25 in (82.6 mm)
• Bolt center: 2.86 in (72.64 mm)
• Check valve diameter: 0.75 in (19.05 mm)
• Sediment bowl rubber gasket inner diameter: 1.91 in (48.51 mm)
• Sediment bowl rubber gasket outer diameter: 2.29 in (58.17 mm)
• Sediment bowl rubber gasket thickness: 0.10 in (2.54 mm)

Compatible Models

Fits Massey Ferguson Tractors: 50, 65, 158, 165, 260, 298, 400, 410, 415, 595, 698, 880, 885, 1004, 1014, 1080, 1100, 1104, 1114, 1200

Fits Massey Ferguson Combines: 510, 515, 520, 525, 560, 620, 625, 765

Fits Massey Ferguson Industrials: 158, 500

Fits Case IH: 580, 1194, 1294, 1394, 1494, 1594, 1694

David Brown: 770, 780, 880, 885, 990, 995, 996, 1190, 1200, 1210, 1212, 1290, 1294, 1390, 1394, 1410, 1412, 1490, 1494, 1594, 1690, 1690 TURBO, 1694

Landini: 8500, LARGE 10000

White / Oliver: 1850, 2-85, 2-105

Perkins Engines: A6.354 (TC), A6.354.1 (TG), A6.354.2 (TJ), AT6.354 (TE) -- Note: TC excludes build numbers TC20146, 21326, 21773; TJ excludes build numbers 22414, 22482, 22491 (engines with 2-bolt fixing)

Replaces Part Number(s):

4222110M91, 4222110V91, 1882944M92, 1882949M9, 26410045, 126410045, K262265, 31-2751697, ULPR0004

Aftermarket Interchange Numbers

BBU3454, 8G2039, 8G2040, 8G8844, 17400501, 5175/14, 517514, A-517514-AI

New aftermarket replacement part - not remanufactured, not used.
