A-520019-AI Bearing (3920)

A-520019-AI Bearing (3920)



AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER

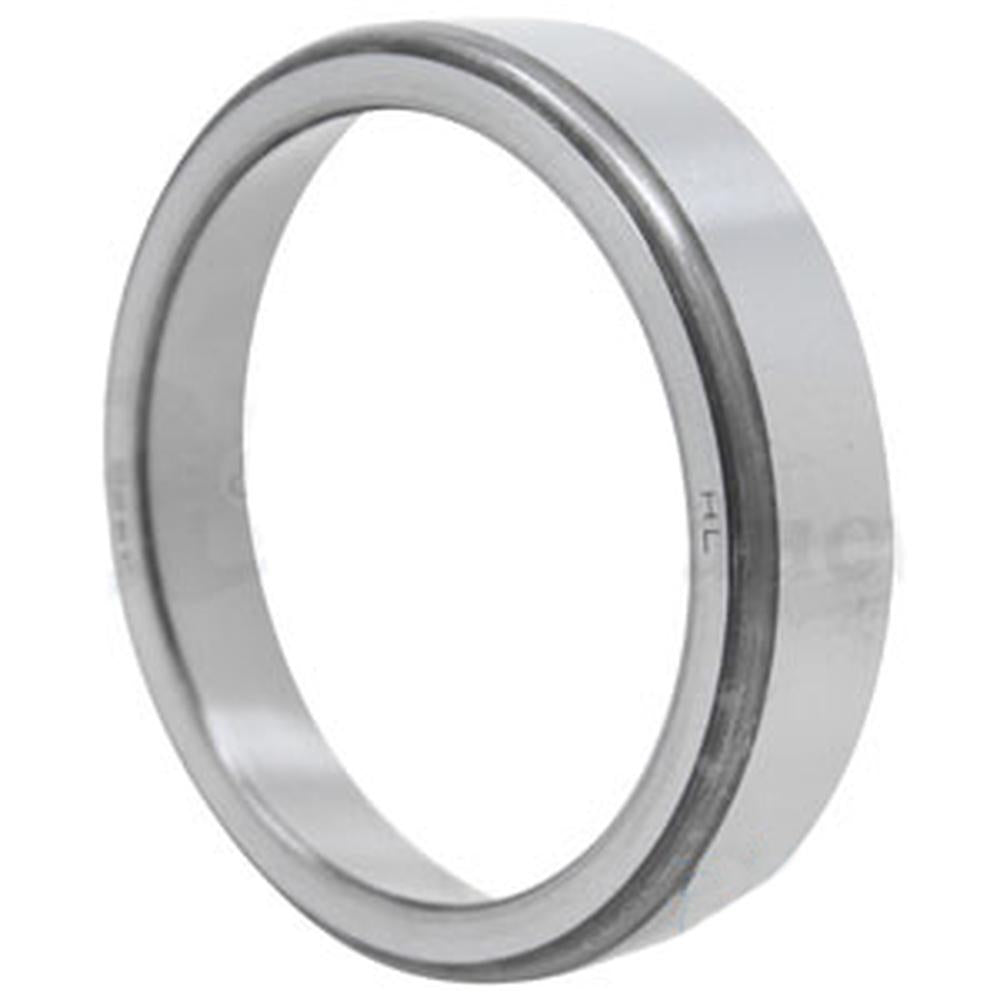

One New Aftermarket Replacement Bearing (Cup) - Timken 3920

This is a tapered roller bearing cup (outer ring) identified by the industry-standard number 3920. The 3920 is a single cup used in tapered roller bearing assemblies, typically paired with a matching cone (inner ring assembly) and mounted in opposing pairs on a shaft to handle both radial and axial loads across a wide range of agricultural, construction, and industrial equipment applications.

Specifications

  • Type: Tapered Roller Bearing - Single Cup (Outer Ring)
  • Outside Diameter: 4.4375 in (112.71 mm)
  • Overall Width: 0.9375 in
  • Material: Chrome Steel
  • Finish: Uncoated
  • Lubrication Hole: None
  • ABMA Precision Rating: Class 2

Compatible Cones

The 3920 cup is compatible with the following cone part numbers: 390, 390A, 392, 395, 395-S, 395A, 3977, 3977X, 3978, 3979, 3980, 3981, 3982, 3984, 3992, 3994, 399A, 399AS, JM511945, JM511946

Replaces Part Number(s):

3920, A-520019-AI

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

651, 4110NO, Steering Knuckles, 1480, 2111, 2120, 2500, 7840O, 4610O, 4830, CR1280, 7810O, CS SERIES IV, 4110TR, 7740O, 202, 231, 5030O, 2130, 4630NO, 40B, Final Drive / Drive Axle Supports, TE20, 2150, 4031, 235, 1682, 4600O, CM325, KR1280, PANTHER 1000 POWERSHIFT, 50C, 660, 9795, 501, 9690, 35, 3500, CM360, 5640, 6610O, 3550, 3910, 7810, 4410, 65, 6610S, 4340, Implement Hubs, PTA280, 4630, 7700, TO20, KM325, 88, KP1325, 20D, 2344, 275, BEARCAT IV, COUGAR III, 3600V, 431, PANTHER III, 203, 50A, 541, 4121, 3900, 2300, 333, 7910, 5110, KS280, Rear & Front Axle Wheel Bearings, 7610S, 50D, 2600V, COUGAR 1000 POWER SHIFT, 621, 5610S, 4030, 1482, 1440, 2610, 204, 270, 8N, 601, 4330, 6640, COUGAR I, 4630N, 50, CM SERIES IV, 4830N, KM280, COUGAR IV, 3610V, 3600, 3930N, 6810S, 2110, T7 SUPER, 205, 640, 285, 9N, 5900, 4100, 165, 531, 670B, 660B, CR1225, 2166, 4630O, CP1360, 4600NO, 4110V, 1666, 2600N, 5030, 3910V, 290, 250, 641, 698, Differential Pinions, 1660, 2200, 255, 8210, 4610NO, 630, ST251, 2100, 1080, 3600R, 7710, 1644, 20C, 31, 265, 135, 1085, PANTHER IV, PT270, 4110, 631, KS SERIES IV, 85, 50E, 650, 7010, TO35, 2144, BEARCAT 1000 SERIES, 7610O, 1470, NAA, 2310, 2031, PTA270, 302, TO30, 240P, 4110O, 4600, 298, KM SERIES IV, 2810, 30, 20, 30B, 261, 2000, 234, 5610, 304, 3610NO, 1640, 9790, 611, 4600SU, DEXTA, 4120, 2N, 3055, 4610N, 3610, BEARCAT III, 2600, 4110N, 6710, 30E, 84, 1680, 1688, 9695, 4140, 2366, 334, 335, 230, 1460, 4130NO, 620, 8680, 4500, 3930NO, 3165, 240, SP80, CS360, ST270, 8340, 4200, 7840, 150, SUPER 90, 3930, 233, 3910N, 4131, 4190, 2610V, 40, 175, 670, 282, 6000, 4040, 7410, 6500, 699, 600, 8010, 180, 7810S, 4130, SM SERIES IV, PTA251, 30D, 6810, 690, 3230, 4000, LION 1000 POWERSHIFT, 7610, 3600N, 2188, 2131, 2600R, 3910H, 245, 2135, 3910R, 2910

Additional Information:

Outside Diameter: 4.438" Radius: .13" Width: .938" Cup Bearing

Reference Numbers:

70202584, 73007247, 3920, 195160M1, JD7292, 520019, 2A4576, 6V956, 14105WD, 713040, BB4222, BB4222B, 510892, 40008, 13363D
