A-526WD-AI Bearing (14276)
A-526WD-AI Bearing (14276)
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
One New Aftermarket Replacement Tapered Roller Bearing Cup (14276) for Agricultural and Construction Equipment

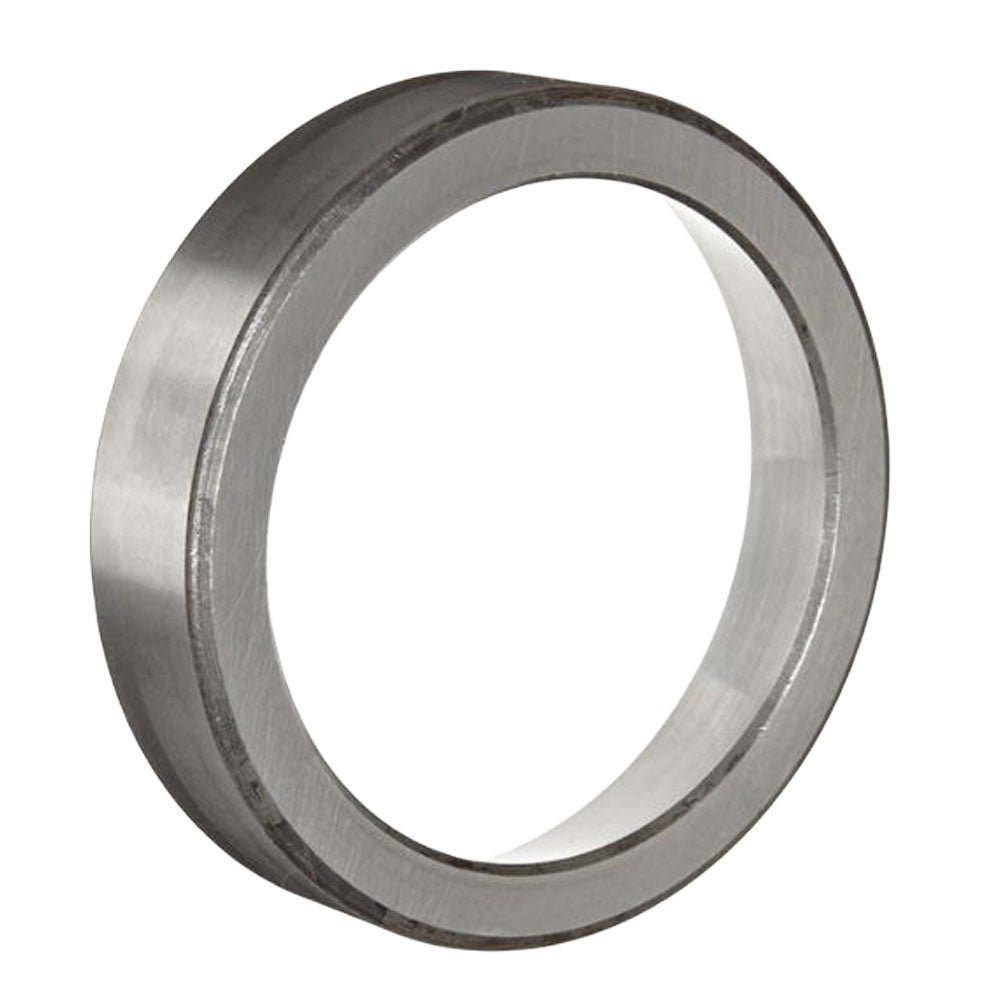

This aftermarket replacement 14276 tapered roller bearing cup is the outer race component of a tapered roller bearing assembly. Seated in the housing or casing, the cup provides the raceway surface for the tapered rollers and works in tandem with a matching cone (inner ring assembly) to support both radial and axial loads in wheel hubs, axle assemblies, driveline components, and rotating shaft applications across a wide range of agricultural and construction machinery. Replaces OEM part number 14276 used by Fits John Deere, Fits Case/International Harvester, Fits Massey Ferguson, Fits Ford/New Holland, Fits Allis Chalmers, Minneapolis-Moline, Hesston, GEHL, Vermeer, Bush Hog, Rhino, Fits Woods, Kewanee, Krause, Amco, Fits Caterpillar, and others.
Specifications
- Type: Single Tapered Roller Bearing Cup (Outer Race)
- Outside Diameter: 2.717 in
- Width: 0.625 in
- Fillet Radius: 0.05 in
- Material: Chrome Steel
- Compatible Cones: 14116, 14117A, 14118, 14124, 14125A, 14130, 14131, 14137A, 14138A, 14139
Compatible Models
Fits Case/IH Combines: 1640, 1644, 1660, 1666, 1680, 1688, 2166, 2188, 2366, 2377, 2388, 2577, 2588
Fits Case/IH Other: 615, 670, 715, 815
Fits John Deere: 303, 335, 403, 403F, 403G, 445, 503, 503I, 504C, 504F, 504G, 504H, 504I, 504I SILAGE, 504L, 505I, 505L, 554XL, 555XL, 602, 604J, 604K, 604L, 604XL, 605F, 605G, 605H, 605J, 605K, 605L, 605XL
Minneapolis-Moline: 5 STAR, G1000, JET STAR 3, JET STAR 4, M5
Fits Allis Chalmers: 82, 84, 95
Hesston: R-21, R-23, 1400
GEHL: 2344
Other Compatible Equipment: 4901-4938; also fits rotary cutters, disc harrows, round balers, rakes, balers, driveline components, and compact tractors across Vermeer, Bush Hog, Rhino, Fits Woods, Taylorway, Fits Ford/New Holland, Fits International Harvester, Fits Massey Ferguson, Krause, Kewanee, Amco, Fits Caterpillar, and Riverside Tractor applications
Replaces Part Number(s):
14276, 526WD, 7069WD, 203021, 70209890, 74253284, 710350, 54628A, 113BH, A29977, 14276TIM, 80105, 016234X1, 8J0422, 1715019, 9N744, 116210, W10A7575, JD7409, 520031, 70025, W33, X5623, 10261
New aftermarket replacement part - not remanufactured, not used.
Models This Part Fits:
1644, 1680, 605J, 2588, JET STAR 3, 1688, 504H, 2366, 504I, 504L, 4901-4938, 604J, 335, 2577, 504C, 82, Outer Ring Of A Tapered Roller Bearing, 503I, 602, 504F, G1000, 554XL, 2377, 5500 REBEL, 555XL, 604L, 403G, R-23, 505I, M5, 715, 670, 504I SILAGE, 605K, 504G, 95, R-21, 1400, 503, 505L, 2166, JET STAR 4, 445, 605L, 303, 1666, 815, 403, 604XL, 605F, 605H, 1640, 2344, 604K, 5400 REBEL, 403F, 1660, 605XL, 2188, 2388, 5 STAR, 605G, 615, 84Additional Information:
Outside Diameter 2.717" Radius .05" Width .625" Cup BearingReference Numbers:
14276, 113BH, 710350, 80105, 14276TIM, X5623, W10A7575, 9N744, 116210, JD7409, 520031, 1715019, 54628A, 016234X1, 10261, 526WD, 7069WD, A29977, 70209890, 74253284, 8J0422, 70025, W33, 203021Makes This Part Fits:
