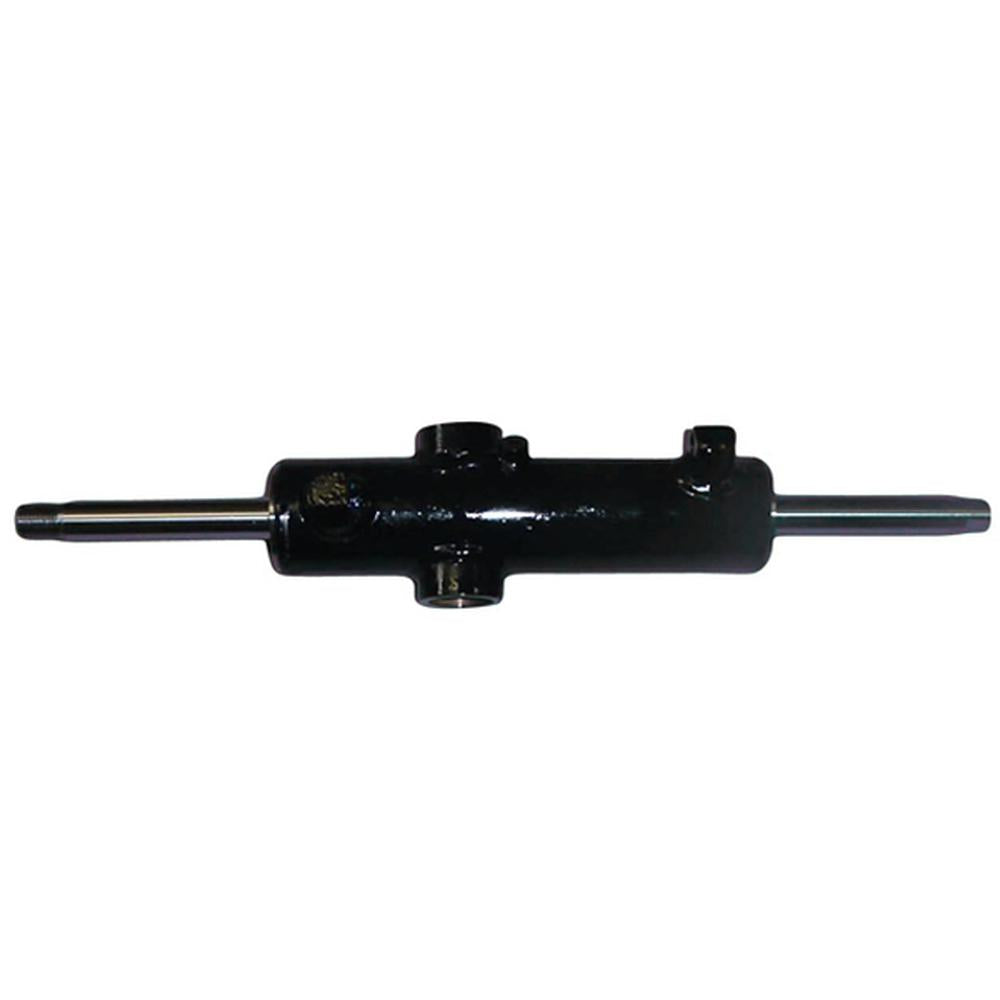

One New Aftermarket Replacement Power Steering Cylinder for International Harvester (IH) and Case IH Tractors

This tie rod style power steering cylinder is a direct-fit replacement for the front steering system on International Harvester and Case IH row-crop and utility tractors. It replaces the late-production OEM cylinder design used across the 66, 86, and 88 series tractor families.

Important Serial Number Restriction - Hydro 100: Fits Hydro 100 serial number 12695 and above only. For 766 (ASN 17394 and above), 966 (ASN 32806 and above), 1066 (ASN 58876 and above), 1466 (ASN 30726 and above), 1566 (ASN 13609 and above), and 1568 (ASN 8021 and above), verify serial number before ordering.

Specifications

• Body Length: 11.5"
• Cylinder Diameter: 2.75"
• Rod Diameter: 1"
• Trunnion to Cylinder Body End: 2-1/4"
• Style: Tie Rod, with threaded stub shaft on right-hand side

Compatible Models

International Harvester / Case IH Tractors: Hydro 100 (s/n 12695 and above), Hydro 186, 766, 786, 886, 966, 986, 1066, 1086, 1466, 1468, 1486, 1566, 1568, 1586, 3088, 3288, 3488, 3688, 5088, 5288, 5488

Case IH Cotton Pickers: 1822 (ASN 12691 and above), 2022 (BSN 13388 and above)

Replaces Part Number(s):

63864C91, 63864C92, 63864C93, 64519C91, HH63864

New aftermarket replacement part - not remanufactured, not used.
