One New Aftermarket Replacement Clutch Release (Throwout) Bearing for Minneapolis Moline, Case, Allis Chalmers, International Harvester, John Deere, Massey Ferguson, Oliver, White, and AGCO Tractors

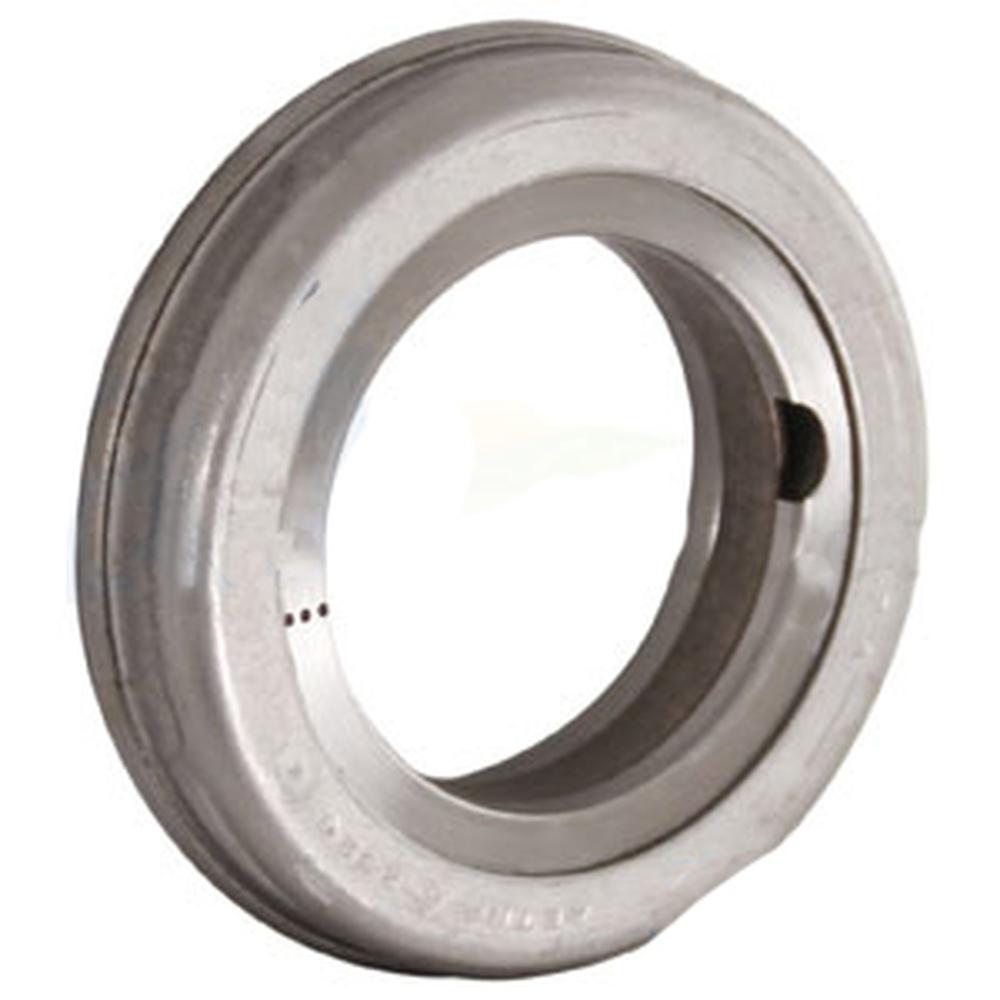

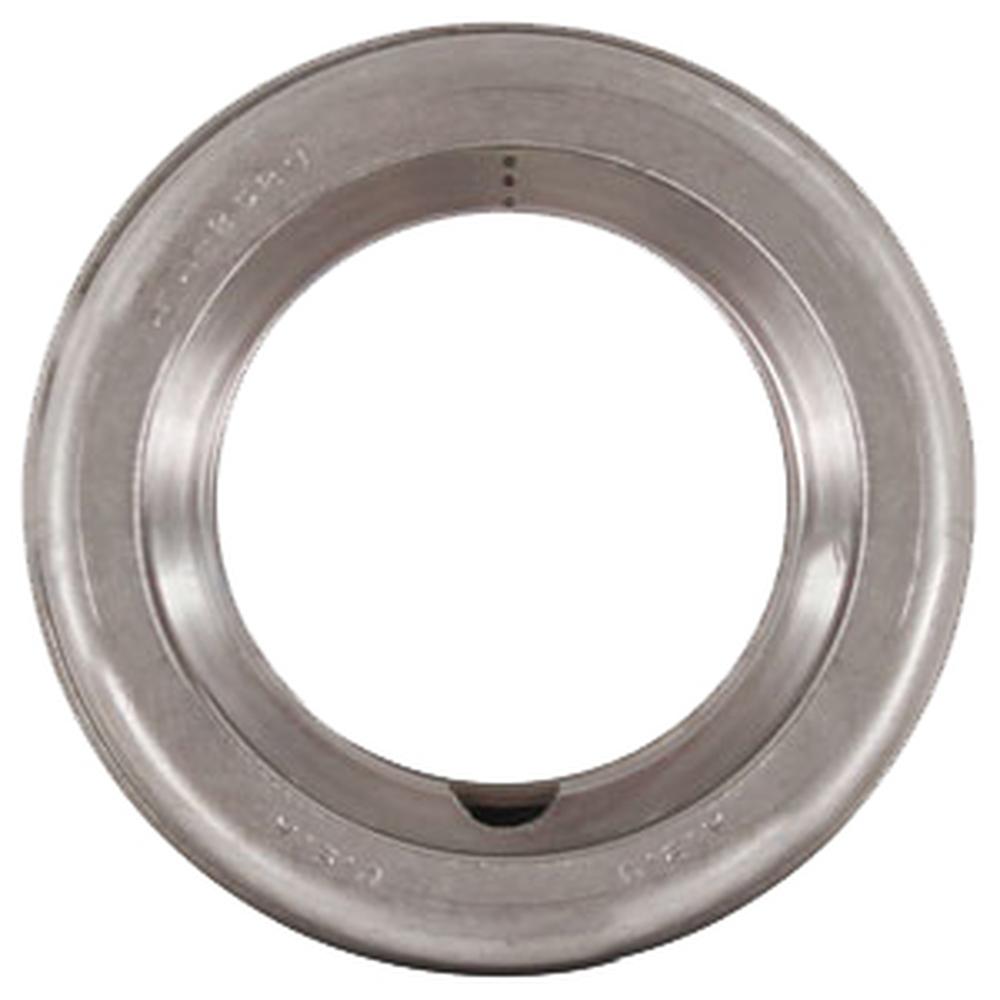

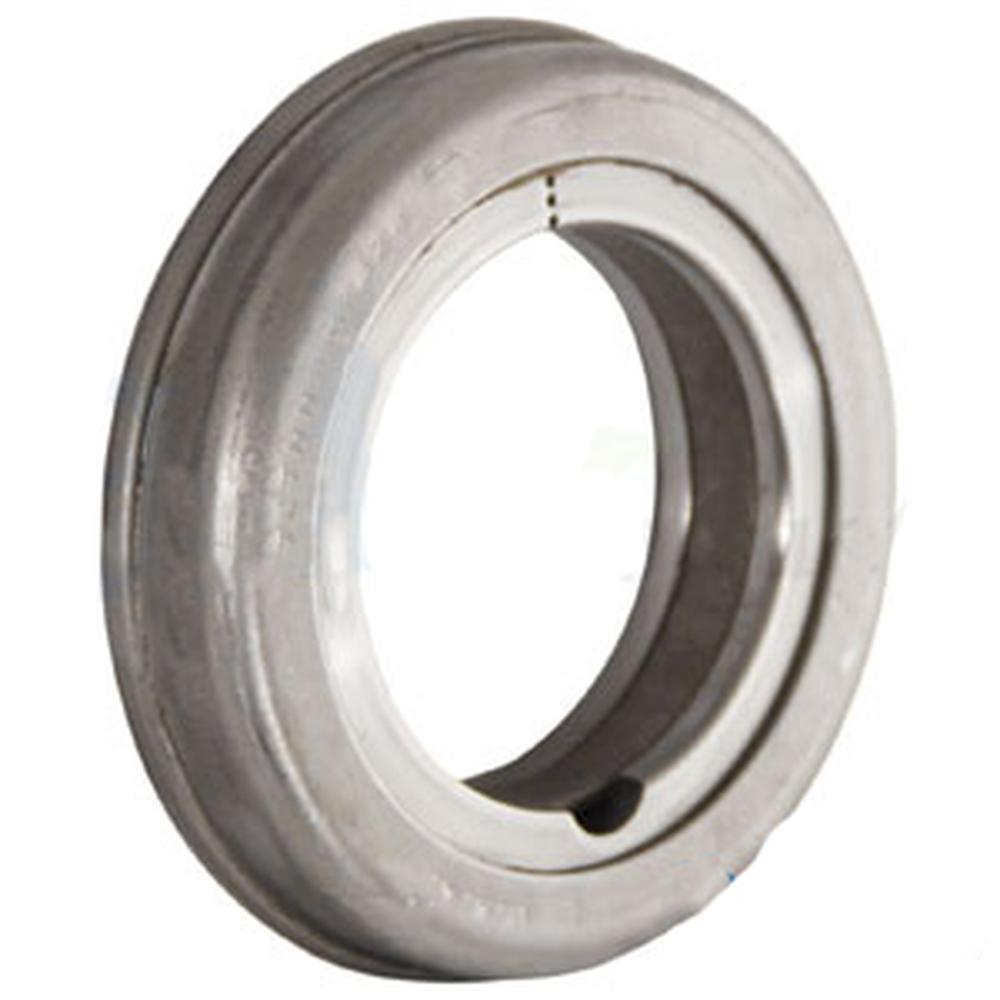

This greaseable clutch release bearing -- also known as a throwout bearing -- engages and disengages the clutch assembly in manual transmission tractors and industrial equipment. This design features a pocket/window on the backside that allows internal greasing through the clutch fork release collar, making it suitable for internally lubricated clutch systems. It is an angular-contact-style thrust bearing used in the double-clutch and single-clutch assemblies of a wide range of agricultural and industrial machines across many brands.

Specifications

• Inside Diameter: 2.250"
• Outside Diameter: 3.803"
• Width: 0.8085"
• Greaseable design (internally lubricated through clutch fork collar)

Compatible Models

Minneapolis Moline: 2050, 2055, 2150, 2155, 2255, 335, 380, 4 Star, 4 Star Super, 5 Star, A4T-1400, A4T-1600, Big Mo 400, Big Mo 500, Big Mo 600, G1000, G1000 Vista, G1050, G1350, G1355, G750, G900, G950, G955, Jetstar 3, JetStar 3 Super, M, M5, M504, M602, M604, M670, M670 Super, MD, MDV, Super MD, Super MDV, Super MV, Super W6, Super WD6, UB, U302, U302 Super, ZB

Oliver: 100, 120, 125, 140, 145, 160, 170, 180, 185, 1800, 1850, 1855, 1865, 1950T, 1955, 2255, 300, 300B, 302, 302A, 303, 310, 310A, 301, 301A, 401, 401B, 401C, 430, 431, 440, 440A, 440B, 440C, 440D, 445, 530, 531, 540, 540A, 540D, 541, 570, 580 Loader, 580B, 580C, 60, 640D, 700, 730, 750, 770, 80, 830, 850, 855, 870

White: 2-85, 2-88, 2-105, 2-110, 2-135, 2-155, 2-180, 4-180, 4-210, 4-225, 100, 120, 125, 140, 145, 160, 170, 180, 185, 195, 470, 480, 480A, 480B, 480C, 480 Loader, 420, 420 Loader / Backhoe, 450, 450B, 9130, 9140, 9150, 9170, 9190, 9435, 9455

Allis Chalmers: 1750, 1800, 2010, 2020, 2030, 2240, 2440, 2630, 2640, 2650, 2655, 60, 80, 100

Case / Case International Harvester: 1010, 1020, 1520, 1800, 300, 400, 410, 435, 440, 470, 530, 540, 580B, 580C, 580 Loader, 700, 730, 750, 830, 870

International Harvester / International: I6, ID6, W6, WD6, Super W6, Super WD6, Super M, Super MD, Super MDV, Super MV, 300, 400, 450, 460, 470, 530, 540, 570, 640D, 700, 730, 750, 830, 855, 870, 95, 100, 120, 125, 140, 160, 180, 185, 195, MD, MDV, M, W6, WD6, I6, ID6

Massey Ferguson: 1010, 1020, 1520, 2010, 2020, 2030, 2150, 2155, 2240, 2440, 2630, 2640, 2650, 2655

John Deere Industrial/Construction: 300 (S/N below 157639), 301 (S/N below 145197), 400, 401 (S/N below 145197)

John Deere Tractor: 1020 (S/N below 145197), 1520, 2020, 420, 430, 435

John Deere Skidder: 540, 540A, 640D

AGCO: See compatible models listed above under applicable brands.

Replaces Part Number(s):

022631X, 0200138, 0233893, 02723AB, 10A21384, 10A6180, 10A975, 103818H1, 104810A, 120795R91, 121514R91, 15A8718, 168001A, 225518, 2255-18, 233893, 30-3056287, 30-3056309, 303056287, 303056309, 48974D, 6182379R1, 618237R1, 618237R91, 618237R91, 649106R91, 70233893, 72160065, 842370M1, 88094H, A138864, A139378, A144152, A298558, A37609, A59043, A7538, AR43065, AT10500, AT13012, AT17463, AT17464, AT17464T, N1161, N1611, O2723AB, T23010, W104810A, W10A21384

Aftermarket Interchange Numbers

N1171 (SKF/aftermarket cross-reference); also interchanges with N1717

New aftermarket replacement part - not remanufactured, not used.
