A-83910704-AI Outer Cone

A-83910704-AI Outer Cone

AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER

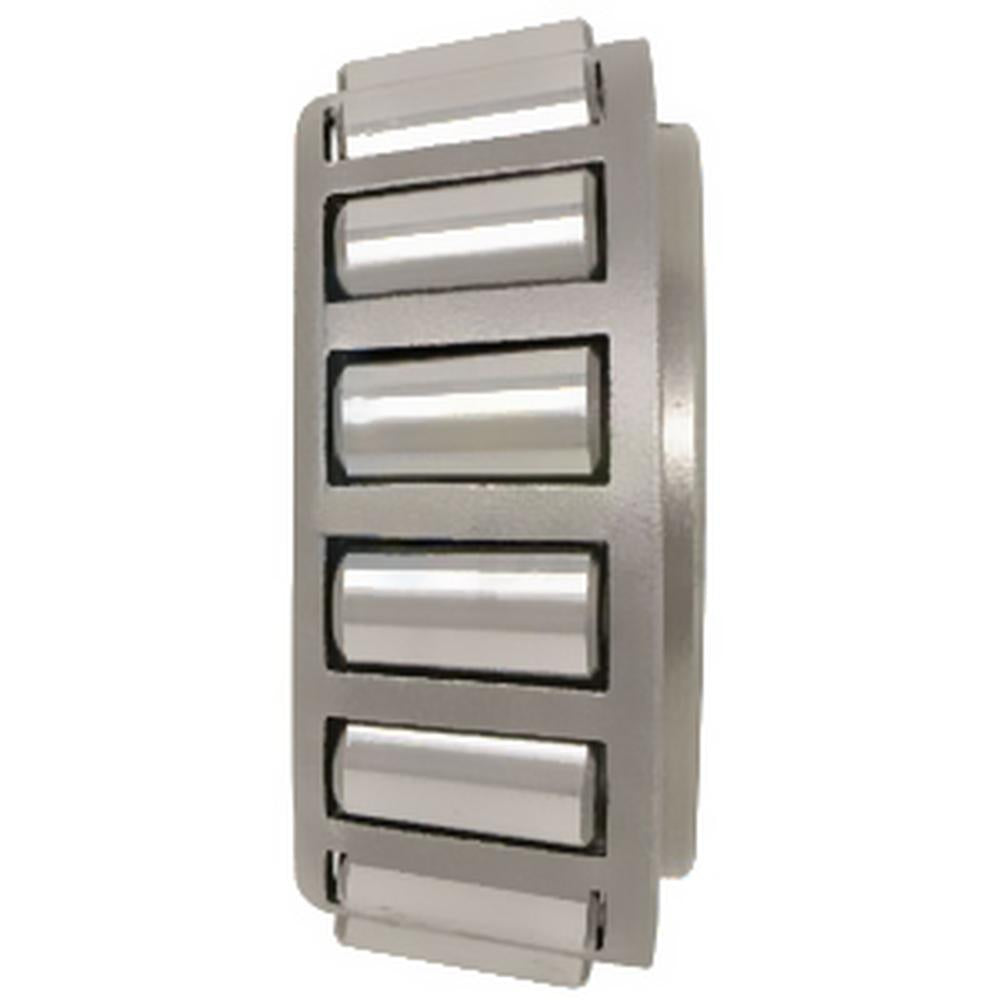

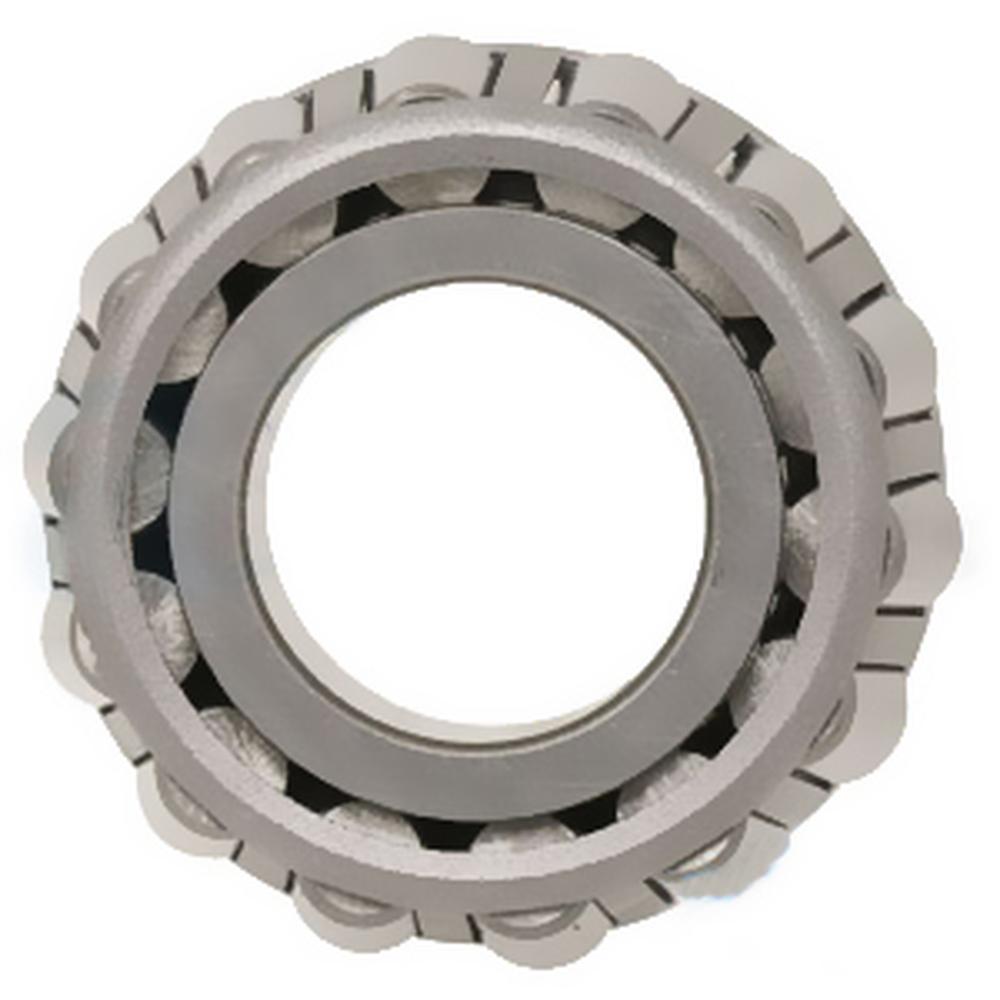

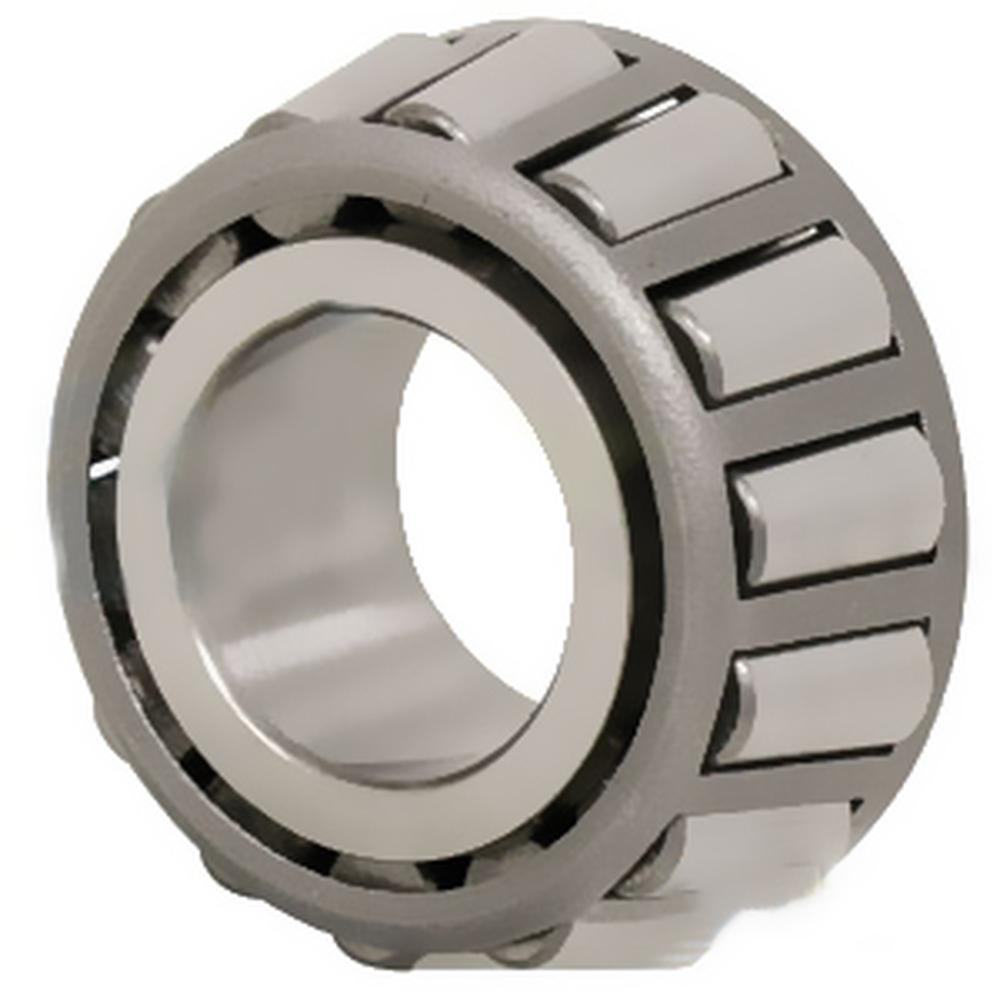

One New Aftermarket Replacement Tapered Roller Bearing Cone (LM11949) Fits Ford, Fits Massey Ferguson, Fits Case/International Harvester, Fits John Deere, and More

This LM11949 outer (front wheel) tapered roller bearing cone is a precision-fit replacement used in the front wheel hub assemblies of a wide range of agricultural tractors, rotary cutters, and other equipment. It supports both radial and axial loads and is typically mounted in opposing pairs on the front axle spindle. The matching cup (outer ring) is LM11910/LM11919. Sold individually.

Specifications

  • Bearing Type: Tapered Roller Bearing - Single Cone
  • Bore (Inner Diameter): 0.750"
  • Cone Width: 0.655"
  • Corner Radius: 0.05"
  • Compatible Cup: LM11910, LM11919
  • Material: Chrome Steel

Compatible Models

Fits Ford/New Holland: Dexta, Super Dexta, 66, 84, 135, 140, 165, 175, 180, 185, 200, 202, 203, 204, 205, 230, 230A, 231, 233, 234, 235, 240, 245, 255, 265, 275, 285, 300, 303, 330, 333, 334, 335, 340, 403, 403F, 403G, 404, 424, 430, 431, 444, 451, 454, 461, 470, 500B, 501, 503, 503I, 504, 504I, 504I SILAGE, 505I, 530, 531, 541, 543, 550, 570, 584, 600 Series, 600B, 601, 611, 615, 620, 621, 630, 631, 640, 641, 650, 651, 660, 700 Series, 800 Series, 900 Series, 915, 1080, 1085, 1830, 2000, 2031, 2100, 2110, 2111, 2120, 2131, 2150, 2243, 2300, 2310, 2400A, 2404, 2424, 2444, 2500, 2504, 2600, 2610, 2653, 2810, 2910, 3000, 3055, 3100, 3110, 3120, 3150, 3190, 3230, 3300, 3310, 3330, 3550, 3600, 3610, 3900, 3910, 3930, 4000, 4031, 4100, 4110, 4120, 4130, 4131, 4190, 4200, 4330, 4340, 4410, 4500, 4600, 4610, 4630, 4830, 5030, 5110, 6000, 6610, 6710, 6810, 7410, 7610, 7700, 7710, 20C

Fits Massey Ferguson: 135, 165, 175, 185, 230, 231, 233, 235, 240, 245, 255, 265, 275, 285, 300, 303, 315, 334, 335

Fits Case/International Harvester: 2111, 2131, 2504, 2424, 2444, PH13, PH15

Fits John Deere: Models per JD8188 reference

Also fits: Vermeer, White, Fits Woods, New Idea equipment - see ref_numbers for full cross-reference list

Replaces Part Number(s):

83910704, 83910705, 83992410, D5NN1215A, D5NN1216A, 204E1216A, 204E1217A, 8A1216B, 81708383, 81708395, 36724, 2304WD, 651815R1, 651815R91, G10815, 1650003, 1650005, 831055M1, 1851799M91, JD8188, 102840A

Aftermarket Interchange Numbers

LM11949, 4T-LM11949, 05404500, 05404400, 67334, B12411, 473256, 562267, 594875R91, 652071R91, 652077R91, 202503C91, 202515C91, 457829R91, 827472C91, 831973R91, 895322M91

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

651, 2500, 2111, 2444, 2120, 4830, 504I, 300, 424, 340, 202, 231, 235, Dexta, 2150, 4031, 3150, 660, 501, 3550, 3910, 4410, 504, 4340, 4630, 7700, 3190, 815, 403, 584, 2653, 275, 431, 230A, 203, 541, 3900, 2300, 333, 5110, 615, 570, 621, 2424, 185, 2610, 140, 204, 601, 4330, 2504, 6610, PH15, 3600, 2110, 205, 504I SILAGE, 640, 430, 285, 4100, 165, 531, 451, 503, 5030, 3120, 3300, 641, 255, 1830, 404, 630, 2100, 1080, 550, 7710, 20C, 265, 135, 4610, 600 Series, 1085, 200, PH13, 631, 4110, 2404, 650, 2310, 2031, 461, 700 Series, 4600, 2810, 915, 234, 2000, 2243, 3330, 800 Series, 3000, 611, 4120, 403F, 3055, 330, 3610, 454, 2600, 6710, 84, 2400A, 334, 335, 230, 620, 240, 4500, 4200, 150, 3930, 233, Super Dexta, 4131, 4190, 175, 403G, 505I, 6000, 444, 7410, 900 Series, 530, 180, 3100, 4130, 303, 600B, 6810, 3310, 3230, 4000, 7610, 500B, 315, 470, 2131, 66, 674, 3110, 245, 543, 503I, 2910

Additional Information:

Bore: .750" Radius: .05" Width: .655" Bearing

Reference Numbers:

2304WD, 831055M1, 1851799M91, 102840A, 651815R1, 651815R91, G10815, 1650003, 1650005, JD8188, D5NN1215A, D5NN1216A, 204E1216A, 204E1217A, 36724, 8A1216B, 81708383, 81708395, 83910704, 83910705, 83992410, 831055M1
