A-83992410-AI Outer Cone

A-83992410-AI Outer Cone

AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER

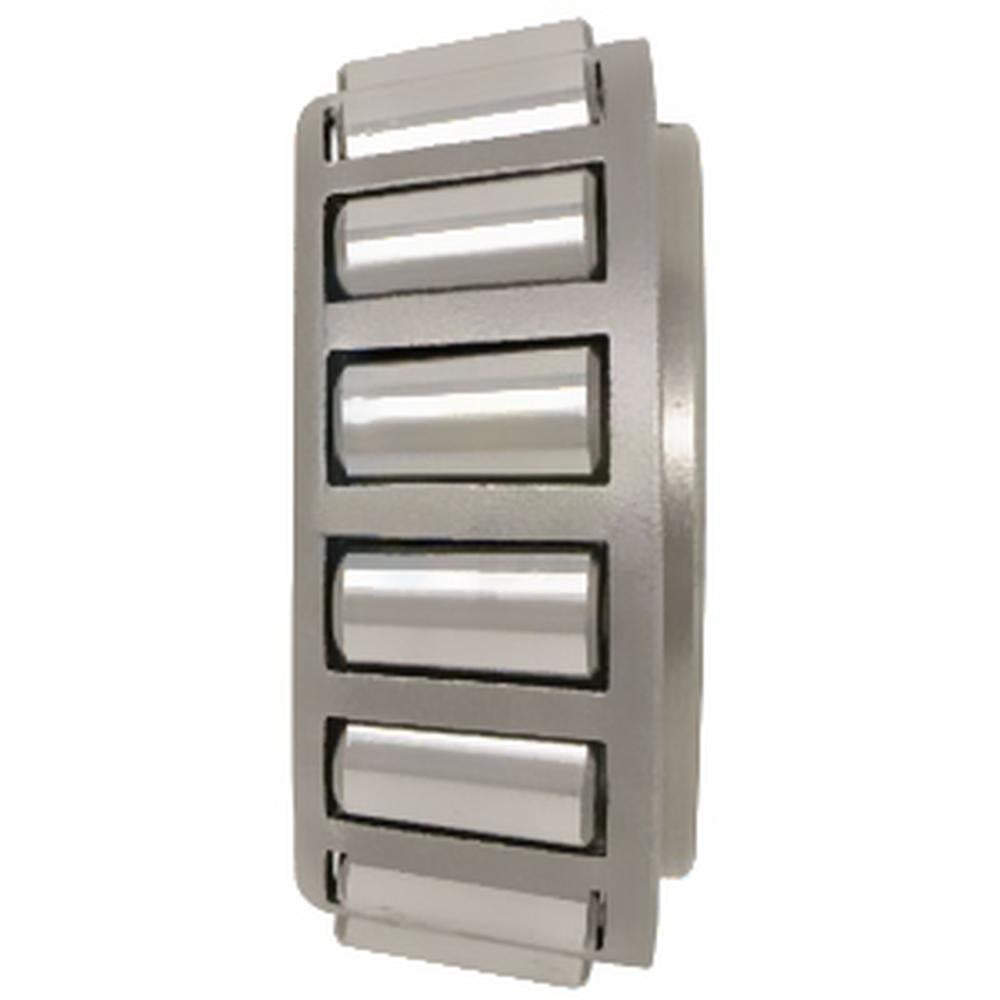

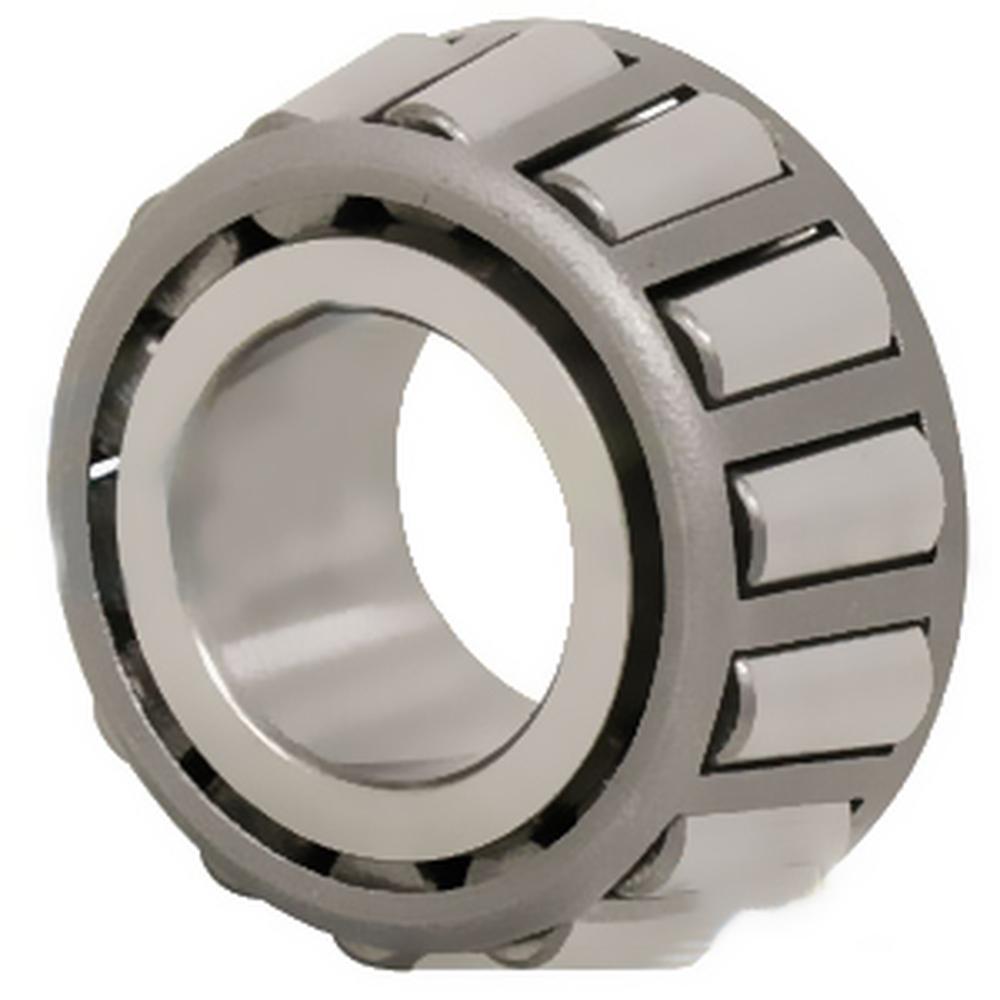

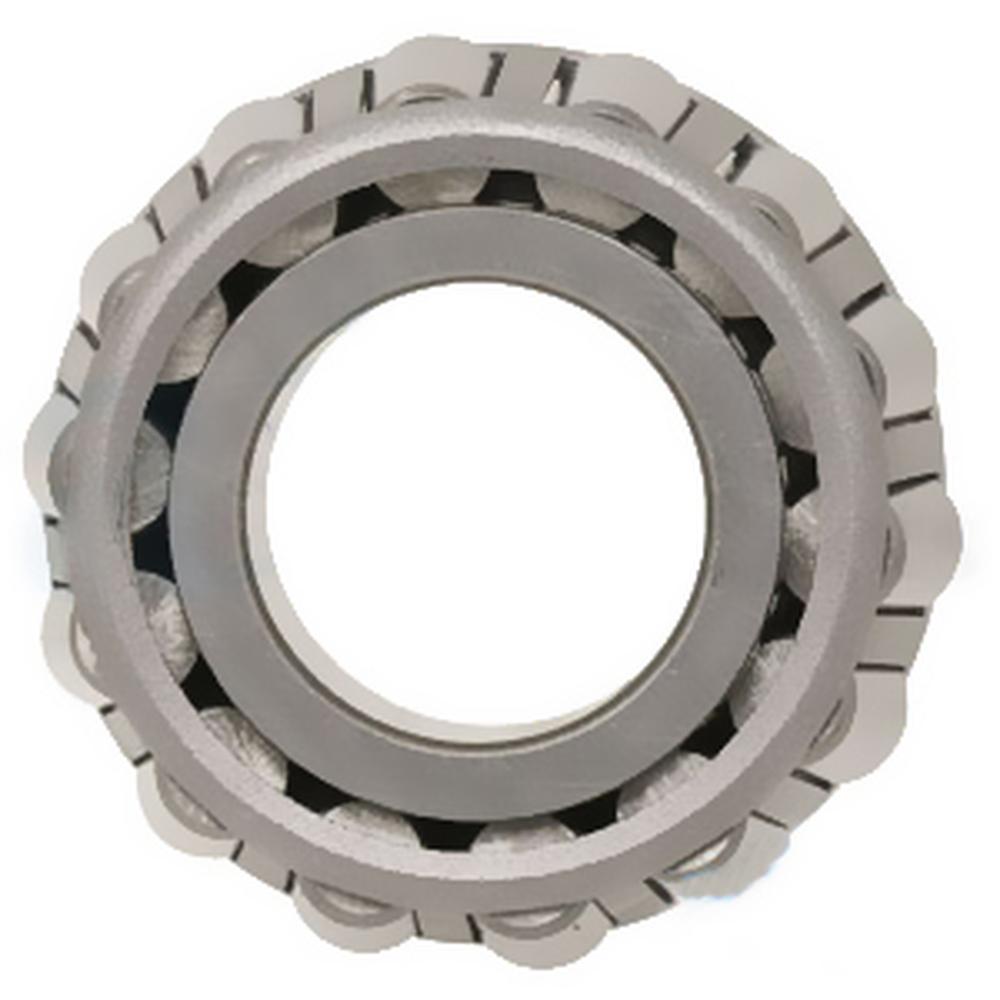

One New Aftermarket Replacement Tapered Roller Bearing Cone (LM11949) for New Idea, Fits Case/International Harvester, Fits Massey Ferguson, Fits Ford/New Holland, Fits John Deere, White, Fits Woods, and Vermeer Equipment

This tapered roller bearing cone (industry standard number LM11949) is a widely used replacement part across agricultural, lawn and garden, and light industrial equipment. The cone (inner ring assembly) pairs with cup LM11910 to form a complete tapered roller bearing set capable of handling both radial and axial loads. Common applications include wheel hubs, spindle assemblies, and rotating shaft support on tractors, combines, rotary cutters, round balers, and cutting platforms.

Specifications

  • Bearing Type: Tapered Roller Bearing Cone
  • Bore (Inner Diameter): 0.750 in (19.05 mm)
  • Cone Width: 0.655 in (16.637 mm)
  • Outer Diameter: 1.781 in (45.237 mm)
  • Fillet Radius: 0.050 in (1.300 mm)
  • Compatible Cup: LM11910 / LM11919
  • Bearing Material: Chrome Steel
  • Set Number: SET-2 / A2

Compatible Models

Fits Case/International Harvester: 84, 140, 150, 165, 175, 180, 185, 200, 202, 203, 204, 205, 230, 230A, 231, 233, 234, 235, 240, 245, 255, 265, 275, 285, 300, 303, 315, 330, 333, 334, 335, 340, 403, 403F, 403G, 404, 424, 430, 431, 444, 451, 454, 461, 470, 501, 503, 503I, 504, 504I, 504I SILAGE, 505I, 530, 531, 541, 543, 550, 570, 584, 600 Series, 611, 615, 620, 621, 630, 631, 640, 641, 650, 651, 660, 674, 700 Series, 800 Series, 815, 900 Series, 2031, 2100, 2110, 2111, 2120, 2131, 2150, 2243, 2300, 2310, 2400A, 2404, 2424, 2444, 2500, 2504, 2600, 2653, 2810, 3055, 3100, 3110, 3120, 3150, 3190, 3230, 3300, 3310, 3330, 3550, 3600, 3610, 3900, 3910, 3930, 4000, 4031, 4100, 4110, 4120, 4130, 4131, 4190, 4200, 4330, 4340, 4410, 4500, 4600, 4610, 4630, 4830, 5030, 5110, 6000, 6610, 6710, 6810, 7410, 7610, 7700, 7710, 1080, 1085, 1830, 2404, 2444, 20C, 66, PH13, PH15

Fits Ford/New Holland: 2000, 2100, 2110, 2120, 2150, 2310, 2600, 2610, 2810, 2910, 3000, 3100, 3110, 3120, 3190, 3230, 3300, 3310, 3330, 3550, 3600, 3610, 3900, 3910, 3930, 4000, 4100, 4110, 4120, 4130, 4131, 4190, 4200, 4330, 4340, 4410, 4500, 4600, 4610, 4630, 4830, 5030, 5110, 6000, 6610, 6710, 6810, 7410, 7610, 7700, 7710, 500B, 600B, 2000, Dexta, Super Dexta

Fits Massey Ferguson: 135, 150, 165, 175, 180, 185, 200, 202, 203, 204, 205, 230, 231, 233, 234, 235, 240, 245, 255, 265, 275, 285, 531, 1080, 1085

New Idea: 315, 403, 404, 430, 431, 501, 503, 504, 505I, 530, 531

Fits John Deere: Models listed in metafield and per JD8188 cross-reference

White / Fits Woods / Vermeer: Various models per cross-reference; see Replaces section for brand-specific numbers

Replaces Part Number(s):

83992410, 831055M1, 1851799M91, D5NN1215A, D5NN1216A, 204E1216A, 204E1217A, 36724, 8A1216B, 81708383, 81708395, 83910704, 83910705, 102840A, 1650003, 1650005, 2304WD, 651815R1, 651815R91, G10815, JD8188

Aftermarket Interchange Numbers

LM11949 (industry standard bearing number); Compatible cup: LM11910, LM11919; Set designation: SET-2 / A2

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

651, 2500, 2111, 2444, 2120, 4830, 504I, 300, 424, 340, 202, 231, 235, Dexta, 2150, 4031, 3150, 660, 501, 3550, 3910, 4410, 504, 4340, 4630, 7700, 3190, 815, 403, 584, 2653, 275, 431, 230A, 203, 541, 3900, 2300, 333, 5110, 615, 570, 621, 2424, 185, 2610, 140, 204, 601, 4330, 2504, 6610, PH15, 3600, 2110, 205, 504I SILAGE, 640, 430, 285, 4100, 165, 531, 451, 503, 5030, 3120, 3300, 641, 255, 1830, 404, 630, 2100, 1080, 550, 7710, 20C, 265, 135, 4610, 600 Series, 1085, 200, PH13, 631, 4110, 2404, 650, 2310, 2031, 461, 700 Series, 4600, 2810, 915, 234, 2000, 2243, 3330, 800 Series, 3000, 611, 4120, 403F, 3055, 330, 3610, 454, 2600, 6710, 84, 2400A, 334, 335, 230, 620, 240, 4500, 4200, 150, 3930, 233, Super Dexta, 4131, 4190, 175, 403G, 505I, 6000, 444, 7410, 900 Series, 530, 180, 3100, 4130, 303, 600B, 6810, 3310, 3230, 4000, 7610, 500B, 315, 470, 2131, 66, 674, 3110, 245, 543, 503I, 2910

Additional Information:

Bore: .750" Radius: .05" Width: .655" Bearing

Reference Numbers:

2304WD, 831055M1, 1851799M91, 102840A, 651815R1, 651815R91, G10815, 1650003, 1650005, JD8188, D5NN1215A, D5NN1216A, 204E1216A, 204E1217A, 36724, 8A1216B, 81708383, 81708395, 83910704, 83910705, 83992410, 831055M1
