One New Aftermarket Replacement Exhaust Elbow Fits Massey Ferguson Tractors

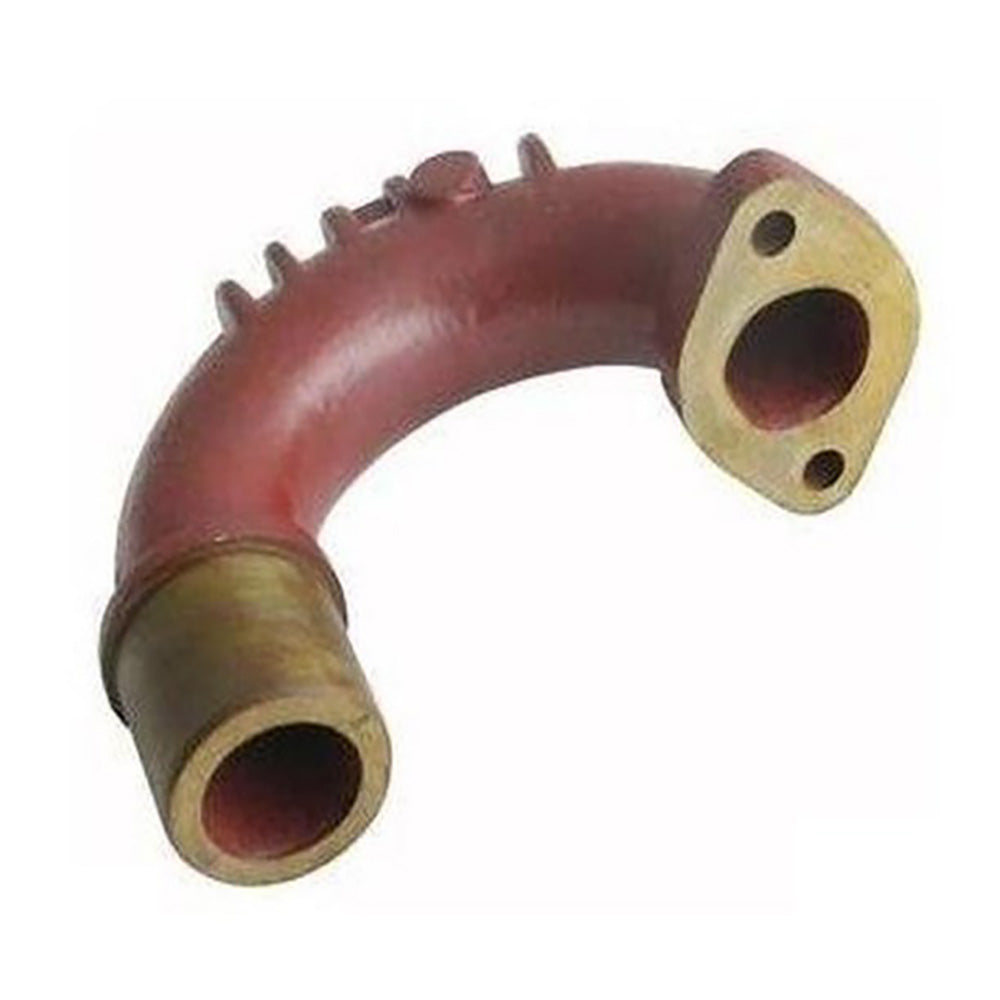

This aftermarket replacement exhaust elbow connects the exhaust manifold to the muffler/silencer on Fits Massey Ferguson petrol (gasoline) tractors equipped with Standard Motors 80mm, 85mm, and 87mm engines. The elbow features a 180-degree bend and a 2-bolt mounting flange, directing exhaust gases vertically through the bonnet-mounted silencer assembly. Replaces OEM part numbers 899130M1 and 640010M1.

Specifications

• Bend: 180 degrees
• Mounting: 2-hole bolt flange
• Compatible engine bore sizes: 80mm, 85mm, 87mm (Standard Motors)
• Inlet diameter (A): 2.64 in. (67mm)
• Overall length (C): 5.91 in. (150mm)
• Outlet dimension (E): 1.53 in. (38.8mm)
• Outlet dimension (F): 1.99 in. (50.7mm)
• Note: Petrol/gasoline models only -- not for diesel models

Compatible Models

Fits Massey Ferguson TE Series: TEA20 (80mm or 85mm engine), TED20 (85mm engine)

Fits Massey Ferguson 35 Series: 35, 35X / FE35 (87mm engine)

Fits Massey Ferguson 100 Series: 135 UK (87mm engine)

Replaces Part Number(s):

640010M1, 899130M1

Aftermarket Interchange Numbers

VPE9002, 650010M1, S.16047

New aftermarket replacement part - not remanufactured, not used.
