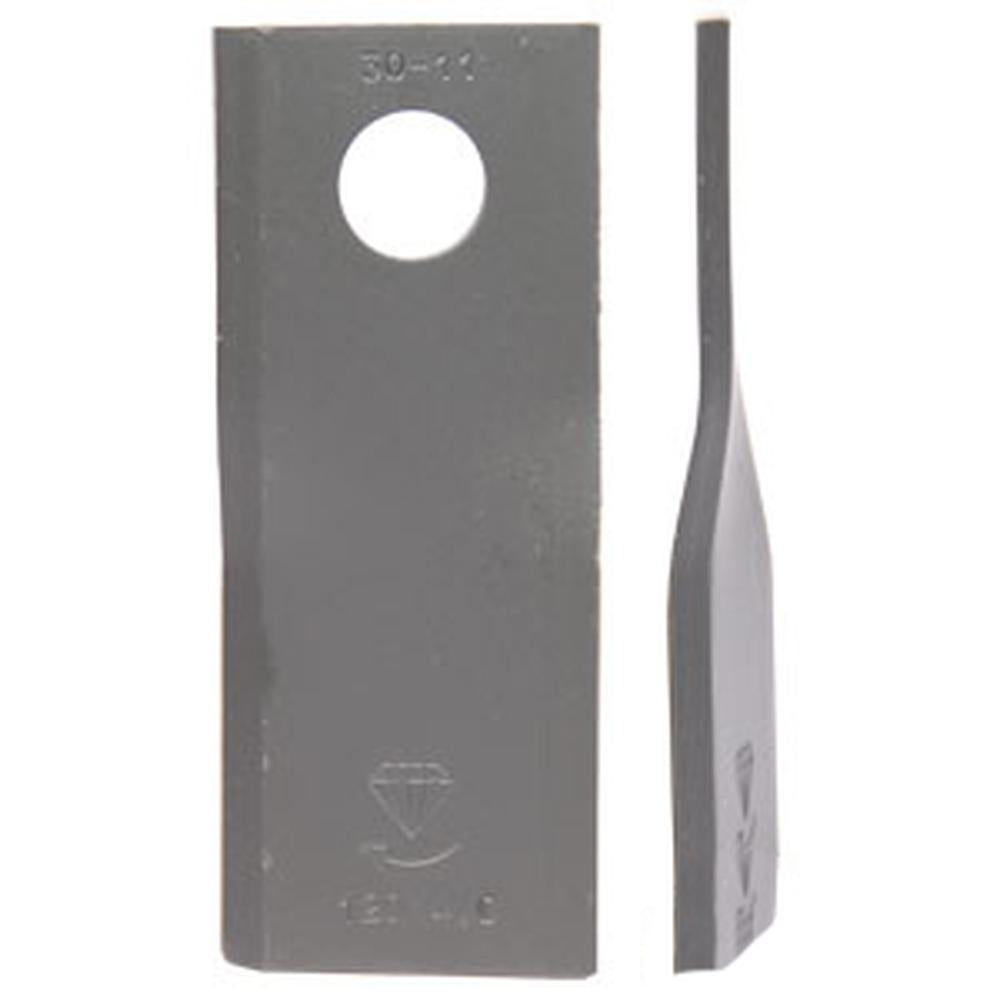

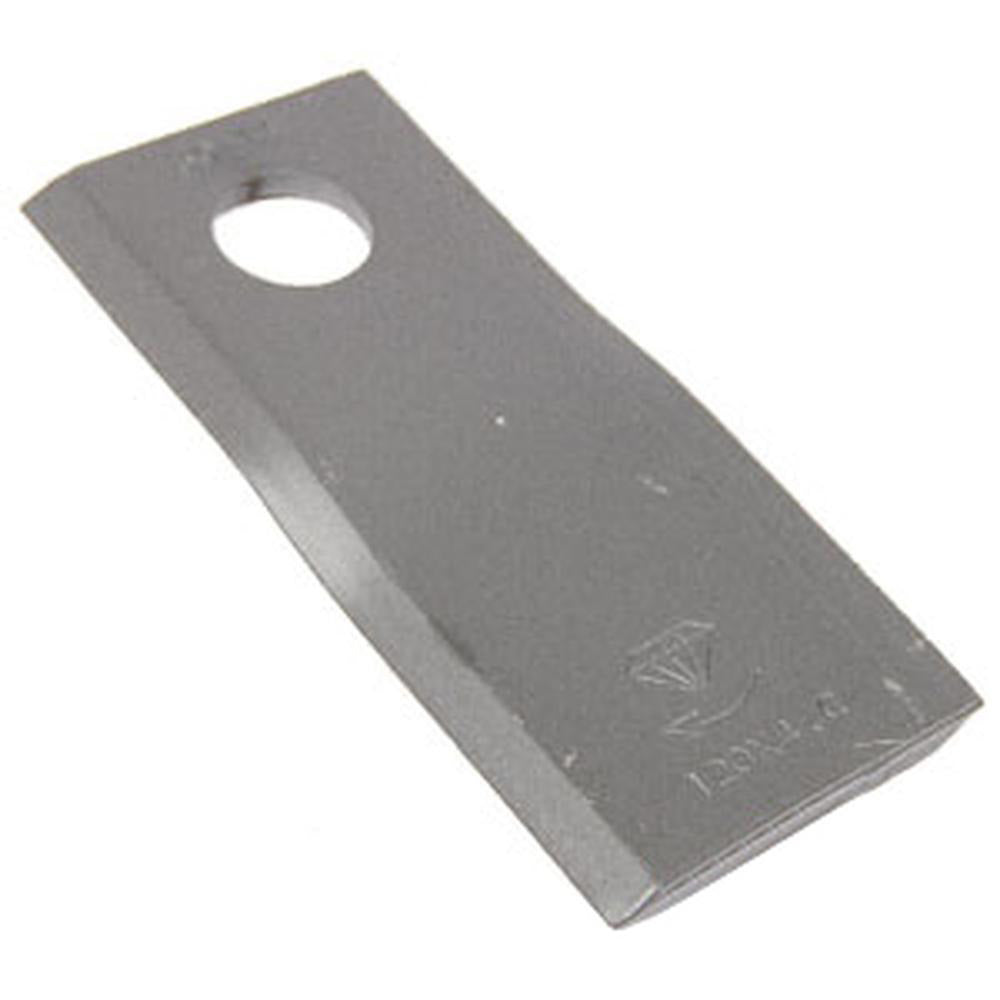

A-90258700-AI Blade, Disc Mower, RH

A-90258700-AI Blade, Disc Mower, RH



AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER


One New Aftermarket Replacement Right Hand (RH) Disc Mower Blade for Vicon, Bush Hog, Fits Case IH, Gehl, Lely, Fits Massey Ferguson, New Idea, Fella, and More

This right hand (RH), clockwise rotation, twisted disc mower blade is a direct replacement for use on Vicon, Bush Hog, Fits Case IH, Gehl, Lely, Fits Massey Ferguson, New Idea, and Fella disc mowers. The 11-degree twist and Type 10 blade shape deliver clean, efficient cuts across a wide range of hay cutting conditions. For the matching left hand blade, see part number 58699 / 90258699.

Specifications

  • Rotation: Right Hand (RH) - Clockwise (CW)
  • Twist Degree: 11 Degrees
  • Shape: Type 10
  • Length: 4.75 in (121 mm)
  • Width: 2.0 in (51 mm)
  • Thickness: 0.16 in (4 mm)
  • Bolt Hole Size: 0.720 in (18.3 mm)

Compatible Models

Vicon Disc Mowers: CM165, CM167, CM1700, CM240, CM2400, CM247, CMP3200, AM3200, DMP2400, DMP3200, GMR2400, GMR3200, KM165, KM240, KM241, KM281, KM321, OM165, OM241

Bush Hog Disc Mowers: 526, 527, 528, DM7, DM8, DM9, DM18, DM19, HM5, HM7, HM8

Fits Case IH Disc Mowers: 3204, 3205, 3206, 3309

Gehl (GEHL) Disc Mowers: DC1080, DC2330, DC2350, DM140, DM160

Lely Disc Mowers: 165, 205, 240, 280, 306, 307, 308, 320

Fits Massey Ferguson Disc Mowers: 127

New Idea Disc Mowers: 526, 527, 528, 5212, 5312

Fella Disc Mowers: SM240, SM240X

Fits John Deere Disc Mowers: 3204, 3205, 3206

Replaces Part Number(s):

PMLBL0017, 16507794, 16507794GV, 37302226M1GV, 478641GV, 58700KGV, GH604659GV, 478641, V58700Z, V90258700Z, 37302226M1

Aftermarket Interchange Numbers

58700, 90258700, 76N920, 526215BH, 526215, 526215NI, ZA526215, 86625665, 604659, 111725, 4120114740, 3730226M1, 902.58.700, 90058700

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

HM7, SM240X, HM5, DM8, DM18, HM8, DM19, 5312, 5212, DC2330, 3309, DM140, 306, 3205, DC2350, 280, 308, 527, 240, 528, 165, DM160, 320, 3206, DM9, 3204, 307, SM240, 526, 205, DM7, DC1080

Additional Information:

Right Hand Rotation Twist Bolt Hole Size - 0.720" (18.3 mm) Length - 4.75" (121 mm) Rotation - CW Shape - 10 Thickness - 0.16" (4 mm) Twist Degree - 11 Degree Width - 2" (51 mm) Right Hand Disc Mower Blade

Reference Numbers:

PMLBL0017, 37302226M1, 478641, 16507794, 16507794GV, 37302226M1GV, 478641GV, 58700KGV, GH604659GV, V58700Z, V90258700Z

Makes This Part Fits:

Product Category:

Product Group:

Product Sub Group:
