A-976111-AI STARTER

A-976111-AI STARTER



AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER

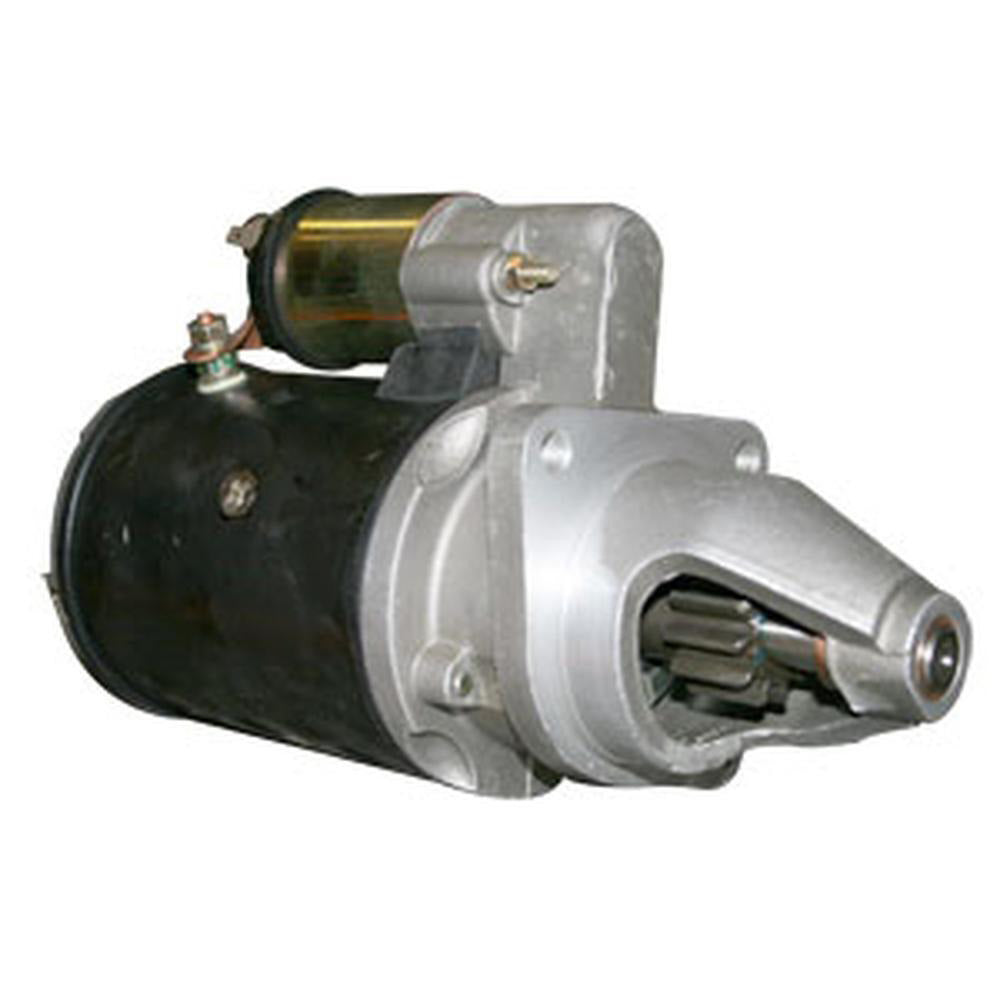

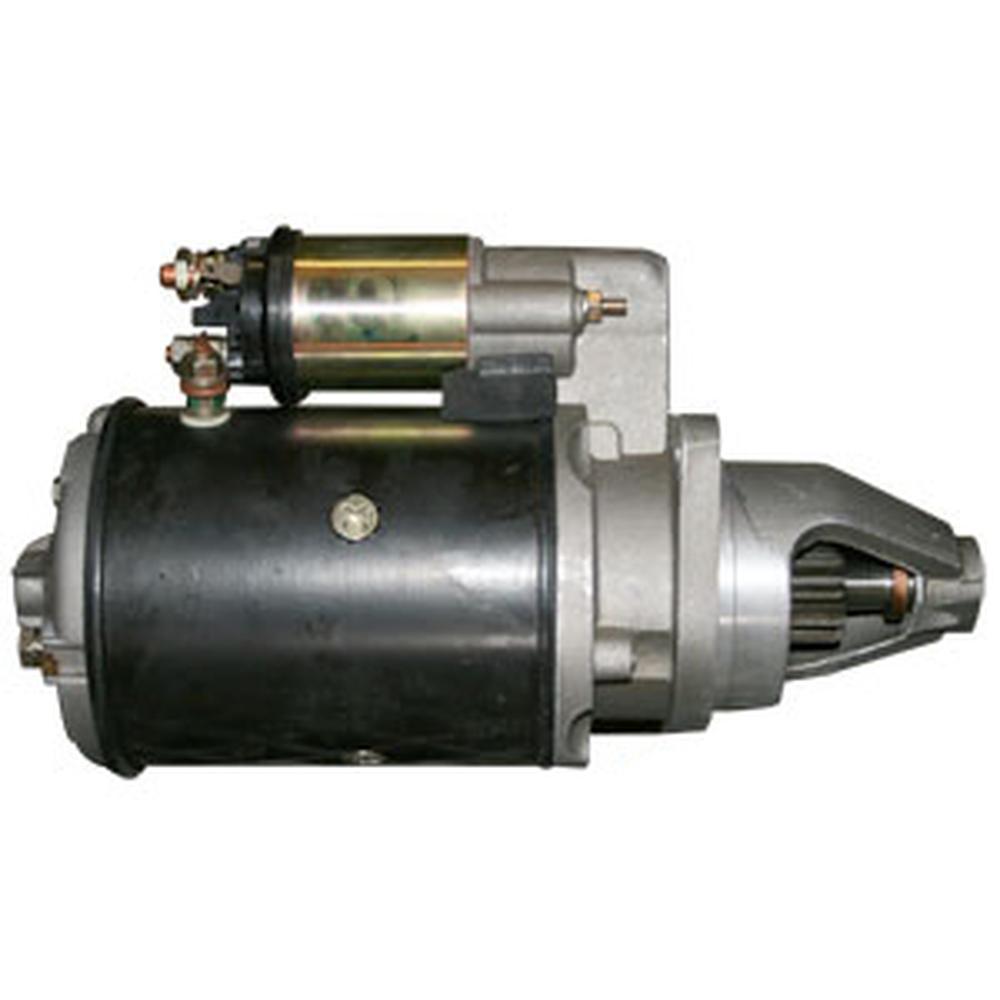

One New Aftermarket Replacement Starter for Zetor, Valmet, and Fits John Deere Tractors

This 12-volt direct drive (DD) starter motor is a direct replacement for Zetor, Valmet, and Fits John Deere tractors originally equipped with a Fits Bosch or Magneton starter. It engages the flywheel ring gear via an 11-tooth drive pinion and operates in a clockwise rotation direction, delivering 2.9 kW of cranking power to get your diesel tractor running in all conditions.

Specifications

  • Type: Direct Drive (DD)
  • Voltage: 12V
  • Power: 2.9 kW
  • Rotation: Clockwise
  • Teeth: 11
  • Tooth Pitch: 14.39mm
  • Flange Diameter: 89mm
  • Mounting Angle: 45 degrees
  • Number of Mounting Bores: 3
  • Mounting Points Diameter: 127mm
  • Bore Diameter: 10.9mm
  • Flywheel Depth: 51mm

Compatible Models

Zetor: 3011, 3320, 3340, 3511, 3513, 3545, 4320, 4340, 4511, 4611, 4712, 4718, 4911, 5011, 5211, 5213, 5243, 5245, 5320, 5340, 5340H, 5511, 5516, 5545, 5611, 5645, 5647, 5711, 5718, 5745, 5748, 5911, 5945, 6011, 6045, 6211, 6245, 6320, 6340, 6711, 6718, 6745, 6748, 6911, 6945, 7011, 7045, 7211, 7245, 7245H, 7320, 7340, 7341, 7711, 7745, 8211

Valmet: 800

Fits John Deere: 2000, 2100, 2200, 2300, 2400 (Zetor-built models)

Replaces Part Number(s):

443115144420, 443115144520, 443115144722, 443115145020, 69185771, 976111, 976116, 976117, PE69185771, LRS01031, LRS01088, LRS1338, LRS1513, 17258, 18480, 0001359047, 0001359124, 0001367032, 0001367067

Aftermarket Interchange Numbers

1800-0100 (Complete Tractor / Atlantic Quality Parts), SMA0001, VPF2020, 69185770, 933258, AZJ3119, 69-185-771, 443-115-144-722

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

5945, 5748, 6748, 7711, 5245, 7045, 5645, 6320, 3340, 7320, 6718, 3511, 6045, 4712, 5545, 7245H, 7745, 7340, 6340, 6711, 5745, 6011, 6245, 5211, 6945, 5320, 5213, 4340, 4320, 5516, 5647, 800, 7245, 5511, 3513, 7011, 5243, 5718, 6911, 6211, 12V Direct Drive (DD) Starters, 3320, 3011, 5011, 4718, 5711, 5611, 4511, 6745, 5911, 4611, 5340, 4911, 8211, 7211, 3545

Additional Information:

Direct Drive Type Rotation Direction: Clockwise Teeth: 11 Volt: 12 Starter

Reference Numbers:

LRS01031, LRS01088, LRS1338, LRS1513, 0001359047, 0001359124, 0001367032, 0001367067, 443115144420, 443115144520, 443115144722, 443115145020, 69185771, 976111, 976116, 976117, 17258, 18480, PE69185771
