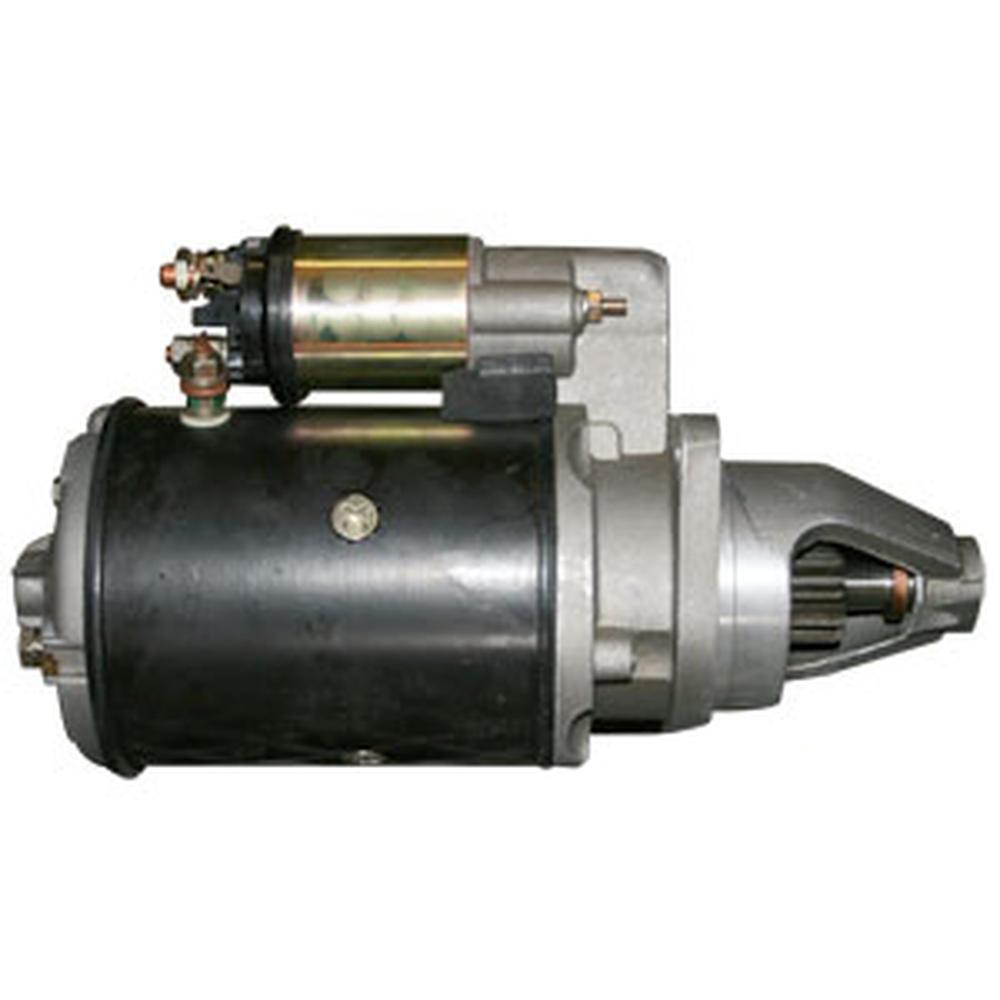

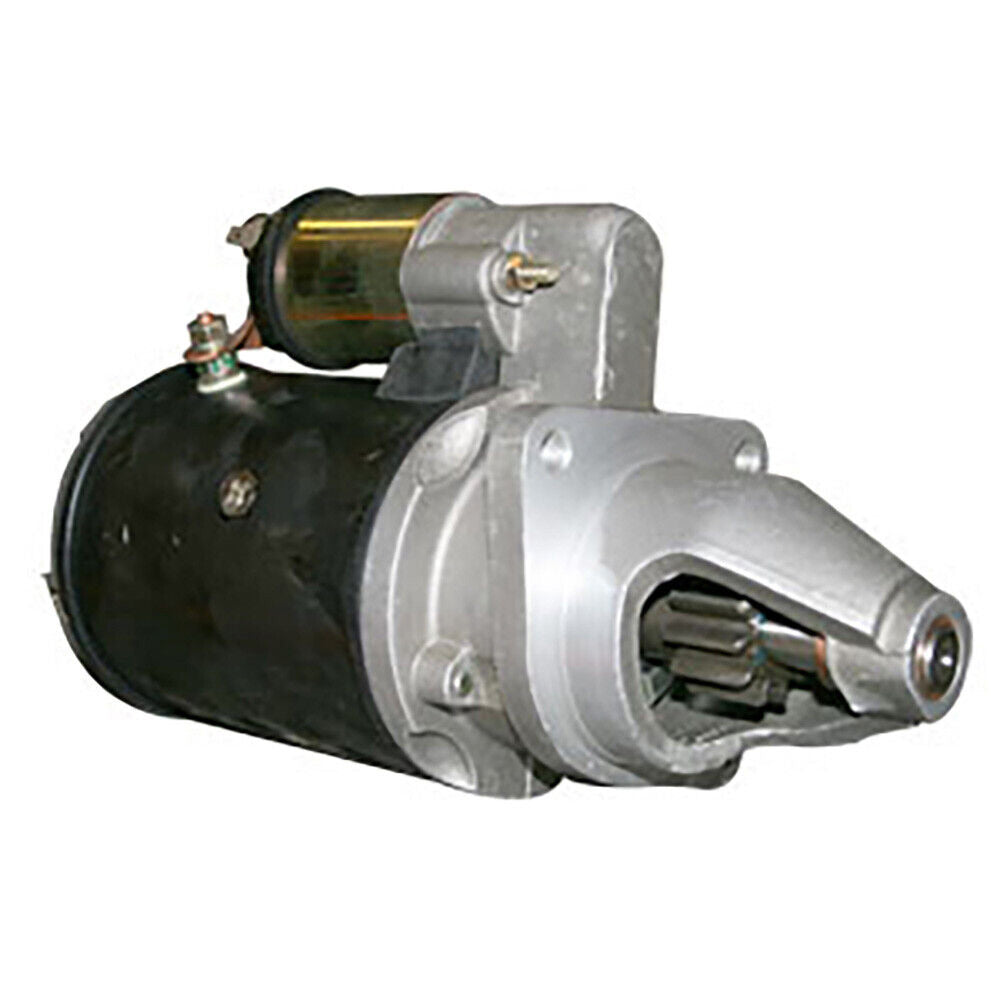

A-976117-AI STARTER

A-976117-AI STARTER



AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER


One New Aftermarket Replacement Starter for Zetor and Valmet Tractors

This 12-volt direct drive (DD) starter is a direct replacement for the Magneton original-equipment starter found on a wide range of Zetor and Valmet agricultural tractors. It engages the ring gear via an 11-tooth drive pinion with clockwise rotation, delivering reliable cranking power for diesel engines across multiple tractor series.

Specifications

  • Type: Direct Drive (DD)
  • Voltage: 12V
  • Power: 2.9 kW
  • Teeth: 11
  • Rotation: Clockwise

Compatible Models

Zetor Tractors: 3011, 3320, 3340, 3511, 3513, 3545, 4320, 4340, 4511, 4611, 4712, 4718, 4911, 5011, 5211, 5213, 5243, 5245, 5320, 5340, 5340H, 5511, 5516, 5545, 5647, 5711, 5718, 5745, 5748, 5911, 5945, 6011, 6045, 6211, 6245, 6320, 6340, 6711, 6718, 6745, 6748, 6911, 6945, 7011, 7045, 7211, 7245, 7245H, 7320, 7340, 7711, 7745, 8211

Valmet Tractors: 305, 405, 455, 500, 502, 504, 505, 602, 604, 605, 655, 700, 702, 702 S, 703, 705, 712, 755, 800, 802, 803, 805, 855, 900, 902, 903, 912, 1100, 1102, 1203, 6000, 6600

Fits John Deere Tractors (with Zetor/Magneton starter): 2000, 2100, 2200, 2300, 2400

Replaces Part Number(s):

0001359047, 0001359124, 0001367032, 0001367067, 17258, 18480, LRS01031, LRS01088, LRS1338, LRS1513, 443115144420, 443115144520, 443115144722, 443115145020, 69185771, 976111, 976116, 976117, PE69185771

Aftermarket Interchange Numbers

Fits Bosch: 0001359047, 0001359124, 0001367032, 0001367067 | Fits Lucas: LRS01031, LRS01088, LRS1338, LRS1513 | Magneton: 443115144420, 443115144520, 443115144722, 443115145020 | Lester: 17258, 18480 | Zetor OEM: 69185771, 976111, 976116, 976117

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

5945, 5748, 6748, 7711, 5245, 7045, 5645, 6320, 3340, 7320, 6718, 3511, 6045, 4712, 5545, 7245H, 7745, 7340, 6340, 6711, 5745, 6011, 6245, 5211, 6945, 5320, 5213, 4340, 4320, 5516, 5647, 800, 7245, 5511, 3513, 7011, 5243, 5718, 6911, 6211, 12V Direct Drive (DD) Starters, 3320, 3011, 5011, 4718, 5711, 5611, 4511, 6745, 5911, 4611, 5340, 4911, 8211, 7211, 3545

Additional Information:

Direct Drive Type Rotation Direction: Clockwise Teeth: 11 Volt: 12 Starter

Reference Numbers:

LRS01031, LRS01088, LRS1338, LRS1513, 0001359047, 0001359124, 0001367032, 0001367067, 443115144420, 443115144520, 443115144722, 443115145020, 69185771, 976111, 976116, 976117, 17258, 18480, PE69185771
