A-99999950-AI 12V,CW,9T,D/D,BO

A-99999950-AI 12V,CW,9T,D/D,BO



AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER


One New Aftermarket Replacement Starter for Fiat, Fits Ford/New Holland, Long, Fits Case/IH, Oliver, White, Fits Allis Chalmers, and Goldoni Tractors

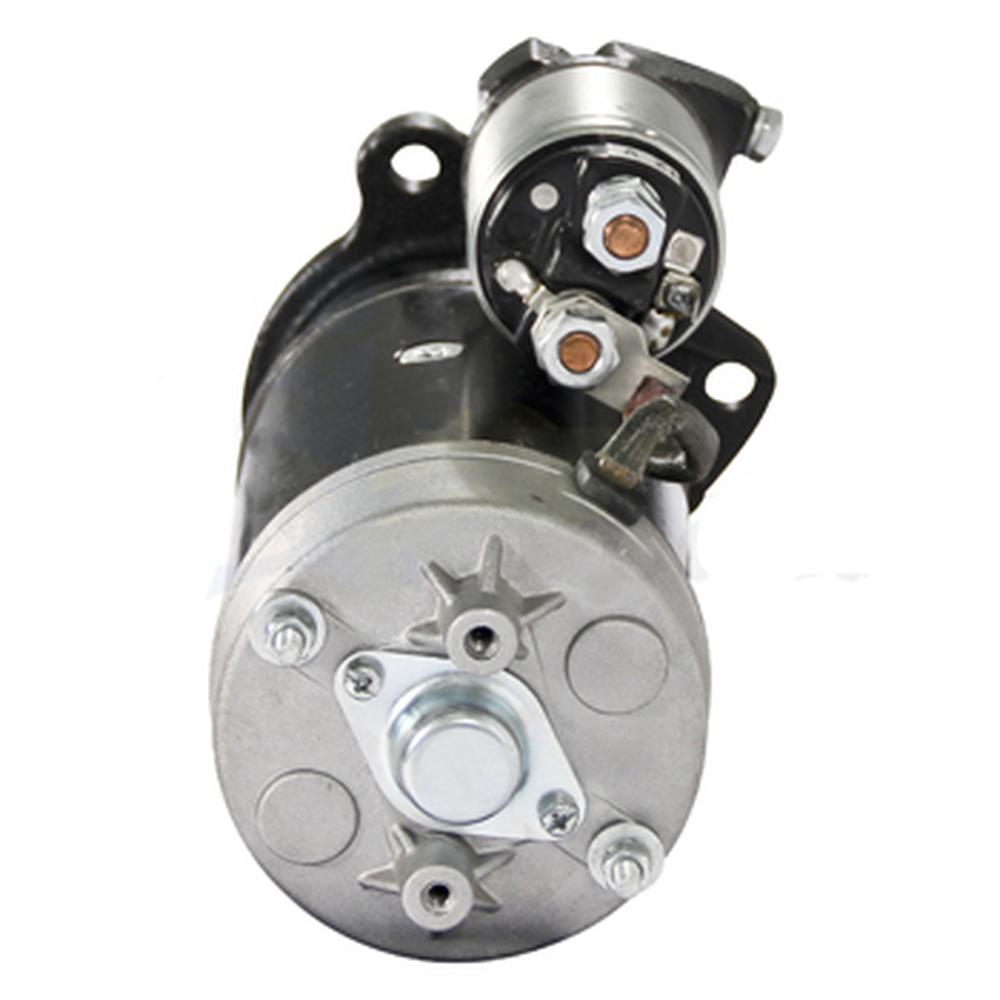

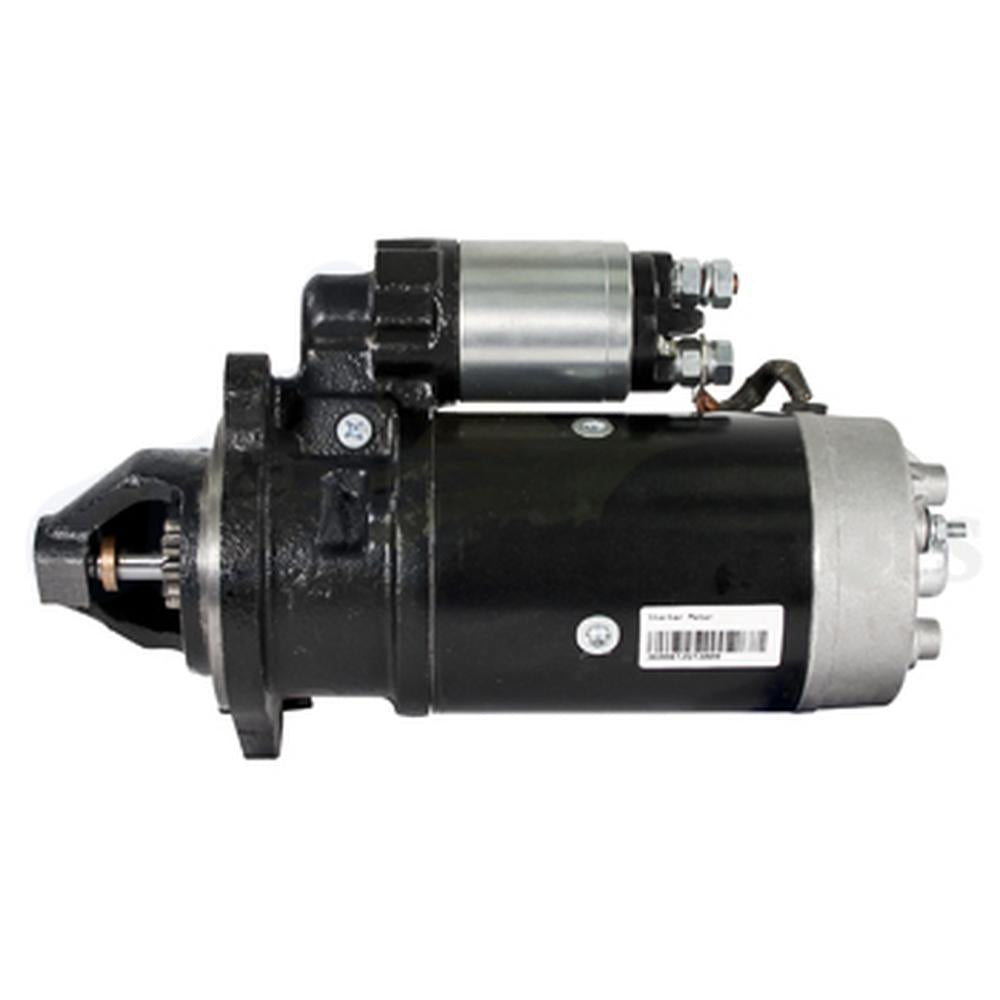

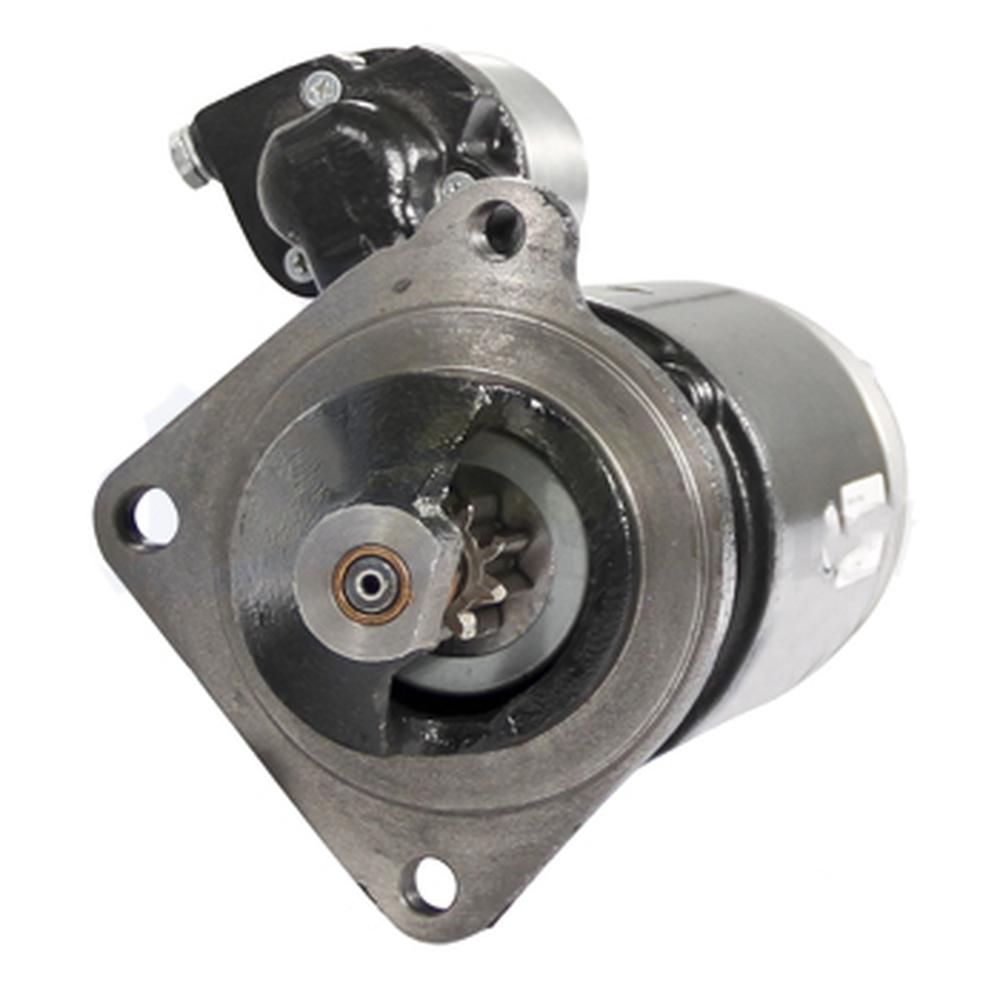

This 12-volt, clockwise-rotation, direct-drive starter motor is a Fits Bosch-type replacement for a wide range of agricultural tractors. Rated at 3.0 kW with a 9-tooth pinion, it fits the electrical starting systems on Fiat, Fits Ford/New Holland, Long, Fits Case/International Harvester, Oliver, White, Fits Allis Chalmers, and Goldoni tractor models. Uses TX13149 solenoid. Note: Not for 2-cylinder models. Not Fits Mitsubishi-powered units.

Specifications

  • Voltage: 12V
  • Kilowatts: 3.0 kW
  • Rotation: Clockwise (CW)
  • Teeth: 9
  • Type: Direct Drive (DD) / Fits Bosch-type
  • Length (bolt housing to end): 10-3/4"
  • Full Length: 13-1/2"
  • Solenoid: Uses TX13149

Compatible Models

Fiat: 55-46, 55-56, 55-66, 55-88, 55-90, 60-56, 60-75, 60-88, 60-90, 65-46, 65-46DT, 65-90, 65-90DT, 65-93, 65-93DT, 65-94, 65-94DT, 70-56, 70-56DT, 70-66, 70-66DT, 70-66LP, 70-66S, 70-66SDT, 70-66V, 70-76, 70-76DT, 70-76F, 70-76FDT, 70-76LP, 70-76LPDT, 70-76V, 70-88, 70-88DT, 70-90, 70-90DT, 72-85, 72-85M, 72-86LPDT, 72-93, 72-93DT, 72-94, 72-94DT, 80-66, 80-66DT, 80-66F, 80-66FDT, 80-76, 80-76DT, 80-76F, 80-88, 80-88DT, 80-90, 80-90DT, 82-93, 82-93DT, 82-94, 82-94DT, 85-90, 85-90DT, 88-93, 88-93DT, 88-94, 88-94DT, 90-90, 115-90, 130-90, 180-90, 180-90DT, 310, 340, 350, 360, 400, 445, 450, 453, 460, 480, 483, 500, 510, 530, 532, 533, 550, 553, 560, 600, 610, 640, 642, 643, 650, 680, 700, 703, 740, 833, 850, 4030, 4230, 4330V, 4430, 4430N, 4835, 5040, 6530, 7635

Fits Ford/New Holland: TN55, TN55D, TN55S, TN60A, TN60D, TN60DA, TN60SA, TN60VA, TN65, TN65D, TN65F, TN65S, TN65V, TN70, TN70A, TN70D, TN70DA, TN70F, TN70NA, TN70S, TN70SA, TN70VA, TN75, TN75A, TN75DA, TN75F, TN75FA, TN75SA, TN75V, TN75VA, TN80F, TN85FA, TN90F, TN95F, TN95FA, TN95VA, TD60D, TD70D, TD75D, TD80D, TD90D, TD95D, TL70, TL80, TL90, TL100, TK75, TK75F, TK75FA, TK75M, TK75MA, TK75V, TK76, TK80A, TK80MA, TK85, TK85M, TK90A, TK90MA, TK100A, TT55, TT60A, TT65, TT75, TT75A, JX55, JX60, JX65, JX70, JX70U, JX75, JX80, JX80U, JX85, JX90, JX90U, JX95, JX1060C, JX1070C, JX1070N, JX1075C, JX1075N, JX1095N, 3010S, 3435, 3830, 3935, 4010S, 5010S, 5530, 5635, 6635, 7530, LB75, LB75CP, LB90, LB95, LB110, LB115.B, LM430, LM640

Long: 260, 310, 340, 350, 360, 445, 460, 510, 530, 532, 533, 550, 553, 560, 610, 2-50, 2-60, 2360, 2360 DTC, 2460, 2460 DTC, 2610, 2630

Oliver / White: 1033 II, 1010 II, 1045, 1250A, 1255, 1265, 1270, 2-50, 2-60, 700

Fits Allis Chalmers: 5040

Fits Case/International Harvester: 260, 340, 350, 360, 453, 483, 3435, 3830, 3935

Goldoni: L65

Replaces Part Number(s):

99999950, TX12433, 0001367014, 0 001 367 014, 0001359021, 0 001 359 091, 0001359102, 0001367028, 17184, 26394, 26394A/D, 27430, 27430A, 27440, 27440A, S0847, S4537, SR914X, 63217121, MT71Z, MT68AA, MT68AB, MT68AC, 63216825, 63216826, 63216827, 11.130.127, 11.130.198, 11.130.409, 11.130.510, 11.130.618, 11.139.361, AZJ3115, AZJ3145, AZJ3195, AZJ3516, AZJ3534, AZJ3907, 9-144-744, IS0409, IS1387, MS192, 2088728-7, 20887287, 82093256, 504059251, 504059251R, 500338952, 500338953, 500338953R, 5801441814, 5801441816, 5111319, 5119319, 4988513, 4737755, 4703751, 4807375, 4832942, 4699705, 4702248, 4755109, 99449112, 99449113, 30-3043509, 31-2904907

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

70-66S, TK75VA, TN65D, 7635, 7530, 65-46DT, TK90A, TN70, TN60VA, JX90U, JX80, 610, 700, 82-93, 5635, LB75CP, TN75A, TT60A, JX70U, TK76, TN75, 65-90DT, LB95, 2610, TK80A, TD70D, 533, 70-76F, 2-50, TN75FA, TN75F, TN55D, TN55S, 643, TL80, TK85, 70-88DT, 1250A, 4430N, 3830, 640, TK75MA, 82-94DT, 65-46, 70-76LPDT, TN60SA, 70-66V, 6635, 600, 3435, TN60DA, 4430, 115-90, 360, 1255, JX1095N, TD75D, JX65, 72-85M, 82-93DT, 740, TK85M, TN95F, JX1075N, 4835, 70-76V, TT75A, 460, TN75S, 72-94, 70-66SDT, 72-94DT, 4010S, TN65S, 1010 II, 453, 4330V, 833, TN60A, 85-90, JX90, 65-94, 80-90DT, 1045, 4230, TL90, TN85FA, TK100A, 80-66, 72-85, TN70F, TL100, 2-60, TT55, LB90, 532, LM430, TN70DA, 5040, 530, 80-88, 642, 72-93DT, TN75VA, 2460 DTC, 553, 130-90, 1265, 90-90, TD80D, TL70, 82-94, 80-88DT, 2360 DTC, 850, LB75, 80-76F, 70-88, TN65V, 72-93, TK80MA, JX1060C, 88-93DT, 510, TN70A, JX85, 180-90DT, 72-86LPDT, 80-76DT, TK75FA, 3010S, 2460, 260, JX95, TK75V, 550, 80-76, TN80F, JX70, TN65, 180-90, 70-66DT, Electrical Starting Systems, 703, TT65, 5010S, 1033 II, 70-76LP, TN55, TN90F, TN70D, TK75F, JX75, 70-76FDT, 70-90, 2360, TN95VA, 445, JX80U, JX1070N, TN95FA, 310, 88-94DT, JX55, TN70VA, JX1075C, 80-66F, 5530, TT75, 6530, TN70S, 70-76DT, 85-90DT, TN60D, 483, 70-56, 2630, 70-90DT, 70-76, 70-56DT, TK75M, JX100U, TK90MA, 4030, JX60, 70-66LP, 3935, TN75DA, LM640, TD90D, TD95D, 340, TN70SA, 65-94DT, 80-90, LB115.B, 88-93, LB110, TN75SA, 80-66FDT, 350, L65, TN75D, TN65F, 1270, 500, 65-90, 683, TN75V, 65-93, JX1070C, TN70NA, 65-93DT, 88-94, 80-66DT, TD60D, 70-66

Additional Information:

Length from bolt housing to end: 10-3/4" Full Length: 13-1/2" Rotation: CW Teeth: 9 Volts: 12 KW: 3.0 Type: MM/DD Starter

Reference Numbers:

17184, 0001367014, 0 001 367 014, 0 001 359 091, 0001359021, 0001359102, 0001367028, MT71Z, MT68AA, MT68AB, MT68AC, 63216825, 63216826, 63216827, 26394, 26394A/D, 27430, 27430A, 27440, 27440A, S0847, S4537, SR914X, 2088728-7, 20887287, 82093256, 0001367014, 0 001 367 014, 0 001 359 091, 0001359021, 0001359102, 0001367028, 17184, 26394, 26394A/D, 27430, 27430A, 27440, 27440A, S0847, S4537, SR914X, 63217121, MT71Z, MT68AA, MT68AB, MT68AC, 63216825, 63216826, 63216827, 11.130.127, 11.130.198, 11.130.409, 11.130.510, 11.130.618, 11.139.361, AZJ3115, AZJ3145, AZJ3195, AZJ3516, AZJ3534, AZJ3907, 9-144-744, IS0409, IS1387, MS192, 504059251, 500338952, 500338953, 500338953R, 504059251R, 5801441814, 5801441816, 5111319, 5119319, 4988513, 4737755, 4703751, 4807375, 4832942, 99999950, 4699705, 4702248, 4755109, 500338952, 5801441814, 99449112, 99449113, TX12433, 30-3043509, 31-2904907, 63217121, MT71Z, MT68AA, MT68AB, MT68AC, 63216825, 63216826, 63216827, 26394, 26394A/D, 27430, 27430A, 27440, 27440A, S0847, S4537, SR914X, 0 001 367 014, 0 001 359 091, 0001359021, 0001359102, 0001367028, 17184, 26394, 26394A/D, 27430, 27430A, 27440, 27440A, S0847, S4537, SR914X, 63217121, MT71Z, MT68AA, MT68AB, MT68AC, 63216825, 63216826, 63216827, 11.130.127, 11.130.198, 11.130.409, 11.130.510, 11.130.618, 11.139.361, AZJ3115, AZJ3145, AZJ3195, AZJ3516, AZJ3534, AZJ3907, 9-144-744, IS0409, IS1387, MS192, 0001367014, 500338953R, 504059251R, 5801441814, 5801441816
