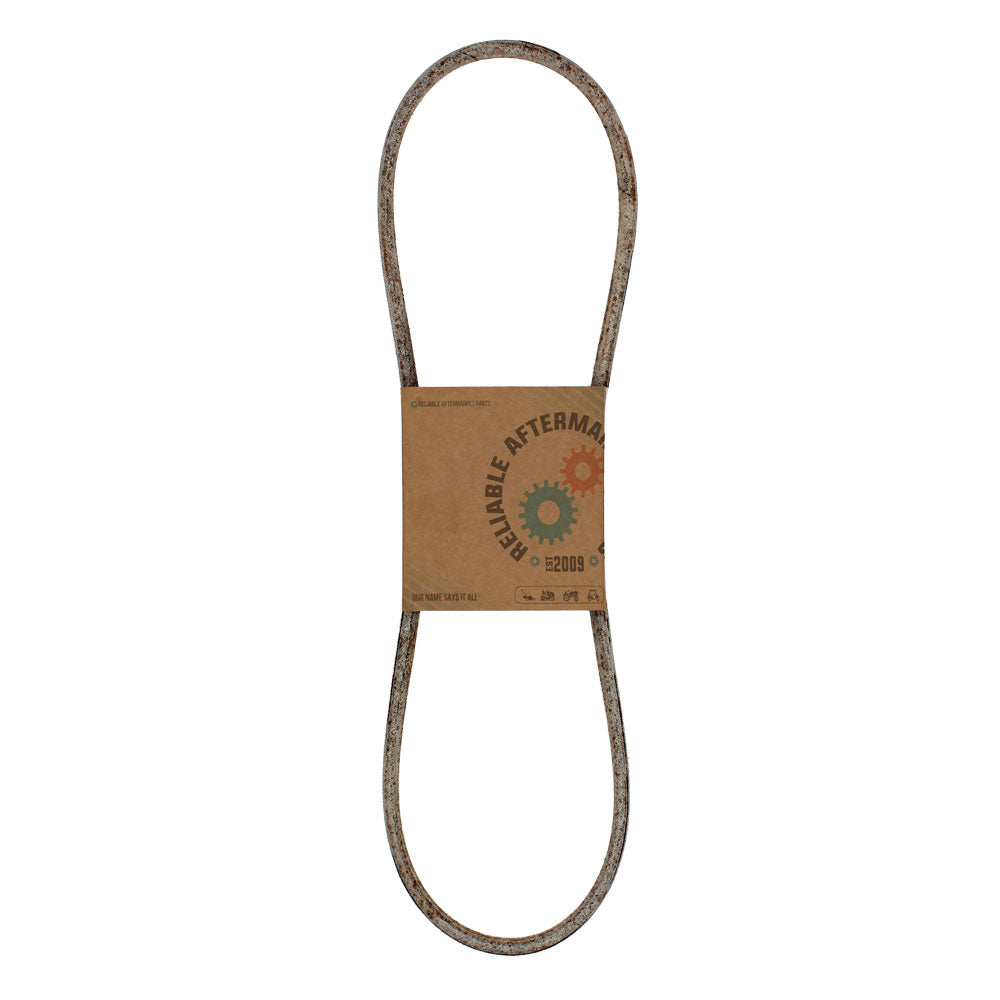

A-A51K Made With Aramid Blue V-Belt (1/2" X 53" )

A-A51K Made With Aramid Blue V-Belt (1/2" X 53" )



AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER


One New Aftermarket Replacement Made With Aramid V-Belt for Ariens, Fits John Deere, Fits Husqvarna, Simplicity, Fits Toro, MTD, and More

This A-Section Made With Aramid (Made With Kevlar) V-belt measures 1/2" x 53" outside circumference and is constructed with wrapped Made With Aramid cord for heavy-duty lawn and garden applications. Made With Aramid-reinforced belts deliver high tensile strength and non-extensibility, making them ideal for deck drive, blade drive, and transmission applications on riding mowers, walk-behind mowers, garden tractors, and tillers. The Made With Aramid construction provides superior resistance to repeated reverse flexing, heat, oil, shock loads, and cracking compared to standard polyester-cord belts - a critical advantage in clutching and backside-idler drive systems common on lawn and garden equipment.

Specifications

  • Section: A-Section (Classical)
  • Top Width: 1/2"
  • Outside Circumference (OC) Length: 53"
  • Depth: 5/16"
  • Construction: Wrapped Made With Aramid Cord
  • Color: Blue
  • Cross-reference industrial designation: 4L530K / 4LK530

Compatible Models

Ariens: 933014, 934001, 934002, 934003, 934004, 935000, 935009 YT1138, 935013 YT1232, 935014 YT1238, 935015 YT1238, 935020 YT1238, 935026 YT1238, 935028 YT1238, 935030 YT1238, 913002, 913003, 925006 Emperor, 925008 Emperor, 927023 RM1032E, 927028 RM1032E, 927030 RM1132E, 927035 RM1232E, 927041 RM1232E, 927047 RM1132E, 927050 RM1232E, 927051 RM1332E, 927055 RM1332, 927303 RM1232E, 927305 RM1332E

Fits Husqvarna / AYP: CRT 35 954001252A, CRT 35 954001252B, CRT 35 954001252C, CRT 35 954001252D, CRT35 954001252A, CRT35 954001252B, CRT35 954001252C, CRT35 954001252D, CRT 50 HRT5A, CRT 50 HRT5C, CRT 50 HRT5D, CRT50 HRT5A, CRT50 HRT5C, CRT50 HRT5D, CRT 52 954140067B, CRT 52 954140067D, CRT52 954140067B, CRT52 954140067D, CRT50 954000271, RT130 AR, RT130 BR, RT150 AR, RT150 CR, RT150 CT, RT150 DT, RT150 DR, RT150 ER, RT150 ET, RT150 FR, RT150 GR, 510CRT, YE RT5 B, YE RTS B, YP RT150 NT, AP RT5 A, AP RT5 B, T R500 A, PC R500 A, RJ 500 B, CHD R500 A, CHD R500 B, CHD R500 C, X R500 A, J 5000 DR, J 5000 ER

Simplicity / Agco / White: 1690347, 1690740, 1690750, 1690752, 1693H (ref), R2651, R70, R72, R92, 1106, 1136, 1208, 1238

Fits Allis Chalmers: 400 Series Garden Tractors (Drive / Shuttle Drive / Low Speed Drive Kit), 710X1, 712HX2, 712S, 712 S, 713, 715X1, 716H, 7013, 7013 S, 7014 S, 7116, 7116 S, 7117 S

Fits Toro: 210-5, 210-H Garden Tractors, 365

MTD / Fits Cub Cadet / Troy-Bilt: 195-765-000, 195-798-000, 196-765-000, 196-798-000, 190-765-000, 190-798-000, 850-01000, 850-05220, 9310, 9330, 3410 S, 3414 S, 3415 S, 3416 S, 56000, 56005, 56010, 56100, 56150, 57300, 57305, 57315, 57351, 57360, 57375, 57380, 57385, 57400, 57410, 57420, 59111, 85220, 95220, 952200, 952201, 952202, 952203, 952204, 952205, 952206, 952207, 952208

Snapper: 5056-14, 5056-24, 5056-94, 8932, 8933, 12-32, 12113, 13517C, 19765S, 19765C, 19798S

Jacobsen / Lawn-Boy / Fits Ford-Fits New Holland / Fits Case IH (Fits Case/International Harvester) / Deutz / Borg Warner / Atlas / Fits Poulan / White: See ref_numbers cross-reference list for additional OEM part number matches across all compatible brands.

Fits John Deere: Various lawn and garden tractor deck drive and blade drive applications (see Replaces section - M86421, M41244).

Other compatible equipment types: Walk-Behind Mowers, Riding Mowers, Garden Tractors, Lawn and Garden Tractors, Tillers, Snow Blowers, Snow Thrower Attachments, Generator Attachments, Compressors, Deck Drive Systems, Blade Drive, Deck Engagement, Transmission Systems, Blower Motors

Replaces Part Number(s):

A51K, 4L530K, 2174731SM, 2174731, 174731, 122069, 2029350, 2029350-2, 2025463, 10178, 1-0178, 7010178, 9540250, 954-250, 954-0250, 7540250, 754-0250, 9540213, 954-213, 954-0213, 7540213, 754-213, 754-0213, 9540348, 954-0348, 954213, 954250, 7540348, 754-0348, 754213, 3X473, 6131B, 608015T, 608015, 6080157, 706885, 132672, 532132672, 102143X, 532102143, 1693H, 403343, 50931, 63798, 67398, 07203800, 72038, 070238, 07203000, 072038, 072147, 12038, 26136, 359SS, 35955, DE551801, M86421, M41244, PE10013903, 32-0050024, 320050024, 9003006, 111710, 111720, 11-1710, 11-1720, 113288, 19-7050, 19-7430, 197050, 197430, 3-5856, 35856, 51-2490, 512490, 200170, 28-5250, 285250, BV24, 107-28, 10728, 311749, 311794, 317749, 27-434P, 28-5313, 28-5534, 28-6115, 907729T1, 235459, 308481

Aftermarket Interchange Numbers

4LK530, MXV4-530, MXV4530 (Jason), L453 (Dayco), V4L0530 (Fits Vapormatic), XDV 48-530, S1652 (Shaw), S1711 (Shaw), GAT6853 (A&I), H21 (Bunton), L511 (Bunton)

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

195-798-000, 935030 YT1238, 935009 YT1138, 510CRT, 927023 RM1032E, 57420, Walk-Behind Mowers, CRT50 HRT5D, 952207, CHD R500 B, 5056-24, 952208, 1238, 935014 YT1238, 3410 S, Lawn & Garden Tractors, 9310, 57375, 934002, CHD R500 C, Riding Lawn Mowers, 57300, 952200, 95220, 56005, 1136, J 5000 ER, RT130 AR, J 5000 DR, 7013 S, CRT50 954000271, Compressors, CRT35 954001252C, 3414 S, R70, 7116 S, 935000, 57315, CRT 35 954001252D, 8932, YE RT5 B, RT150 DR, Riding Mowers, 57351, 935020 YT1238, Blower Motors, PC R500 A, R2651, 86-48ST01, YE RTS B, CRT 52 954140067B, Garden Tractors, 57305, CHD R500 A, 1208, 59111, 925006 Emperor, 365, 96-48ST01, 927028 RM1032E, R72, RT150 AR, 935013 YT1232, 12-32, YP RT150 NT, 196-798-000, 195-765-000, 850-01000, 952203, 952204, AP RT5 A, 934004, 3415 S, 19765S, 57410, Tillers, Generator Attachments, 76-48ST01, 5056-14, Snow Thrower Attachments, 56100, Blade Drive, 196-765-000, CRT 50 HRT5D, T R500 A, 934003, 927055 RM1332, 1690752, RT150 GR, 06-48TS01, 952202, CRT 50 HRT5C, 57385, RT130 BR, AP RT5 B, 6-7452, RT150 FR, 1106, 325-D Diesel, RT150 CR, 952206, 927035 RM1232E, 8933, 927047 RM1132E, 927051 RM1332E, RT150 ER, 7013, R92, 850-05220, 952205, CRT35 954001252B, 19765C, 927030 RM1132E, CRT 52 954140067D, 57360, 935015 YT1238, 56000, 5056-94, 7014 S, 1690347, 925008 Emperor, CRT 35 954001252A, 56010, 7114, CRT52 954140067D, X R500 A, 57400, 927305 RM1332E, 935026 YT1238, 913002, 6-7451, 57380, 7116, 913003, 1690740, 190-798-000, 85220, 934001, 927303 RM1232E, 952201, 9330, Snow Blowers, 1690750, Walk-Behind Lawn Mowers, 86-48SX01, CRT 35 954001252B, 935028 YT1238, 3416 S, 12113, RT150 DT, 927050 RM1232E, CRT52 954140067B, CRT50 HRT5A, Deck Engagement, 13517C, Deck Drive Systems, RT150 ET, 712 S, 7117 S, 96-48SX01, RJ 500 B, 56150, 933014, 190-765-000, 518, CRT50 HRT5C, CRT35 954001252A, Rider Lawn Mowers, CRT 35 954001252C, 210-5, 06-48SX01, RT150 CT, CRT35 954001252D, 927041 RM1232E, Part 2, Transmission Systems, 19798S

Additional Information:

Width: 1/2" Length: 53" Wrapped Aramid Cord Aramid V-Belt

Reference Numbers:

954-250, 954-0250, 9540250, 754-0250, 7540250, 754-0213, 754-0348, 754-213, 7540213, 7540348, 754213, 3X473, 6131B, 954-0213, 954-213, 9540213, 9540348, 954213, 954-0348, 111710, 111720, 11-1710, 11-1720, 113288, 19-7050, 19-7430, 197050, 197430, 3-5856, 35856, 51-2490, 512490, 200170, 28-5250, 285250, 532132672, BV24, 532102143, 235459, 308481, A51K, 4L530K, 311749, 311794, 317749, 132672, 102143X, 1693H, 403343, 50931, 63798, 67398, 608015T, 608015, 6080157, 706885, 907729T1, 07203800, 72038, 070238, 07203000, 072038, 072147, 12038, 26136, 359SS, 35955, 954-0250, 754-0250, 754-0348, 954-0348, 754-0213, 754-213, 7540213, 7540250, 7540348, 754213, 3X473, 6131B, 954-0213, 954-213, 954-250, 9540213, 9540250, 9540348, 954213, 954250, 200170, 28-5250, 285250, 11-1710, 11-1720, 111710, 111720, 113288, 19-7050, 19-7430, 197050, 197430, 3-5856, 35856, 51-2490, 512490, 2025463, 2029350-2, DE551801, 754-0250, 754-0348, 954-0348, 754-0213, 754-213, 7540213, 7540250, 7540348, 754213, 3X473, 6131B, 954-0213, 954-0250, 954-213, 954-250, 9540213, 9540250, 9540348, 954213, 954250, M86421, M41244, PE10013903, 27-434P, 28-5313, 28-5534, 28-6115, 10178, 1-0178, 7010178, 2025463, 2029350, 2174731SM, 122069, 174731, 2029350, 2174731, 32-0050024, 320050024, 9003006, 11-1710, 11-1720, 111710, 111720, 113288, 19-7050, 19-7430, 197050, 197430, 3-5856, 35856, 51-2490, 512490, 200170, 28-5250, 285250, 9540250, 954-250, 954-0250, 754-0250, 7540250, 754-0213, 754-0348, 754-213, 7540213, 7540348, 754213, 3X473, 6131B, 954-0213, 954-213, 9540213, 9540348, 954213, 954-0348, 102143X, 132672, 1693H, 403343, 50931, 63798, 67398, 32-0050024, 320050024, 9003006, 2174731SM, 122069, 174731, 2029350, 2174731, 107-28, 10728
