A-AH161589-AI Kit, Hydraulic Cylinder

A-AH161589-AI Kit, Hydraulic Cylinder

AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER

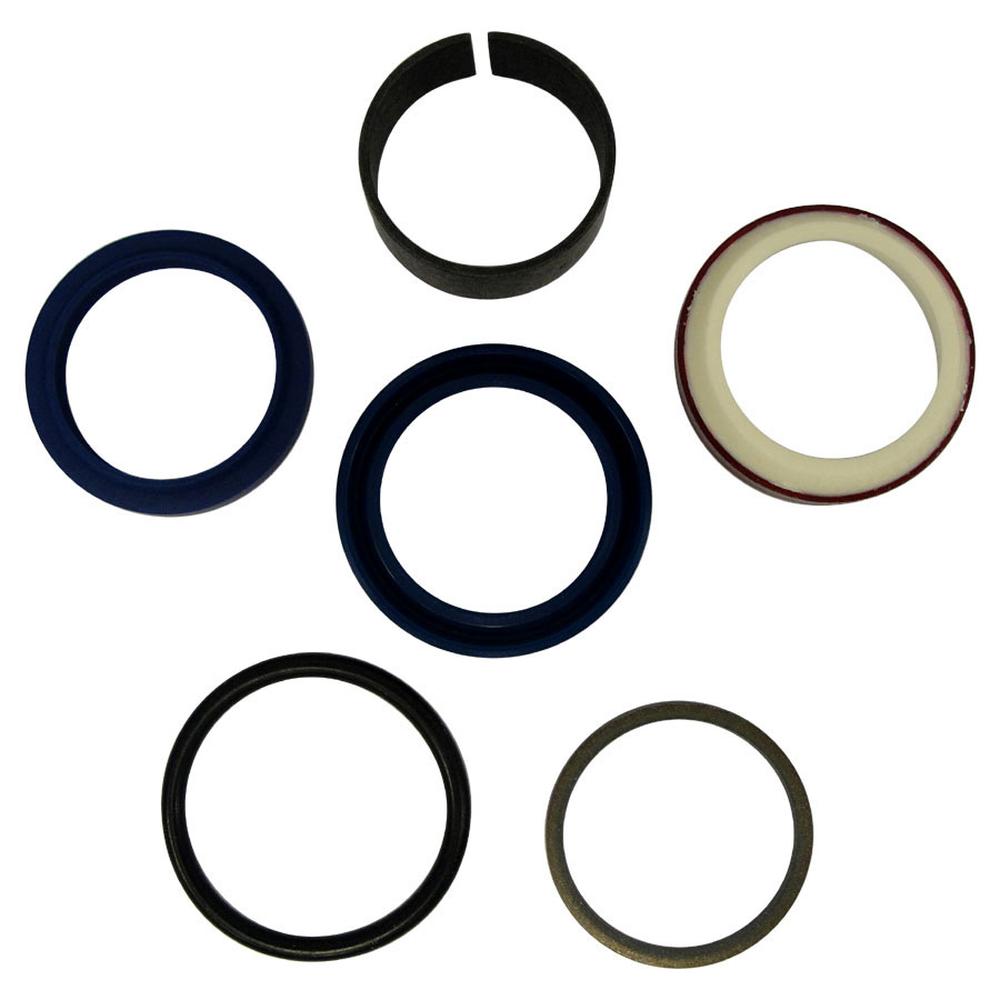

One New Aftermarket Replacement Hydraulic Cylinder Seal Kit Fits John Deere Equipment

This hydraulic cylinder rod seal kit (also known as a cylinder rod seal kit) restores hydraulic cylinder performance across a wide range of Fits John Deere (Fits JD) equipment, including motor graders, crawler/dozers, wheel loaders, loader backhoes, skid steer loaders, compact track loaders, and farm loaders. The kit seals the 32mm rod and includes a press-in wiper rod seal and U-seal. Compatible with OEM cylinder numbers AH205056 and AHC10900.

Important Fitment Note: On 444H, 444H LL, and TC44H Wheel Loaders, this seal kit applies to the steering cylinder and fits S/N 568519 and above only. On 240 and 250 Skid Steer Loaders, this kit fits BSN 925239 and above. Verify your full model number and serial number before ordering.

Specifications

  • Rod/Bore Size: 32mm
  • Seal Type: Press-in wiper rod seal; U-seal
  • Buffer Piston Seal: None
  • Kit Weight: approx. 0.13-0.15 lb

Compatible Models

Fits John Deere Motor Graders: 620 P, 620G, 620GP, 622, 622G, 622GP, 670, 670B, 670C, 670CH, 670D, 670G, 670GP, 672B, 672CH C-Series II, 672D, 672G, 672GP, 770, 770B, 770BH, 770C, 770CH, 770D, 770G, 770GP, 772, 772B, 772BH, 772CH C-Series II, 772D, 772G, 772GP, 870D, 870G, 870GP, 872D, 872G, 872GP

Fits John Deere Crawler/Dozers: 750K, 850 P, 850 X, 850K, 850L, 950 P, 950K, 1050 P, 1050K, 1050K PL

Fits John Deere Wheel Loaders: 444 P, 444H (S/N 568519-Up), 444H LL (S/N 568519-Up), 444J, 444K, 444L, 643J, 724K, 843J

Fits John Deere Loader Backhoes: 310 G, 310 P, 310E, 310J, 310K, 310K EP, 310L, 310L EP, 310SE, 310SG, 315, 315SE, 315SG

Fits John Deere Skid Steer Loaders: 240 (BSN 925239-Up), 250 (BSN 925239-Up), 313, 315, 317, 320

Fits John Deere Compact Track Loaders: CT315, CT322

Fits John Deere Farm Loaders: 100, 175, 265, 280, 500M, 520, 521, 522, 540, 540M, 540R, 541, 562, 600M, 600R, 620R, 640, 640R, 660R, 680R, 700M, 740, 843, H260, H310, H340, H360, H380, H480

Replaces Part Number(s):

AH161589

Aftermarket Interchange Numbers

AH149310, AH160843, AH168286, AH231936. Compatible with OEM cylinder assemblies AH205056 and AHC10900.

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

H260, 772G, 562, 850K, 500M, 540R, 640R, 672CH C-Series II, 1050K, 850 P, 770GP, 670B, 313, 521, 772GP, 670CH, 672B, 444 P, 670C, 700M, 310 G, 444H LL, 770G, 250, 444L, 670GP, 310J, H340, 872GP, 310E, 670G, 315, 620GP, 772D, 770CH, 280, 750K, 444H, 540M, 620 P, 640, 540, 670, 522, H380, 870G, H310, 660R, 772CH C-Series II, 950 P, 772B, 843, 315SE, 672D, 175, 850L, 310L, 772, 265, 680R, 870D, 1050 P, 1050K PL, 310K, 310L EP, 310SG, 622GP, 872D, 320, 600R, 870GP, CT315, 770BH, 770, 310K EP, 872G, 850 X, 310 P, 670D, 620R, 672G, 310SE, 772BH, 620G, 600M, 622, 724K, 770B, 444J, 541, 740, 672GP, 240, H360, CT322, 843J, 950K, 317, 622G, 520, 770C, 770D, 444K, 643J, 315SG, H480, 100

Additional Information:

Bore Size: 32mm Hydraulic Cylinder Seal Kit

Reference Numbers:

AH161589
